1 / 6Optical Windows

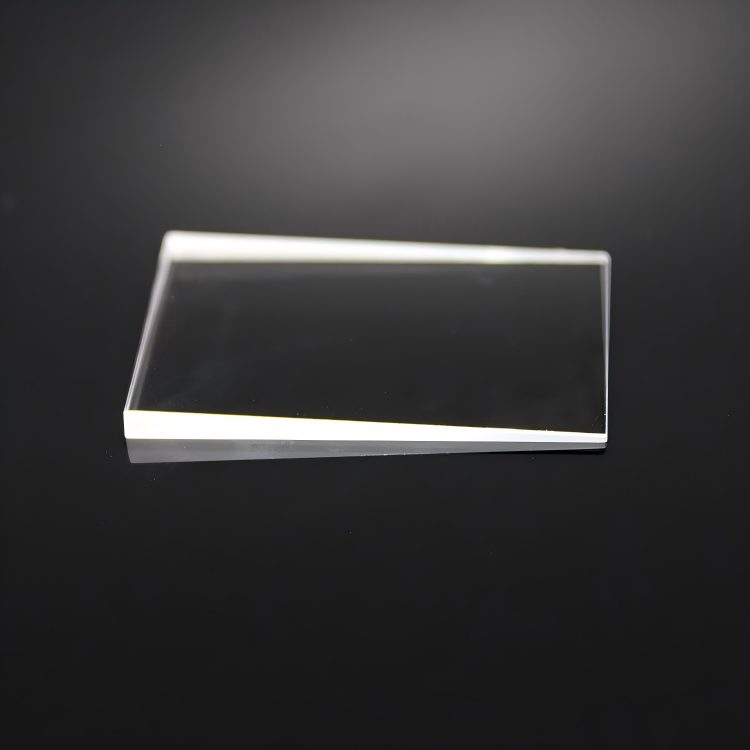

5 mm CaF2 Optical Window, AR Coated
CaF2 optical windows with 5-300mm diameter, 60/40 surface quality, and customizable options for precision applications.
Core attributes
- Material
- CaF2
- Diameter range
- 5–300 mm
- Coating
- ar
Product facts
Key attributes
- Material
- CaF2
- Diameter range
- 5–300 mm
- Coating
- ar
Product description
This optical window made from CaF2 is ideal for applications requiring high transmittance and precise optical performance. With a diameter range of 5 to 300 mm, it is suitable for various optical systems, including IR imaging and LIDAR. The window features an anti-reflective coating and meets stringent surface quality and flatness standards, ensuring minimal distortion and high clarity for critical applications.
Key Features
- Diameter range of 5.0 to 300.0 mm for versatile application fit.
- Surface quality of 60/40 ensures minimal optical distortion.
- Surface flatness of 1/10 @632.8nm for high precision in optical setups.
- Diameter tolerance of +/-0.01mm supports exacting specifications.
- Customizable options available through OEM and ODM services.
Specification Summary
| Item | Value |
|---|---|
| Material | CaF2 |
| Diameter | 5 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | opticalwindows |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.5kg |
| Diameter Tolerance | +/-0.01mm |
| Surface Flatness | 1/10 @632.8nm |
| Parallelism | 30 Arc Sec |
| Certificate | ISO9001 |
FAQ
What is the minimum order quantity (MOQ)?
The MOQ is not specified, allowing for flexible ordering.
Can I get custom sizes?
Yes, custom sizes are available through OEM and ODM support.
