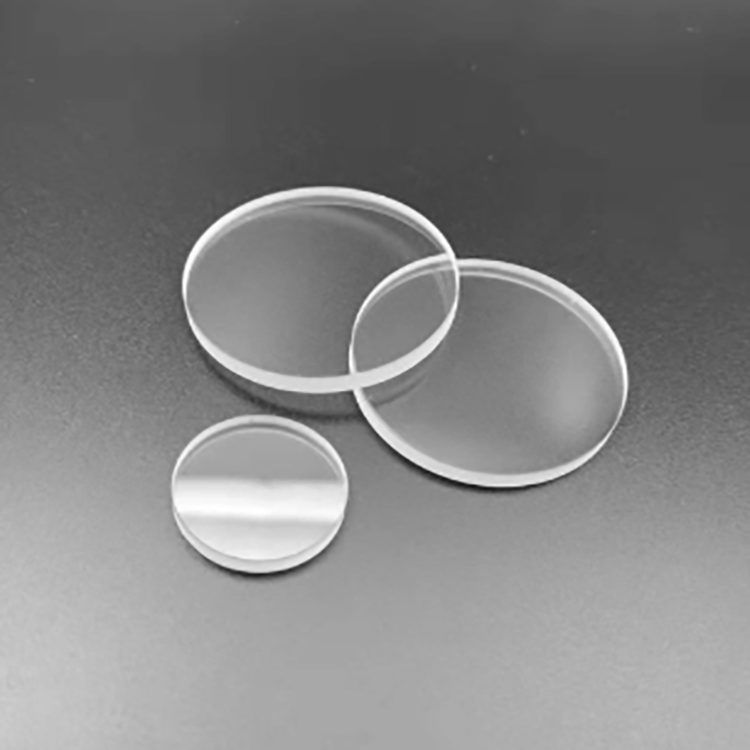

8x1 mm CaF2 Optical Window
Uncoated CaF2 optical window, 8mm diameter, 400-700 nm range, 60/40 surface quality, customizable for OEM/ODM applications.
Core attributes
- Material
- CaF2
- Diameter range
- 8 mm
- Thickness
- 1 mm
- Coating
- uncoated
Product facts
Key attributes
- Material
- CaF2
- Diameter range
- 8 mm
- Thickness
- 1 mm
- Coating
- uncoated
Product description
This uncoated CaF2 optical window is designed for applications in the 400-700 nm wavelength range. With a diameter of 8.0 mm and a thickness of 1.0 mm, it offers excellent transmission characteristics, making it suitable for various optical applications. The surface quality of 60/40 ensures reliable performance in demanding environments, while the clear aperture of 95% maximizes light throughput. Ideal for R&D and industrial use, this window provides a robust solution for precise optical needs.
Key Features
- Material: CaF2 for high optical clarity and durability.
- Diameter: 8.0 mm with a tolerance of ±0.01 mm for precise fitting.
- Surface Quality: 60/40 ensures minimal distortion and high performance.
- Clear Aperture: 95% allows for maximum light transmission.
- Customization: Available for OEM and ODM projects.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 8 x 1 |
Specification Summary
| Item | Value |
|---|---|
| Material | CaF2 |
| Diameter | 8 mm |
| Thickness | 1 mm |
| Surface Quality | 60/40 |
| Coating | uncoated |
| Transmission bands | VIS (400-700 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Optical Window |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Logo/Graphic Design | unsupport |
| Weight | 0.5kg |
| Diameter Tolerance | 0.01mm |
| Clear Aperture | 95% |
| Wavelength | 632.8nm |
| Surface Flatness | 1/4@633nm |
FAQ
Is custom sizing available?
Yes, this optical window can be customized under OEM and ODM support.
What is the diameter tolerance?
The diameter tolerance for this window is ±0.01 mm.
