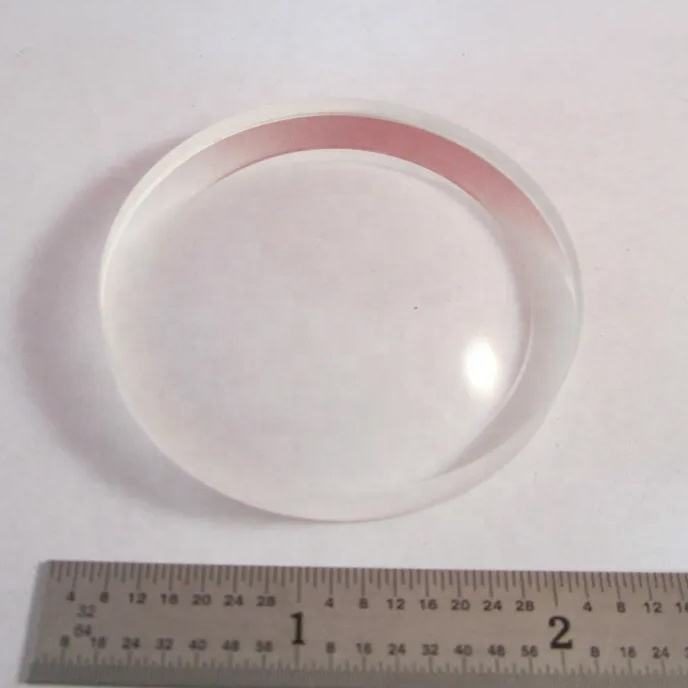

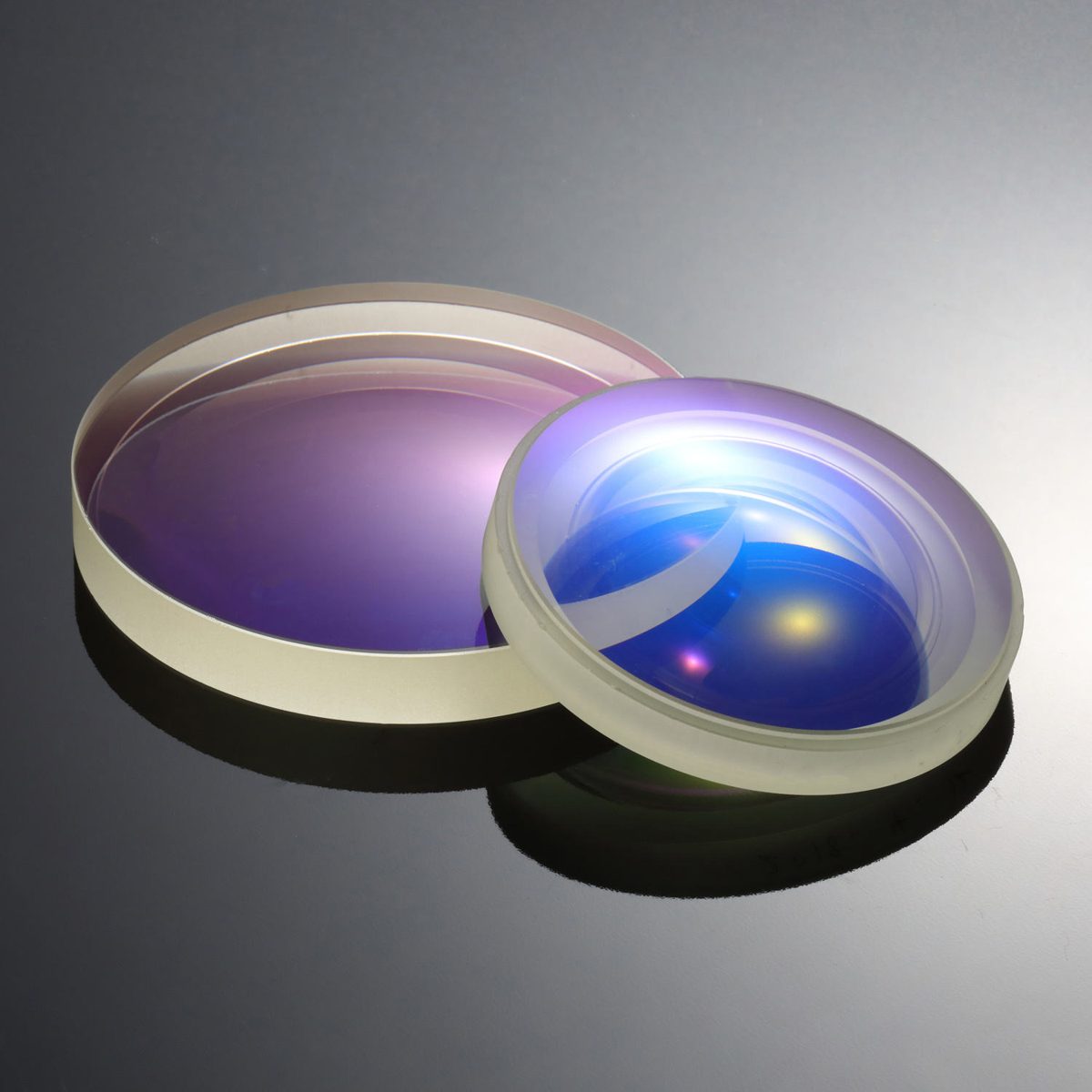

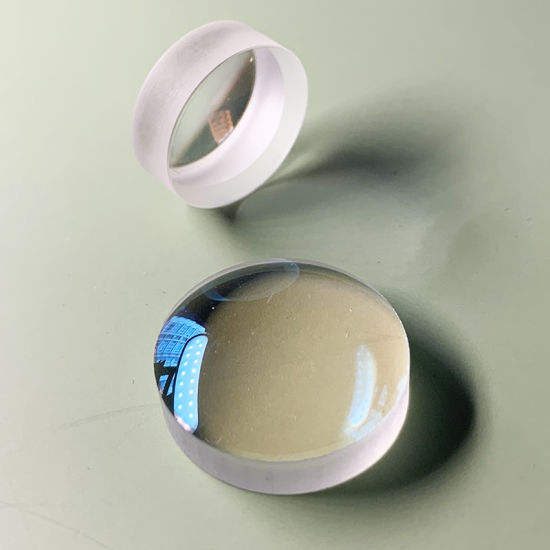

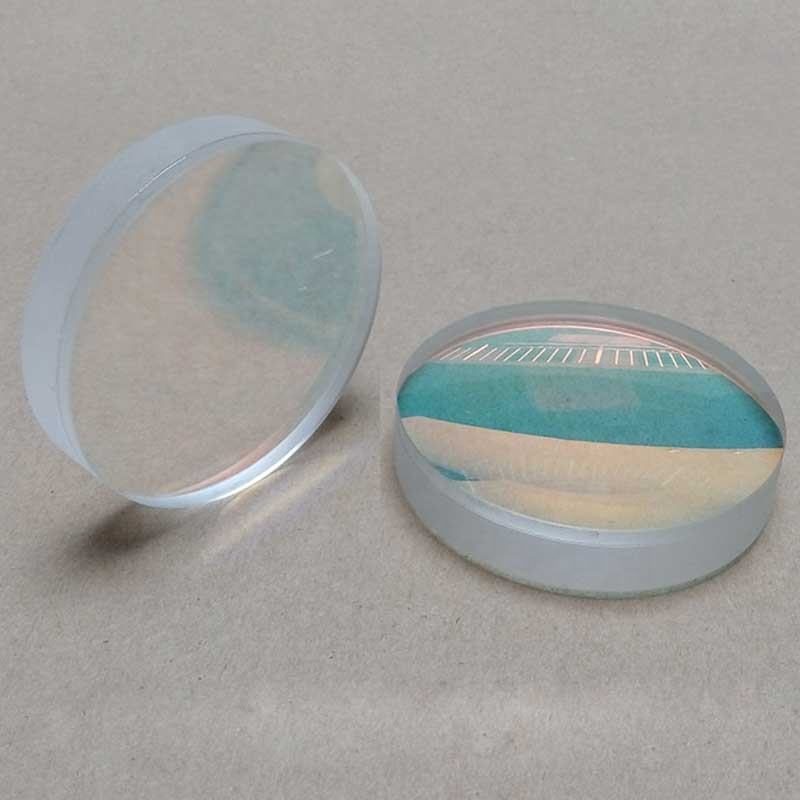

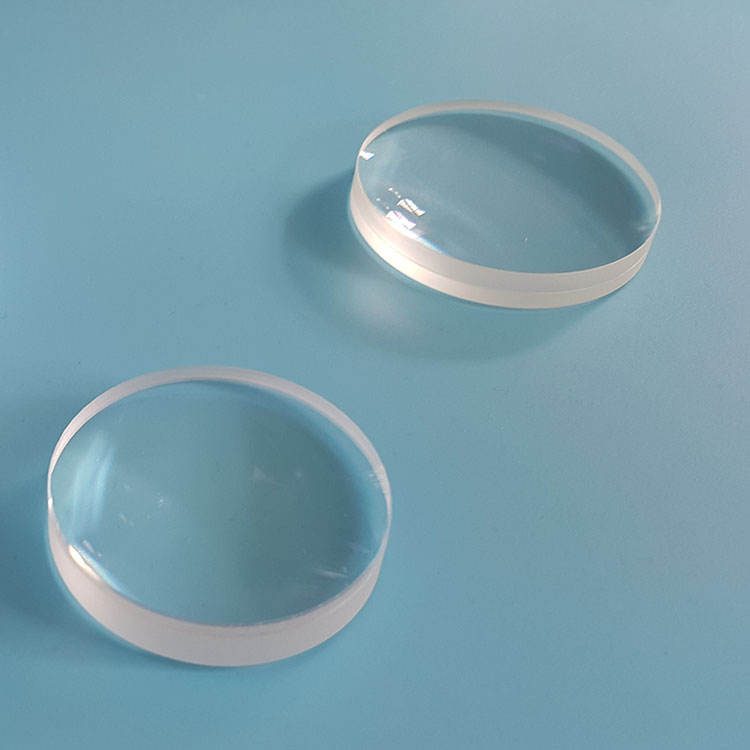

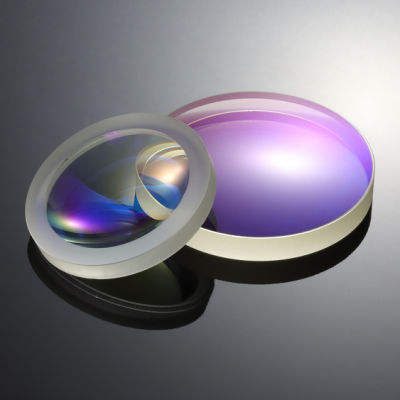

100 mm CaF2 Plano-convex Lens, AR Coated

Explore high-precision CaF₂ plano-convex lenses for thermal imaging, LIDAR, and medical applications with customizable options.

Core attributes

Material: CaF2
Shape: Plano-convex
Diameter: 100 mm
Surface Quality: 60/40
Coating: anti-reflective (AR), uncoated, mgf2
Transmission bands: LWIR (8-14 μm), MWIR (3-5 μm), NIR (0.7-1.7 μm)

Product description

Calcium Fluoride (CaF₂) plano-convex lenses are designed for applications in thermal imaging, LIDAR, and medical devices, providing exceptional performance across multiple wavelength bands (0.7-1.7 μm, 3-5 μm, and 8-14 μm). With a diameter of 100 mm and a surface quality of 60/40, these lenses ensure high reliability and clarity in demanding environments. Custom sizes and coatings are available to meet specific application needs, making them a versatile choice for R&D and procurement engineers.

Key Features

Broadband performance across 0.7-14 μm for diverse applications.
Surface quality of 60/40 ensures reliable imaging performance.
Clear aperture of ≥90% maximizes light transmission.
Dimension tolerance of ±0.2 mm for precise fitting in systems.
Custom coatings available for optimized performance in specific bands.

Applications

Thermal Imaging, Lidar, Medical, Projection, Imaging

Specification Summary

Item	Value
Material	CaF2
Shape	Plano-convex
Diameter	100 mm
Surface Quality	60/40
Coating	anti-reflective (AR), uncoated, mgf2
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm), NIR (0.7-1.7 μm)

Full Specifications

Parameter	Value
Type	Plano Convex Lens
Customized Support	OEM, ODM, OBM
Weight	0.003
Dimension Tolerance	±0.2mm
Clear Aperture	≥90%
Focal Length Tolerance	±2%

FAQ

What are the available custom sizes for these lenses?

Standard sizes are 100 mm in diameter, with custom sizes available upon request.

What is the minimum order quantity (MOQ) for these lenses?

The MOQ is not specified; please inquire for specific requirements.
