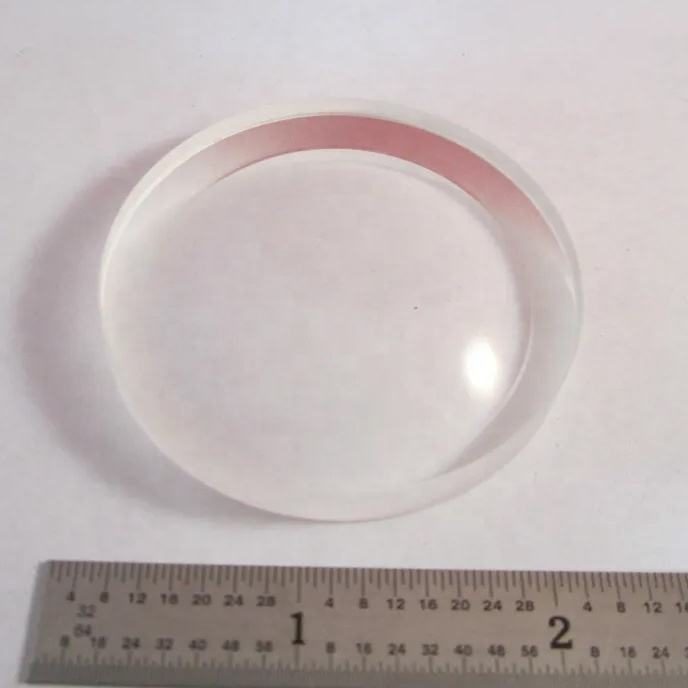

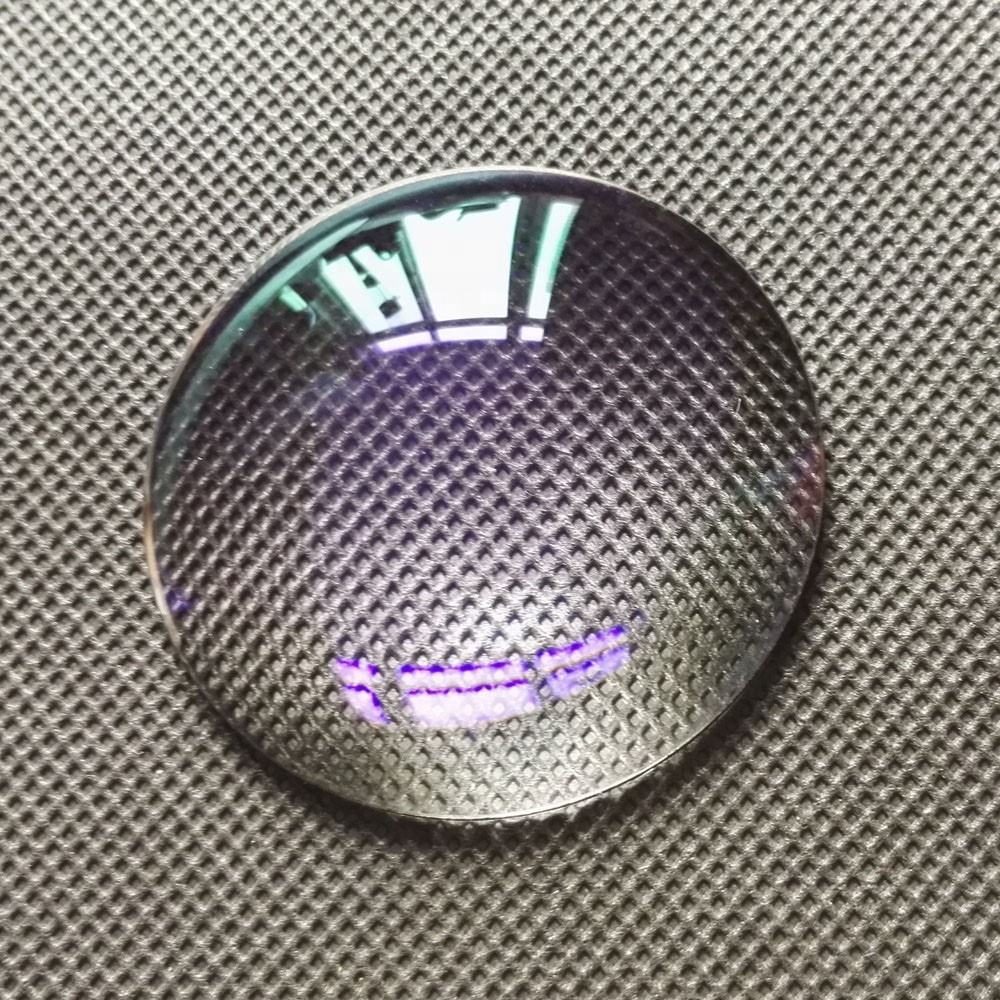

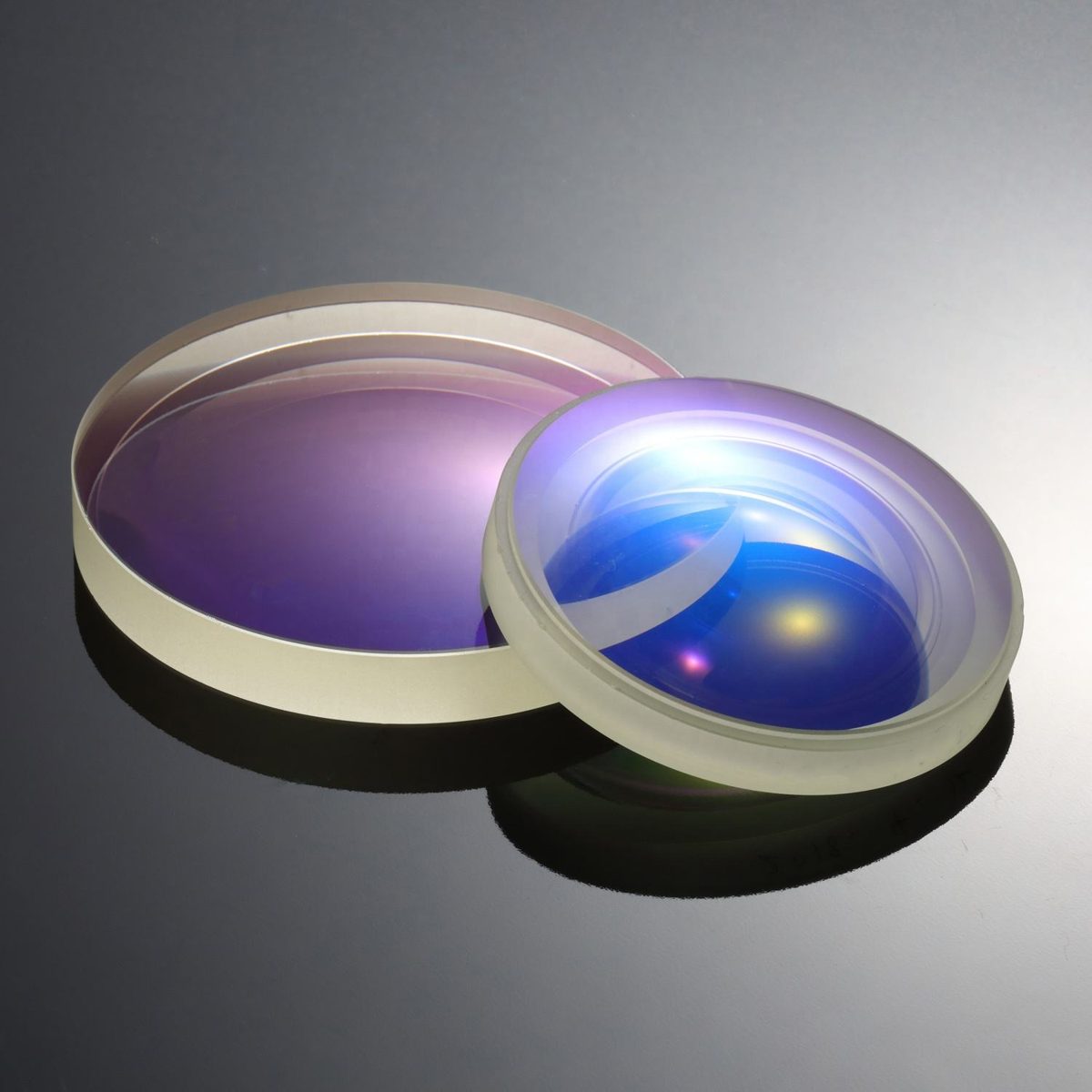

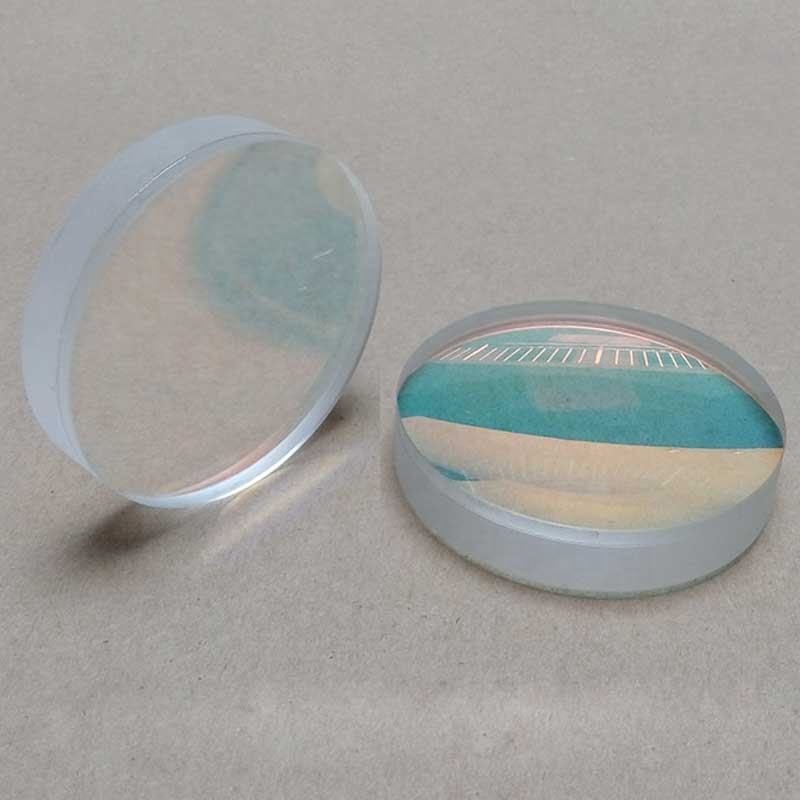

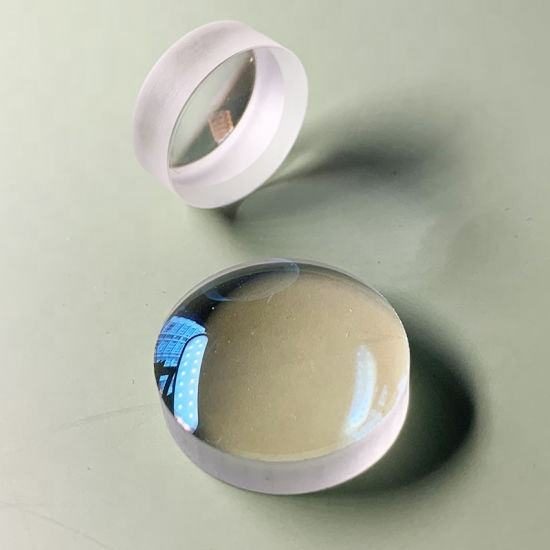

100 mm CaF2 Plano-convex Lens, AR Coated

Product description

The CaF2 plano-convex lens is designed for high-performance applications in thermal imaging, LIDAR, and general imaging. With a transmission range of 400-700 nm and <400 nm, it meets the demands of UV and IR spectral applications. This lens offers exceptional imaging quality due to its low dispersion and high damage threshold, making it suitable for use in excimer laser environments. Customization options are available to fit specific application needs.

Key Features

High transmission through 0.18-8.0 microns for UV and IR applications.
Surface quality of 60/40 ensures reliable performance in imaging.
Centration tolerance of <3 arcmin for precise alignment.
Clear aperture ≥90% for optimal light utilization.
Custom sizes available from 5mm to 300mm with a dimension tolerance of ±0.2mm.

Applications

Thermal Imaging, Lidar, Imaging

Specification Summary

Item	Value
Material	CaF2
Shape	Plano-convex
Diameter	100 mm
Surface Quality	60/40
Coating	anti-reflective (AR), uncoated, mgf2
Transmission bands	VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	Plano Convex Lens
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Weight	0.01
Dimension Tolerance	±0.2mm
Focal Length Tolerance	±1%
Centration	<3 arcmin
Clear Aperture	≥90%
Bevel	Protective Bevel

FAQ

What is the minimum order quantity (MOQ) for this lens?

The MOQ for this lens is not specified, allowing for flexible purchasing options.

Can I get a custom size for this lens?

Yes, custom sizes ranging from 5mm to 300mm are available.
