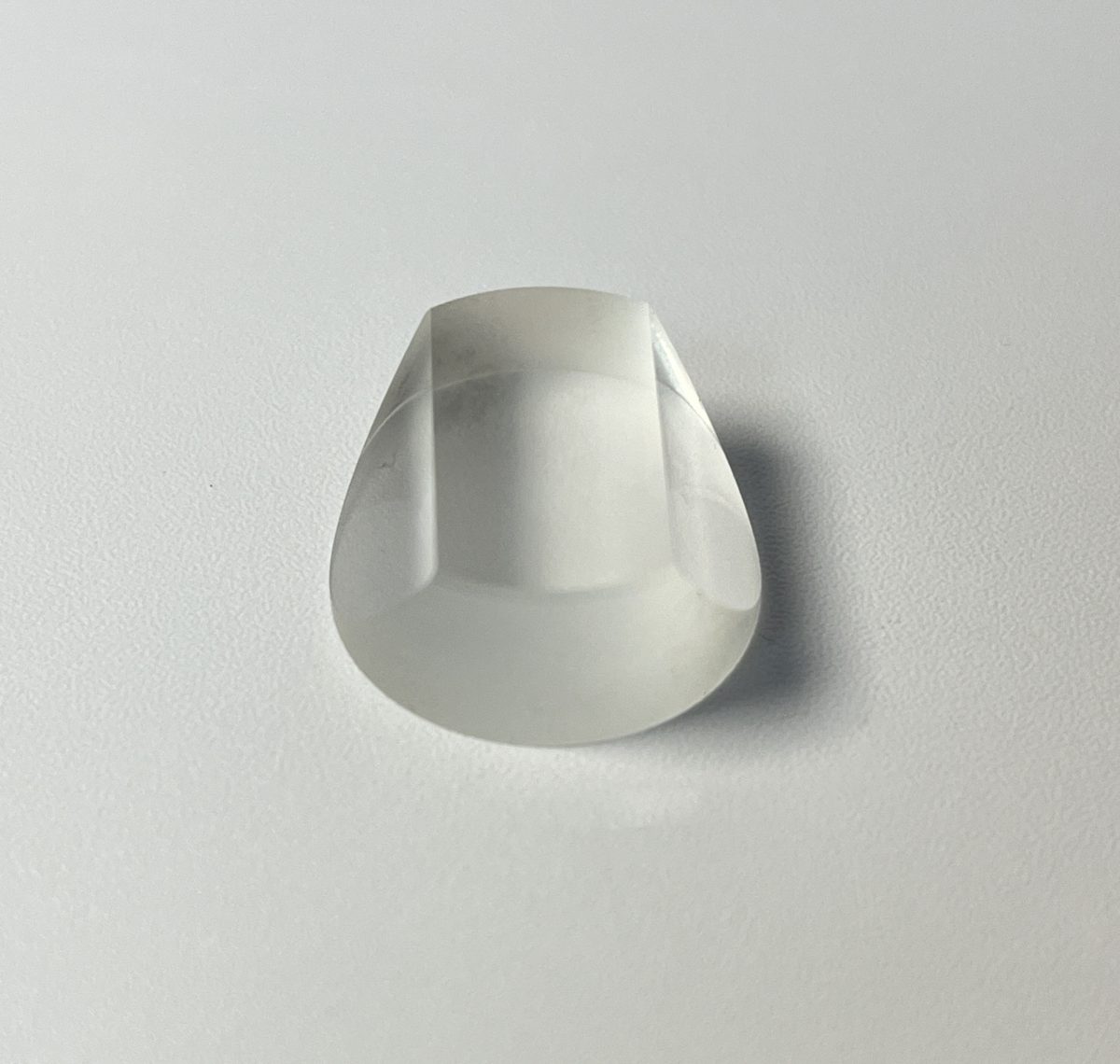

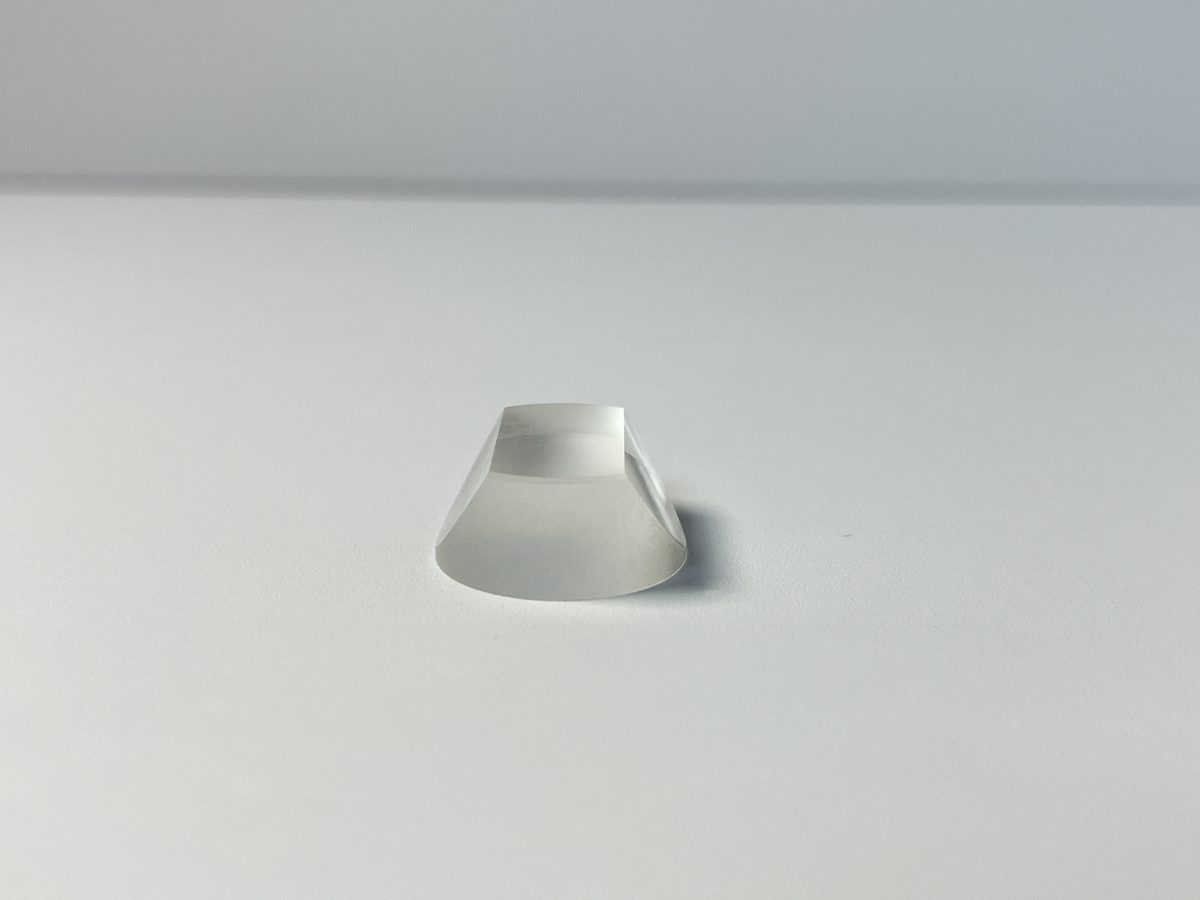

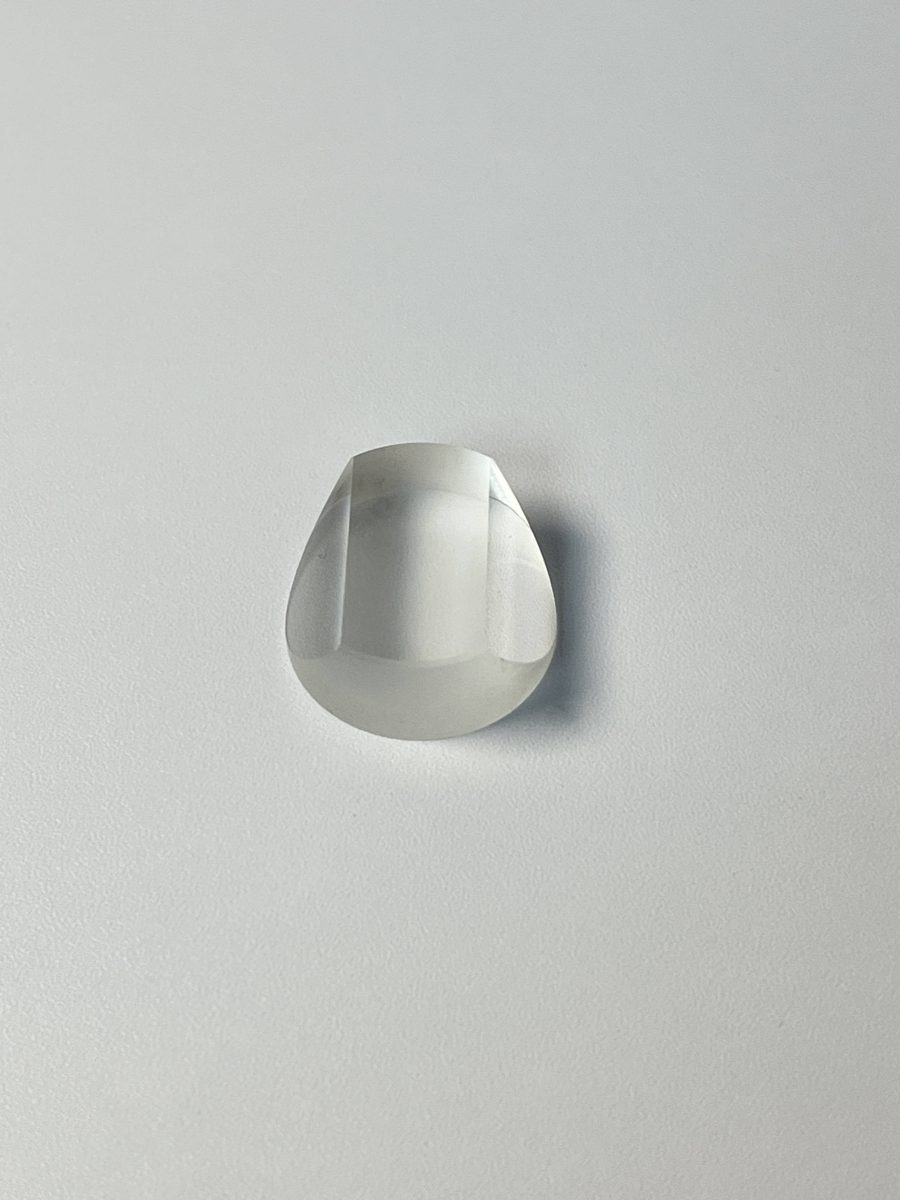

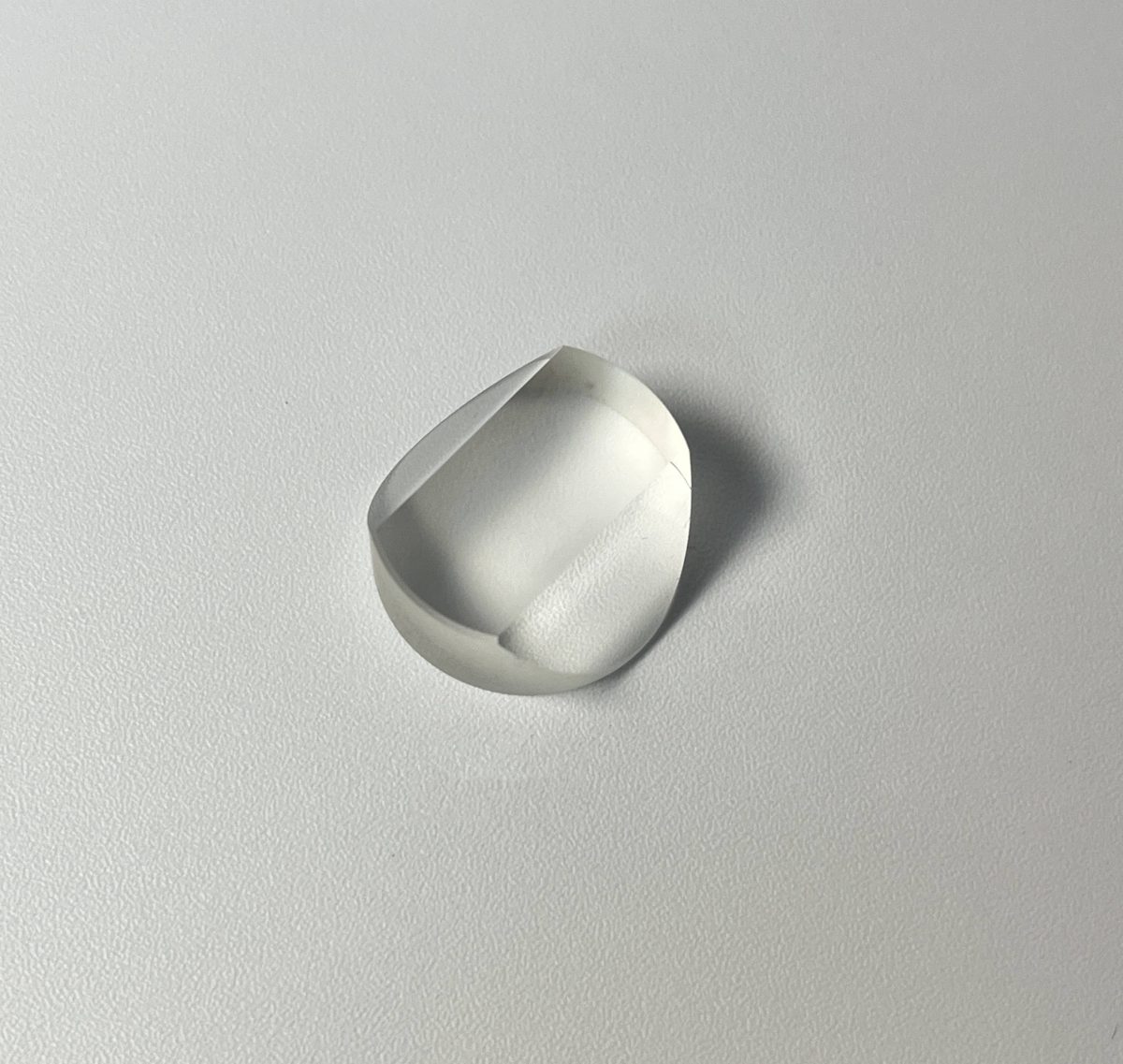

5x1 mm CaF2 Roof Optical Prism, AR Coated

Product description

The CaF2 roof prism is designed for precision applications requiring minimal beam deviation and high angular accuracy. With an angle tolerance of less than 3 arcseconds, this prism ensures reliable performance in optical paths. Its customizable dimensions allow for tailored solutions in various setups, making it ideal for R&D and engineering applications.

Key Features

Angle tolerance of <3 arcsec ensures precise alignment in optical systems.
Custom sizes available from 5.0 mm to 100.0 mm, accommodating specific application needs.
Dimension tolerance of ±0.1 mm supports high-precision requirements.
Flatness specification of L/2 - L/8 @ 633 nm maintains wavefront integrity.
Clear aperture of ≥90% maximizes light transmission efficiency.

Available Sizes

Size x Thickness (mm)
52.5 x 5.5

Specification Summary

Item	Value
Material	CaF2
Shape	Roof
Size	5 mm
Thickness	1 mm
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Prism Type	Triangular Prism
Customized Support	OEM, ODM, OBM
Warranty	1 month
Angle Tolerance	<3 arcsec
Dimension Tolerance	±0.1mm
Flatness	L/2- L/8 @633nm
Clear Aperture	≥90%
Bevel	0.2-0.5mmx45°

FAQ

Can I get custom sizes for the roof prism?

Yes, custom sizes are available ranging from 5.0 mm to 100.0 mm.

What is the angle tolerance for this prism?

The angle tolerance is less than 3 arcseconds, ensuring high precision.
