1 / 6Optical Windows

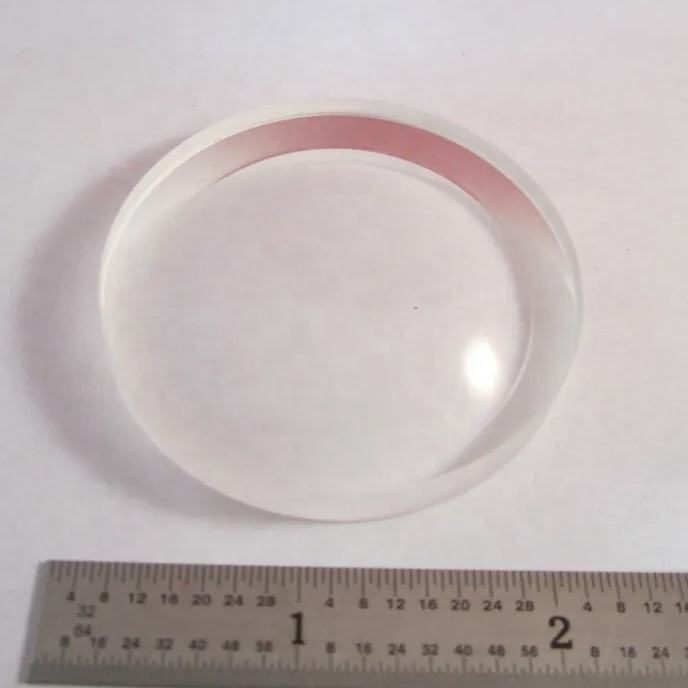

100 mm CaF2 Round Optical Window, AR Coated
Explore high-performance CaF₂ Plano Convex Lenses for thermal imaging and medical applications with customizable options.
Core attributes
- Material
- CaF2
- Shape
- round
- Diameter range
- 100 mm
- Coating
- ar, uncoated
Product facts
Key attributes
- Material
- CaF2
- Shape
- round
- Diameter range
- 100 mm
- Coating
- ar, uncoated
Product description

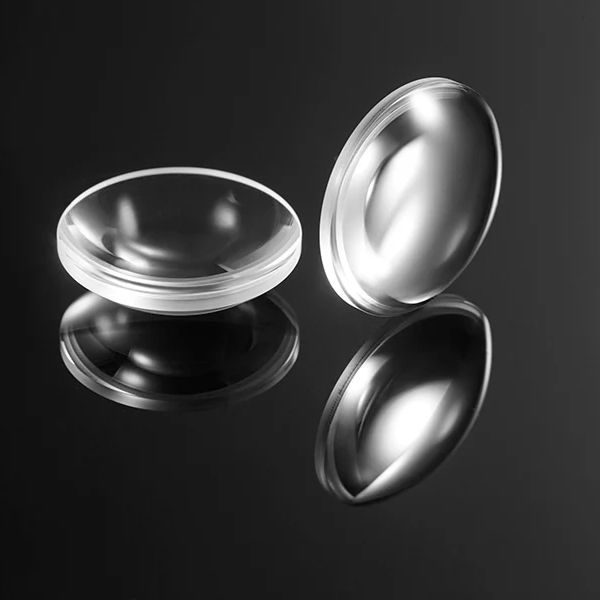

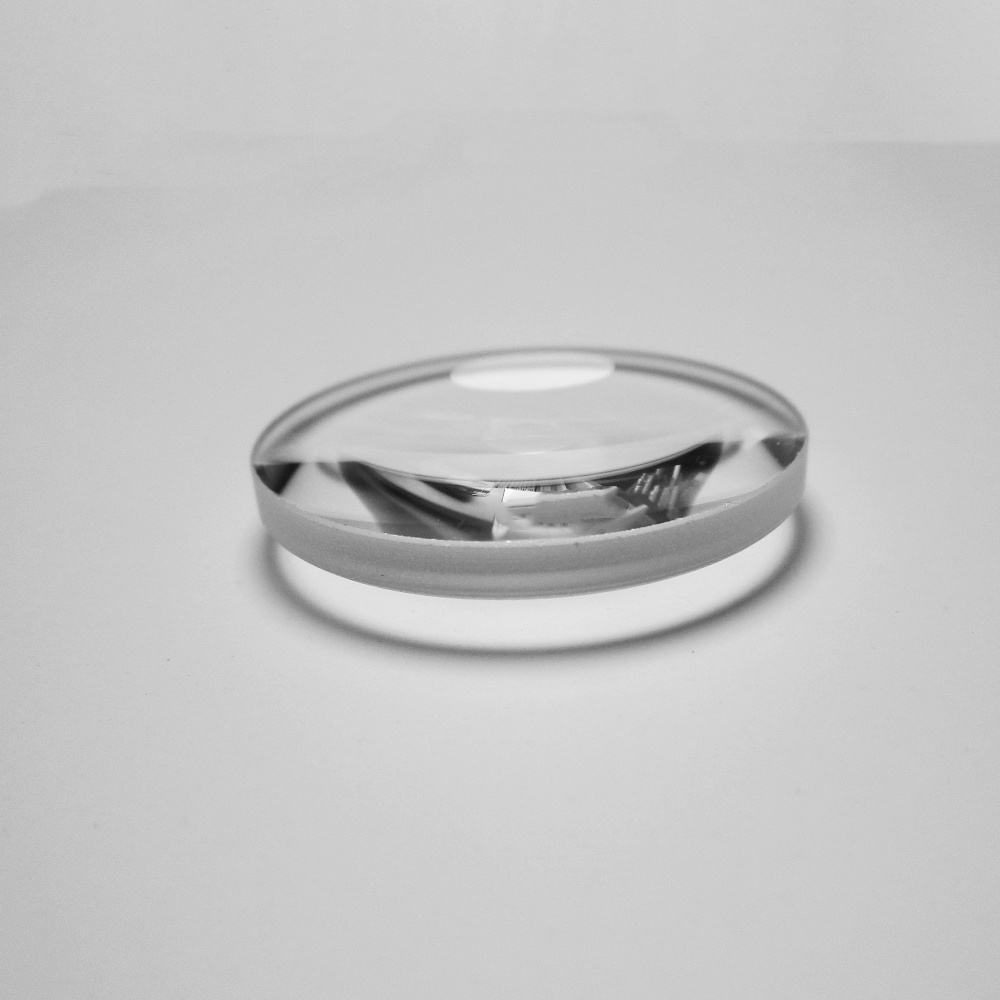

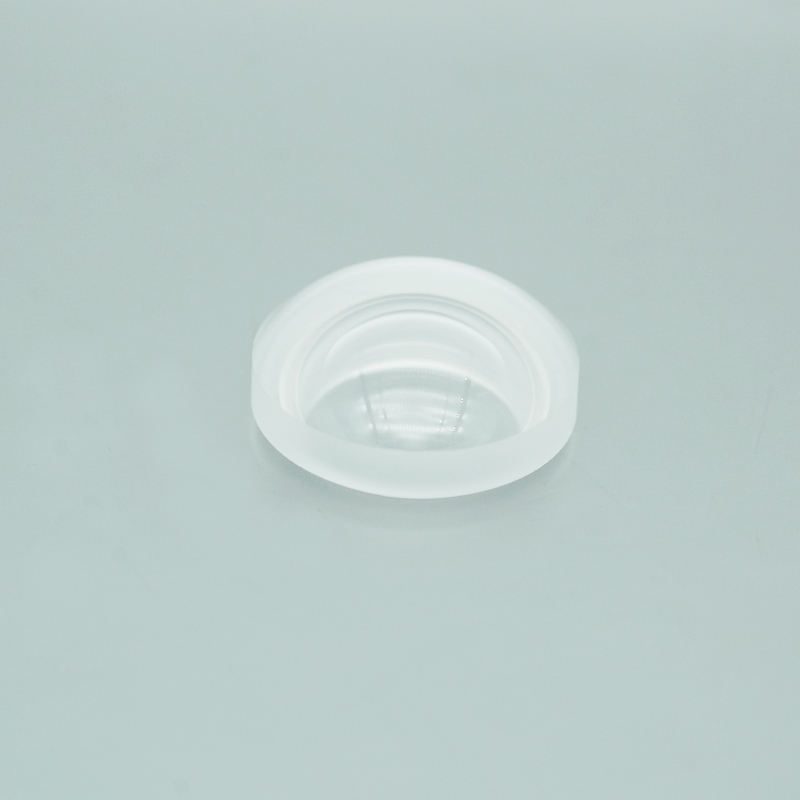

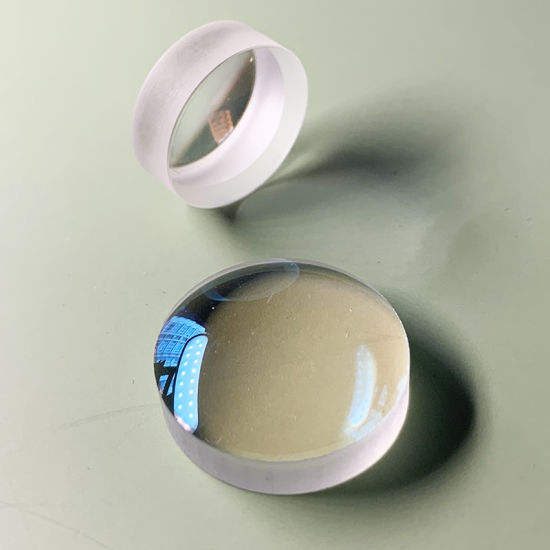

Calcium Fluoride (CaF₂) Plano Convex Lenses are designed for thermal imaging and medical applications, providing exceptional performance across multiple bands, including 0.7-1.7 μm, 3-5 μm, and 8-14 μm. These lenses feature high transmittance and a surface quality of 60/40, making them suitable for demanding environments. With options for AR coatings and custom sizes, they cater to various optical needs.
Key Features
- Broadband performance across 0.7-14 μm bands for versatile applications.
- Surface quality of 60/40 ensures reliable imaging and clarity.
- Dimension tolerance of ±0.2 mm supports precise integration into systems.
- Clear aperture of ≥90% maximizes light transmission for enhanced performance.
- Customizable with OEM, ODM options for tailored solutions.
Applications
Thermal Imaging, Medical
Specification Summary
| Item | Value |
|---|---|
| Material | CaF2 |
| Shape | Round |
| Diameter | 100 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), NIR (0.7-1.7 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Plano Convex Lens |
| Customized Support | OEM, ODM, OBM |
| Weight | 0.003 |
| Dimension Tolerance | ±0.2mm |
| Parallelsim | <3 arcmin |
| Clear Aperture | ≥90% |
| Focal Length Tolerance | ±2% |
FAQ
What are the available custom sizes?
Custom sizes can be provided beyond the standard 100 mm diameter.
What is the minimum order quantity (MOQ)?
The MOQ is not specified, allowing for flexible ordering.
