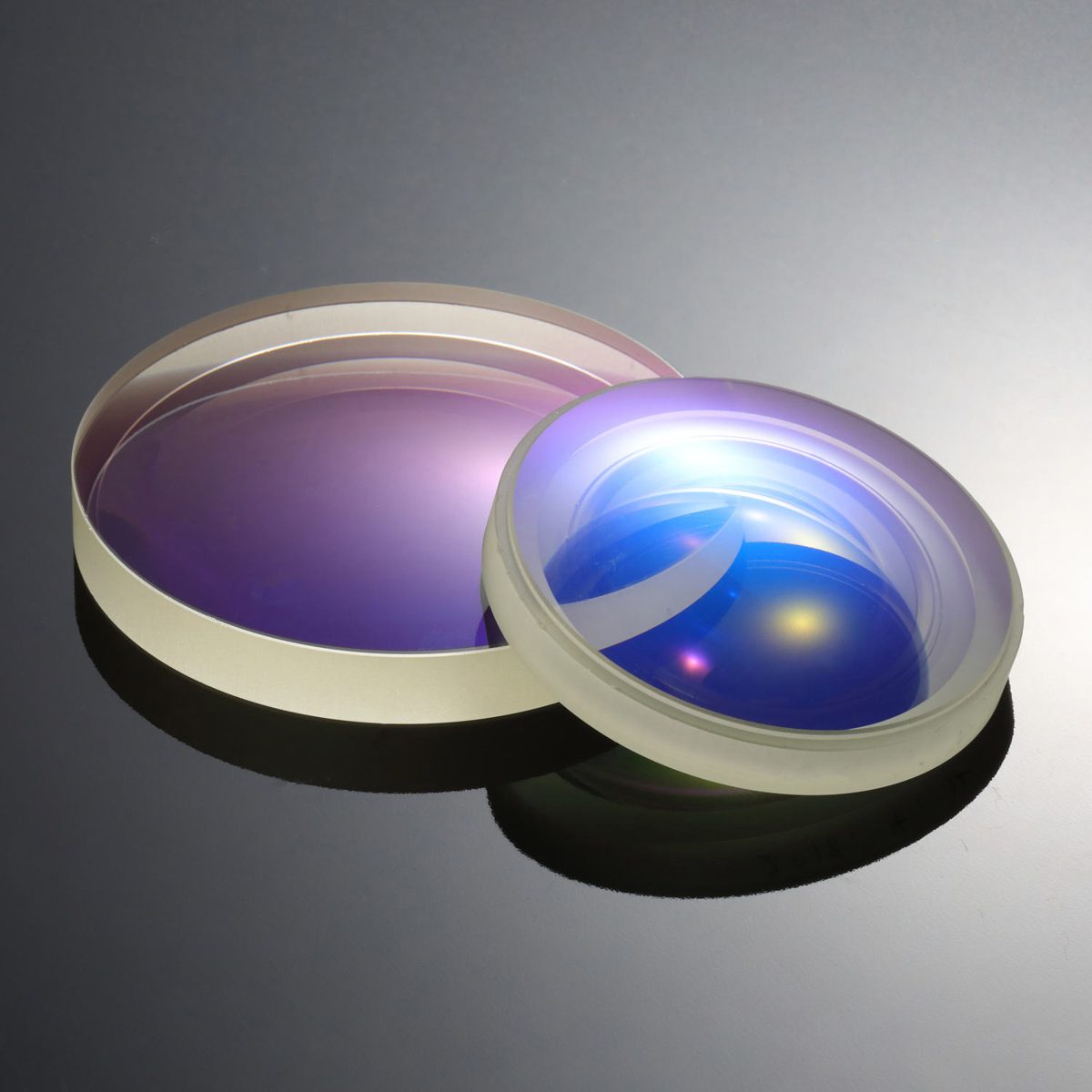

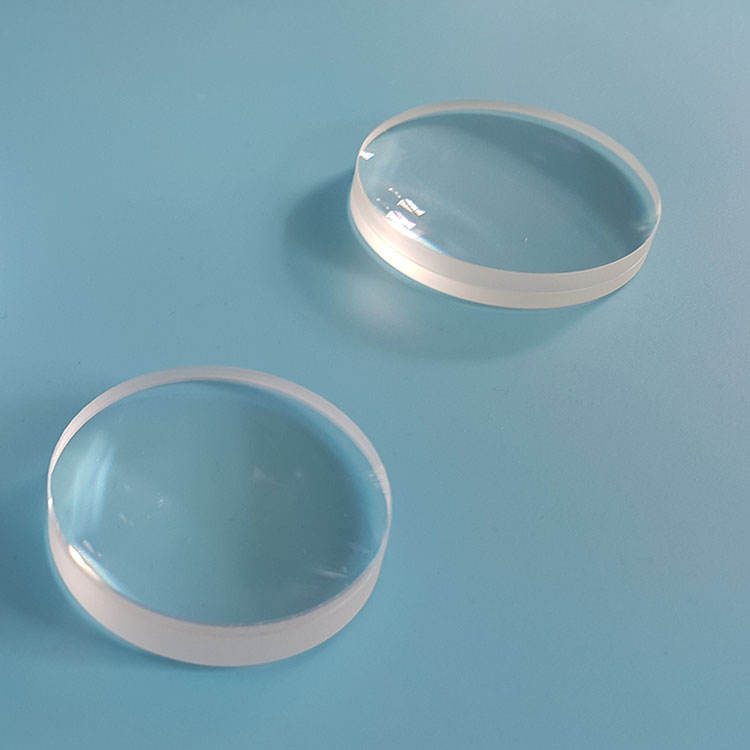

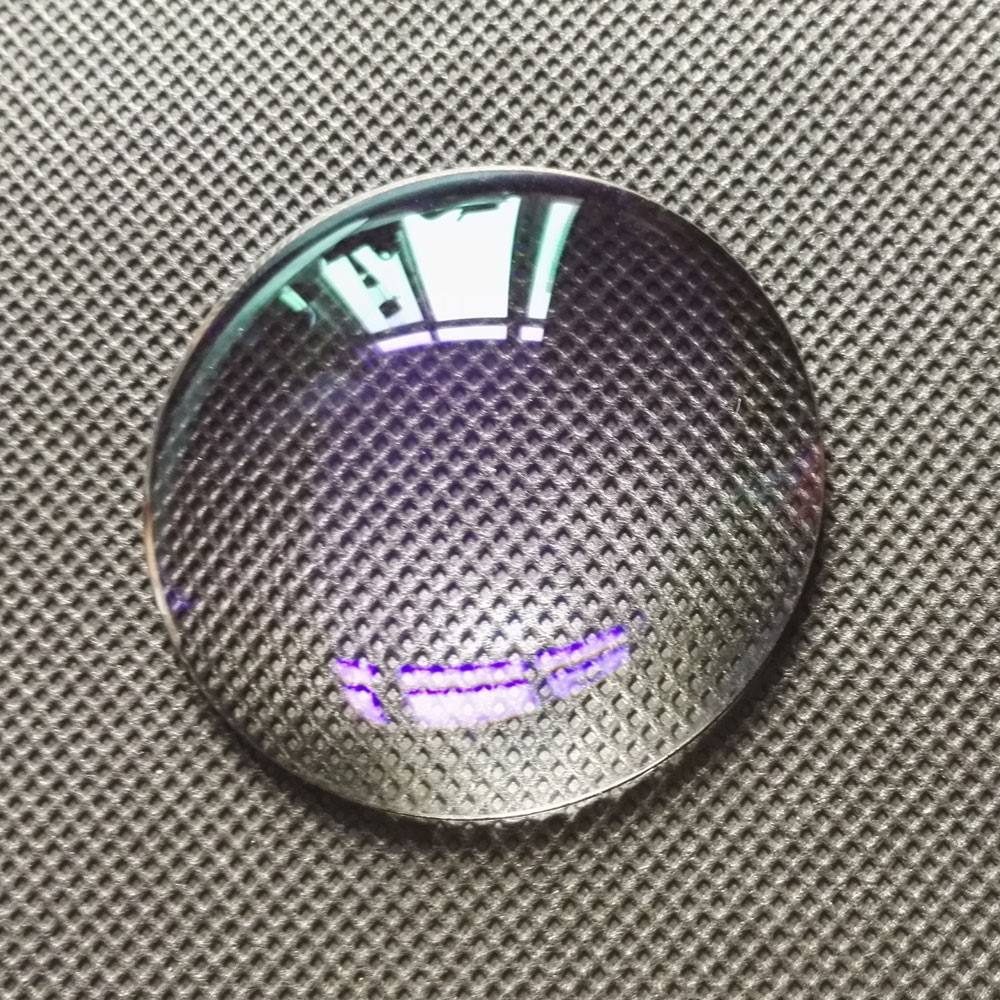

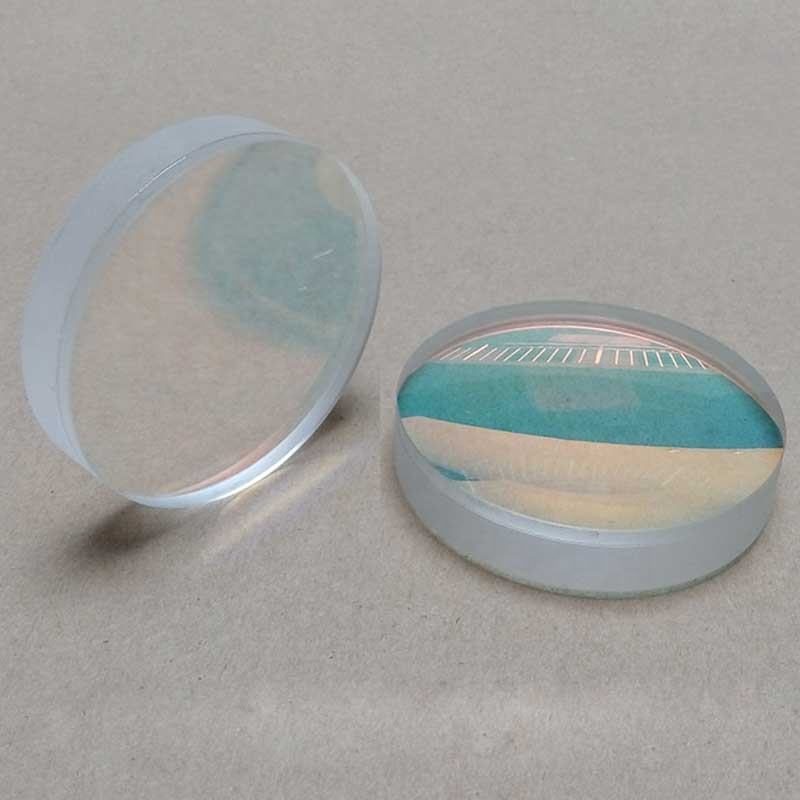

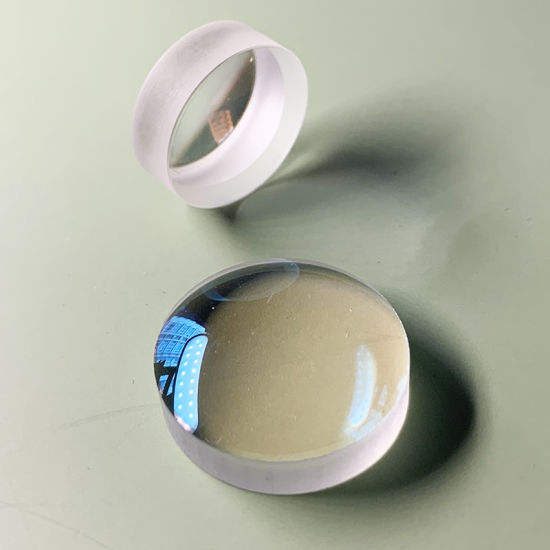

100 mm CaF2 Round Optical Window, AR Coated
Round CaF2 plano convex lens with high clarity, customizable sizes, and precision tolerances for optical applications.
Core attributes
- Material
- CaF2
- Shape
- round
- Diameter range
- 100 mm
- Coating
- ar, uncoated
Product facts
Key attributes
- Material
- CaF2
- Shape
- round
- Diameter range
- 100 mm
- Coating
- ar, uncoated
Product description
The round CaF2 plano convex lens is designed for high clarity and light transmission, making it ideal for precise optical measurements in various applications. With a diameter of 100 mm and customizable options up to 200 mm, this lens supports diverse needs in imaging and focusing. The lens features a surface quality of 60/40 and a dimension tolerance of ±0.2 mm, ensuring reliability and accuracy in critical applications.
Key Features
- High transmittance for excellent clarity and light transmission.
- Customizable sizes available up to 200 mm for versatile applications.
- Precision manufacturing with a dimension tolerance of ±0.2 mm.
- Clear aperture of ≥90% for optimal performance.
- Multiple coating options including AR for various light conditions.
Specification Summary
| Item | Value |
|---|---|
| Material | CaF2 |
| Shape | Round |
| Diameter | 100 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), uncoated |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Plano Convex Lens |
| Customized Support | OEM, ODM, OBM |
| Weight | 0.003 |
| Dimension Tolerance | ±0.2mm |
| Parallelsim | <3 arcmin |
| Clear Aperture | ≥90% |
| Focal Length Tolerance | ±2% |
FAQ
Is custom sizing available?
Yes, customizable sizes are available up to 200 mm.
What is the dimension tolerance?
The dimension tolerance is ±0.2 mm.
