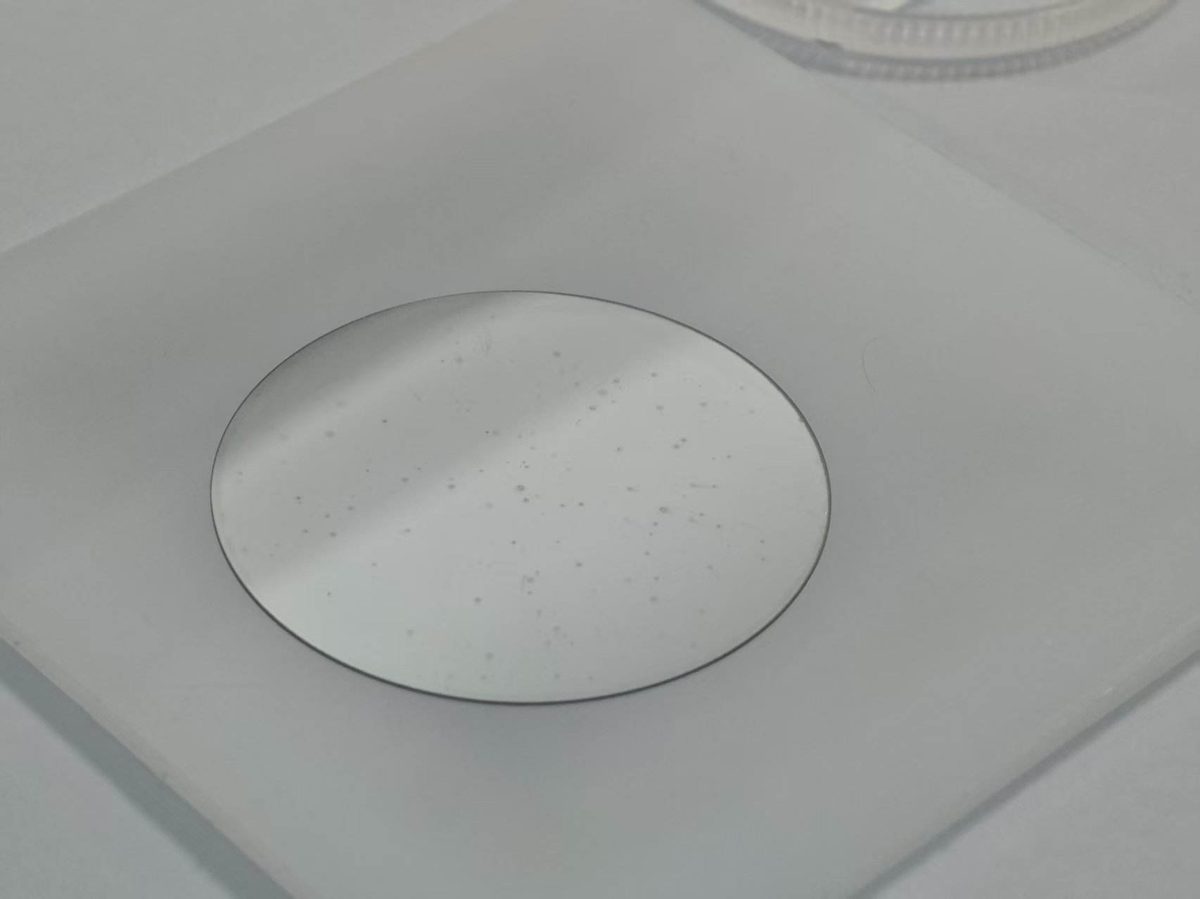

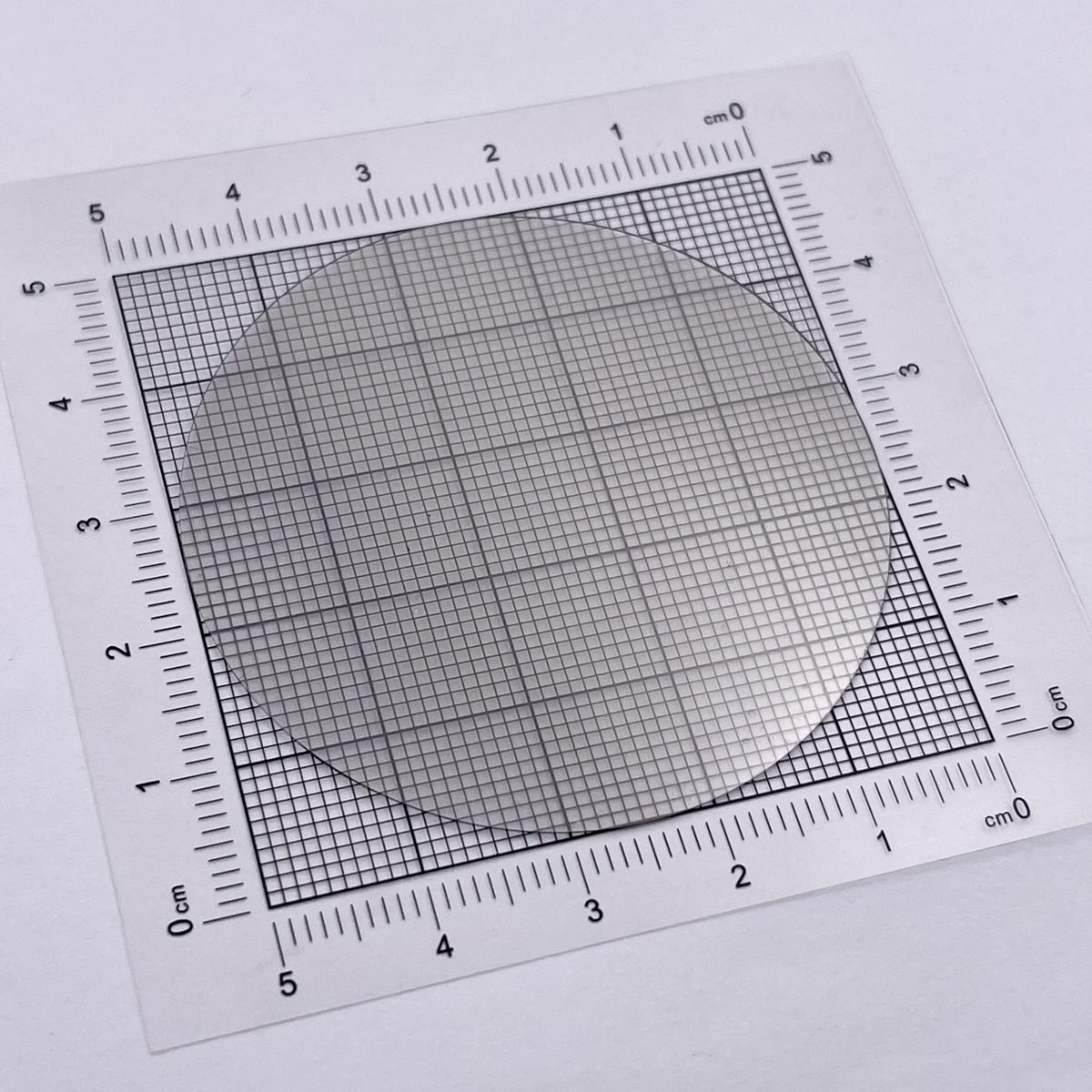

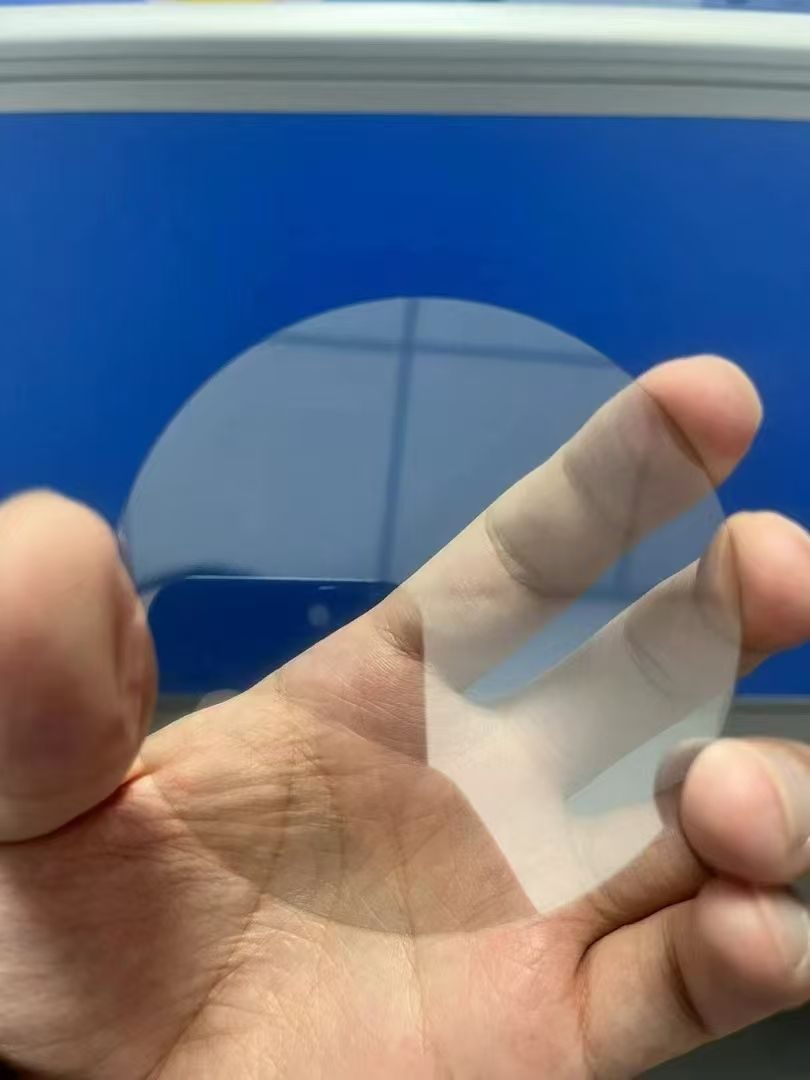

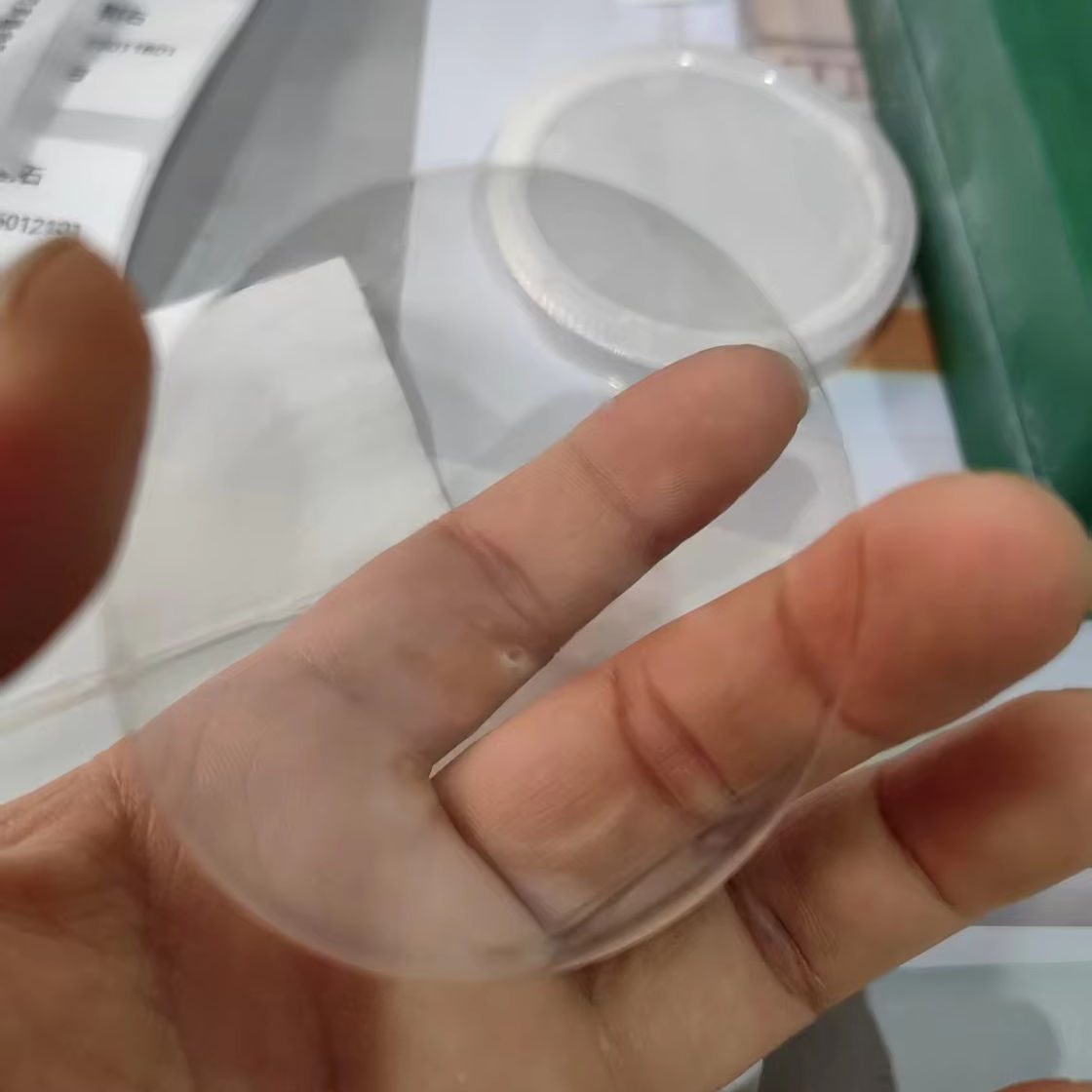

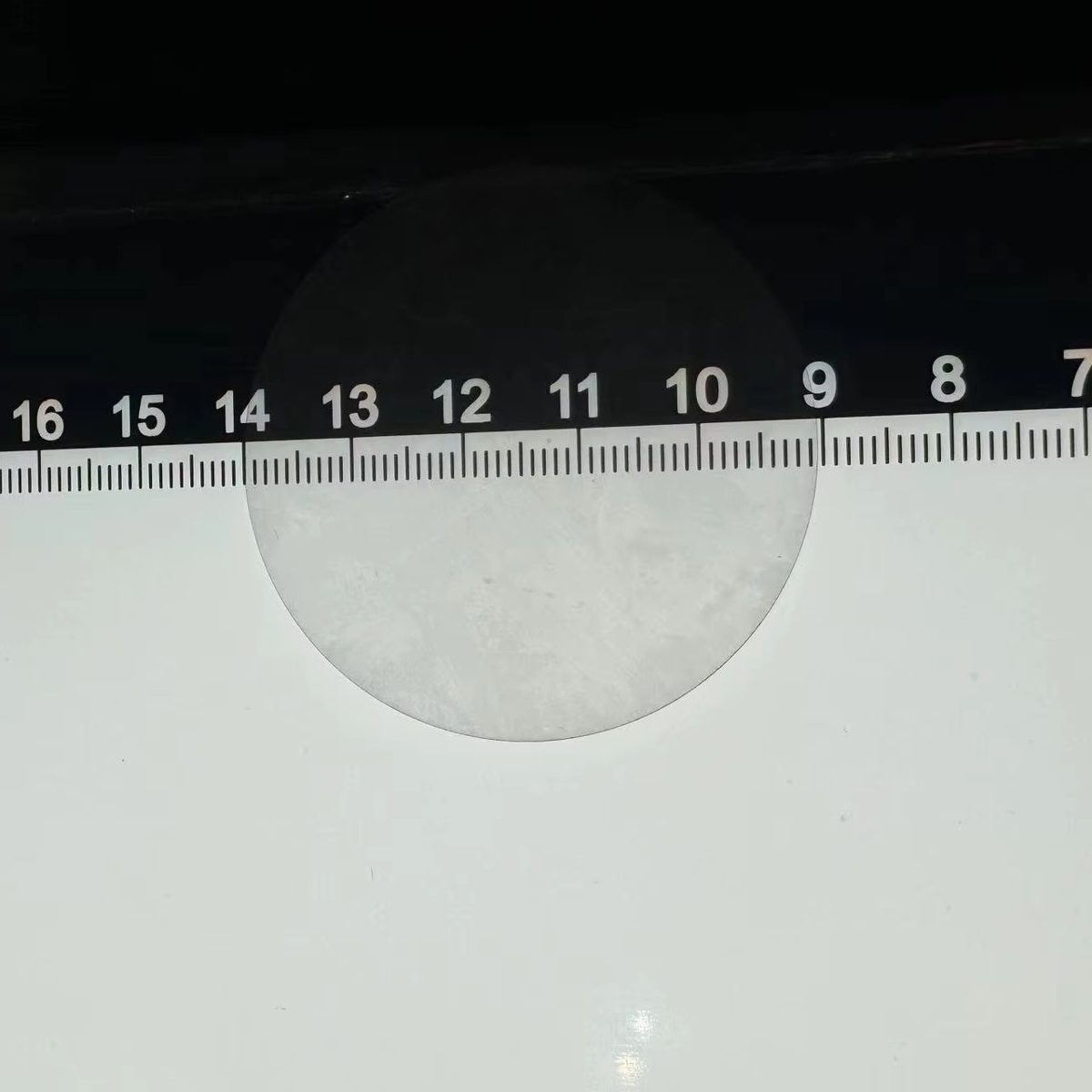

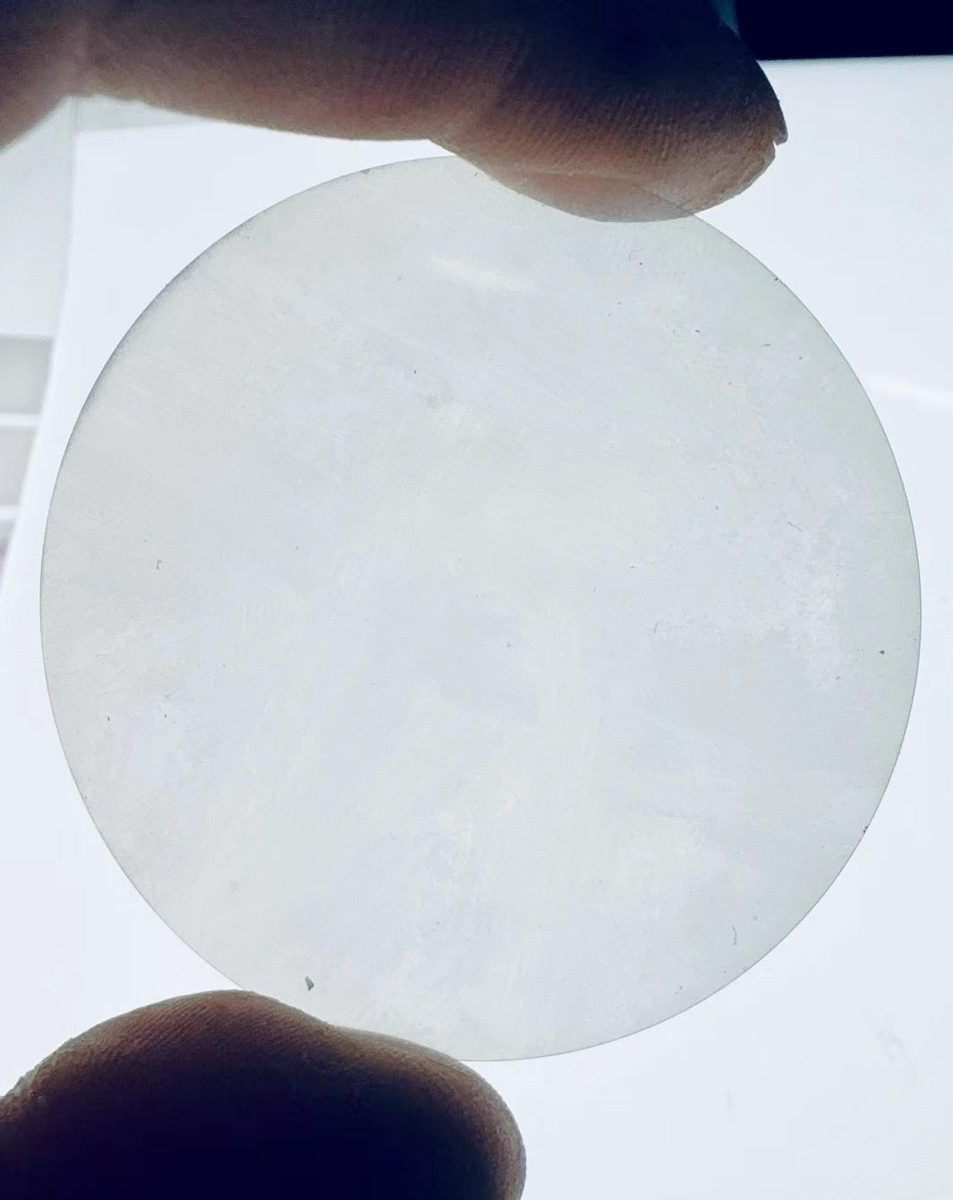

10x0.1 mm Diamond Round Optical Window, AR Coated

This round CVD diamond optical window is designed for applications in laser cutting, semiconductor processing, and medical devices. With exceptional performance across a wide spectral range of 0.7-1.7 μm, 8-14 μm, and below 400 nm, it provides superior thermal management and durability. Its hardness and low absorption characteristics ensure reliability in demanding environments, making it an ideal choice for high-power laser systems and precision optics.

Key Features

• Ultra-wide optical transmission from 220 nm to >50 µm for versatile applications.
• Thermal conductivity > 2200 W/m·K ensures efficient heat dissipation for high-power devices.
• Extreme hardness (Mohs 10) offers outstanding scratch resistance and chemical inertness.
• Customizable diameters up to 50 mm and thickness of 0.1 mm for specific needs.
• Low absorption and scatter at 1064 nm and 10.6 µm maintain beam quality.

Available Sizes

Applications

Laser Cutting, Semiconductor, Medical

Specification Summary

Full Specifications

FAQ

Is custom sizing available?

Yes, diameters can be customized up to 50 mm with a thickness of 0.1 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; please inquire for details.
