1 / 6Optical Mirrors

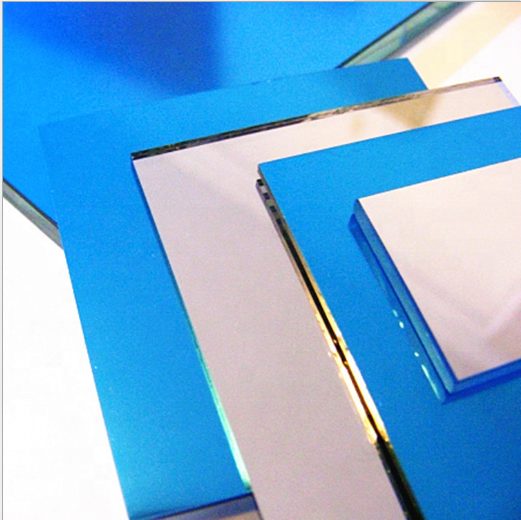

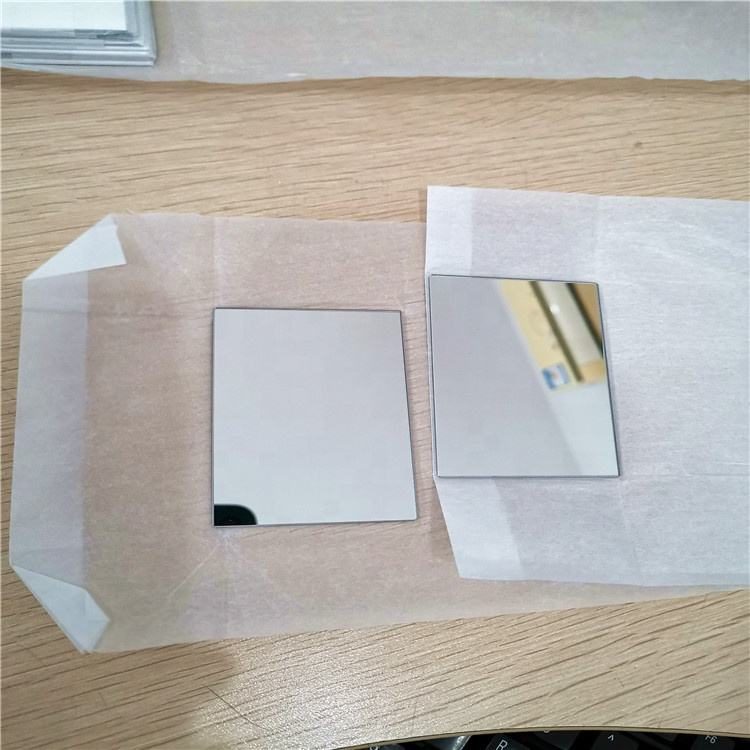

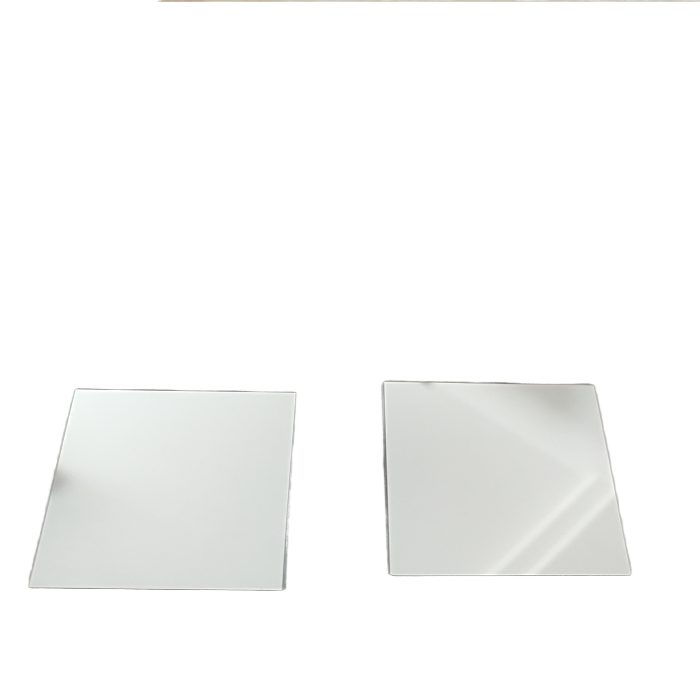

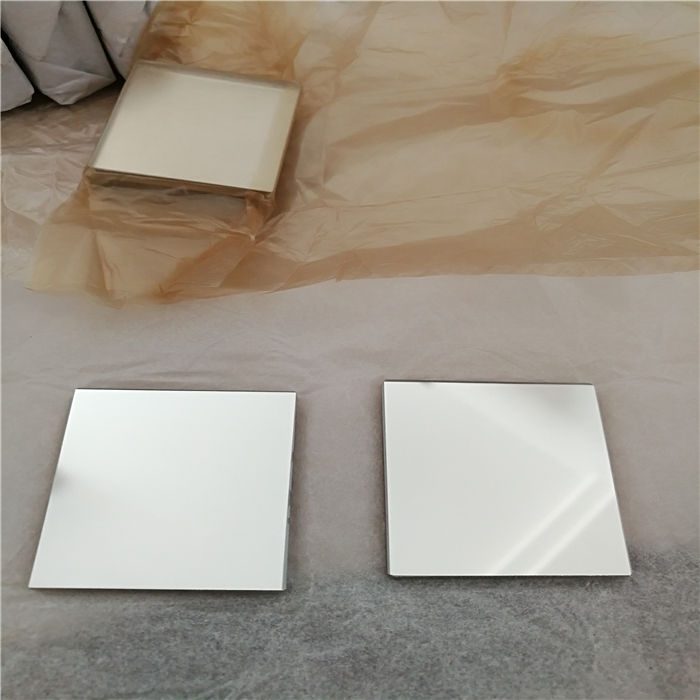

10 mm Float Glass Custom Optical Mirror
Custom plano mirror with aluminum coating for 0.7-1.7 μm and 400-700 nm applications.
Core attributes
- Material
- Float Glass
- Shape
- Custom
- Size
- 10 mm
- Thickness
- Custom
- Coating
- aluminum, front-surface
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Float Glass
- Shape
- Custom
- Size
- 10 mm
- Thickness
- Custom
- Coating
- aluminum, front-surface
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description

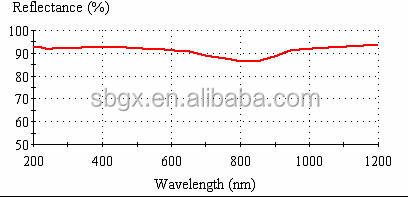

This custom plano mirror, made from float glass, is designed for applications requiring high reflectance in the 0.7-1.7 μm and 400-700 nm bands. Its front-surface aluminum coating ensures minimal ghosting and double-reflection, making it suitable for laser, LIDAR, and machine-vision applications. With customizable sizes ranging from 10 mm to 350 mm, this mirror meets various project specifications.
Key Features

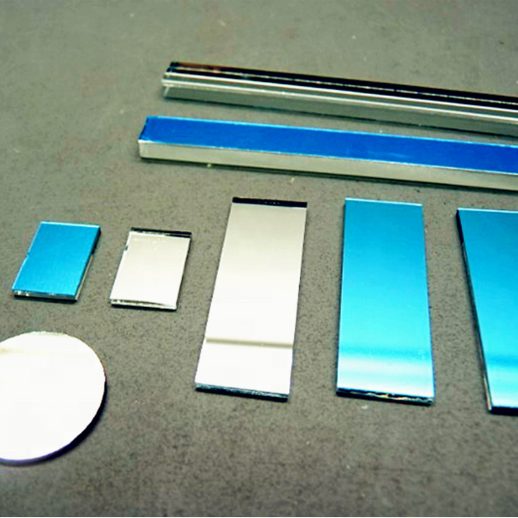

- Custom sizes from 10 mm to 350 mm for versatile application fit.
- Front-surface aluminum coating minimizes ghosting for improved image quality.
- Compatible with 0.7-1.7 μm and 400-700 nm wavelengths for diverse optical systems.
- Tolerance of +/-0.05mm to +/-0.1mm ensures precision in critical applications.
Specification Summary
| Item | Value |
|---|---|
| Material | Float Glass |
| Shape | Custom |
| Size | 10 mm |
| Thickness | Custom |
| Coating | aluminum, front-surface |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Plano |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 year |
| Weight | Based on size |
| Tolerance | +/-0.05mm to +/-0.1mm |
FAQ
Can I get custom sizes?
Yes, sizes can be customized from 10 mm to 350 mm.
What are the tolerances for this mirror?
The tolerances range from +/-0.05mm to +/-0.1mm.
