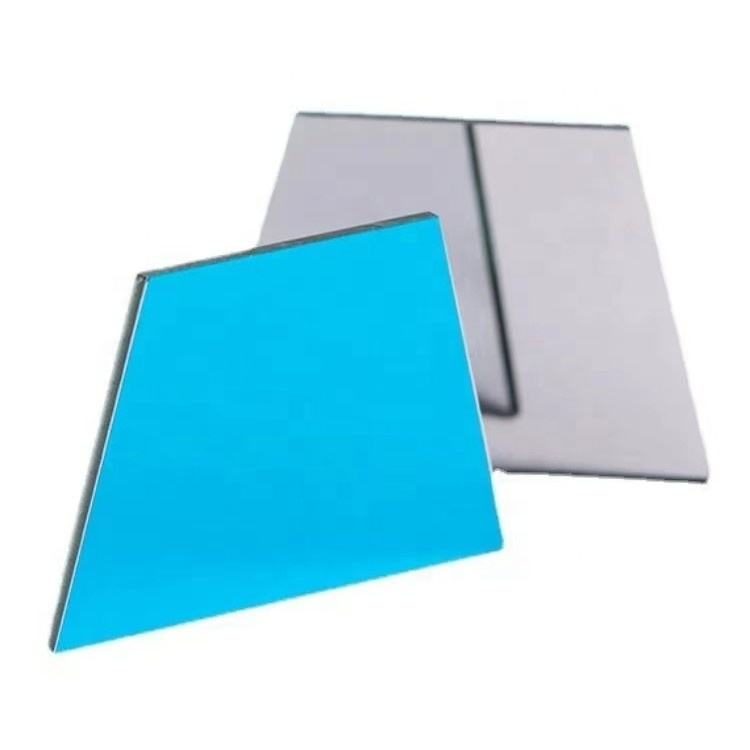

Custom Size Float Glass Flat Optical Mirror
Flat dielectric HR mirror for 400-700 nm with <3 arcmin flatness and 60/40 surface quality. Ideal for precision optical applications.
Core attributes
- Material
- Float Glass
- Shape
- Flat
- Size
- Custom
- Thickness
- 0.6 mm
- Surface Quality
- 60/40
- Coating
- dielectric HR, front-surface
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Float Glass
- Shape
- Flat
- Size
- Custom
- Thickness
- 0.6 mm
- Surface Quality
- 60/40
- Coating
- dielectric HR, front-surface
- Transmission bands
- VIS (400-700 nm)
Product description
This flat mirror, made from float glass and coated with a dielectric high-reflectance layer, is ideal for applications in the 400-700 nm wavelength range. Its front-surface construction minimizes ghosting effects, ensuring high-quality reflections. With a surface quality rating of 60/40 and a flatness tolerance of less than 3 arcminutes, this mirror meets the stringent demands of optical systems requiring precise wavefront quality.
Key Features
- Dielectric HR coating provides high reflectance for optimal performance in the 400-700 nm range.
- Front-surface design eliminates ghosting, enhancing image clarity.
- Surface quality rating of 60/40 ensures reliable performance in precision applications.
- Flatness tolerance of <3 arcmin supports high wavefront quality.
- Available in thicknesses from 0.55 mm to 5.0 mm for versatile applications.
Specification Summary
| Item | Value |
|---|---|
| Material | Float Glass |
| Shape | Flat |
| Size | Custom |
| Thickness | 0.6 mm |
| Surface Quality | 60/40 |
| Coating | dielectric HR, front-surface |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Bevel | 0.2mm* 45 DEGREE |
| Wavelength | 10@633nm |
| Flatness | <3 arcmin |
FAQ
Can I get custom sizes?
Custom sizes are not specified, but OEM and ODM support is available.
What is the minimum order quantity?
Minimum order quantity details are not provided.
