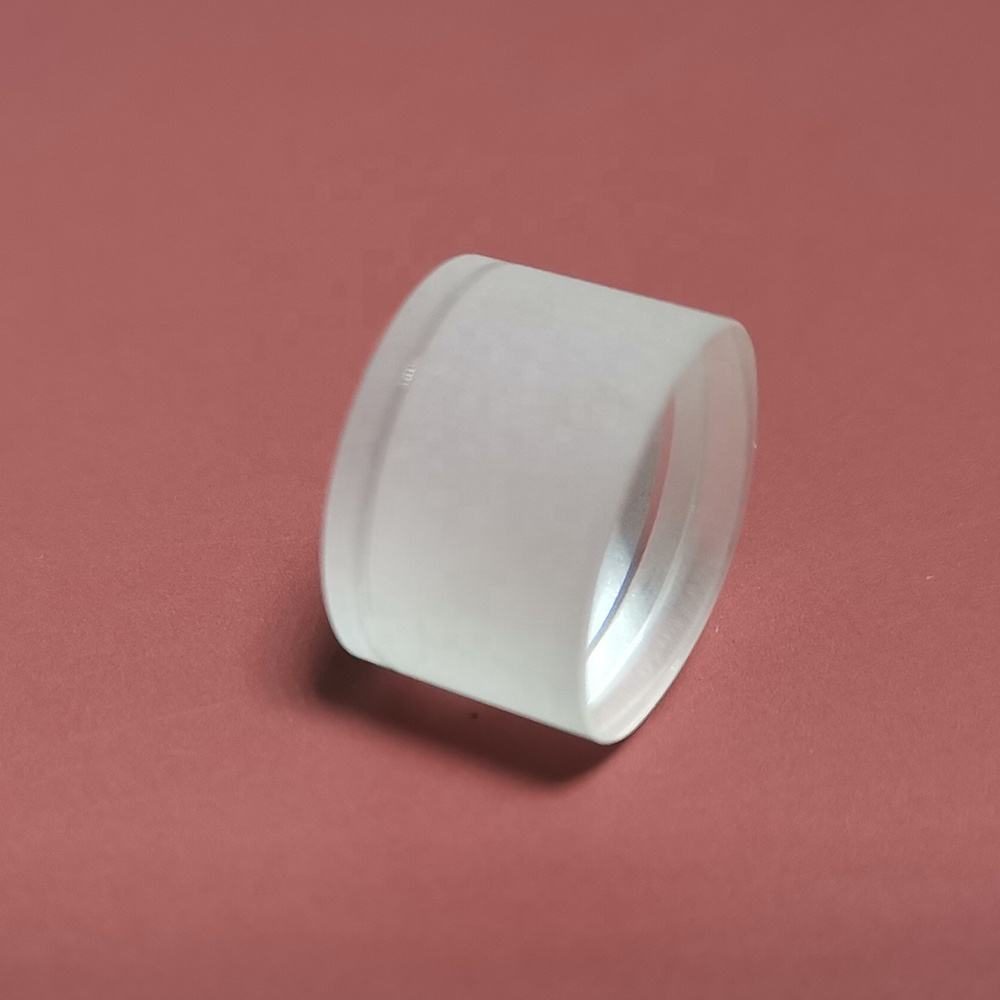

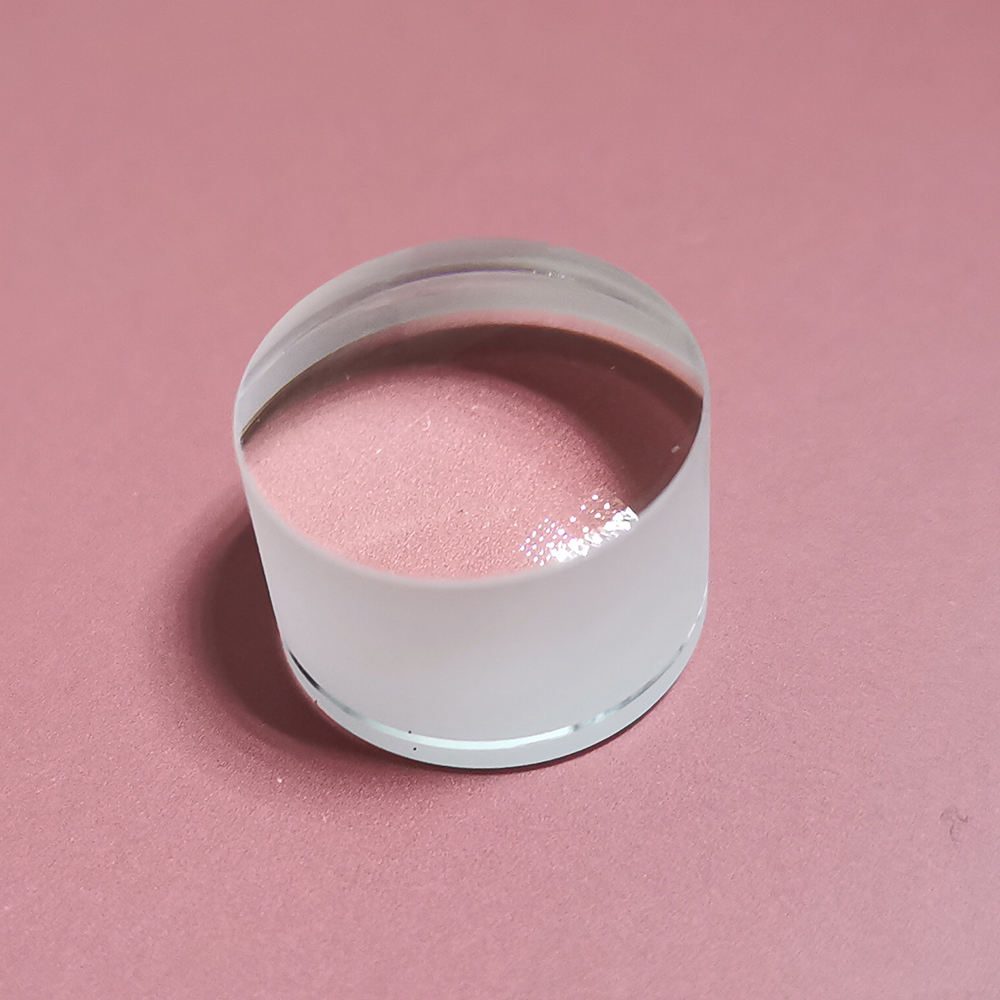

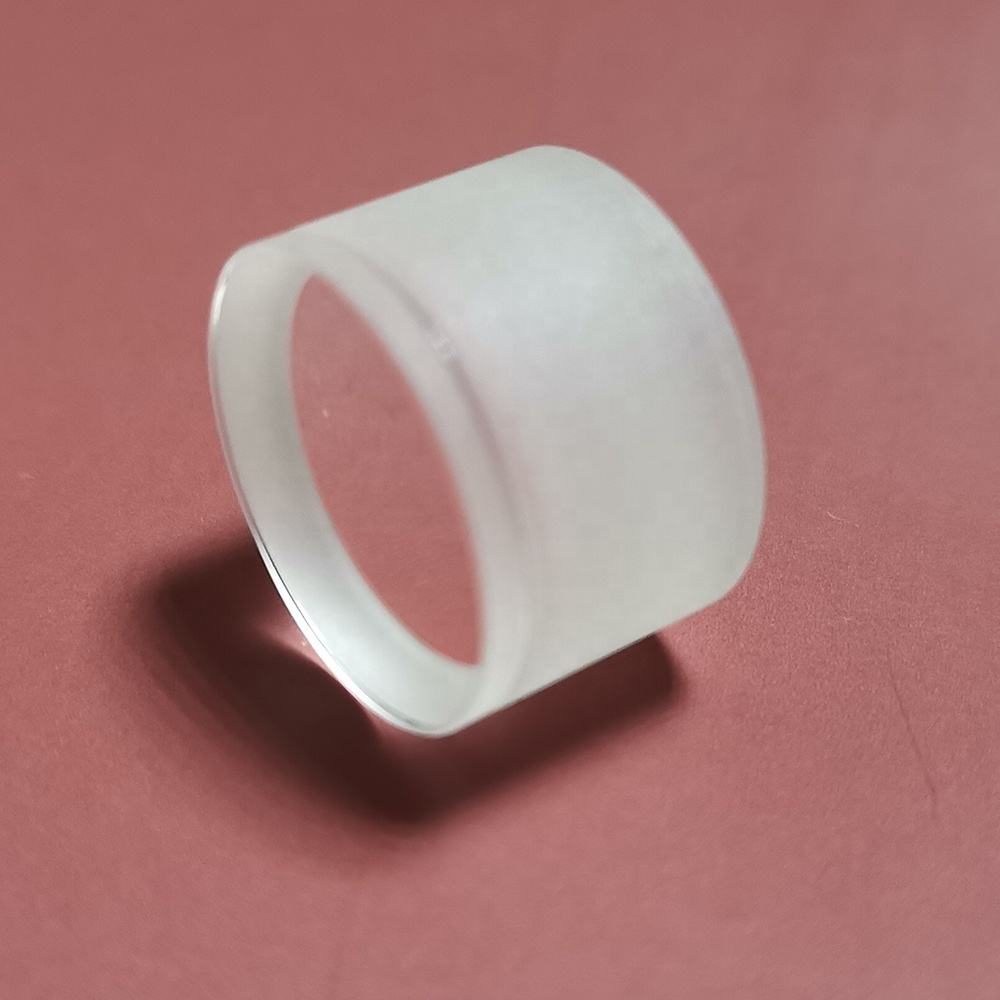

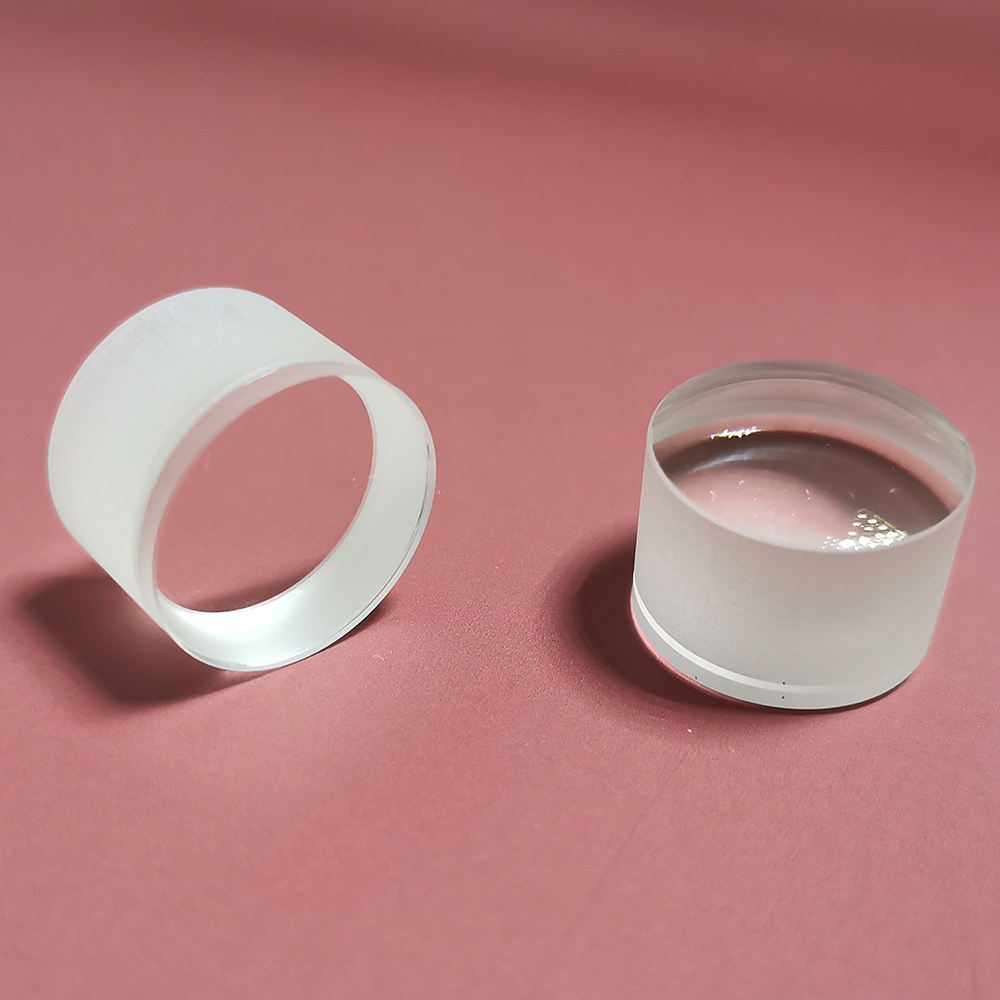

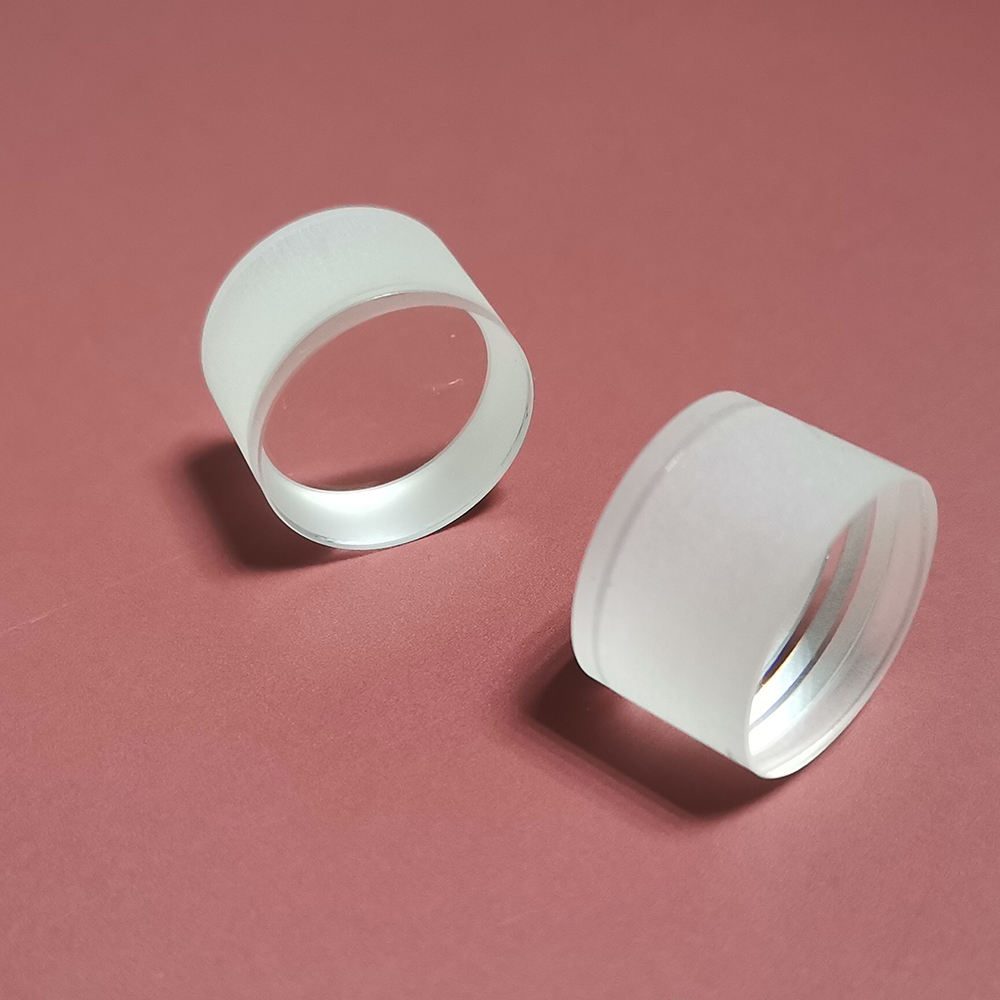

0.5x150 mm Fused Silica Achromatic Lens, AR Coated
Achromatic fused silica lens for projection, collimation, and imaging. Focal length 150 mm, customizable sizes available.
Core attributes
- Material
- Fused Silica
- Shape
- Achromatic
- Diameter
- 0.5 mm
- Focal Length
- 150 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Achromatic
- Diameter
- 0.5 mm
- Focal Length
- 150 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This achromatic lens made from fused silica is designed for applications in projection, collimation, and imaging across multiple wavelength bands, including 0.4-1.7 μm and 1.7-3 μm. With a focal length of 150 mm, it ensures high-quality optical performance with a surface quality of 60/40 and a flatness of L/4. The lens is suitable for various optical setups, providing versatility for R&D and production needs.
Key Features
- Achromatic design minimizes chromatic aberration for clearer images.
- Focal length of 150 mm allows for precise focusing in imaging applications.
- Surface quality of 60/40 ensures reliable performance in demanding environments.
- Available in a compact diameter of 0.45 mm, suitable for tight spaces.
- Customized support for OEM and ODM projects enhances sourcing flexibility.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 0.5 x 150 |
Applications
Projection, Collimation, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Achromatic |
| Diameter | 0.5 mm |
| Focal Length | 150 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.02 |
| Bevel | 0.25 mm*45° |
| Flatness | L/4 |
| Centration | <3 arc minutes |
| Design Wavelength | 546.1nm or as request |
FAQ
What custom sizes are available?
Variant sizes range from 0.5 mm to 150.0 mm in diameter.
What is the minimum order quantity?
The minimum order quantity is not specified, allowing for flexible sourcing.
