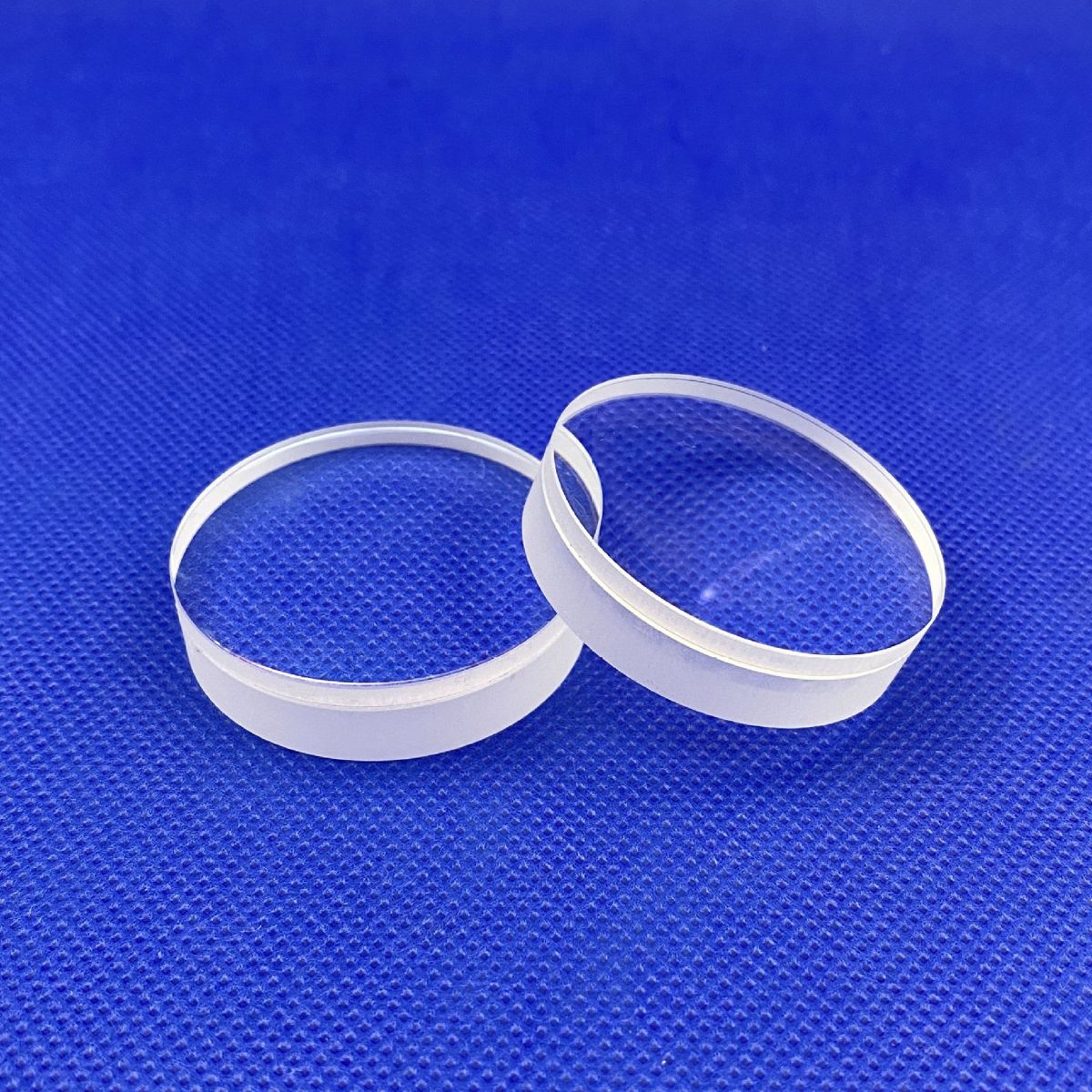

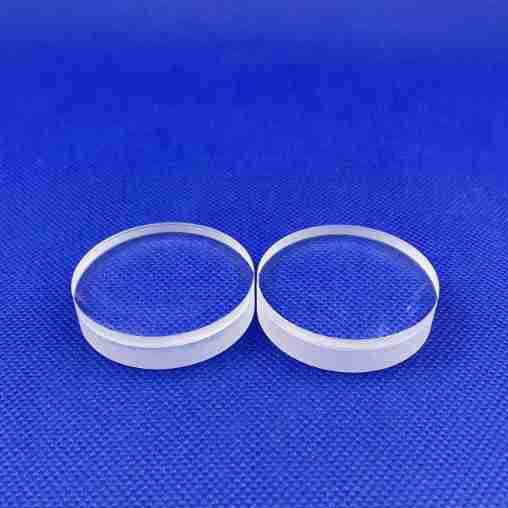

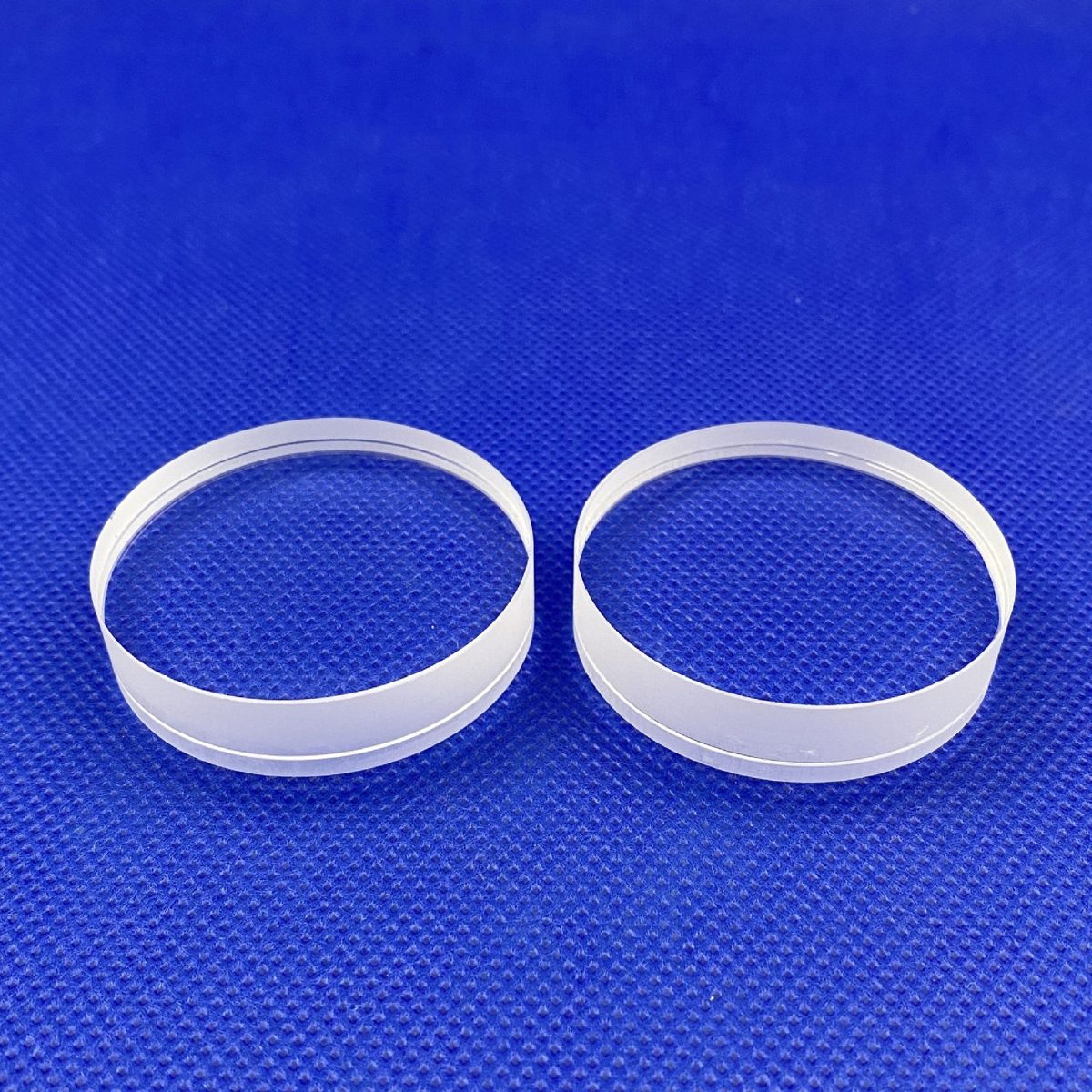

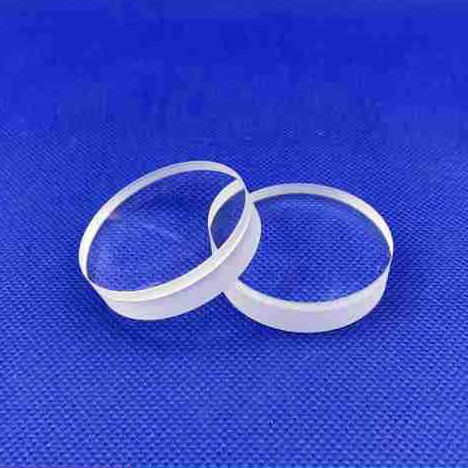

0.1x100 mm Fused Silica Achromatic Lens, AR Coated
Achromatic lens for imaging applications, customizable sizes, and coatings available. Ideal for IR imaging and LIDAR systems.
Core attributes
- Material
- Fused Silica
- Shape
- Achromatic
- Diameter
- 0.1 mm
- Focal Length
- 100 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Achromatic
- Diameter
- 0.1 mm
- Focal Length
- 100 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This achromatic lens is designed for high-performance imaging applications across a broad spectral range of 0.7-1.7 μm and 400-700 nm. Its fused silica material ensures durability and excellent optical clarity, while the anti-reflection coatings enhance transmittance. Ideal for use in IR imaging, LIDAR, and medical devices, this lens minimizes chromatic and spherical aberrations, making it suitable for precision optical systems. Custom sizes and focal lengths are available to meet specific project needs.
Key Features
- Achromatic design reduces chromatic and spherical aberrations for superior image quality.
- Diameter of 0.1 mm with a focal length of 100 mm, suitable for compact optical systems.
- Surface quality of 60/40 ensures reliable performance in demanding applications.
- Customizable dimensions and coatings available, allowing for tailored solutions.
- Lightweight at 0.5 g, facilitating integration into various optical setups.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 0.1 x 100 |
Applications
Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Achromatic |
| Diameter | 0.1 mm |
| Focal Length | 100 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens; Bi-convex Lenses |
| Customized Support | OEM |
| Warranty | 3 Years |
| Weight | 0.5 |
| Color | Transparent |
| Clear Aperture | 85% ~95% |
| Flatness | 1/4lambda |
FAQ
Can I get custom sizes for this lens?
Yes, custom sizes and focal lengths are available upon request.
What are the tolerances for diameter and thickness?
Diameter tolerance is -0.2 mm, and thickness tolerance is +/-0.1 mm.
