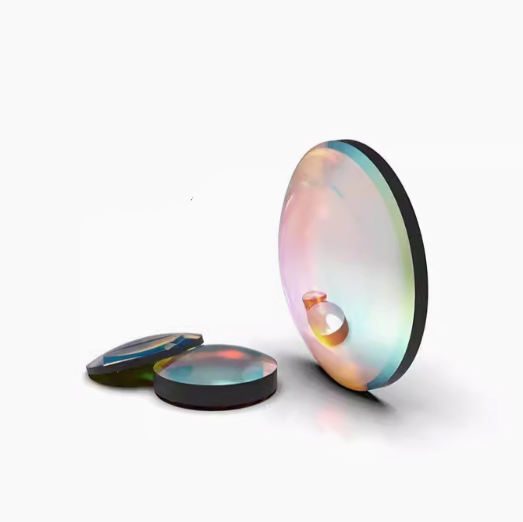

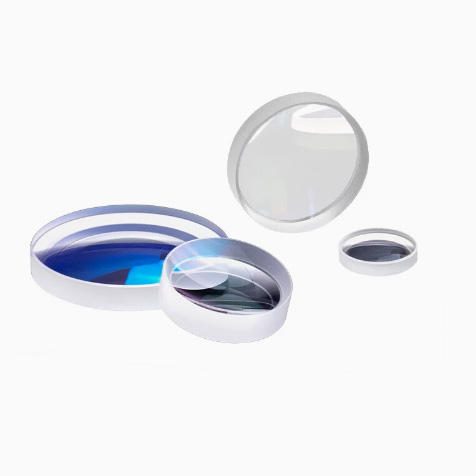

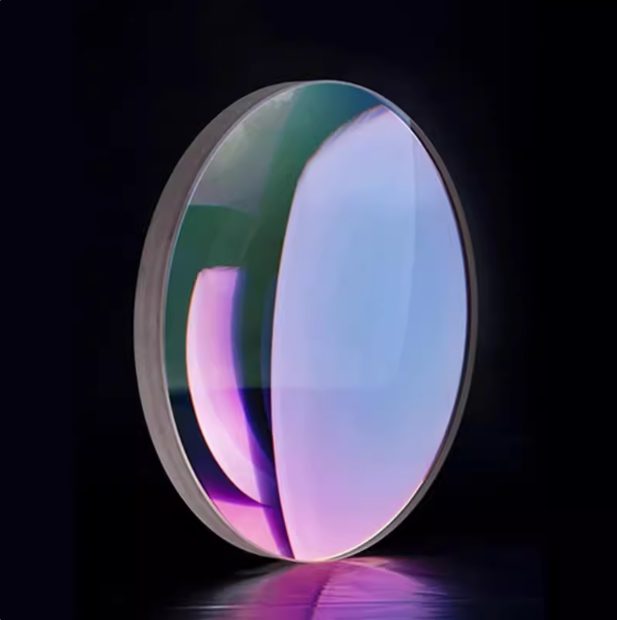

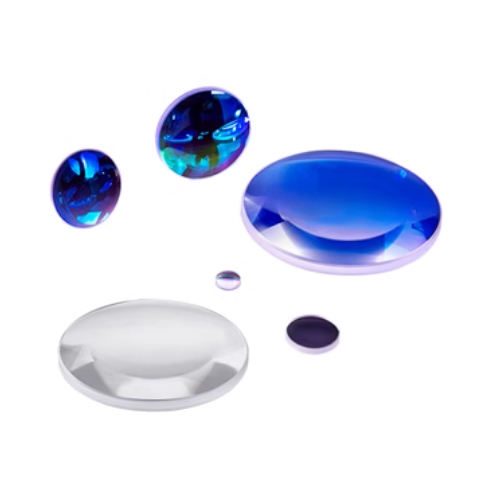

0.1 mm Fused Silica Achromatic Lens, AR Coated
Achromatic lens in fused silica for imaging, with custom sizes and OEM support. Surface quality 60/40, clear aperture 85%-95%.
Core attributes
- Material
- Fused Silica
- Shape
- Achromatic
- Diameter
- 0.1 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Achromatic
- Diameter
- 0.1 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This achromatic lens made from fused silica is ideal for imaging applications across a broad spectral range of 0.7-1.7 μm and 400-700 nm. It effectively corrects chromatic and spherical aberrations, ensuring high-quality images. The lens features a surface quality of 60/40 and a clear aperture of 85% to 95%, making it suitable for various optical instruments. With options for custom sizes and OEM support, it meets diverse engineering needs.
Key Features
- Achromatic design reduces chromatic aberration, enhancing image clarity.
- Surface quality of 60/40 ensures reliable performance in imaging applications.
- Clear aperture of 85%-95% maximizes light transmission for better imaging.
- Custom sizes available, allowing for tailored solutions to specific project requirements.
- OEM support ensures compatibility with existing systems and applications.
Applications
Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Achromatic |
| Diameter | 0.1 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens; Bi-convex Lenses |
| Customized Support | OEM |
| Warranty | 3 Years |
| Weight | 0.5 |
| Color | Transparent |
| Clear Aperture | 85% ~95% |
| Flatness | 1/4lambda |
FAQ
Can I order custom sizes?
Yes, custom sizes are available upon request to meet specific project needs.
What are the tolerances for diameter?
Diameter tolerance is -0.2 mm, with a thickness tolerance of +/-0.1 mm.
