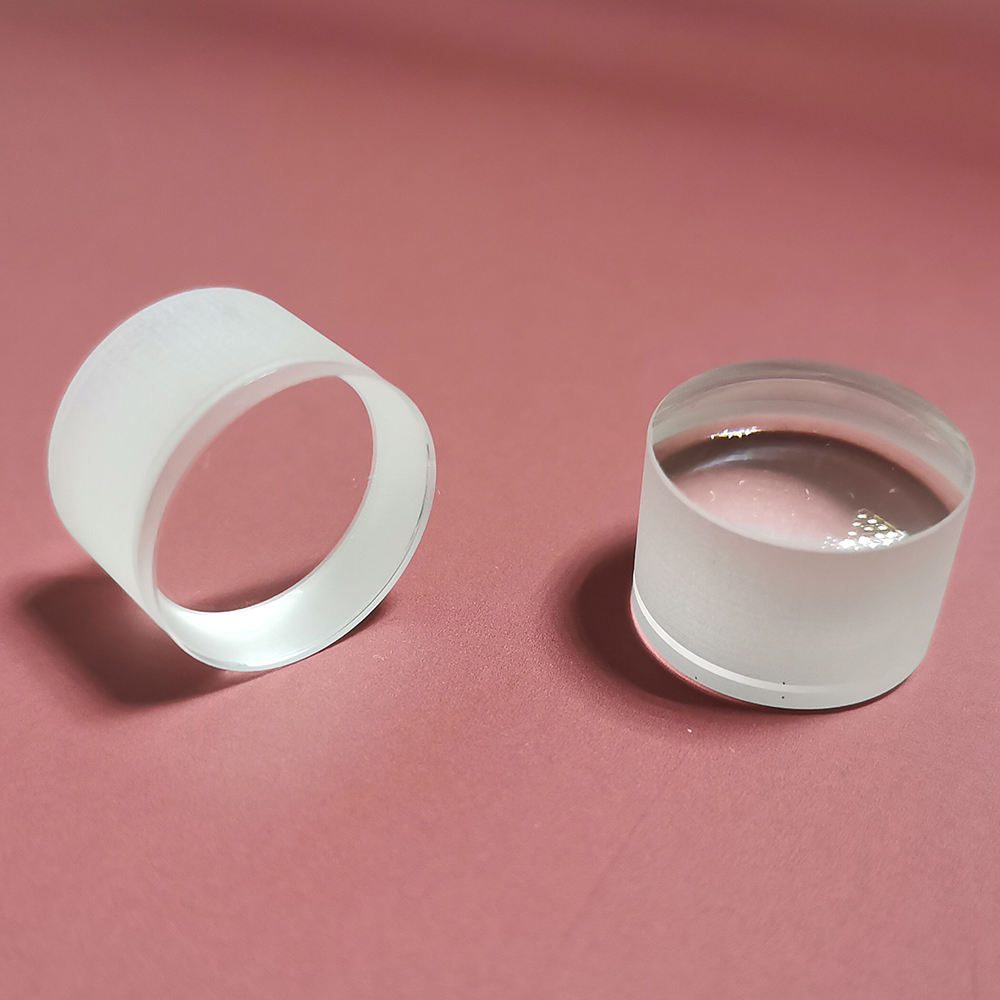

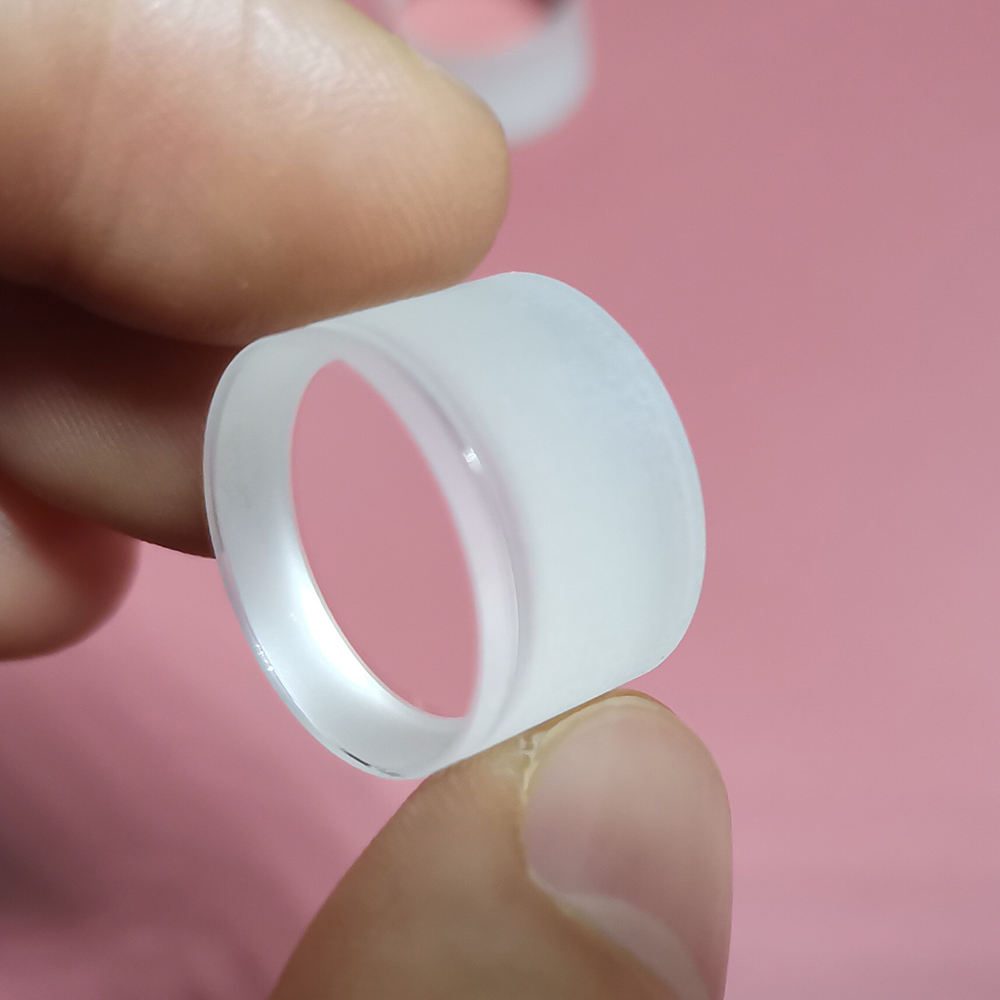

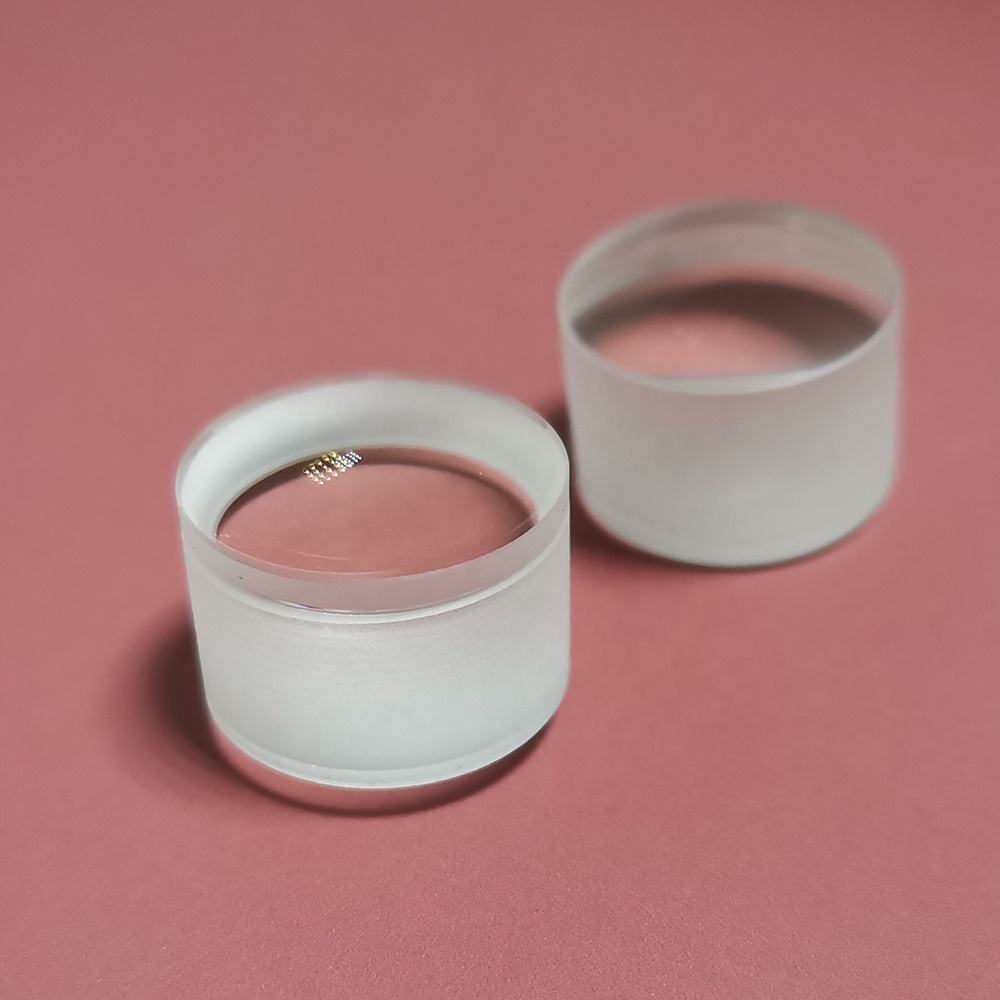

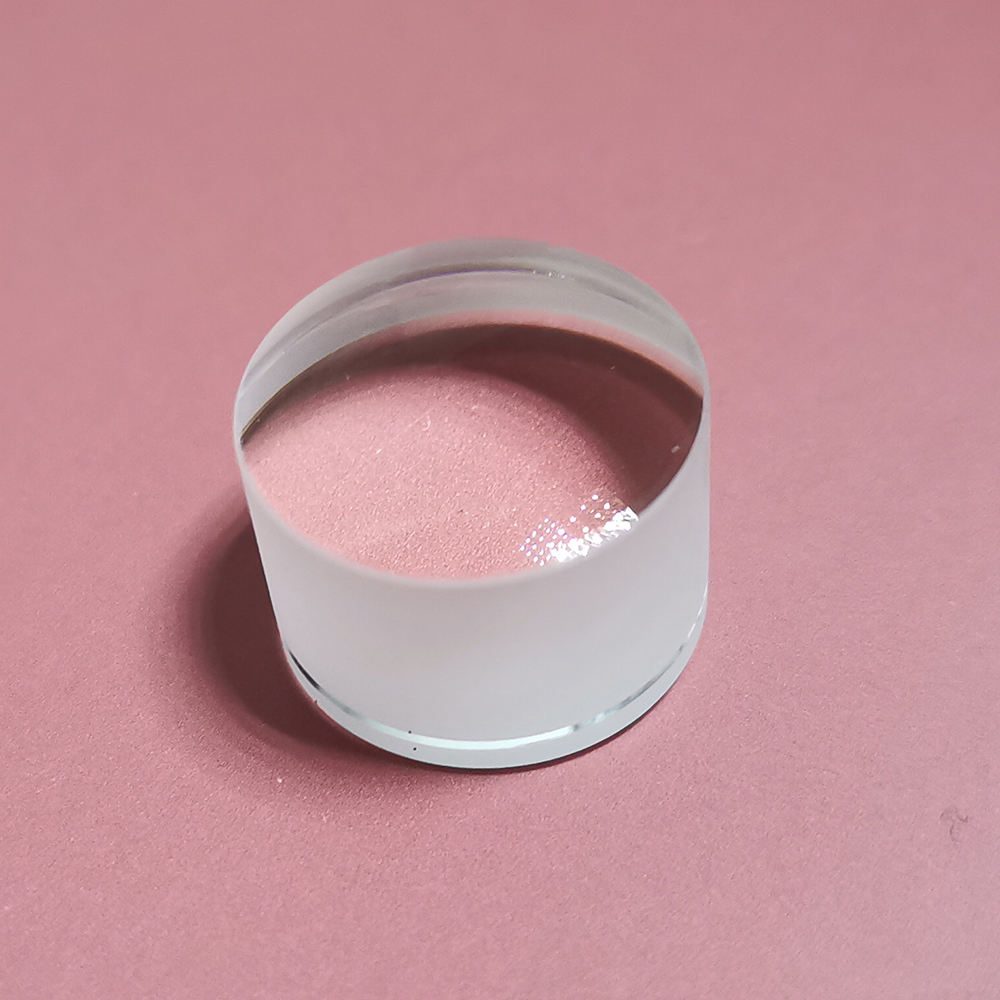

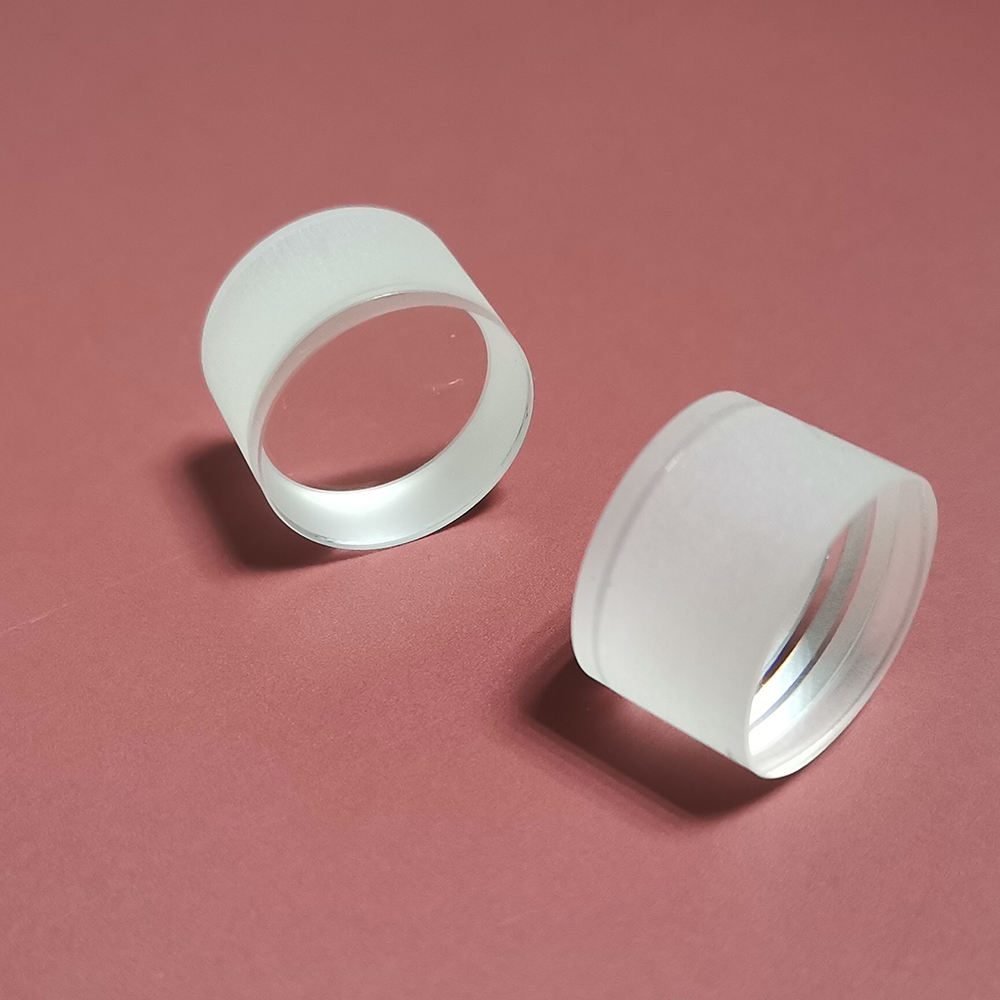

1x150 mm Fused Silica Achromatic Lens, AR Coated
Achromatic fused silica lens for imaging and projection, customizable sizes, and superior clarity across multiple wavelengths.
Core attributes
- Material
- Fused Silica
- Shape
- Achromatic
- Diameter
- 1 mm
- Focal Length
- 150 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Achromatic
- Diameter
- 1 mm
- Focal Length
- 150 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
The achromatic lens made from fused silica is designed for high-performance imaging and projection applications across a range of wavelengths, including 0.7-1.7 μm and 400-700 nm. This lens minimizes chromatic aberration, providing clear and lifelike images, making it ideal for demanding optical systems. With a diameter range from 1.0 mm to 400.0 mm and a focal length of 150.0 mm, it meets various project requirements. Custom sizes are available, ensuring compatibility with specific applications.
Key Features
- Achromatic design reduces chromatic aberration for superior image clarity.
- Surface quality of 40/20 ensures minimal distortion in imaging applications.
- Diameter options from 1.0 mm to 400.0 mm allow for versatile integration.
- Centration tolerance of 3 arc minutes supports precise alignment in optical systems.
- OEM customization available to meet specific project needs.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 200.5 x 150 |
Applications
Projection, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Achromatic |
| Diameter | 1 mm |
| Focal Length | 150 mm |
| Surface Quality | 40/20 |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens |
| Customized Support | OEM |
| Warranty | 3 Years |
| Weight | 0.2kg(0.44lb) |
| Tolerance | +-0.1mm |
| Flatness | L/4;L/2 |
| Centration | 3 arc minutes |
| Chamfer | 0.25mm*45 degree |
FAQ
Is custom sizing available?
Yes, custom sizes can be provided, with diameter options ranging from 1.0 mm to 400.0 mm.
What are the tolerances for this lens?
The lens has a diameter tolerance of ±0.1 mm and a centration tolerance of 3 arc minutes.
