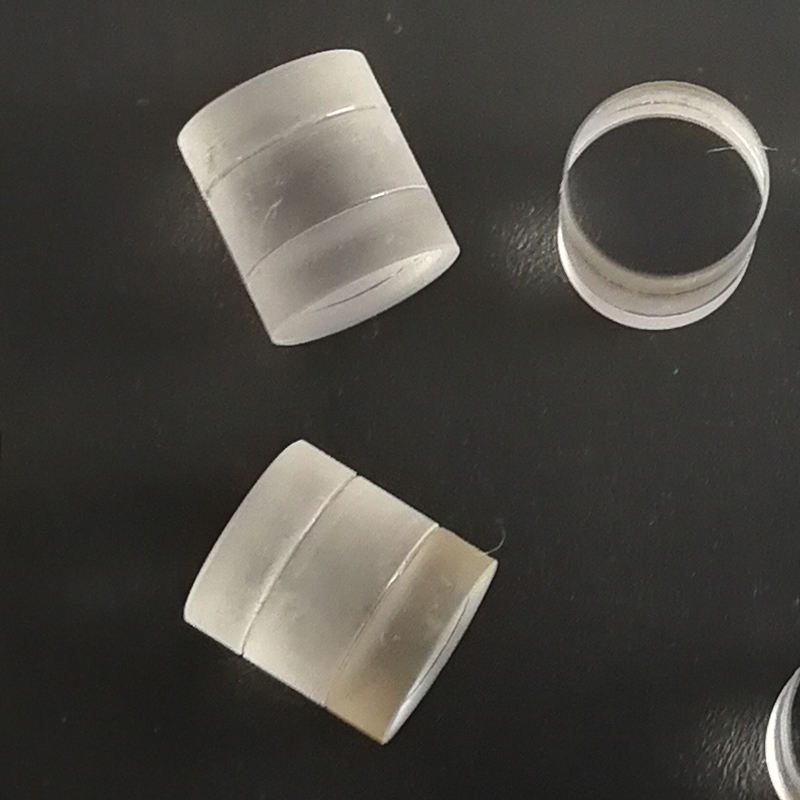

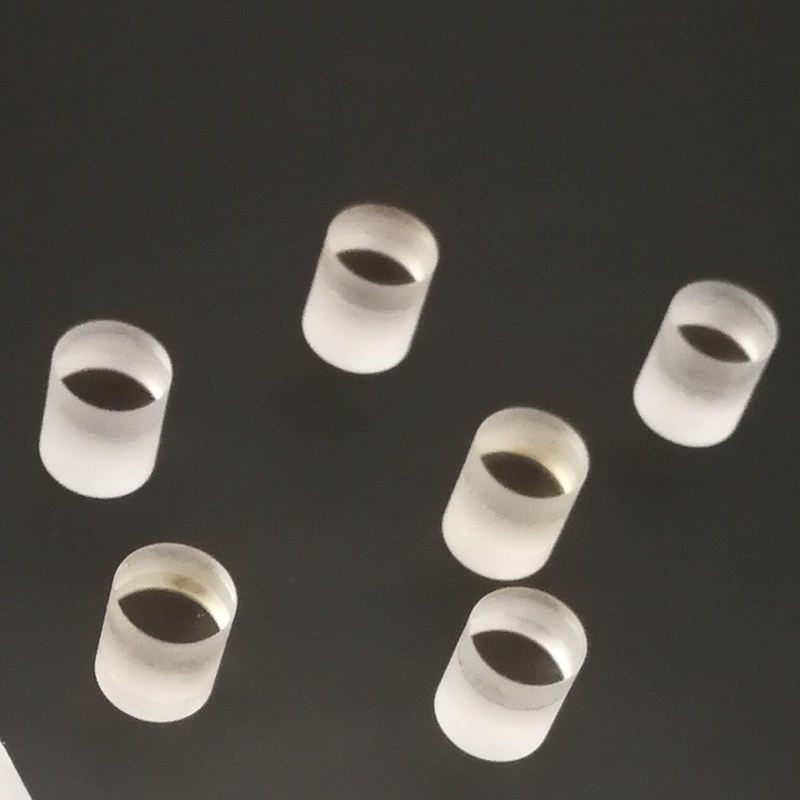

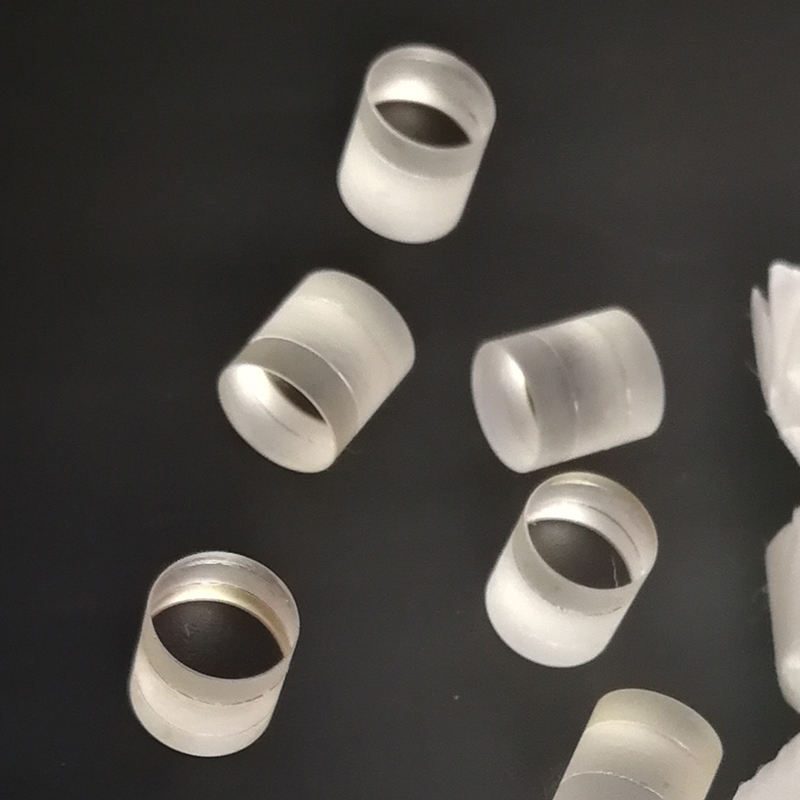

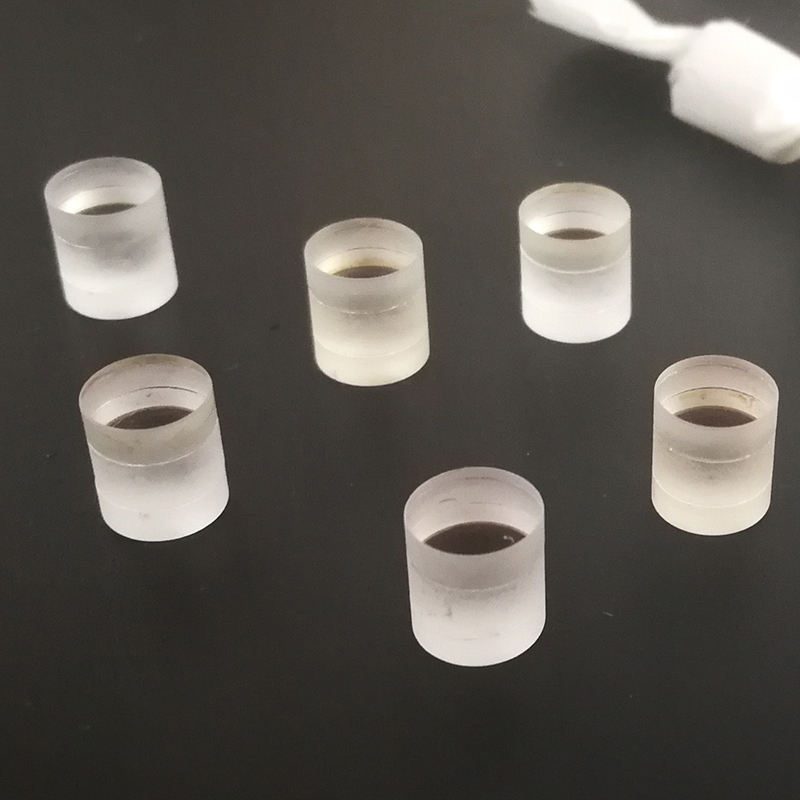

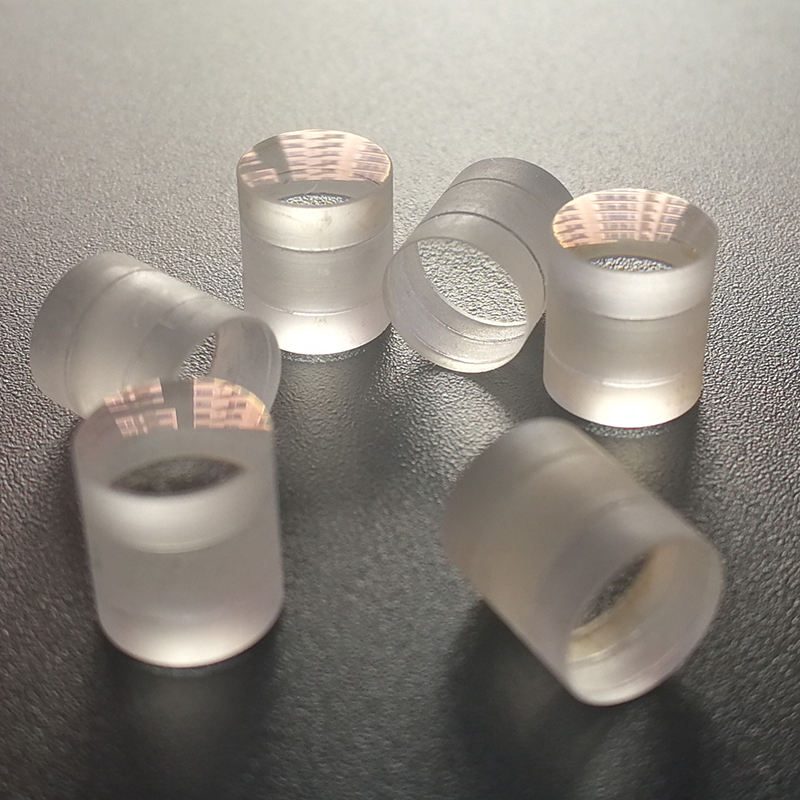

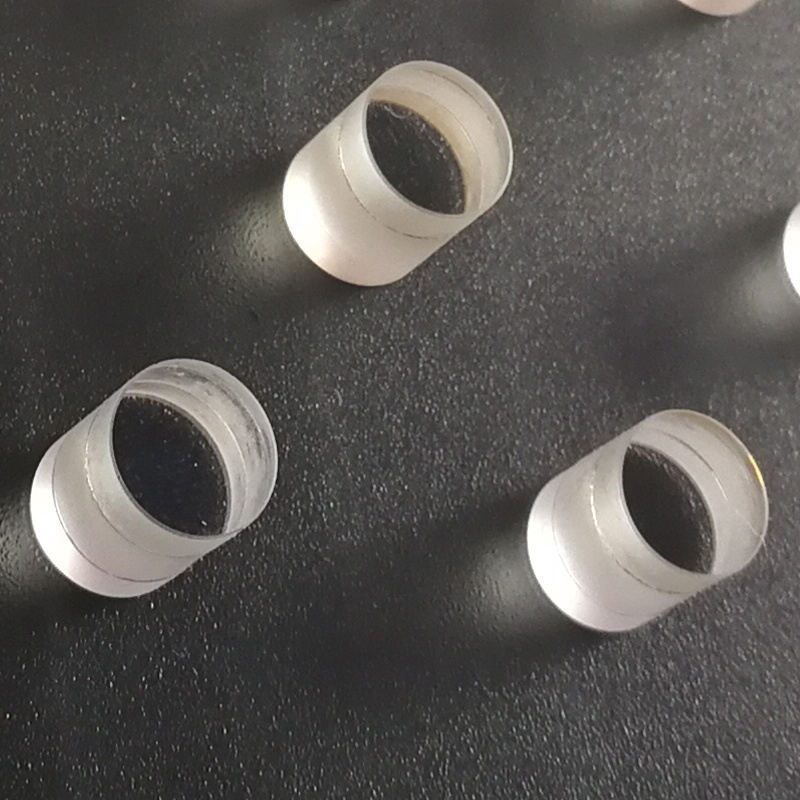

7x31.4 mm Fused Silica Achromatic Lens, AR Coated
Achromatic fused silica lens for medical and imaging applications, 7 mm diameter, 31.4 mm focal length, customizable options available.
Core attributes
- Material
- Fused Silica
- Shape
- Achromatic
- Diameter
- 7 mm
- Focal Length
- 31.4 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Achromatic
- Diameter
- 7 mm
- Focal Length
- 31.4 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- VIS (400-700 nm)
Product description
This achromatic lens made from fused silica is designed for applications in medical and imaging fields, operating effectively within the 400-700 nm wavelength range. With a diameter of 7 mm and a focal length of 31.4 mm, it minimizes optical aberrations, ensuring high precision in imaging tasks. The lens features a surface quality of 60/40 and offers options for anti-reflective (AR) coatings, enhancing transmittance and performance in low-light conditions. Its compact size and reliable performance make it suitable for various optical systems.
Key Features
- Achromatic design reduces optical aberrations, improving image clarity.
- Diameter of 7 mm and focal length of 31.4 mm for versatile application fit.
- Surface quality of 60/40 ensures high optical performance.
- Centration tolerance of 3 arc minutes for precise alignment.
- Customizable options available for OEM support.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 7 x 31.4 |
Applications
Medical, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Achromatic |
| Diameter | 7 mm |
| Focal Length | 31.4 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens |
| Customized Support | OEM |
| Warranty | 3 months |
| Weight | 0.02 |
| Flatness | L/2 |
| Centration | 3 arc minutes |
| Tolerance | +-0.1mm |
| Chamfer | 0.25mm*45 degree |
FAQ
Can I get custom sizes?
Yes, customizable options are available for OEM support.
What is the tolerance for this lens?
The tolerance for this lens is ±0.1 mm.
