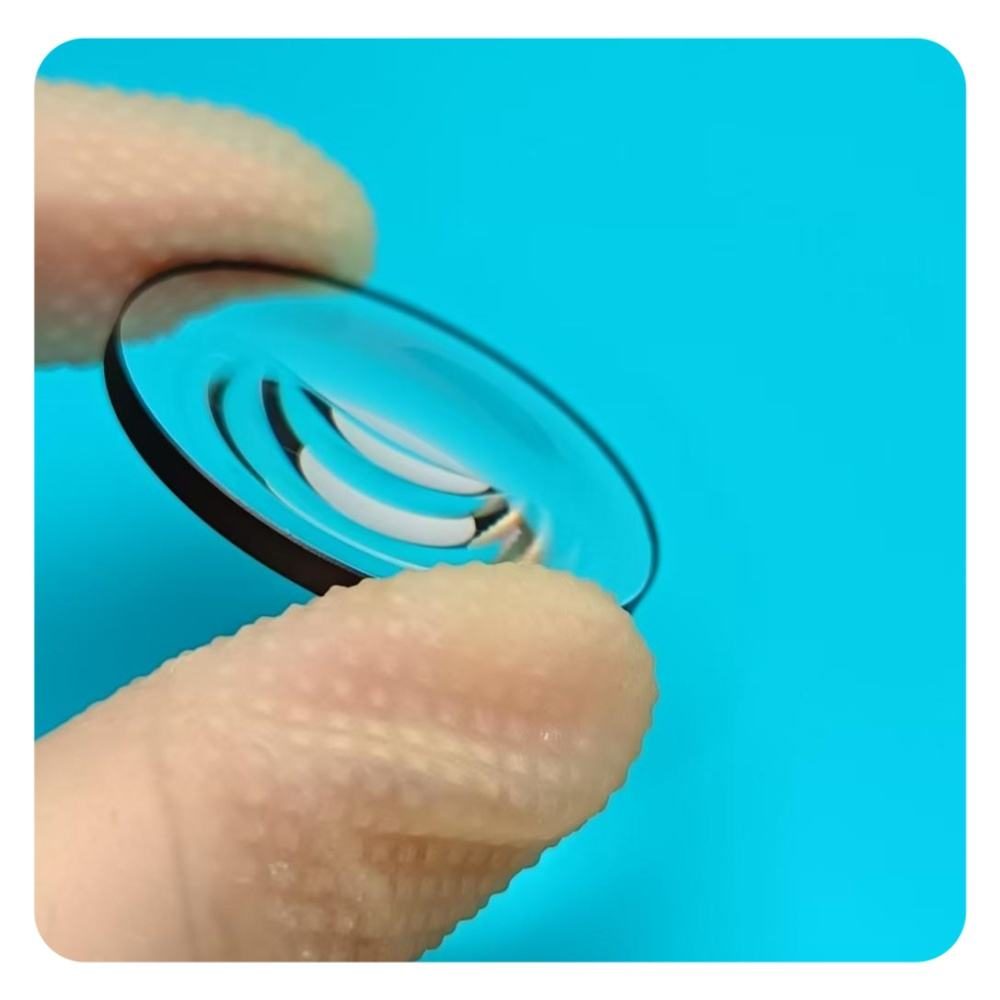

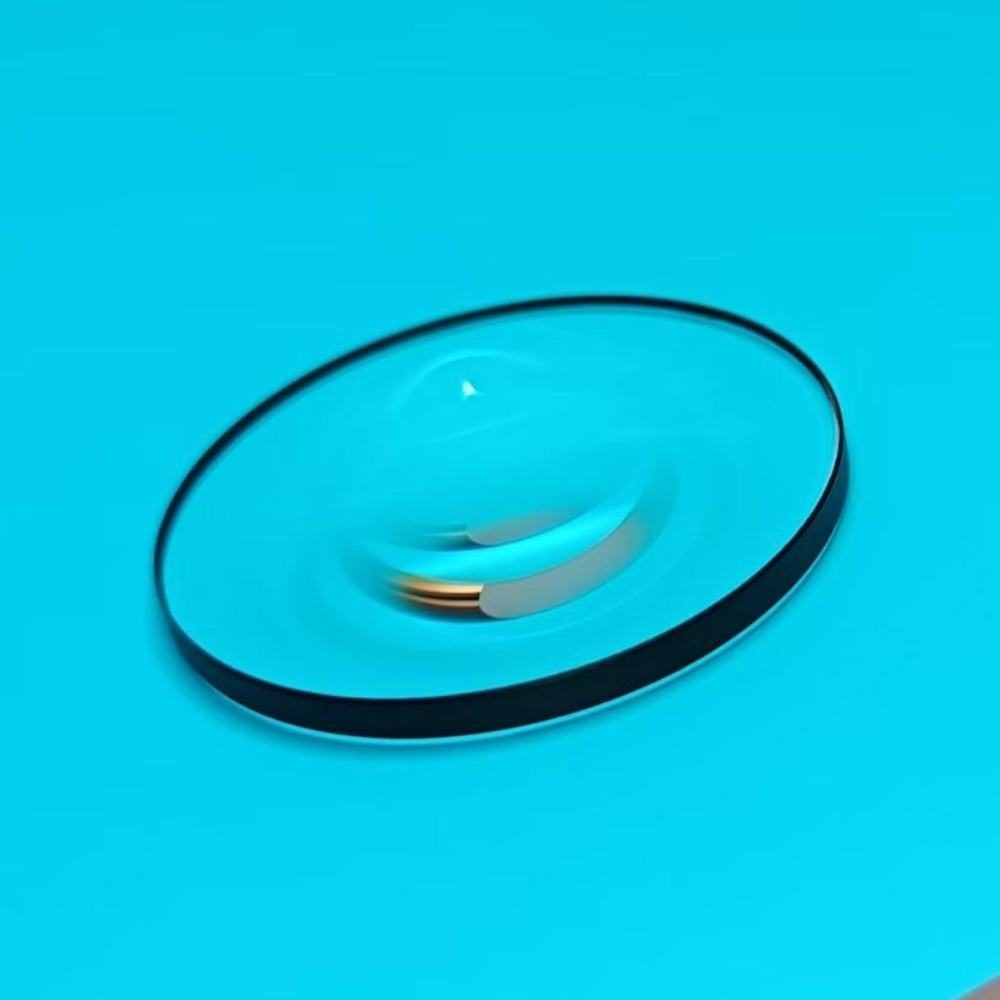

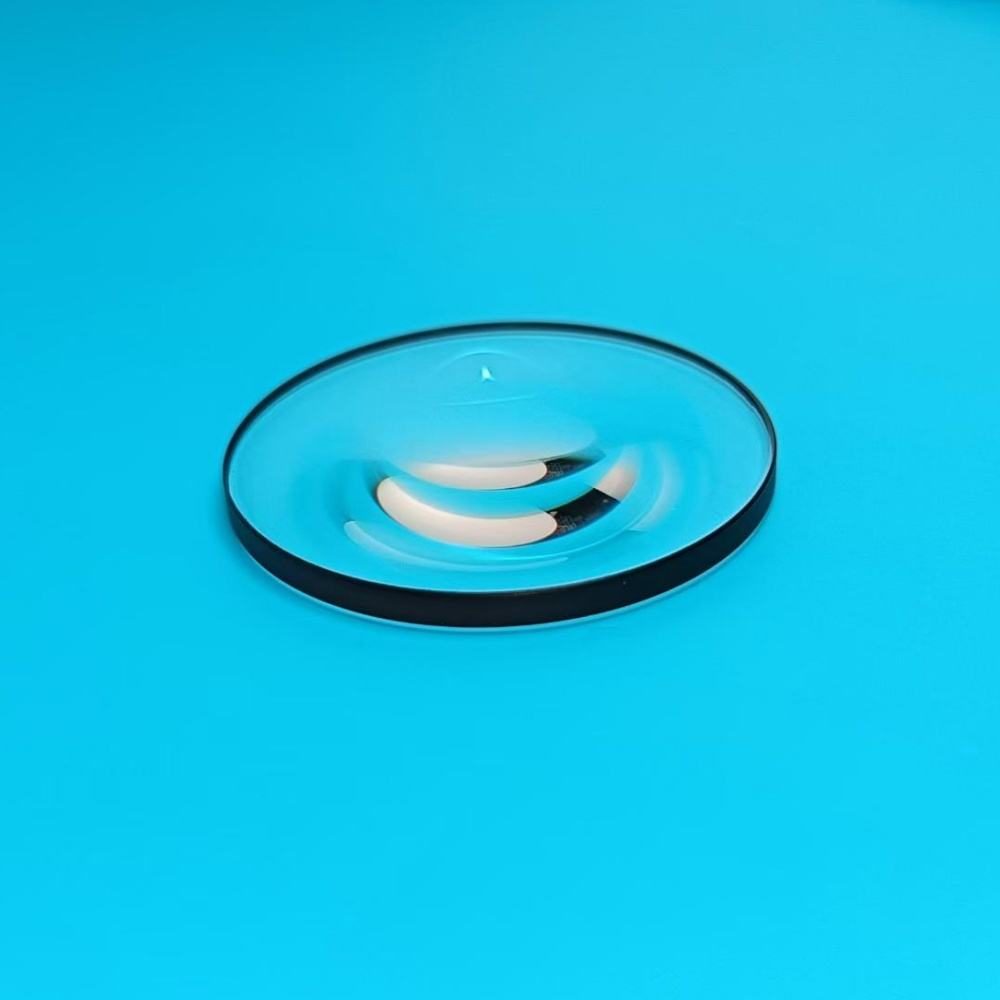

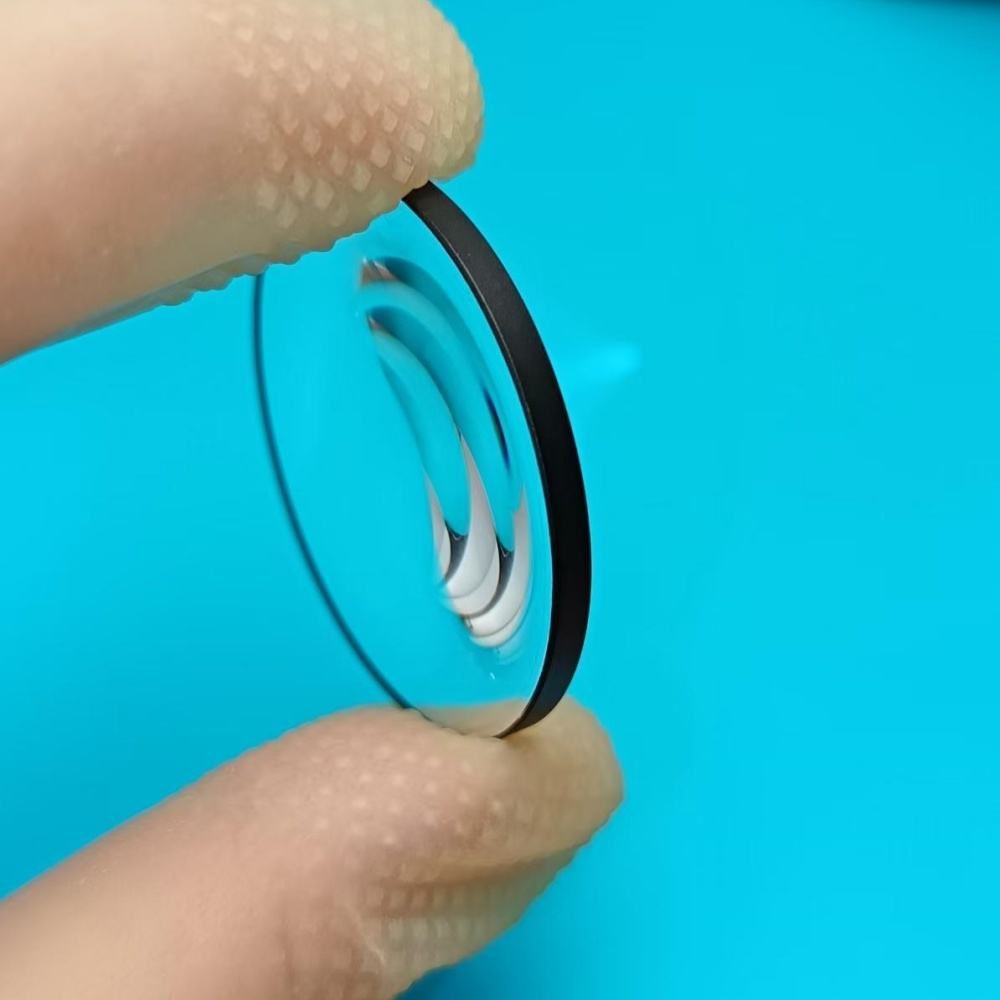

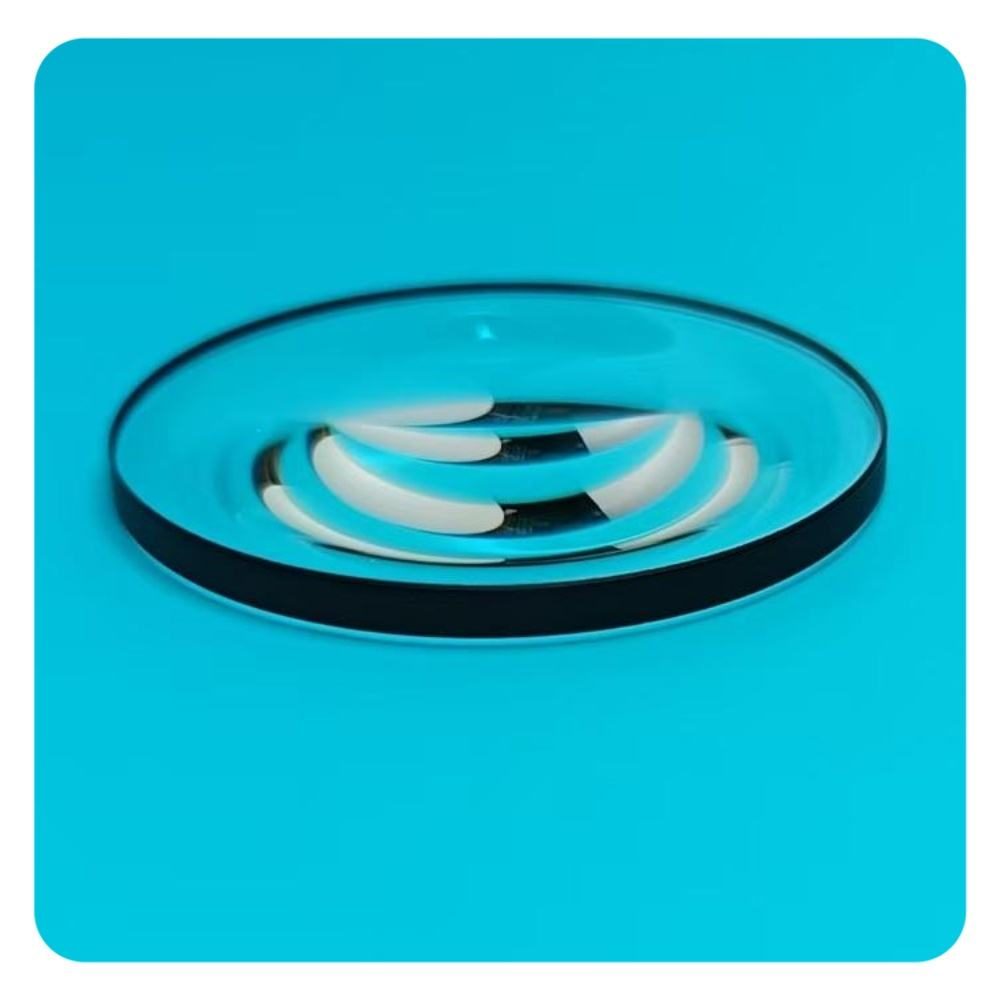

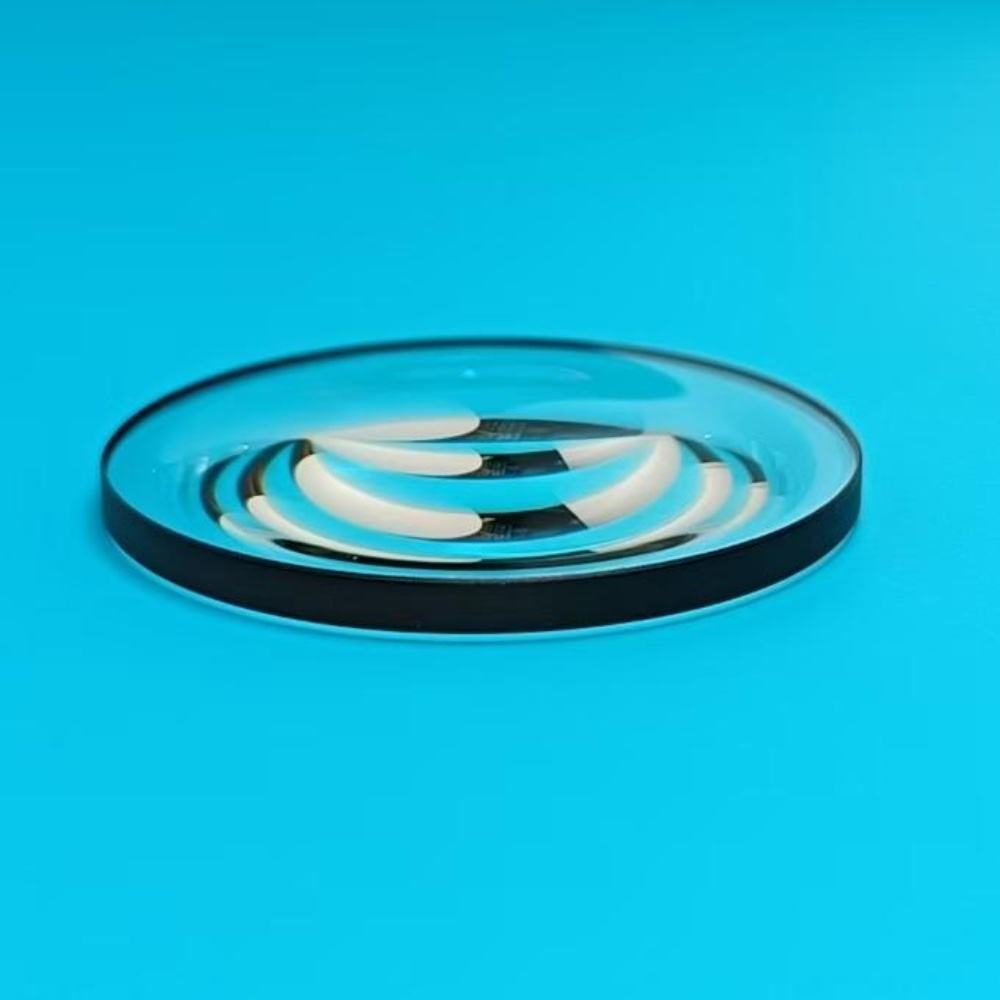

0.6x5 mm Fused Silica Aspheric Lens, AR Coated
Fused Silica aspheric lenses for collimation, covering 1.7-3 μm and 0.7-1.7 μm bands, with custom size options.
Core attributes
- Material
- Fused Silica
- Shape
- Aspheric
- Diameter
- 0.6 mm
- Focal Length
- 5 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Aspheric
- Diameter
- 0.6 mm
- Focal Length
- 5 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
Aspheric lenses made from Fused Silica are designed to eliminate spherical aberration, making them ideal for applications such as collimation in laser diodes and bar code scanners. With a focal length of 5.0 mm and a diameter of 0.6 mm, these lenses cover multiple bands, including 1.7-3 μm and 0.7-1.7 μm. Their single-element design reduces the number of lenses required, simplifying assembly and minimizing system size and weight.
Key Features
- Achieves high precision collimation, enhancing optical performance.
- Covers multiple wavelength bands, suitable for diverse applications.
- Compact design reduces system weight and complexity.
- Clear aperture of 90% ensures maximum light transmission.
- Custom sizes available, supporting OEM and ODM projects.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 0.6 x 5 |
Applications
Collimation
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Aspheric |
| Diameter | 0.6 mm |
| Focal Length | 5 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens, Aspherical Lens, Biconvex Lens, Concave Lens, Convex Lens; Opti… |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.02KG |
| Clear Aperture | 90% |
FAQ
What custom sizes are available?
Variant sizes range from 0.6 mm to 5.0 mm in diameter.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified.
