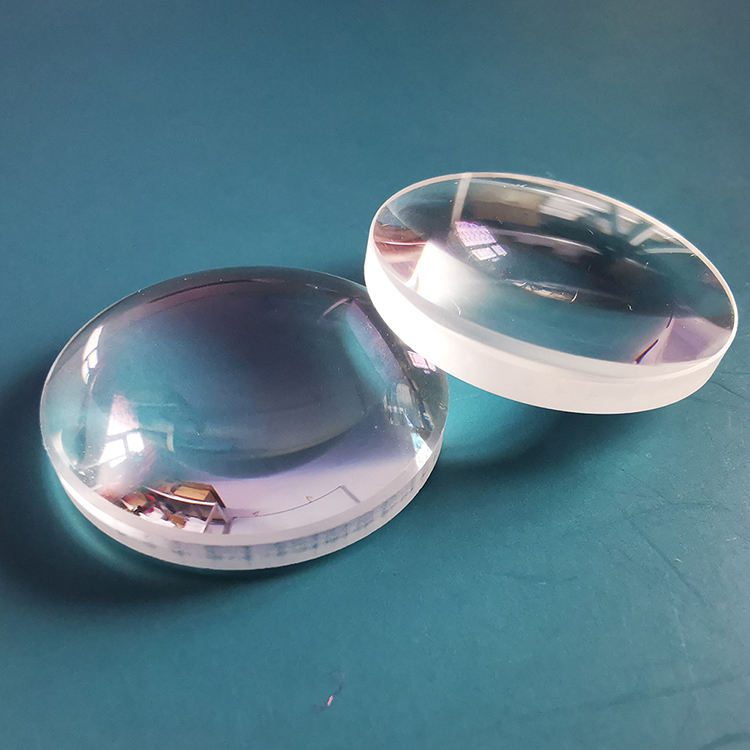

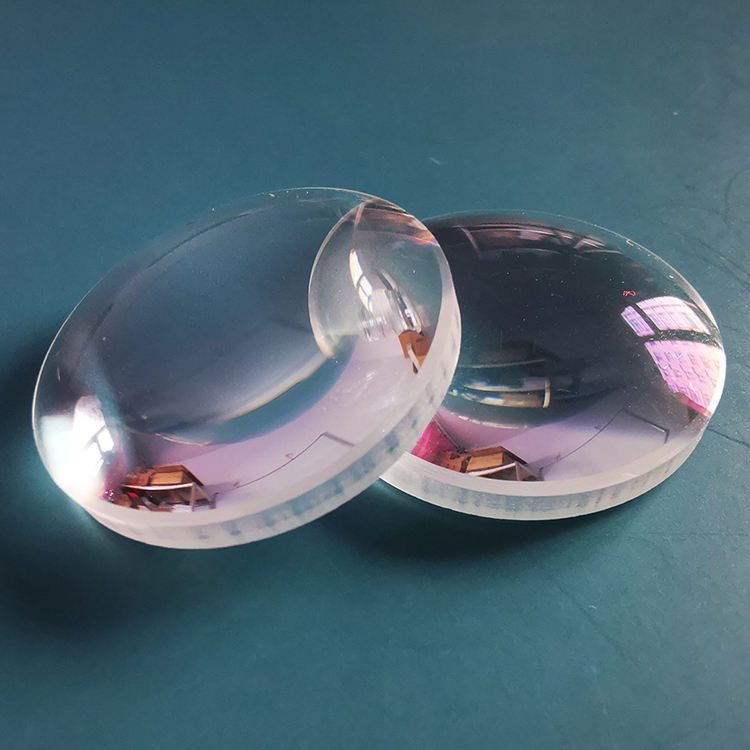

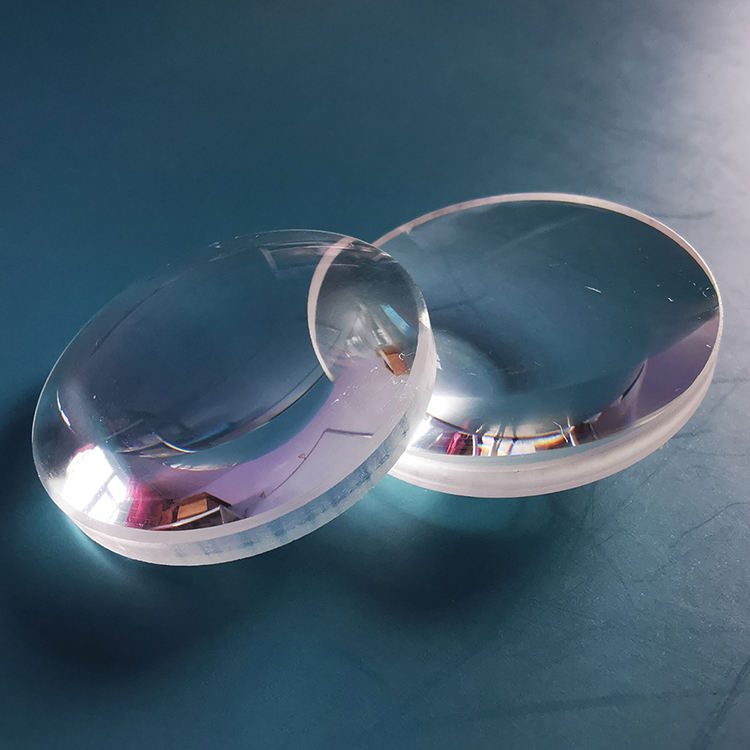

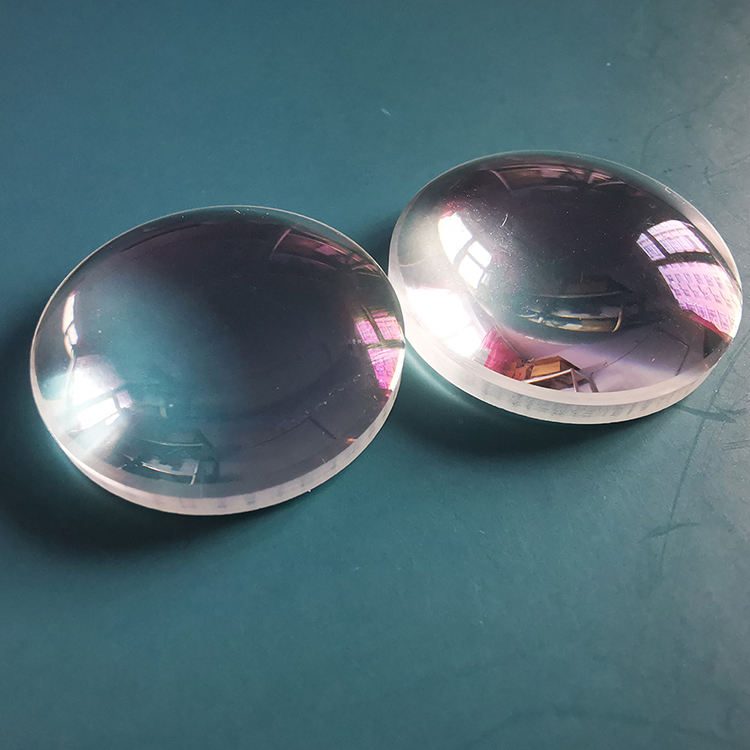

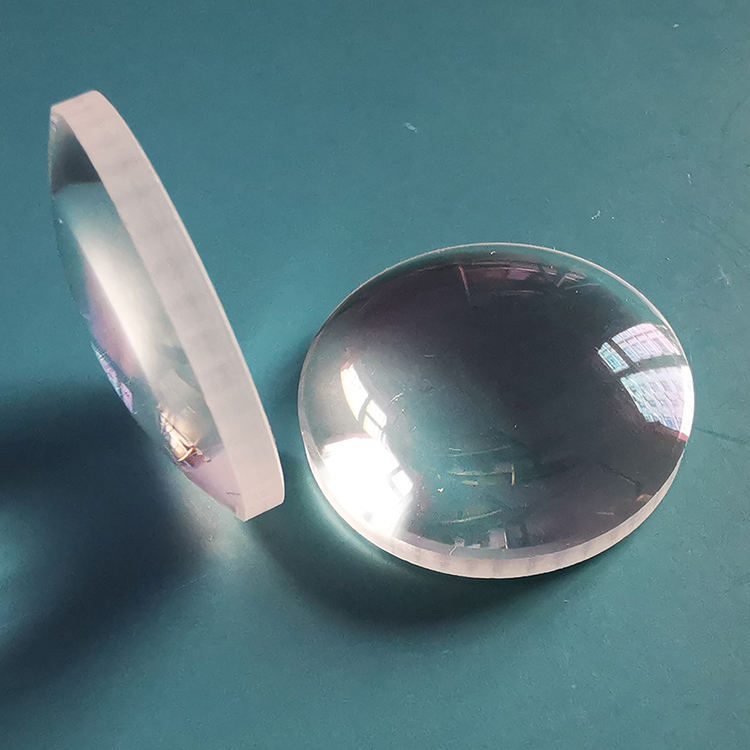

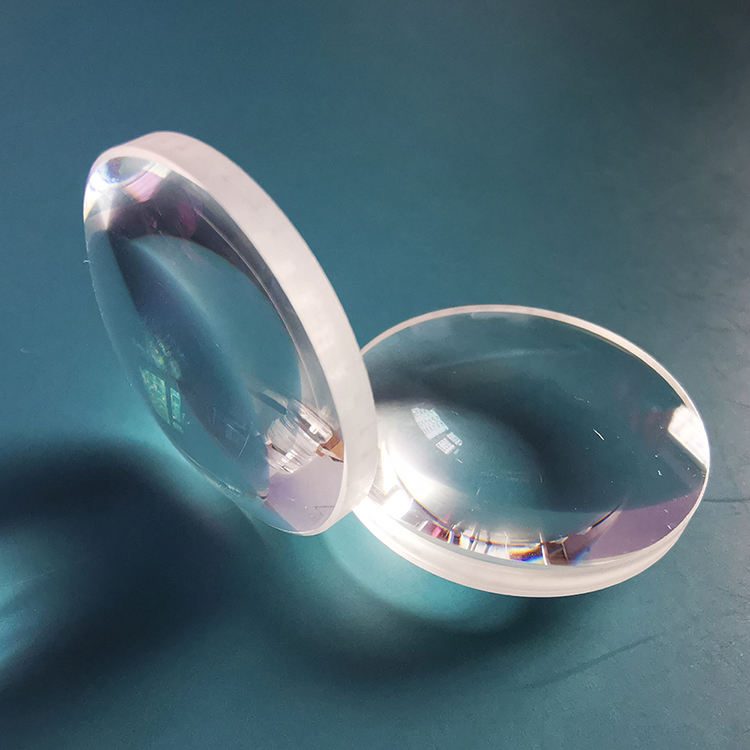

10 mm Fused Silica Aspheric Lens, AR Coated

Product description

This aspheric convex lens made from Fused Silica is designed for applications requiring high precision and reliability. With a diameter range of 10.0 mm to 50.0 mm and thickness options from 0.5 mm to 50.0 mm, it is suitable for various optical systems. The lens features anti-reflective coatings to enhance transmittance and minimize reflections, making it ideal for IR imaging, laser applications, and other optical technologies. Customization options are available to meet specific project requirements.

Key Features

Diameter range: 10.0 mm to 50.0 mm for versatile application fit.
Thickness options: 0.5 mm to 50.0 mm for tailored optical performance.
High clear aperture (>95%) ensures optimal light transmission.
Manufactured from UV Fused Silica for superior optical clarity.
OEM support available for custom designs and prototypes.

Specification Summary

Item	Value
Material	Fused Silica
Shape	Aspheric
Diameter	10 mm
Thickness	0.5 mm
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	Convex Lens
Customized Support	OEM
Warranty	3 months
Weight	0.01kg
Substrate	UV Fused Silica/FS/Quartz/Corning7980/JGS1
Diameter Tolerance	+0/-0.2mm
Clear Aperture	>95%

FAQ

Can I get custom sizes?

Yes, the lens is available in a diameter range of 10.0 mm to 50.0 mm and thickness from 0.5 mm to 50.0 mm.

What are the tolerances for diameter?

The diameter tolerance is +0/-0.2 mm, ensuring precise fit in your applications.
