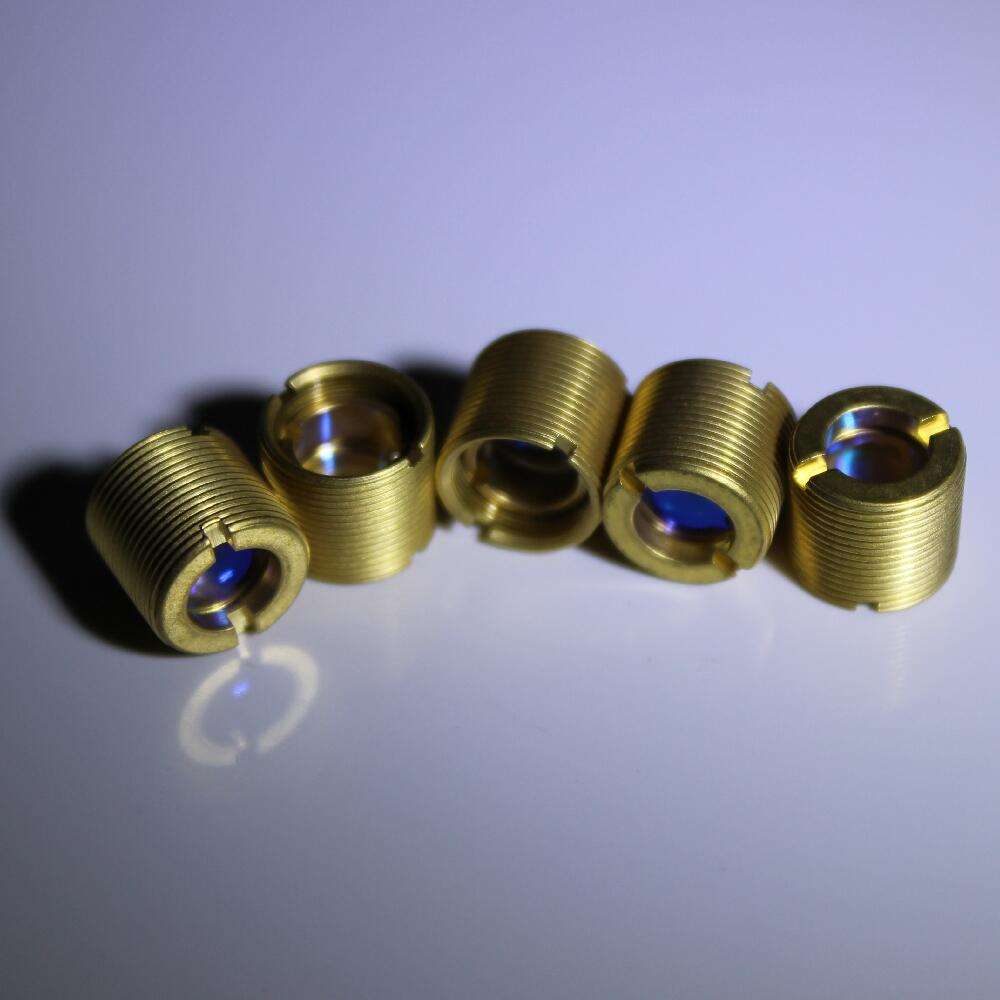

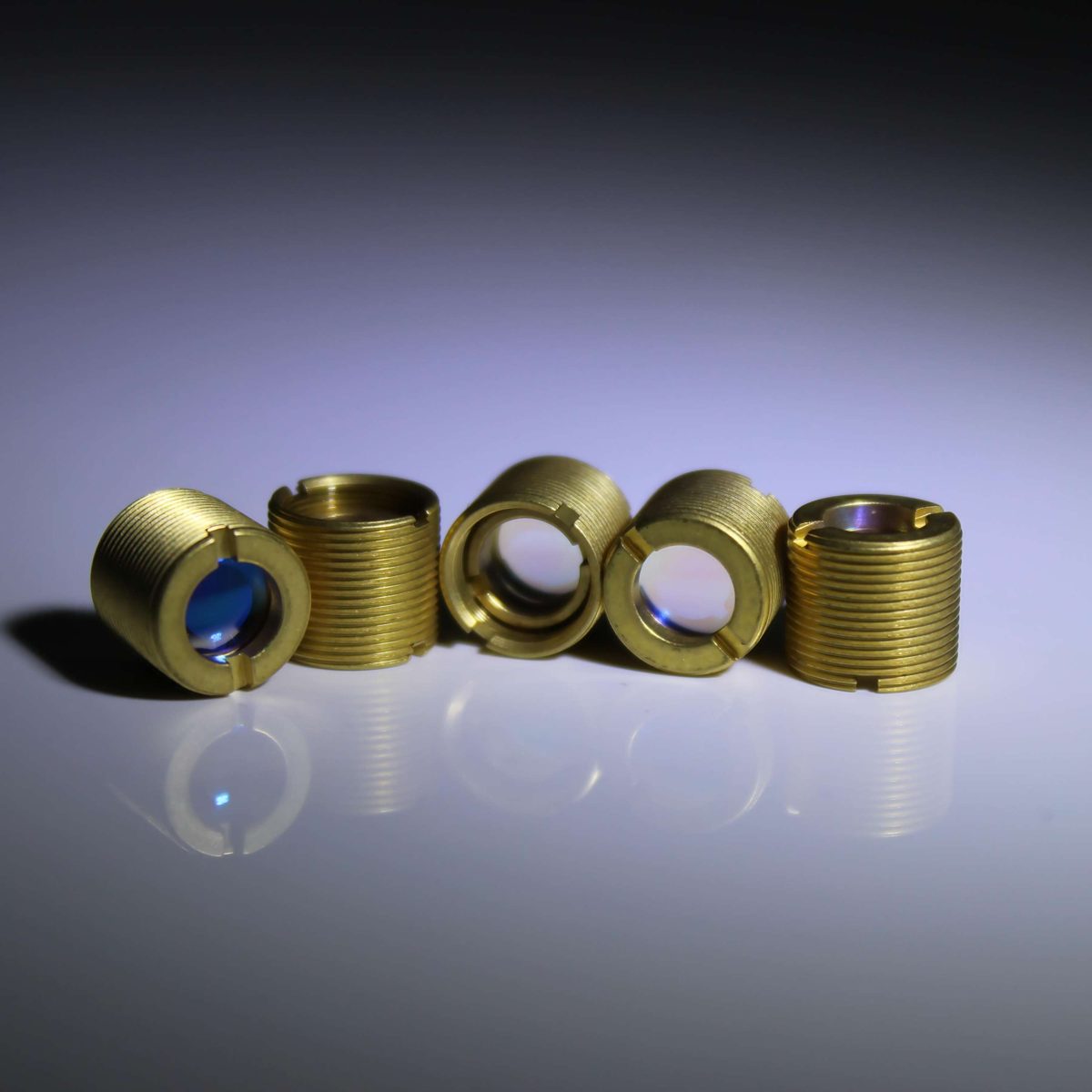

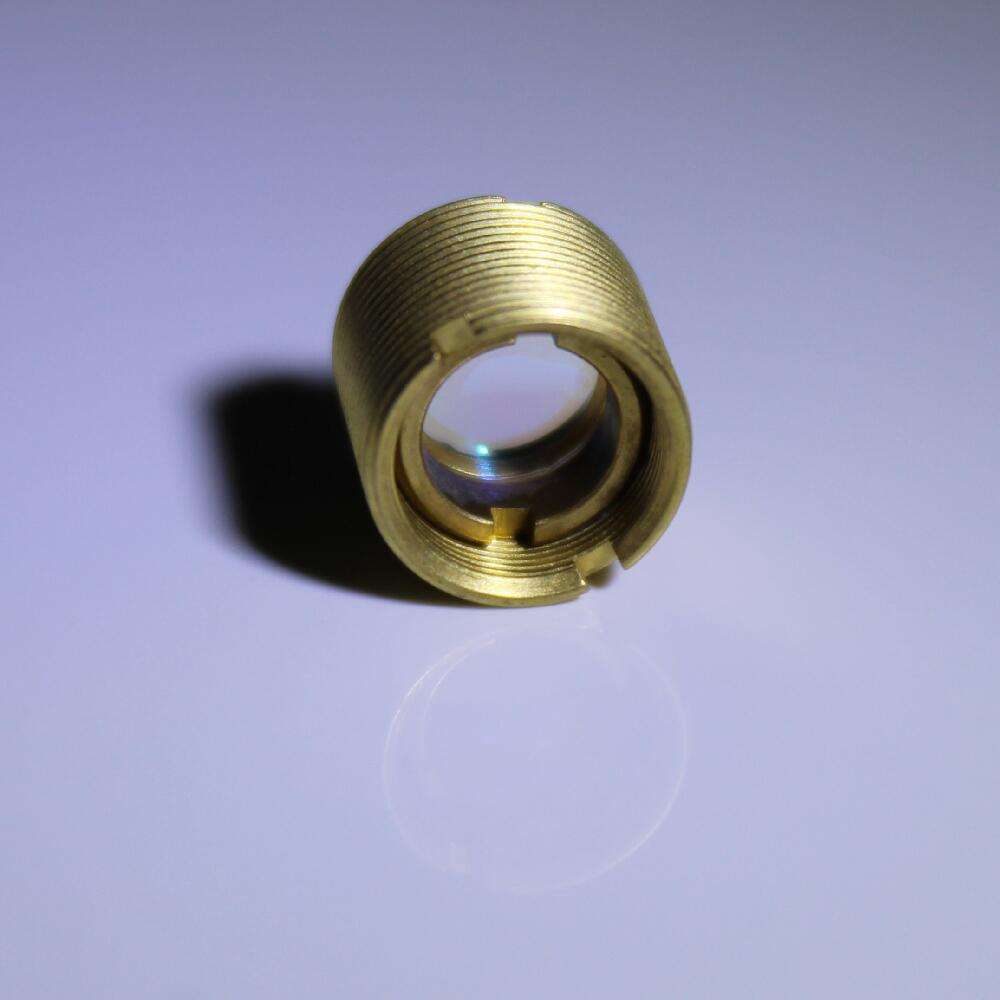

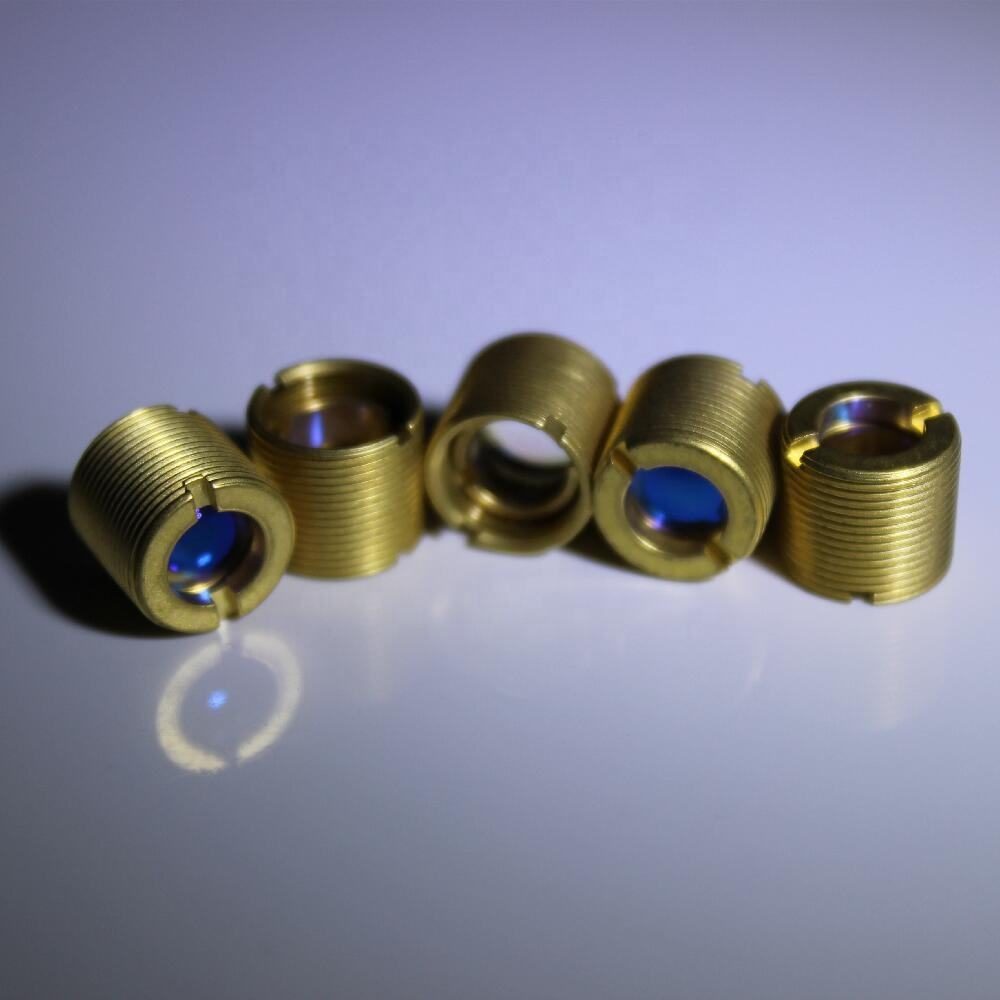

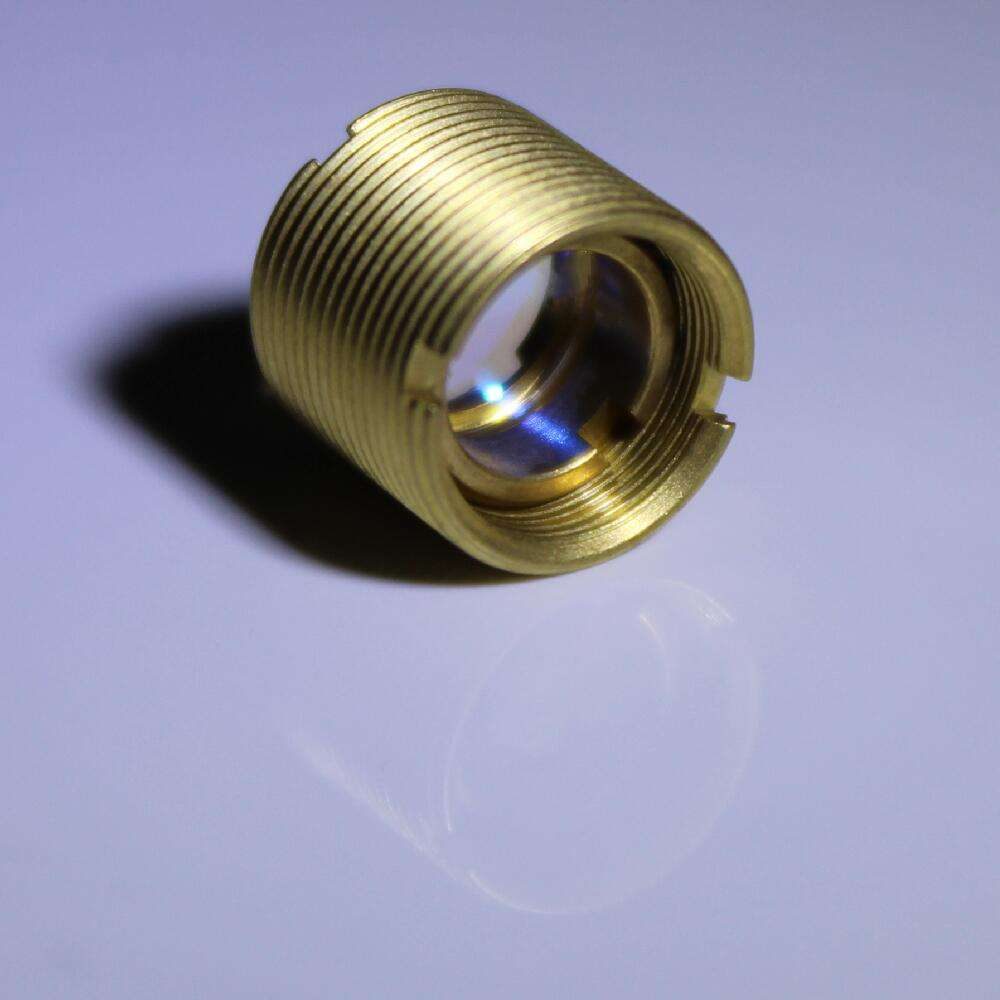

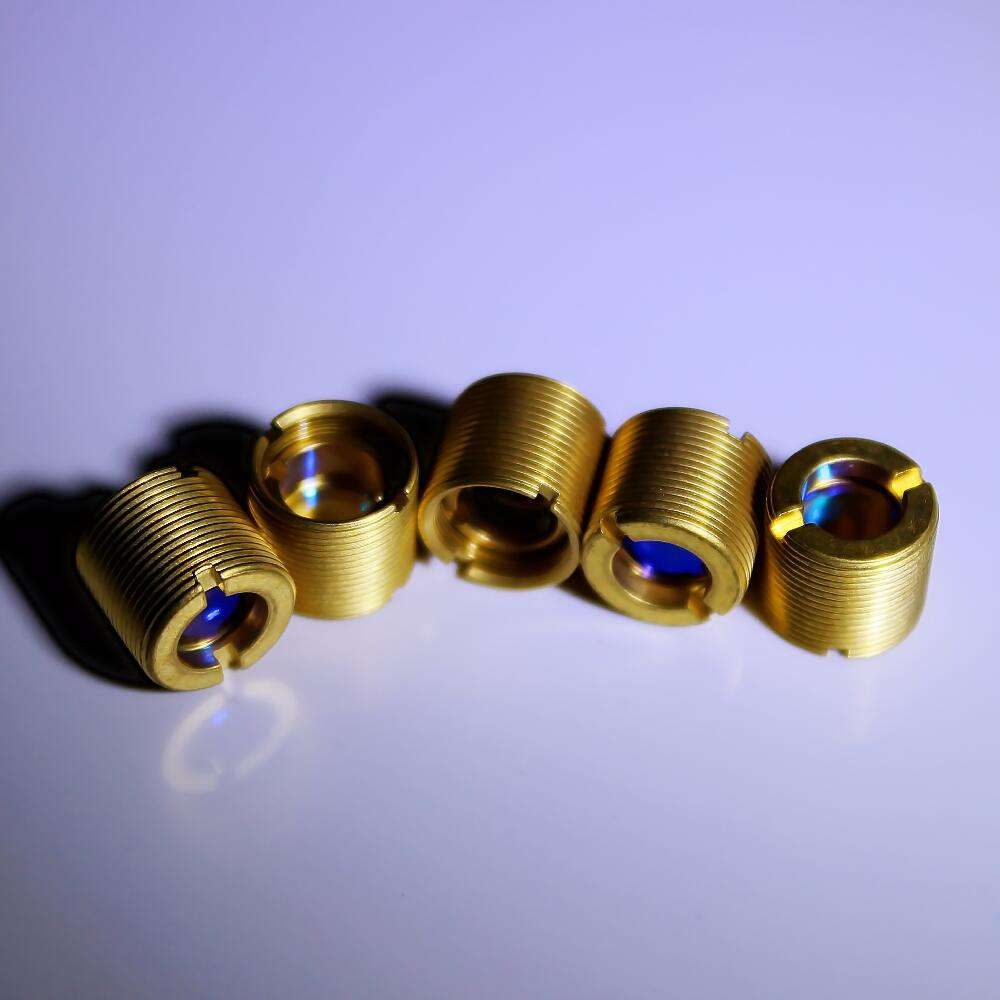

1 mm Fused Silica Aspheric Lens, AR Coated

Product description

This aspheric lens made from fused silica is designed for precise collimation applications, offering superior surface quality and minimal distortion. With a diameter of 1.0 mm and a surface quality rating of 10/5, it ensures optimal performance in various optical systems. The lens is suitable for applications requiring high transmittance and low aberration, making it ideal for IR imaging, LIDAR, and machine vision. Customization options are available to meet specific project needs.

Key Features

Aspheric design minimizes optical aberrations, enhancing imaging quality.
Surface quality of 10/5 ensures high clarity and performance.
Diameter tolerance of +/-0.01 mm for precise fitting in optical assemblies.
Clear aperture of 85% to 95% maximizes light throughput.
OEM and ODM support available for tailored solutions.

Applications

Collimation

Specification Summary

Item	Value
Material	Fused Silica
Shape	Aspheric
Diameter	1 mm
Surface Quality	10/5
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	Aspherical Lens; Aspherical lens
Customized Support	OEM, ODM
Warranty	None
Weight	0.1
Diameter Tolerance	+/-0.01mm
Thickness Tolerance	+/-0.01mm
Surface Figure	Lamda/10
Clear Aperture	85% ~95%

FAQ

Is custom sizing available?

Yes, customization options are available to meet specific project requirements.

What are the tolerances for diameter and thickness?

Diameter tolerance is +/-0.01 mm, and thickness tolerance is also +/-0.01 mm.
