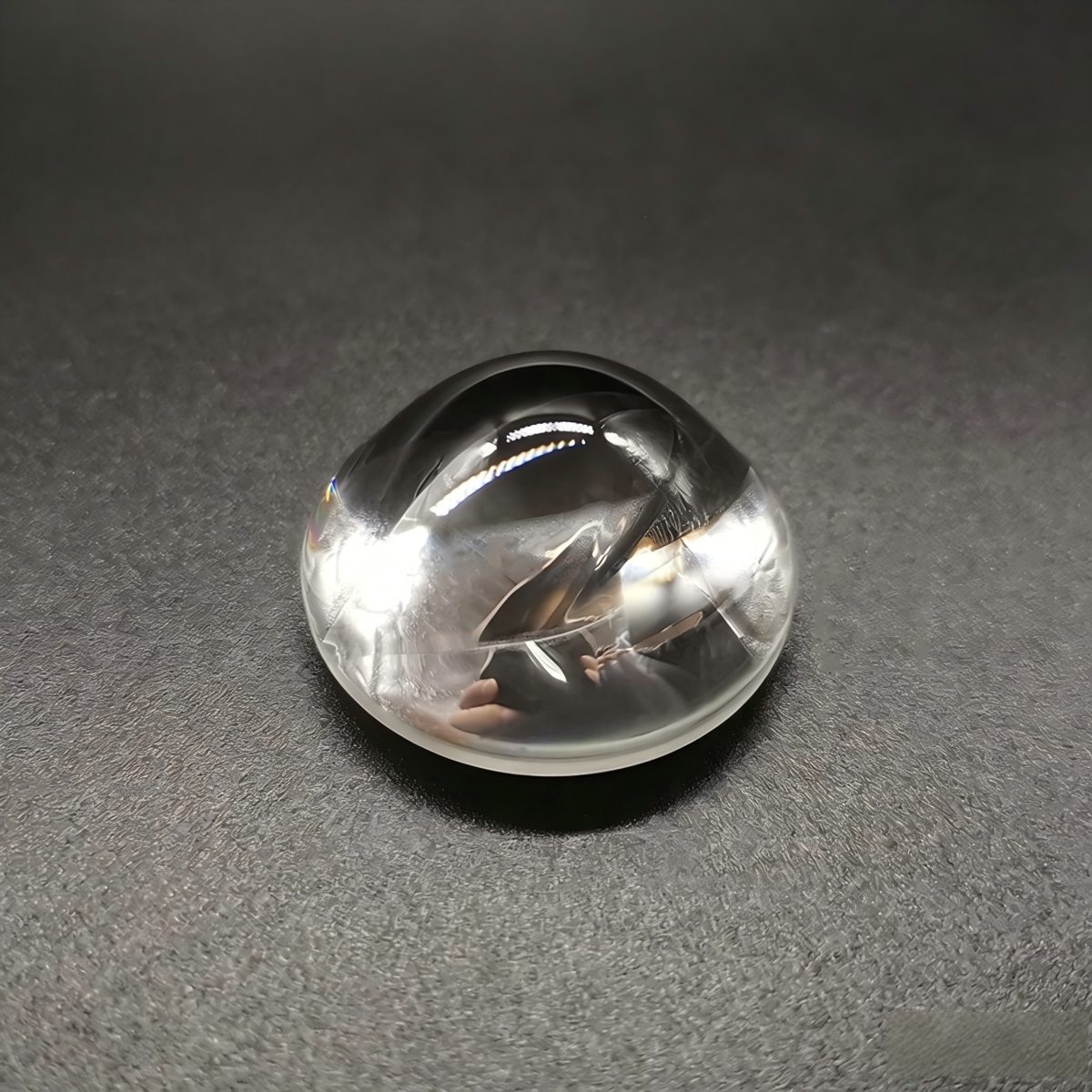

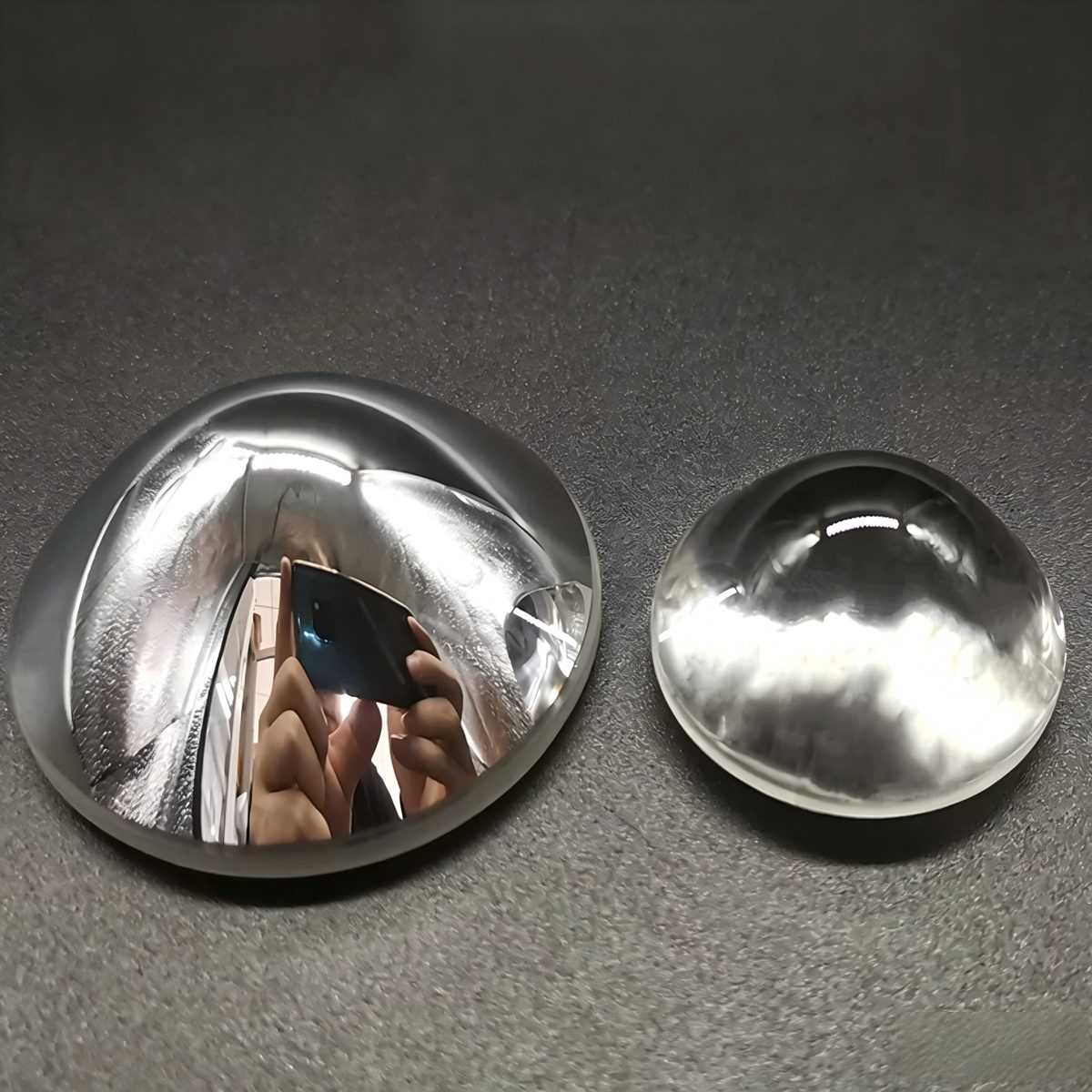

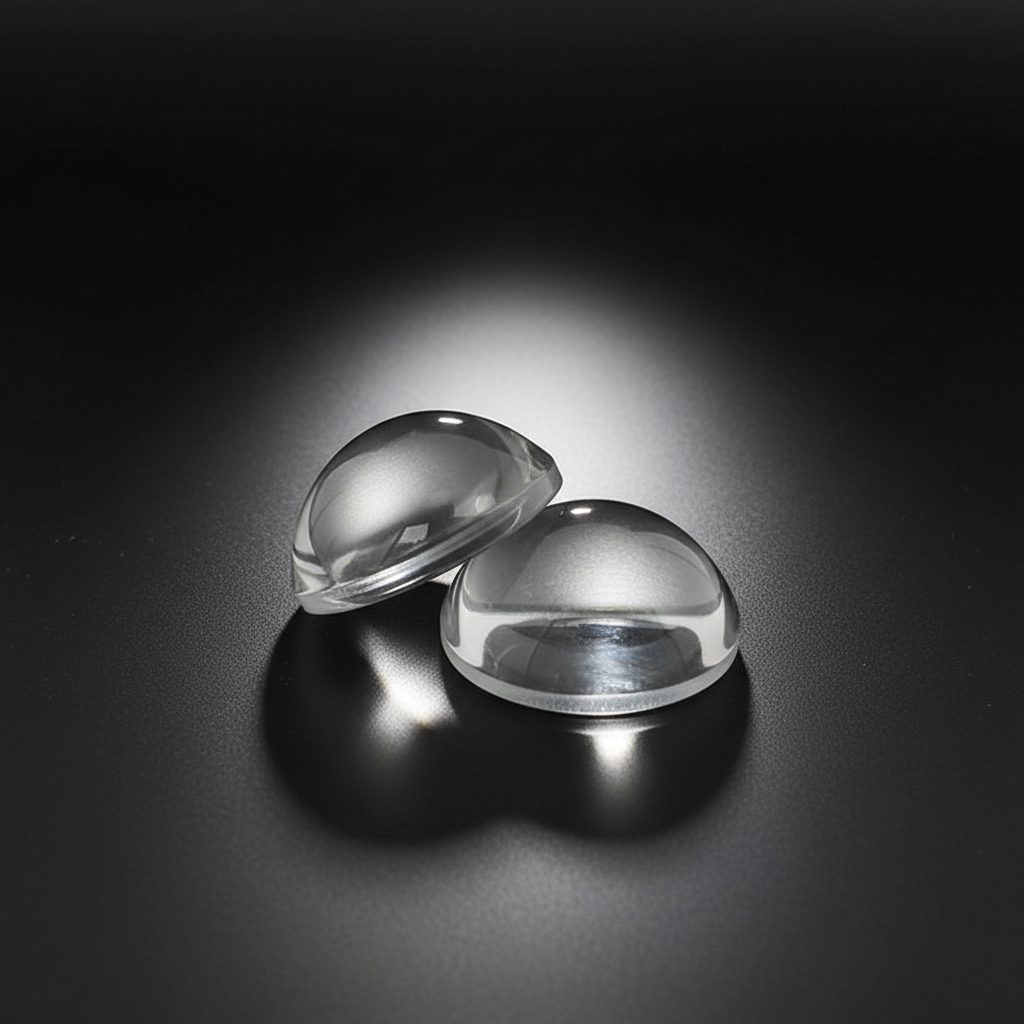

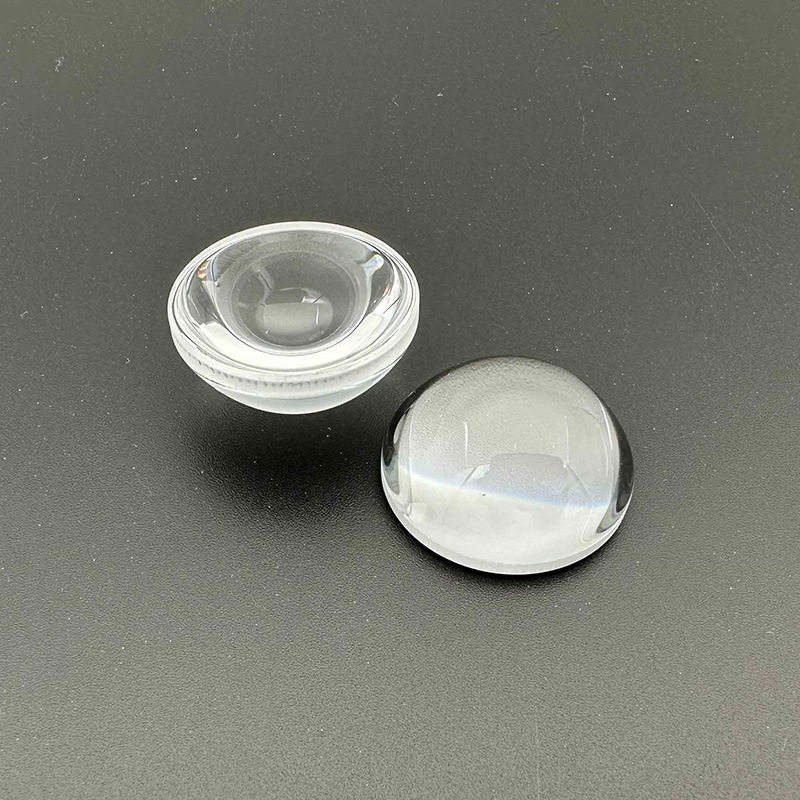

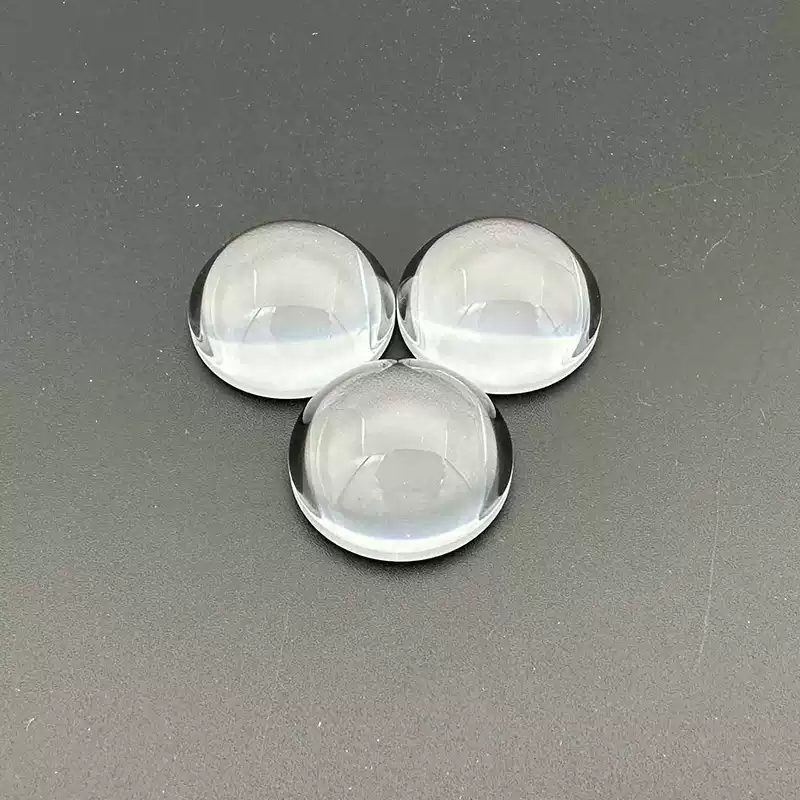

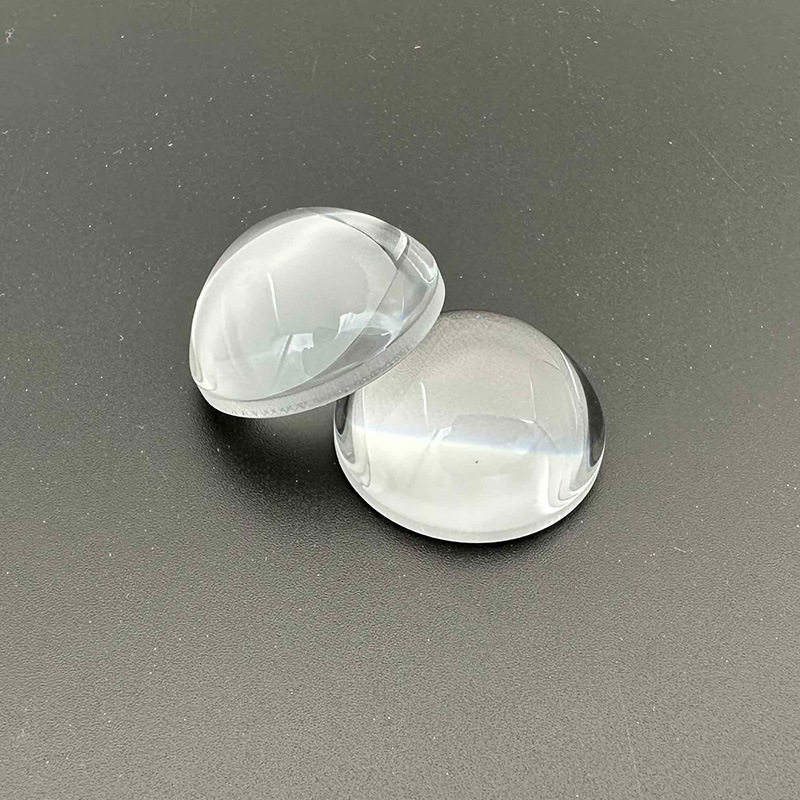

25.4 mm Fused Silica Aspheric Lens, AR Coated

Product description

This aspheric convex lens made from fused silica is ideal for applications in collimation and imaging across the 0.7-1.7 μm and 400-700 nm wavelength bands. Its advanced design minimizes spherical aberration, enhancing optical performance and clarity. With a diameter of 25.4 mm and a surface quality of 60/40, this lens is suited for precision applications requiring high-quality optics. The anti-reflective coating further improves visibility, making it an excellent choice for R&D and production in various optical systems.

Key Features

Diameter of 25.4 mm ensures compatibility with standard optical setups.
Surface quality of 60/40 provides reliable performance for imaging applications.
Anti-reflective coating reduces glare, enhancing clarity and visibility.
Customizable sizes available from 0.5-300 mm to fit specific project needs.
OEM, ODM, and OBM support for tailored solutions and prototypes.

Applications

Collimation, Imaging

Specification Summary

Item	Value
Material	Fused Silica
Shape	Aspheric
Diameter	25.4 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Convex Lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.5
Wavelength	1064nm 755nm 532nm
Tolerance	0.2mm
Center Thickness Tolerance	±0.1mm
Package	safe

FAQ

What custom sizes can be ordered?

Custom sizes range from 0.5 mm to 300 mm in diameter.

What is the tolerance for this lens?

The lens has a tolerance of 0.2 mm and a center thickness tolerance of ±0.1 mm.
