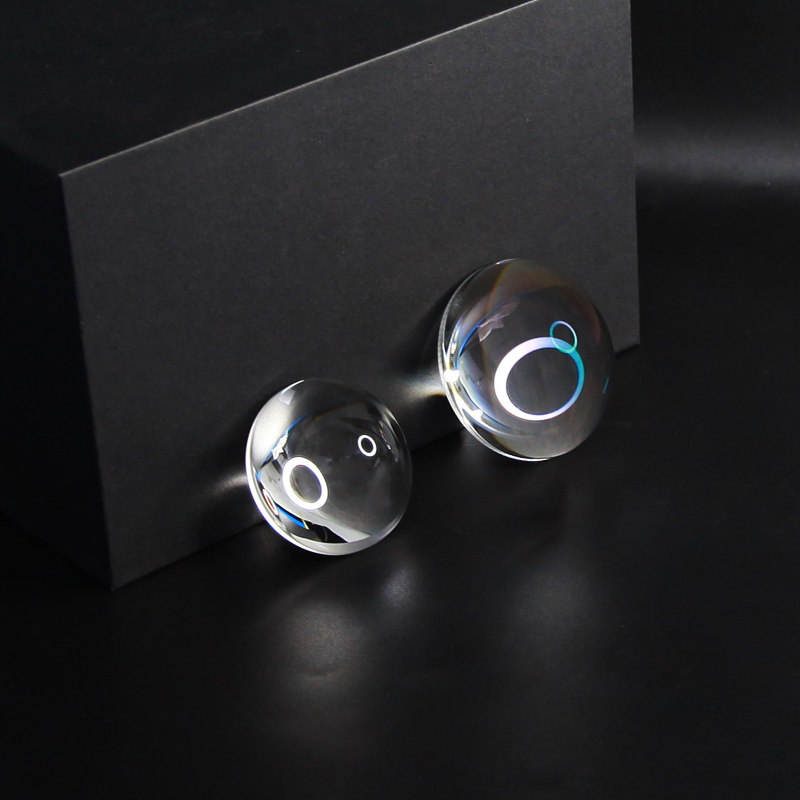

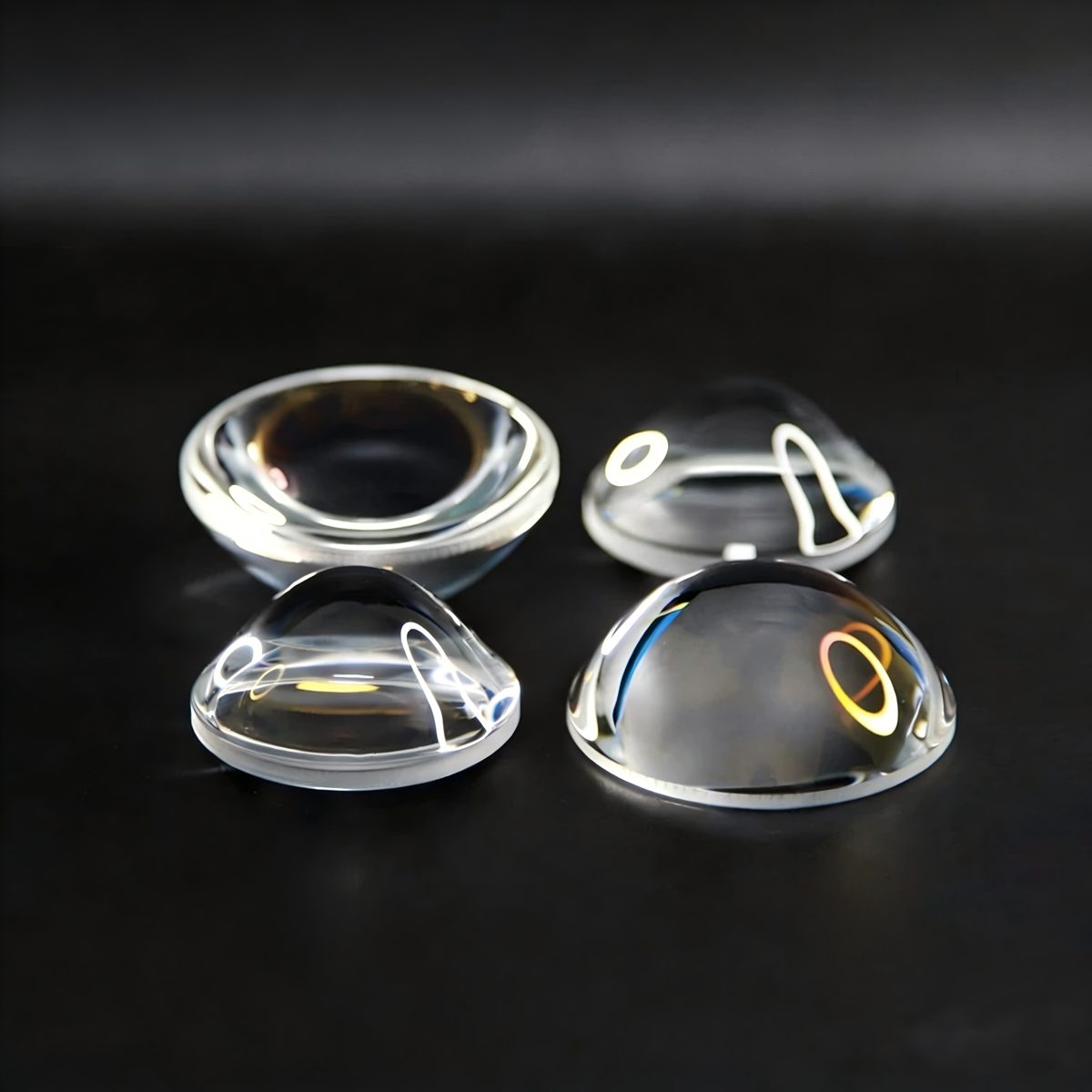

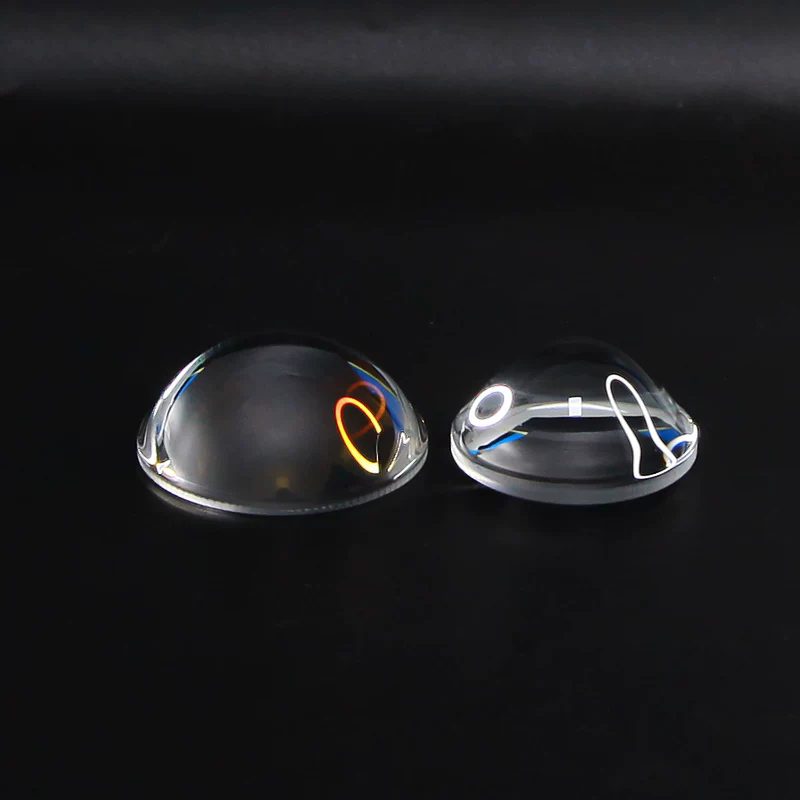

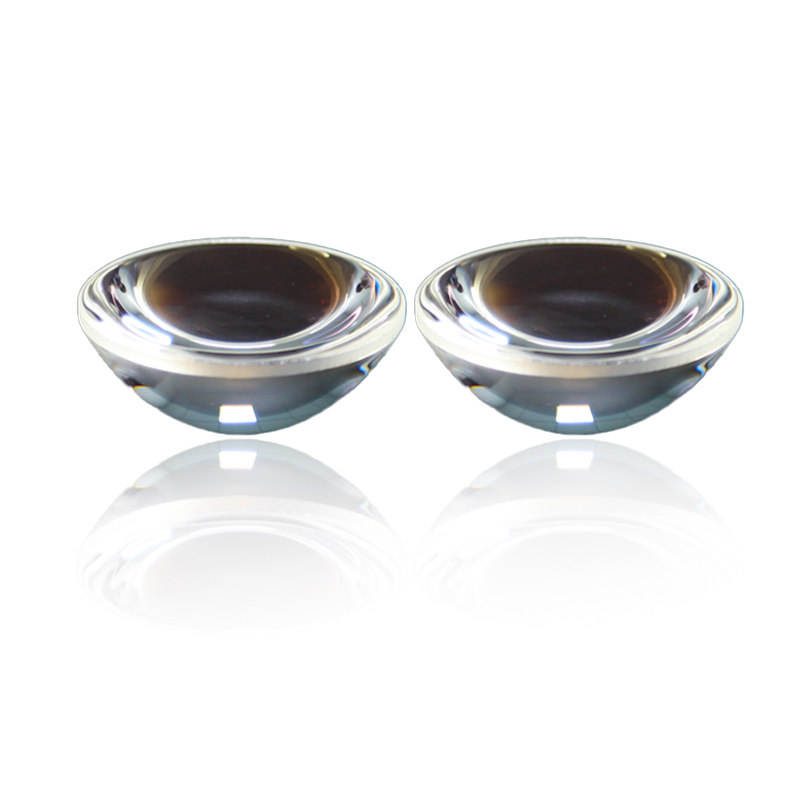

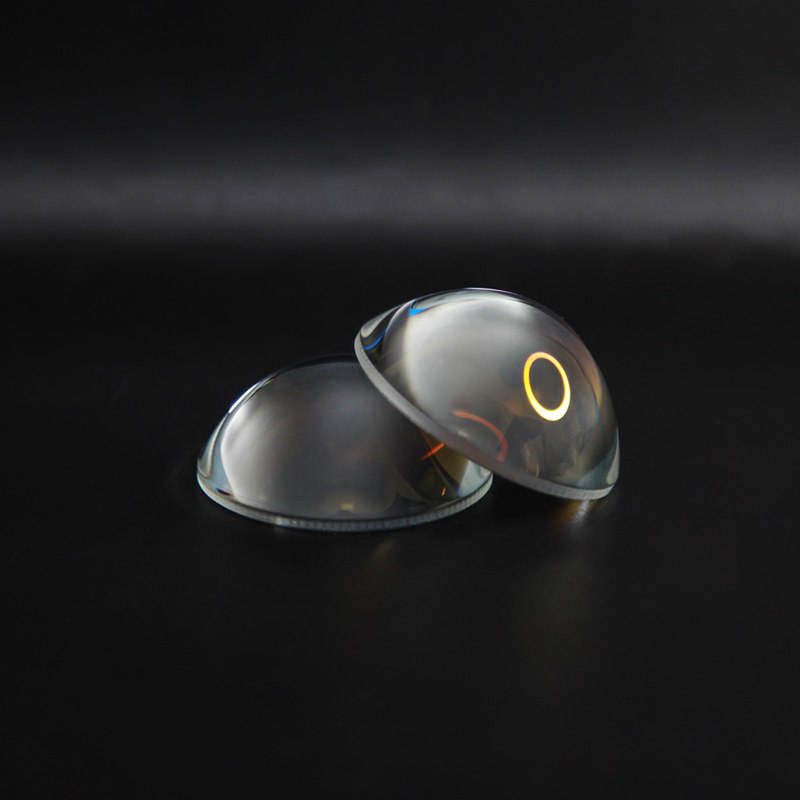

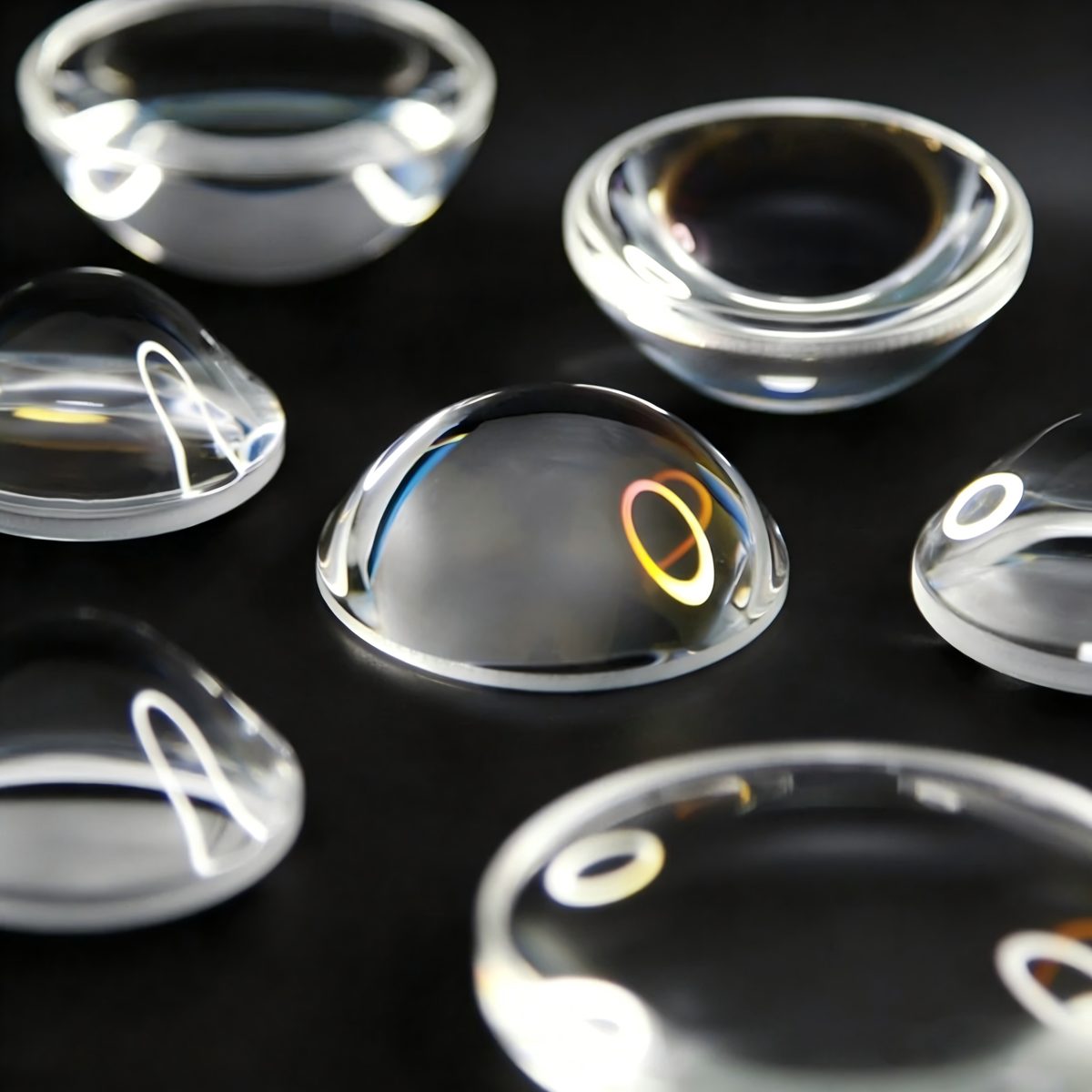

300 mm Fused Silica Aspheric Lens, AR Coated
Aspheric fused silica lens for collimation and imaging, 400-700 nm, customizable sizes, anti-reflective coating.
Core attributes
- Material
- Fused Silica
- Shape
- Aspheric
- Diameter
- 300 mm
- Thickness
- 0.1 mm
- Surface Quality
- 80/50
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Aspheric
- Diameter
- 300 mm
- Thickness
- 0.1 mm
- Surface Quality
- 80/50
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product description
This aspheric lens made from fused silica is ideal for applications in collimation and imaging within the 400-700 nm wavelength range. Its single-component design minimizes the number of lenses needed, reducing system size and weight while enhancing optical performance. The anti-reflective coating improves visibility by reducing glare, making it suitable for precision optical systems that require high clarity and minimal aberration.
Key Features
- Diameter: 300 mm, Thickness: 0.1 to 100 mm for versatile applications.
- Surface quality of 80/50 ensures high optical performance.
- Anti-reflective coating enhances clarity and reduces glare.
- Dimension tolerance of +/-0.05 mm for precise fitting in systems.
- OEM support available for custom optical solutions.
Applications
Collimation, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Aspheric |
| Diameter | 300 mm |
| Thickness | 0.1 mm |
| Surface Quality | 80/50 |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Aspheric Lenses |
| Customized Support | OEM |
| Warranty | 3 Years |
| Weight | 0.5 |
| Color | Transparent |
| Dimension Tolerance | +/-0.05mm |
FAQ
Can I get custom sizes for this lens?
Custom sizes are available from 0.5 mm to 300 mm in diameter.
What is the minimum order quantity (MOQ)?
The MOQ is not specified, allowing for flexible ordering.
