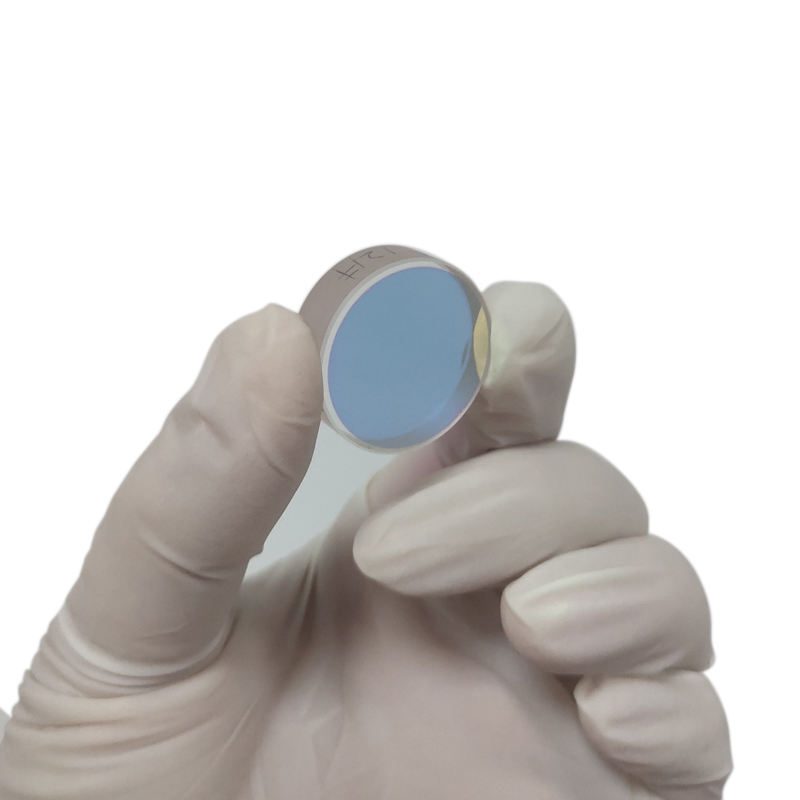

3 mm Fused Silica Aspheric Lens, HR Coated
Aspheric fused silica lens for imaging applications, 0.7-1.7 μm, 3.0 mm diameter, high surface quality, customizable support.
Core attributes
- Material
- Fused Silica
- Shape
- Aspheric
- Diameter
- 3 mm
- Surface Quality
- 20/10
- Coating
- high-reflective (HR)
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Aspheric
- Diameter
- 3 mm
- Surface Quality
- 20/10
- Coating
- high-reflective (HR)
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
This aspheric lens made from fused silica is designed for imaging applications within the 0.7-1.7 μm wavelength range. Its high surface quality of 20/10 ensures minimal distortion, making it ideal for precision optical systems. With a diameter of 3.0 mm, it fits various compact setups, while the HR coating enhances transmittance for optimal performance in infrared imaging and related technologies.
Key Features
- Aspheric design reduces spherical aberrations, improving image quality.
- High surface quality (20/10) ensures clarity and precision in imaging applications.
- HR coating enhances light transmission for better performance in the 0.7-1.7 μm range.
- Compact diameter (3.0 mm) suitable for space-constrained applications.
- Customizable support available for OEM and ODM projects.
Applications
Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Aspheric |
| Diameter | 3 mm |
| Surface Quality | 20/10 |
| Coating | high-reflective (HR) |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | lens |
| Customized Support | OEM, ODM |
| Warranty | 1 Year |
| Weight | 0.01 |
| Diameter Tolerance | ±0.0/-0.1mm |
| Dimension Tolerance | 0.01mm |
FAQ
Is custom sizing available?
Custom sizes can be supported through OEM and ODM options.
What is the diameter tolerance?
The diameter tolerance is ±0.0/-0.1 mm.
