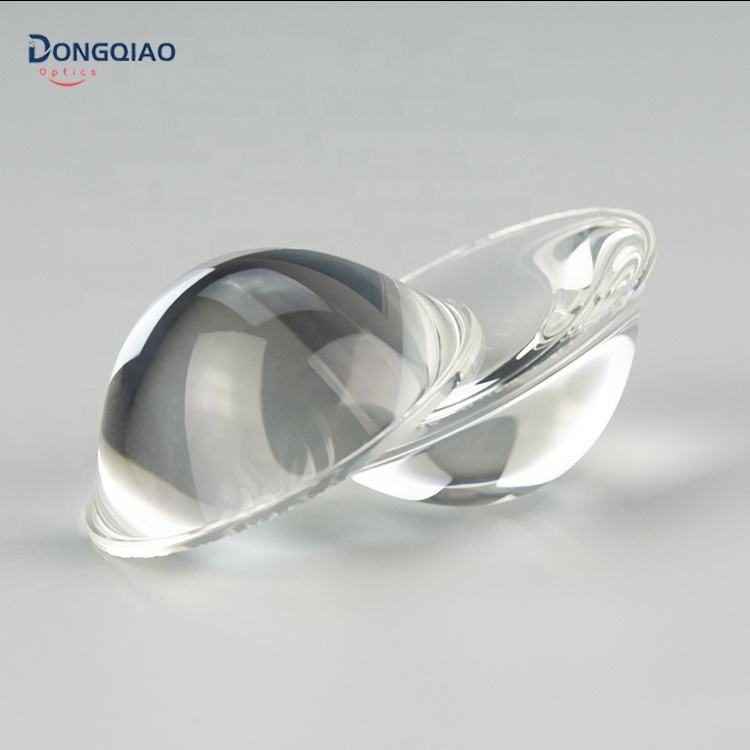

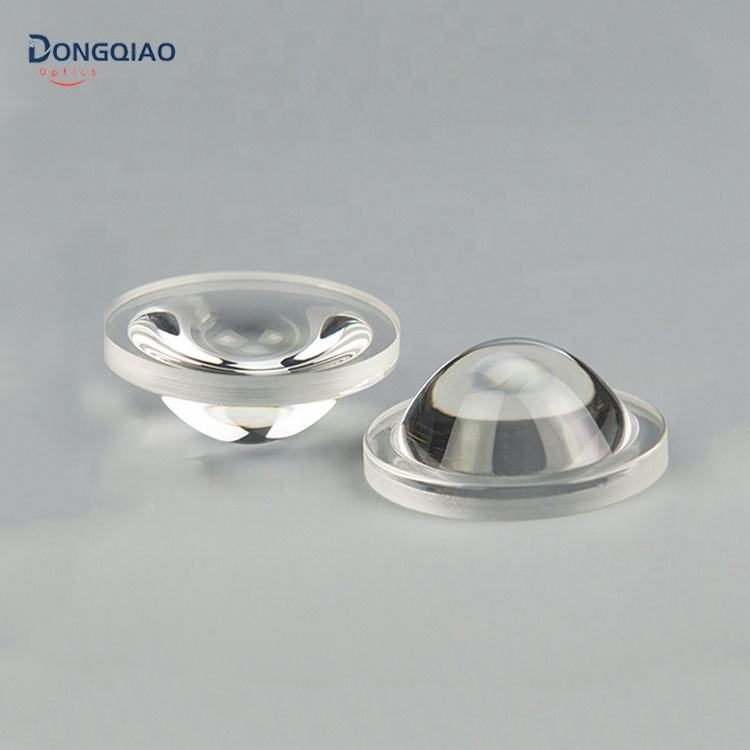

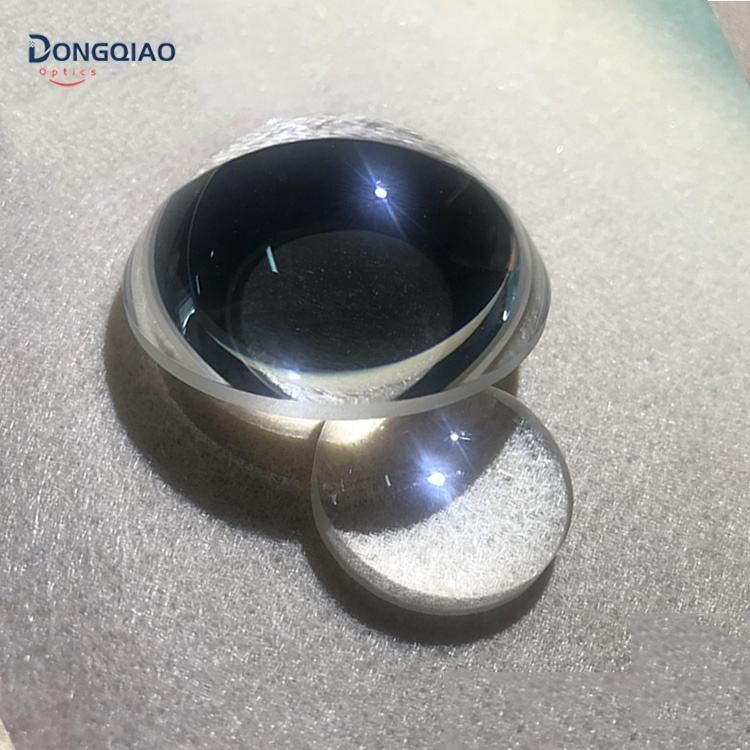

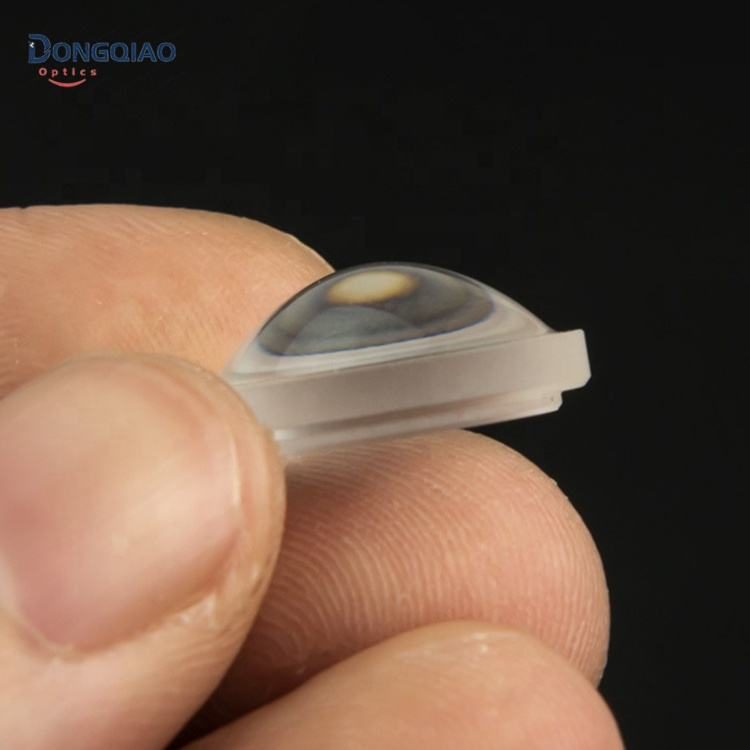

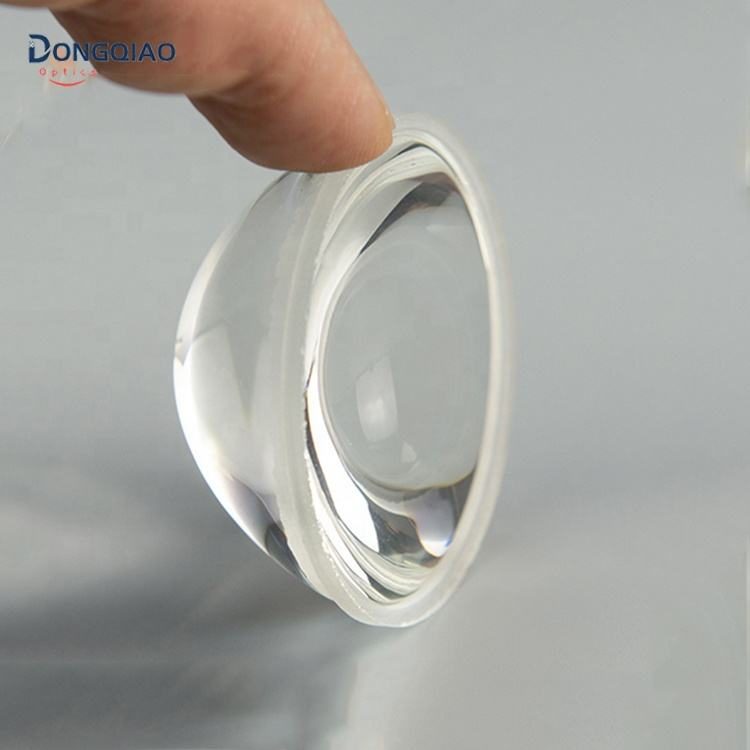

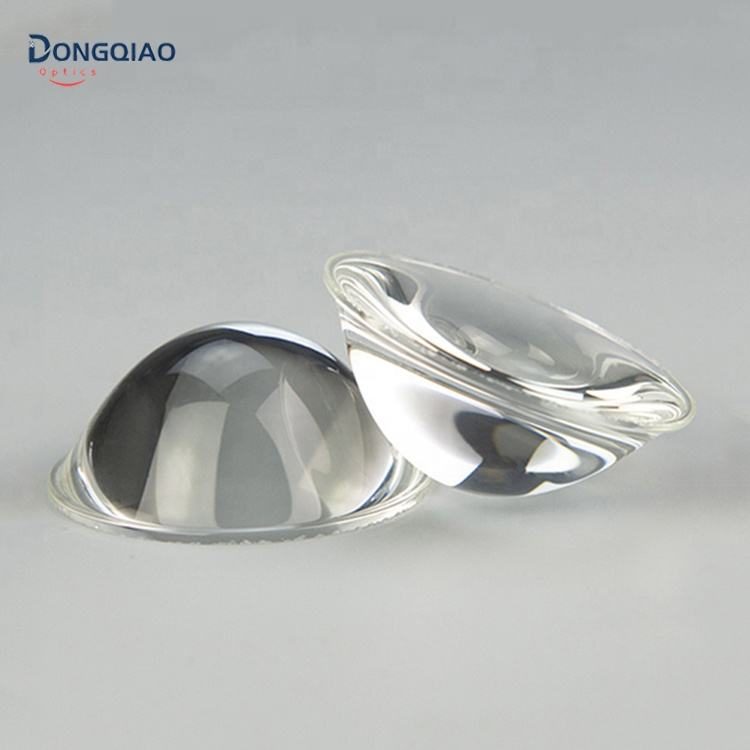

5 mm Fused Silica Aspheric Lens, AR Coated
High-performance aspheric lens in 8-14 μm and 400-700 nm ranges, ideal for IR imaging and LIDAR applications.
Core attributes
- Material
- Fused Silica
- Shape
- Aspheric
- Diameter
- 5 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR)
- Transmission bands
- LWIR (8-14 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Aspheric
- Diameter
- 5 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR)
- Transmission bands
- LWIR (8-14 μm), VIS (400-700 nm)
Product description
The aspheric lens made from fused silica is designed for applications in the 8-14 μm and 400-700 nm wavelength ranges. It addresses the need for high-performance optics with minimal aberrations, making it suitable for IR imaging, LIDAR, and laser applications. With a surface quality of 40/20 and a clear aperture greater than 90%, this lens ensures excellent transmission and image quality. Sourced from Zhejiang, it offers reliable performance for demanding optical systems.
Key Features
- Aspherical design minimizes optical aberrations for enhanced image clarity.
- Surface quality of 40/20 ensures high precision and performance.
- Clear aperture greater than 90% maximizes light transmission.
- Diameter tolerance of 0.05mm supports precise integration into optical systems.
- Customizable options available for OEM, ODM, and OBM applications.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Aspheric |
| Diameter | 5 mm |
| Surface Quality | 40/20 |
| Coating | anti-reflective (AR) |
| Transmission bands | LWIR (8-14 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Aspherical Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
| Logo/Graphic Design | Hot Stamping, 3D Printing, Transfer Sticker, Screen Printing, Digital Printing… |
| Weight | 1 |
| Parallelism | 30 arc sec |
| Clear Aperture | >90% |
| Color | Clear transparent |
| Diameter Tolerance | 0.05mm |
FAQ
What is the minimum order quantity (MOQ) for this lens?
The MOQ is not specified in the provided data.
Can I get custom sizes for this aspheric lens?
Yes, the lens supports OEM, ODM, and OBM customization options.
