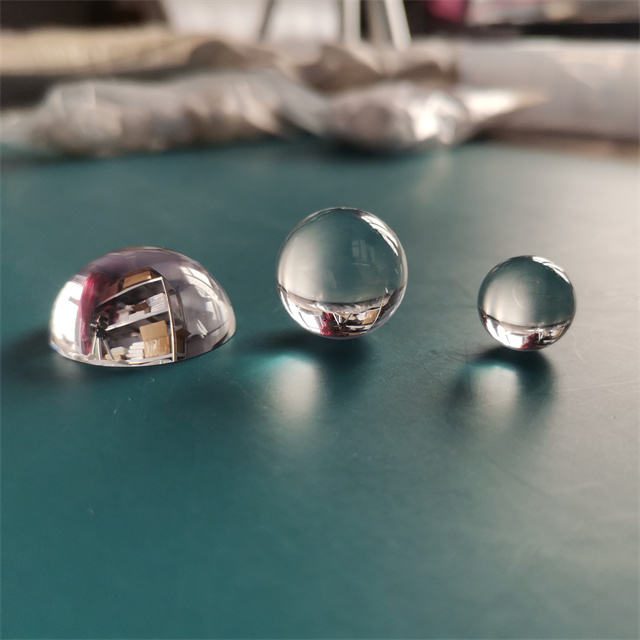

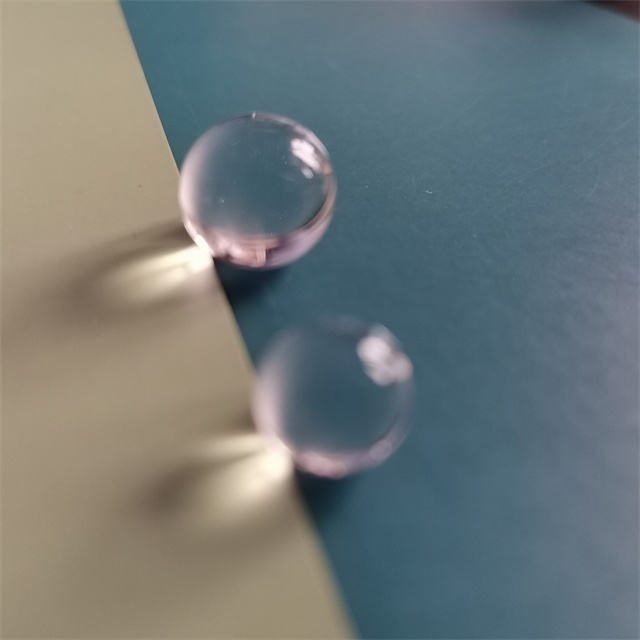

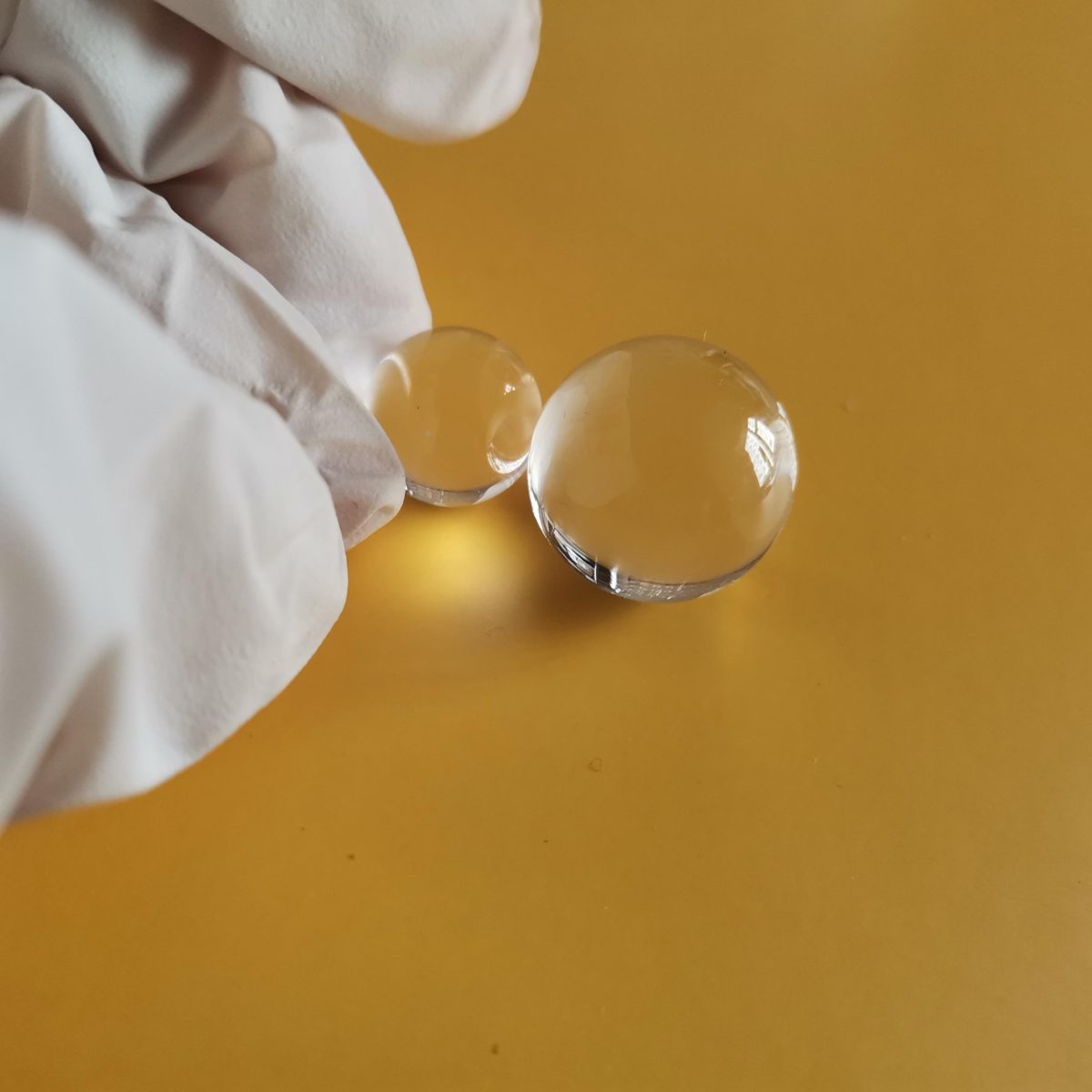

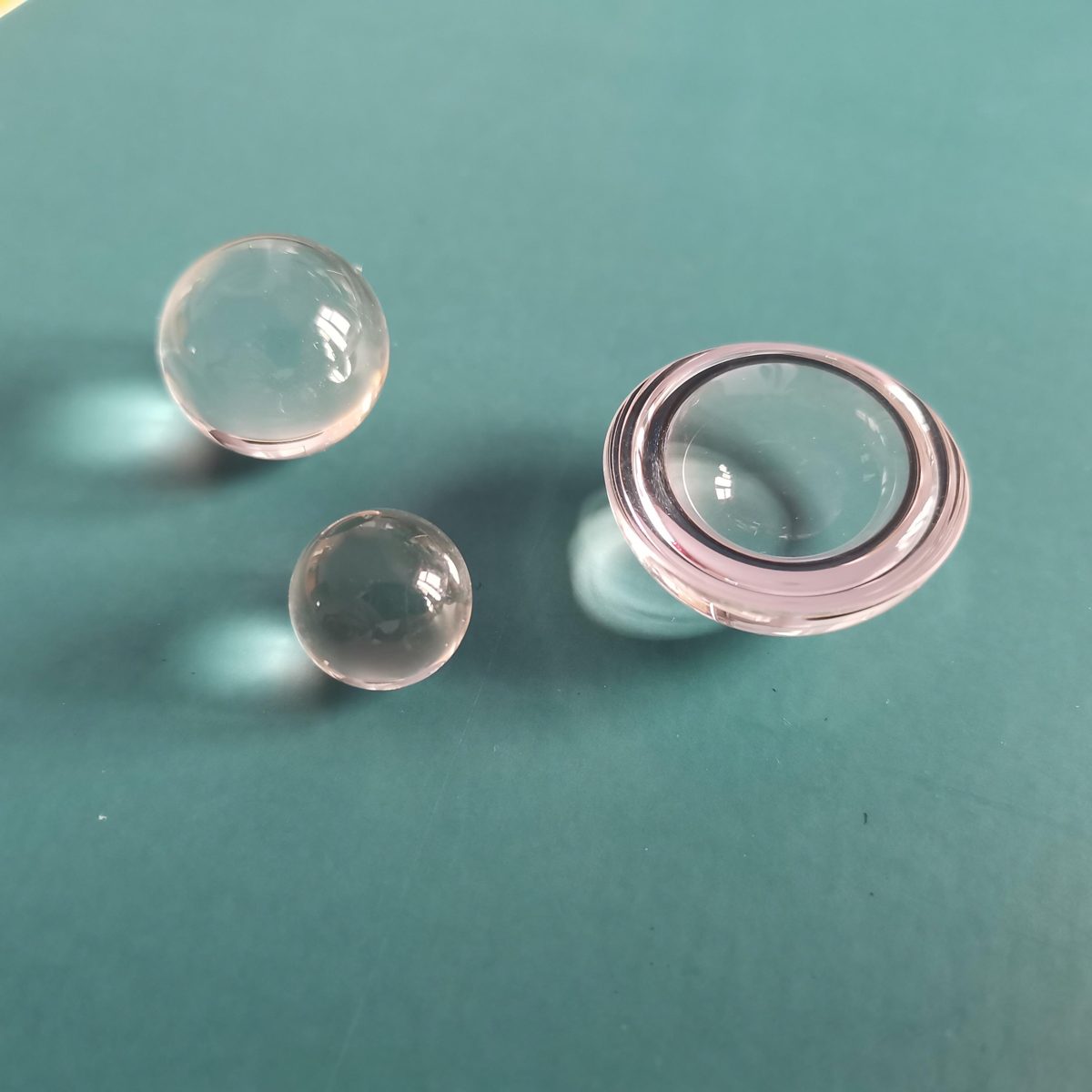

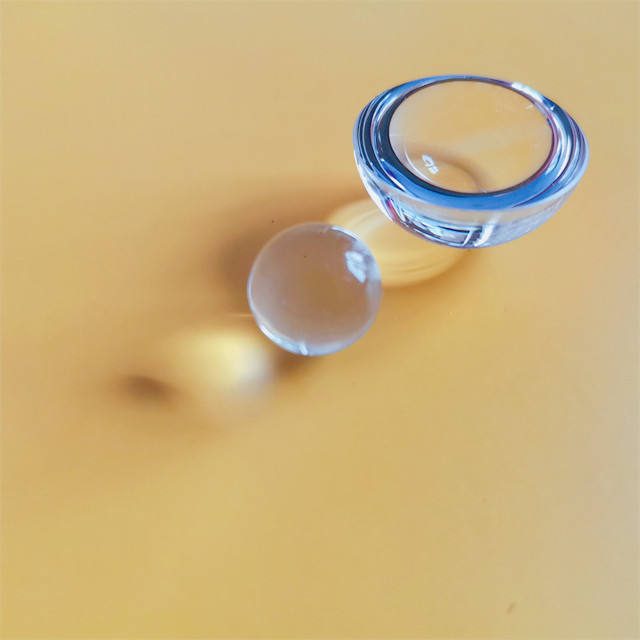

0.5 mm Fused Silica Ball Lens
Explore high-performance fused silica ball lenses for medical and collimation applications with customizable options.
Core attributes
- Material
- Fused Silica
- Shape
- Ball
- Diameter
- 0.5 mm
- Coating
- uncoated, anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Ball
- Diameter
- 0.5 mm
- Coating
- uncoated, anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm), UV (<400 nm)
Product description
Fused silica ball lenses provide high-performance optical solutions for applications in medical and collimation fields. With a diameter range from 0.5 mm to 100 mm and coatings available in uncoated or anti-reflective (AR), these lenses are suitable for both visible and UV wavelengths (<400 nm and 400-700 nm). Their spherical shape ensures effective light coupling and scanning, making them ideal for various optical systems. Customization options are available to meet specific project requirements.
Key Features
- Diameter range: 0.5 mm to 100 mm for versatile application fit.
- Coating options: uncoated or AR for enhanced performance.
- Material: Fused silica offers excellent optical transmission.
- Spherical shape enables effective light collimation.
- OEM support available for customized solutions.
Applications
Medical, Collimation
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Ball |
| Diameter | 0.5 mm |
| Coating | uncoated, anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Ball lens; Collimating Lenses |
| Customized Support | OEM |
| Warranty | 1 month |
| Weight | 10-500g(0.35-17.64oz) |
| S/D | 60/40 - 20/10 |
| Structure | Spherical |
| Wavelength | Vis or UV OR IR |
FAQ
What are the tolerances for diameter?
Diameter tolerance is ±0.05 mm or ±0.02 mm.
Can I order custom sizes?
Yes, customization options are available for various sizes.
