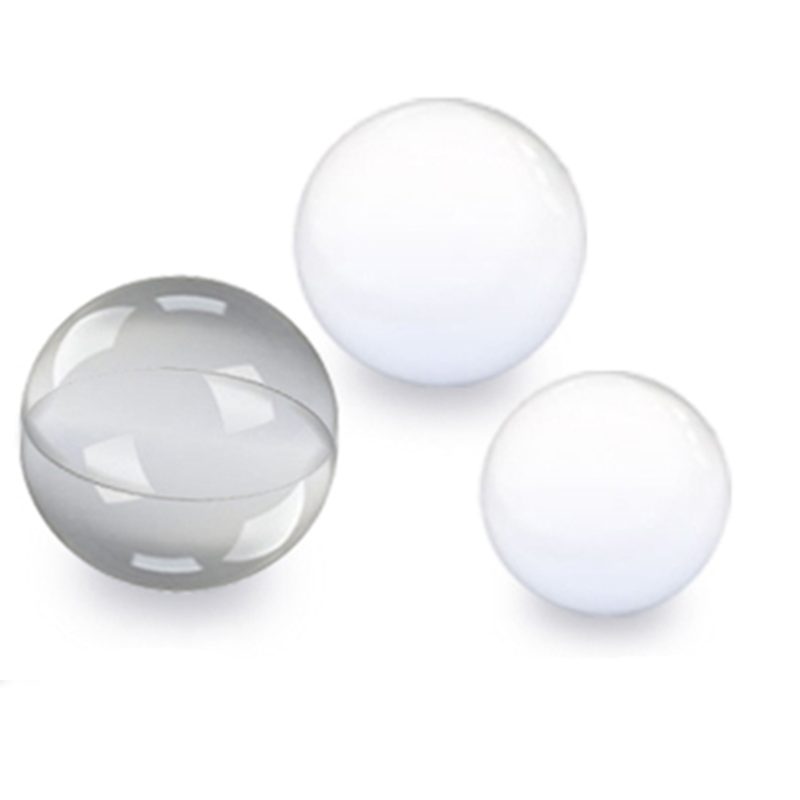

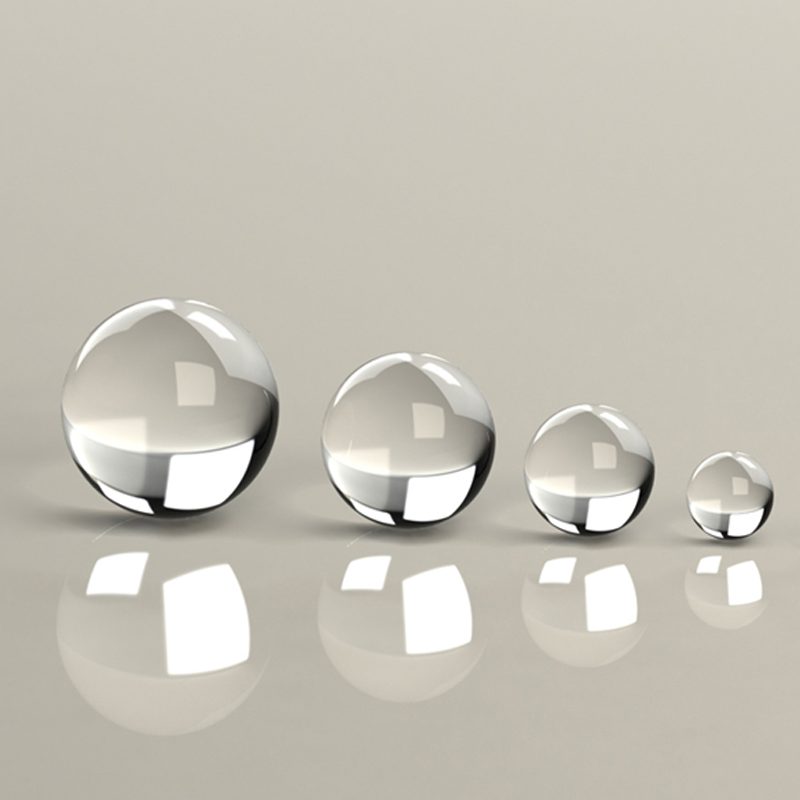

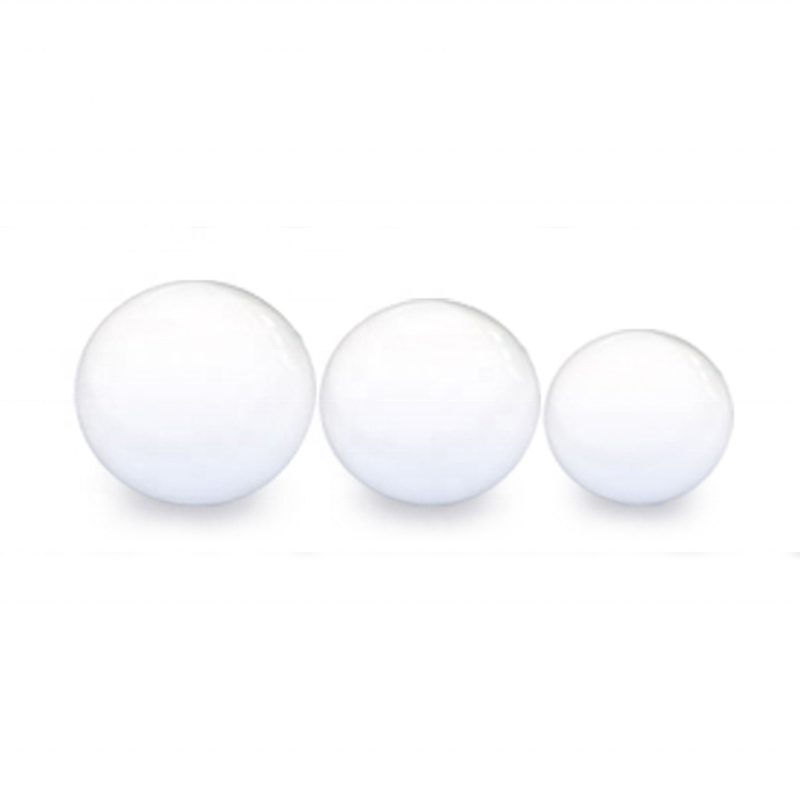

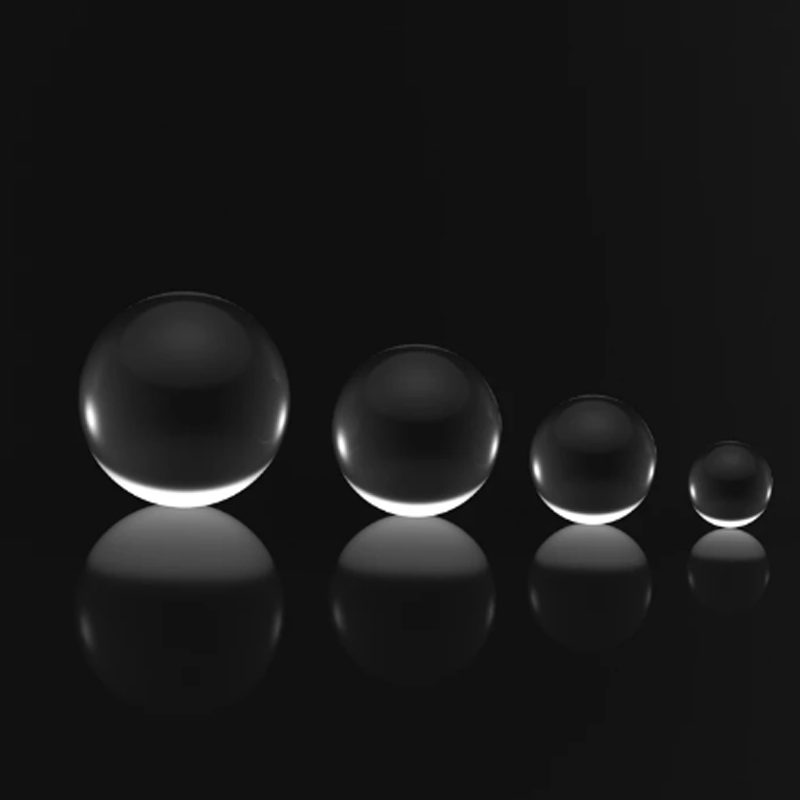

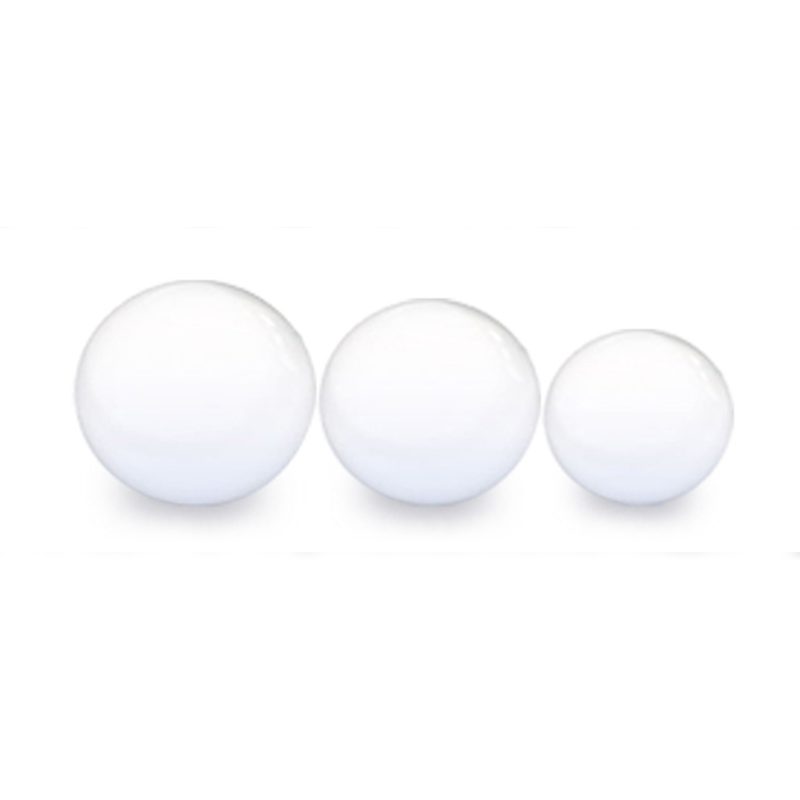

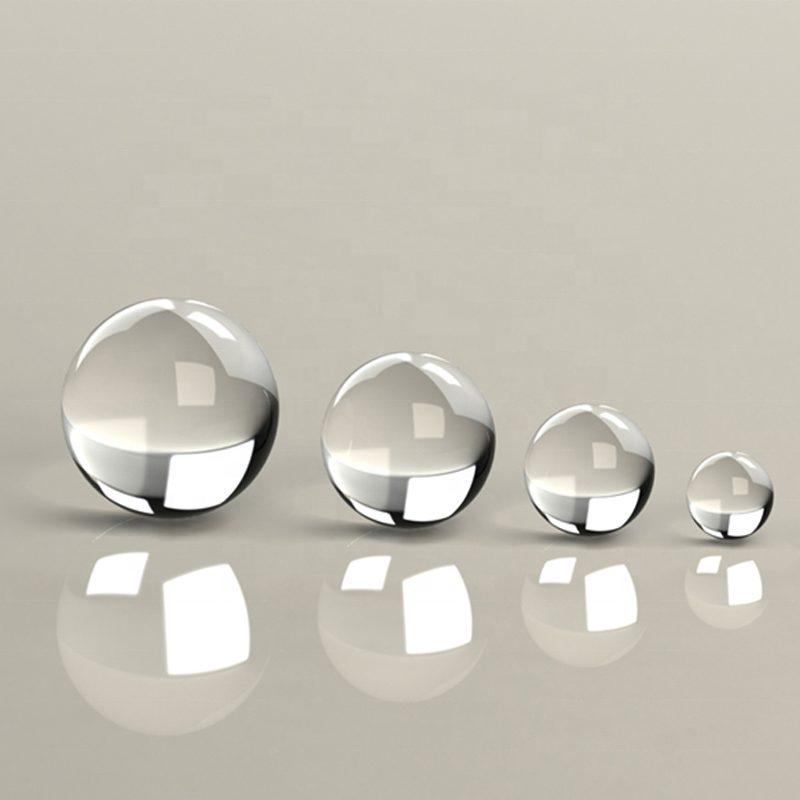

1 mm Fused Silica Ball Lens, AR Coated

Product description

Fused silica ball lenses are essential for applications in medical imaging, projection, and optical collimation. Their spherical design enhances signal coupling between fibers, emitters, and detectors, making them ideal for optical measurement systems. With a surface quality of 60/40 and a diameter tolerance of +/-0.1 mm, these lenses ensure precision and reliability in various optical setups. Customizable sizes from 1 mm to 5 mm are available to meet specific requirements.

Key Features

High diameter tolerance of +/-0.1 mm for precise applications.
Surface quality of 60/40 ensures minimal optical distortion.
Spherical design facilitates effective light focusing and collimation.
Compatible with OEM, ODM, and OBM for tailored solutions.
Lightweight at 0.05 grams, ideal for compact optical systems.

Applications

Medical, Projection, Collimation, Imaging

Specification Summary

Item	Value
Material	Fused Silica
Shape	Ball
Diameter	1 mm
Surface Quality	60/40
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	round ball
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.05
Color	transparents
Flatness	1/4lambda
Diameter Tolerance	+/-0.1

FAQ

What custom sizes are available?

Custom sizes range from 1 mm to 5 mm, with options for additional dimensions upon request.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, allowing for flexibility in ordering.
