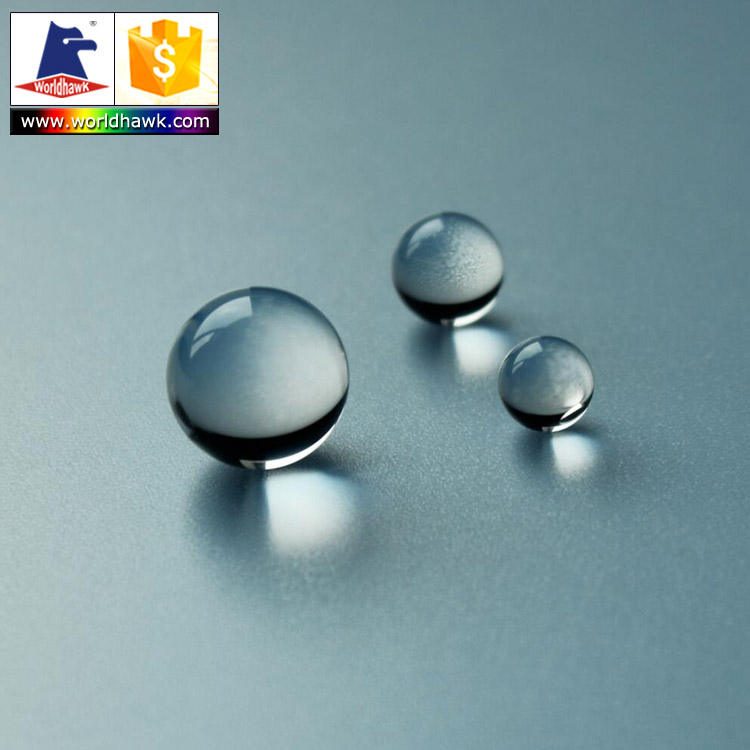

1 mm Fused Silica Ball Lens

Product description

Ball lenses made from fused silica are ideal for applications in medical imaging, microscopy, and collimation. These lenses operate effectively across multiple wavelength bands, including 0.7-1.7 μm, 400-700 nm, and <400 nm, making them versatile for various optical systems. Their high clear aperture (>92%) and surface quality (60/40) ensure optimal light transmission and minimal distortion, crucial for enhancing signal quality in fiber coupling and laser applications.

Key Features

Diameter range from 1.0 mm to 150.0 mm for diverse application needs.
Clear aperture greater than 92% ensures high light transmission efficiency.
Centration accuracy of 3 arc min or better for precise optical alignment.
Focal length tolerance of +/-1% (+/-5% for 400 series) for reliable performance.

Applications

Medical, Microscopy, Collimation

Specification Summary

Item	Value
Material	Fused Silica
Shape	Ball
Diameter	1 mm
Surface Quality	60/40
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Customized Support	OEM, ODM
Clear Aperture	>92%
Centration	3 arc min or better
Focal Length Tolerance	+/-1% (+/-5% for 400 series)

FAQ

Can I get custom sizes for the ball lenses?

Yes, ball lenses are available in diameters ranging from 1.0 mm to 150.0 mm.

What is the minimum order quantity (MOQ) for these lenses?

The minimum order quantity is not specified, allowing for flexible procurement.
