1 / 6Beamsplitters

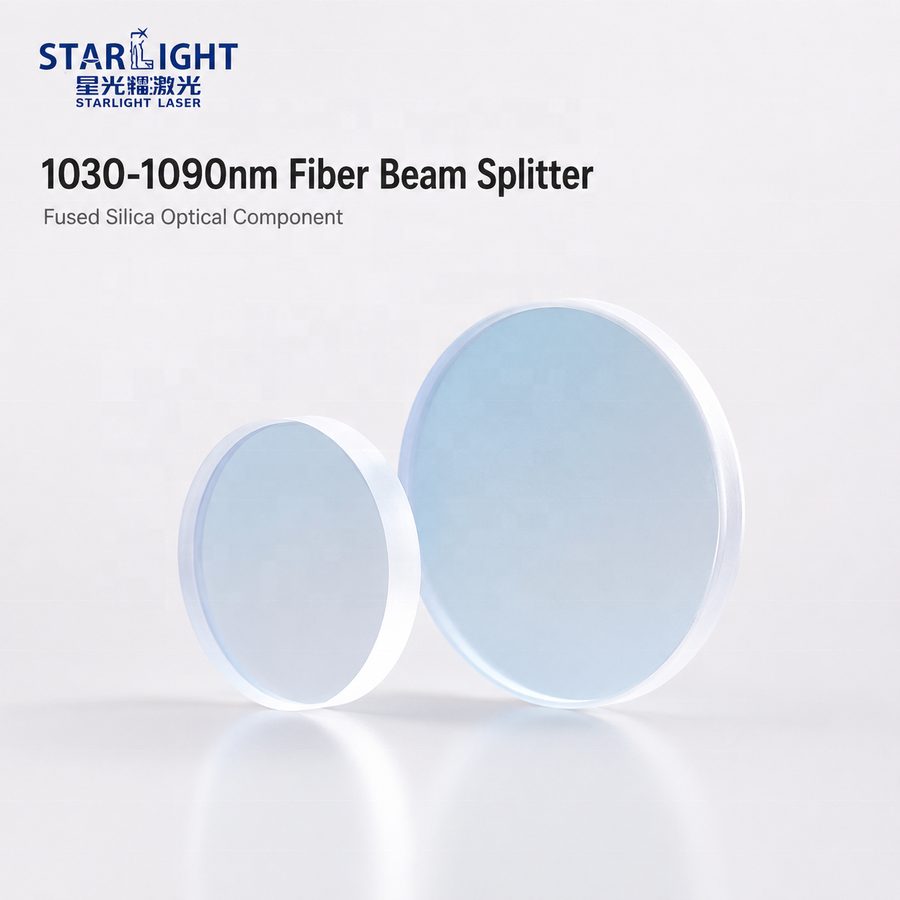

3 mm Fused Silica Beamsplitter, AR Coated
Fused Silica beamsplitter for 1030-1090 nm lasers, offering custom sizes and multiple split ratios for optimal performance.
Core attributes
- Material
- Fused Silica
- Size
- 3 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR), high-reflective (HR)
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- Fused Silica
- Size
- 3 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR), high-reflective (HR)
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
This high-purity Fused Silica beamsplitter is designed for laser applications, specifically within the 1030-1090 nm wavelength range. It addresses the need for reliable beam splitting in fiber laser systems, such as marking, cutting, and welding. With multiple split ratio options and a robust broadband coating, this beamsplitter ensures optimal performance and stability under long-term laser exposure, making it ideal for demanding environments.
Key Features

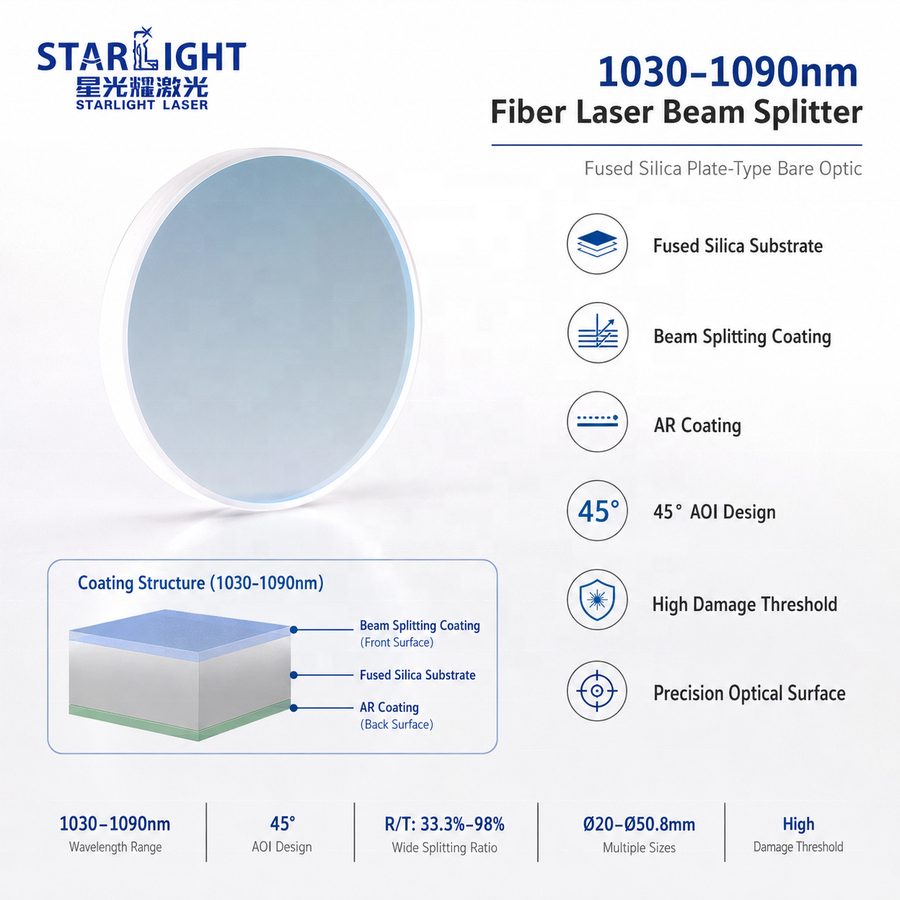

- Broadband coating for 1030-1090 nm, ensuring compatibility with various fiber laser wavelengths.
- Multiple split ratio options (33.3R, 50R, 95R, 98R) to meet diverse power distribution needs.

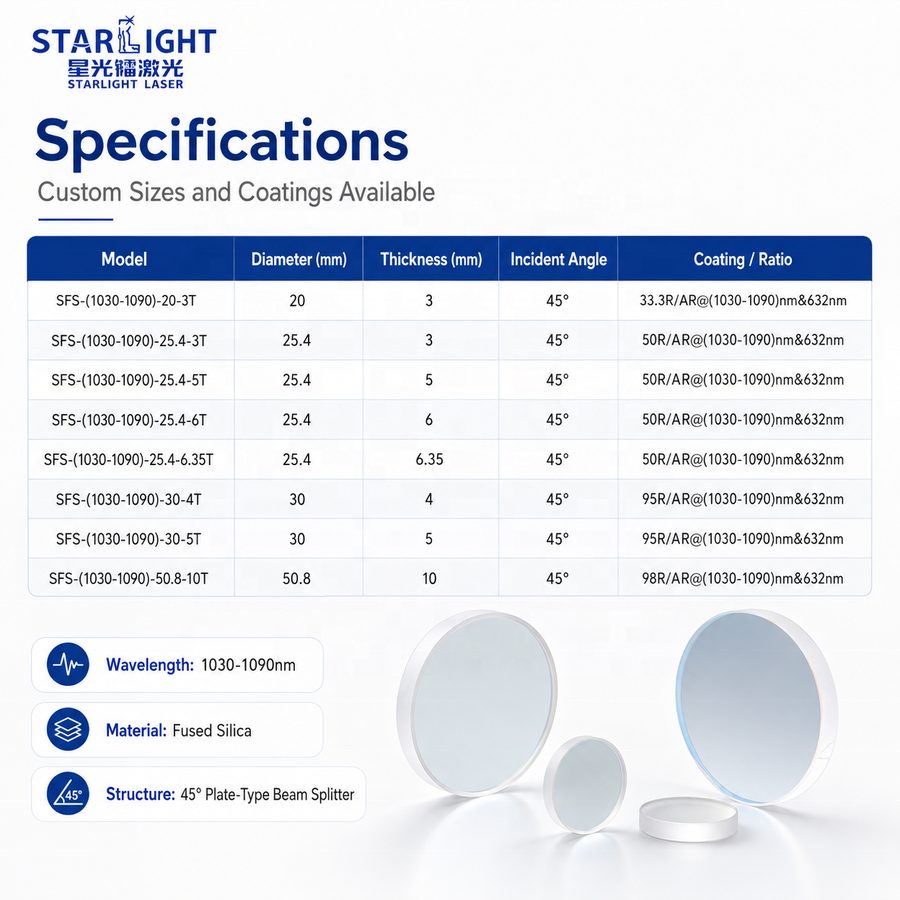

- Standard diameters of 20mm, 25.4mm, 30mm, and 50.8mm available, with custom sizing options.

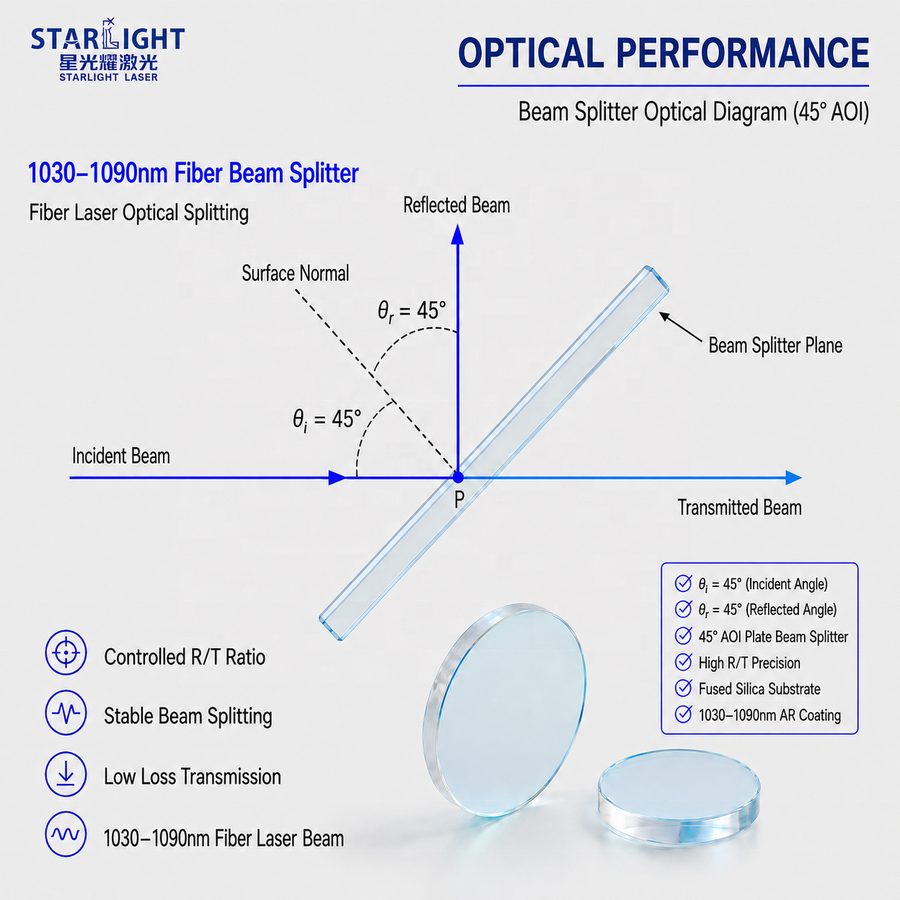

- Fixed 45-degree incident angle simplifies optical path setup in laser machine assemblies.
- High resistance to laser damage for stable performance over extended use.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Size | 3 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR), high-reflective (HR) |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Wavelength | 1030-1090nm |
| Power | 10W(0.01hp) |
| Warranty | Unavailable |
| Wavelength Range | 1030-1090nm |
FAQ
What are the available split ratios?
The beamsplitter offers multiple split ratios: 33.3R, 50R, 95R, and 98R.
Can I get custom sizes?
Yes, custom sizing options are available for OEM projects.
