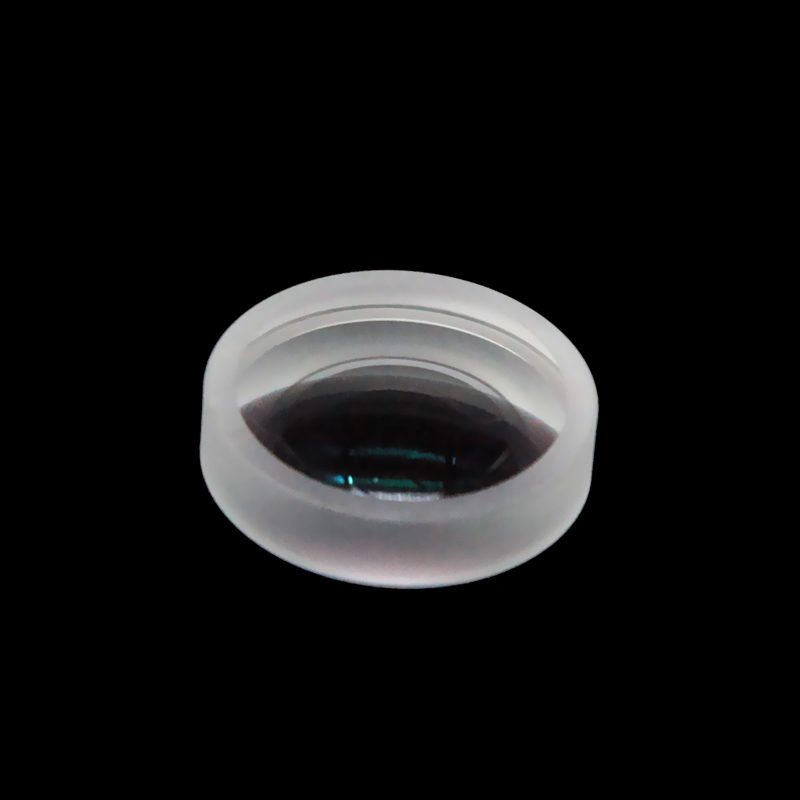

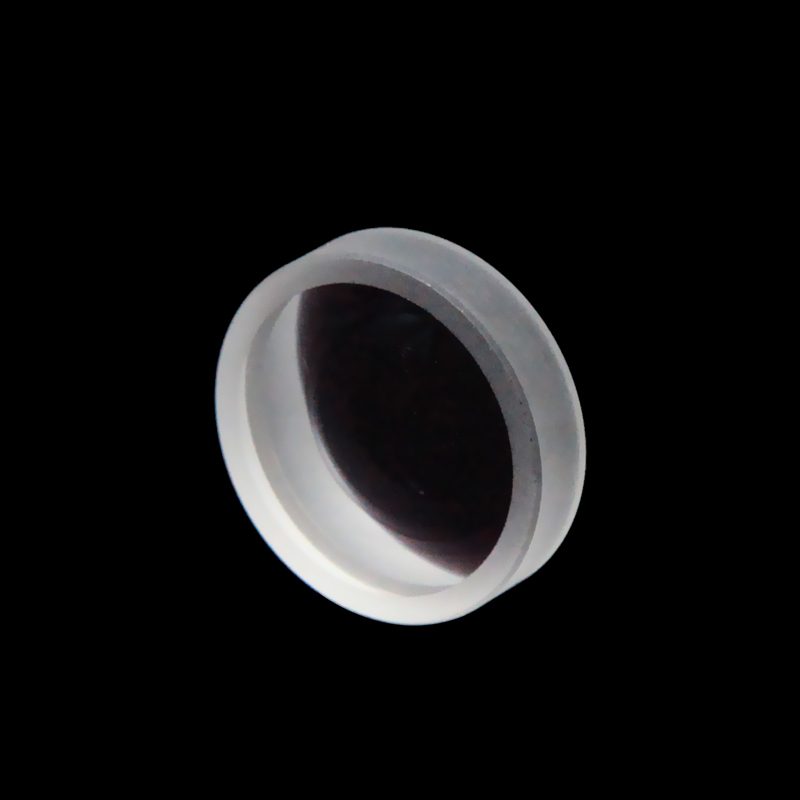

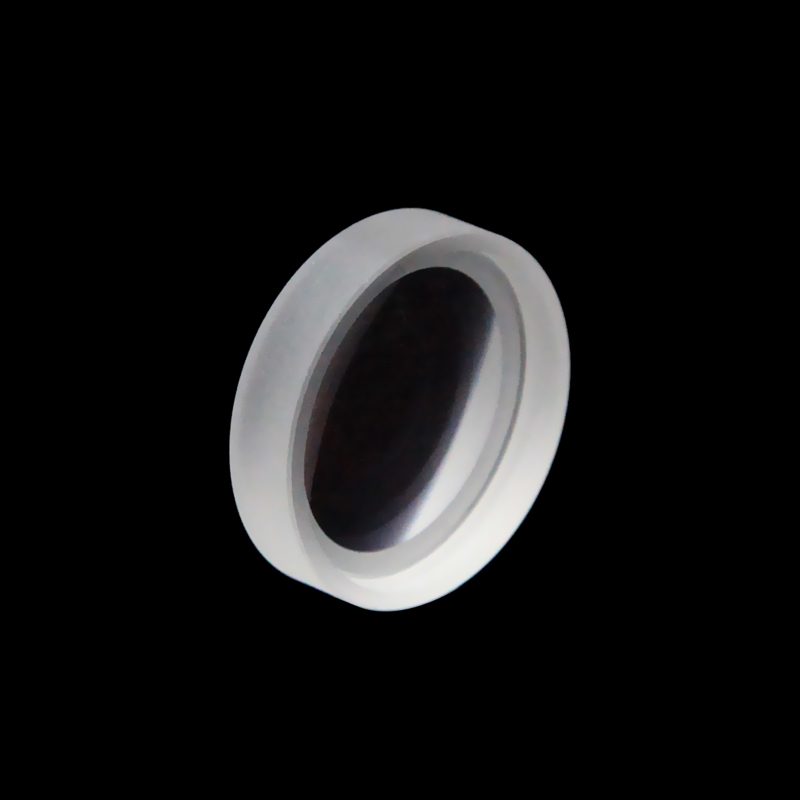

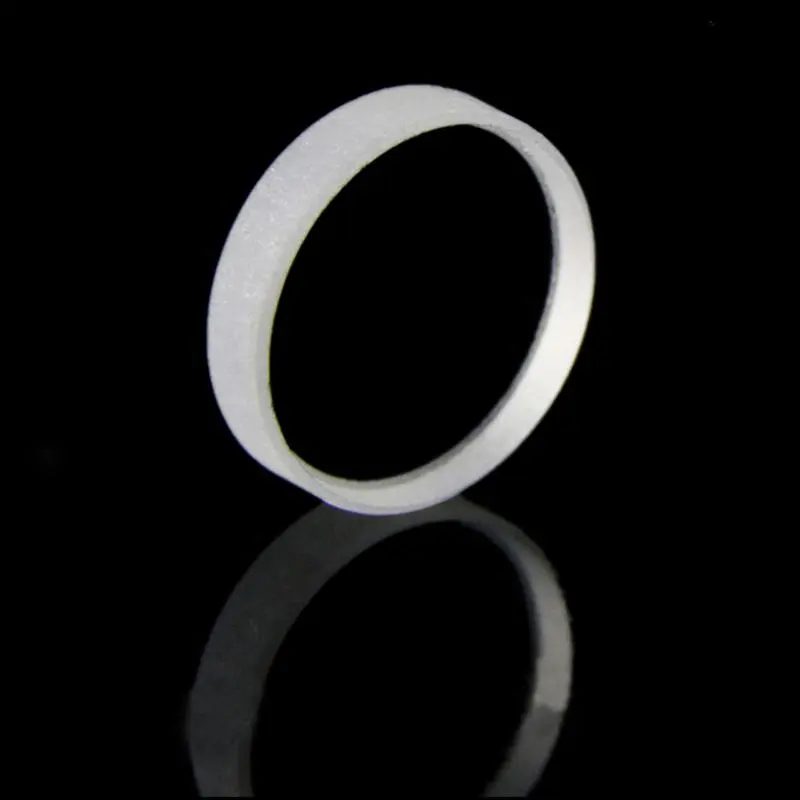

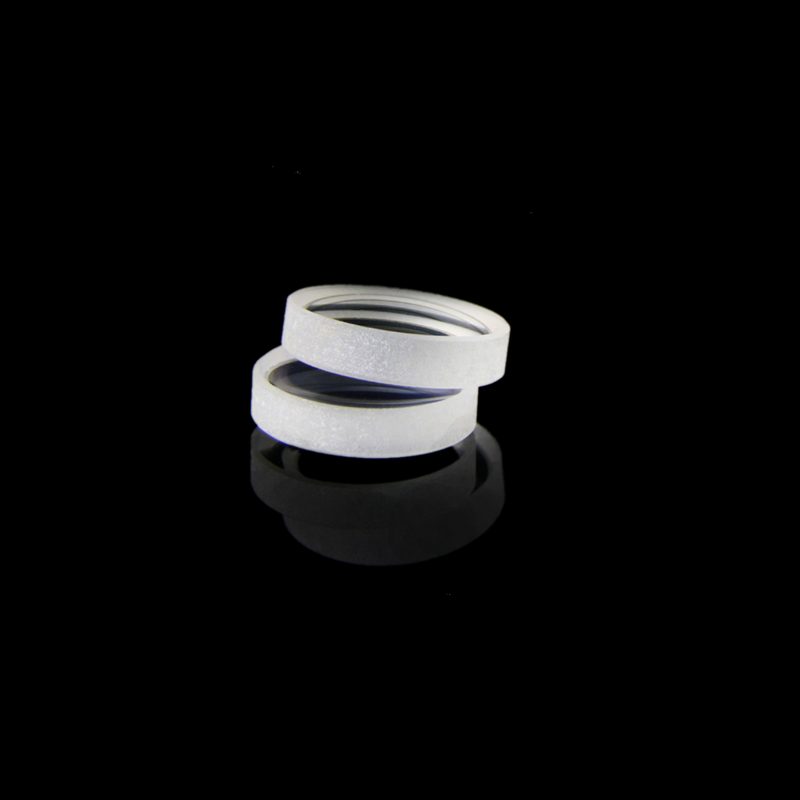

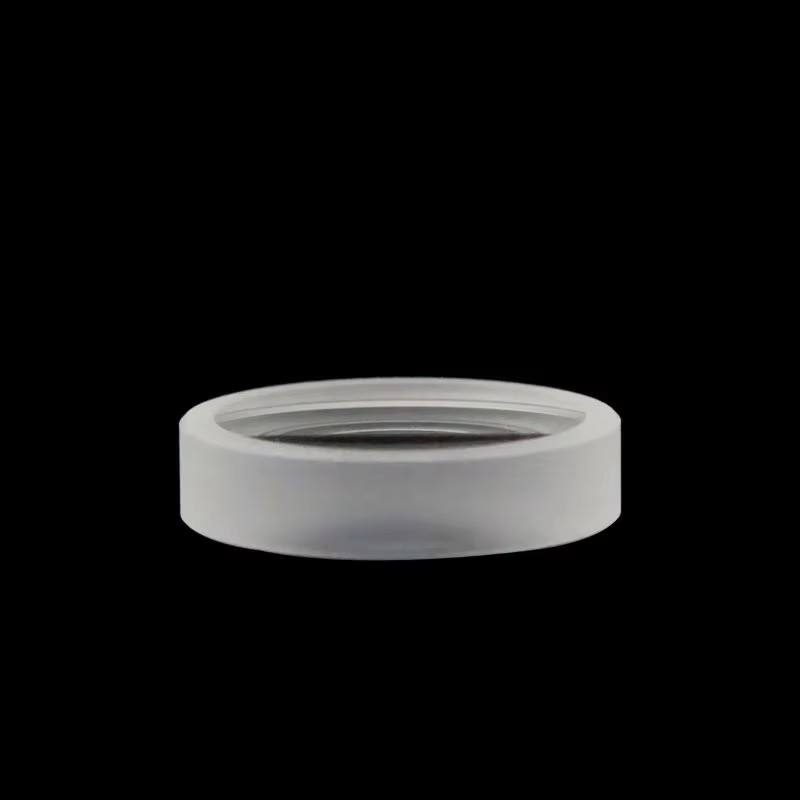

Custom Size Fused Silica Biconcave Lens, AR Coated
Explore the Double Concave Lens for imaging applications with 90% transmittance and a 5.0 mm focal length.
Core attributes
- Material
- Fused Silica
- Shape
- Biconcave
- Focal Length
- 5 mm
- Transmittance
- 90%
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Biconcave
- Focal Length
- 5 mm
- Transmittance
- 90%
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), UV (<400 nm)
Product description
The Double Concave Lens is designed for imaging applications across a wide range of wavelengths, including UV, VIS, and SWIR bands. With a transmittance of 90%, this lens effectively scatters light, making it ideal for optical instruments and high-end equipment. Its negative focal length of 5.0 mm ensures precise light manipulation, suitable for various imaging tasks. Manufactured from fused silica, this lens is particularly effective in ultraviolet applications, ensuring reliability in demanding environments.
Key Features
- Transmittance of 90% for enhanced light efficiency.
- Negative focal length of 5.0 mm for effective light scattering.
- Suitable for imaging applications in UV, VIS, and SWIR bands.
- Constructed from fused silica for durability and performance.
- Available in AR-coated and uncoated options for versatile applications.
Applications
Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Biconcave |
| Focal Length | 5 mm |
| Transmittance | 90% |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens; Concave Lens |
| Weight | none |
| Transmittance | 90% |
| Name | Double Concave Lens |
FAQ
Is custom sizing available for the Double Concave Lens?
Custom sizing is not available for this lens.
What is the minimum order quantity (MOQ) for this lens?
The minimum order quantity (MOQ) is not specified.
