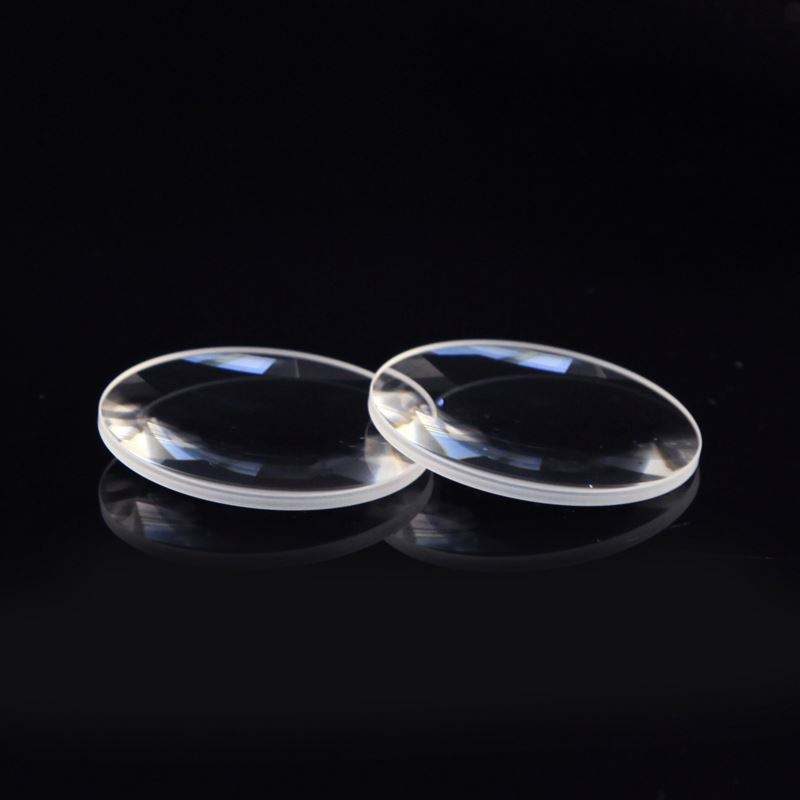

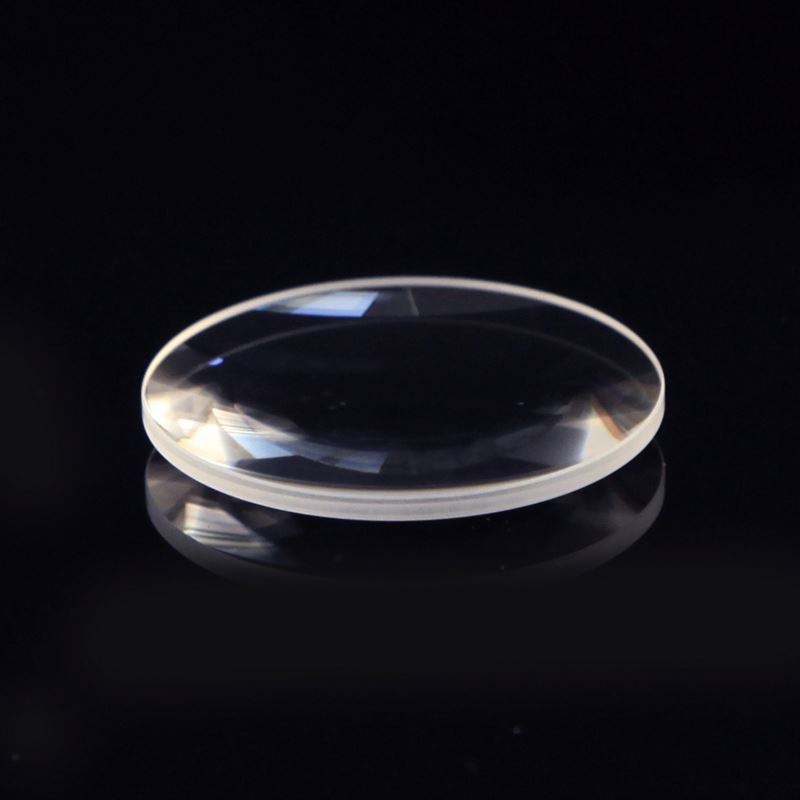

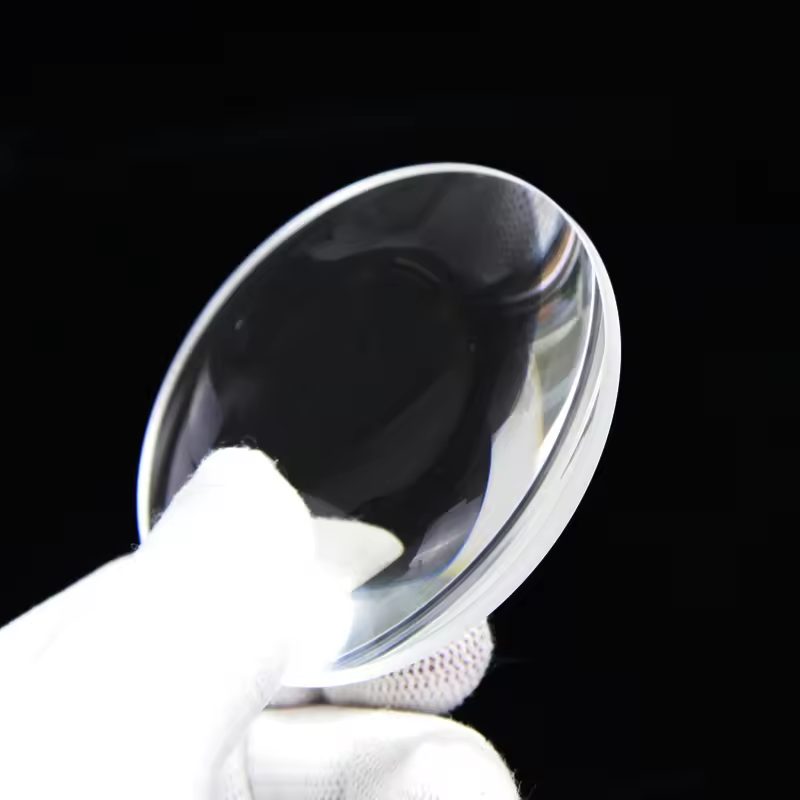

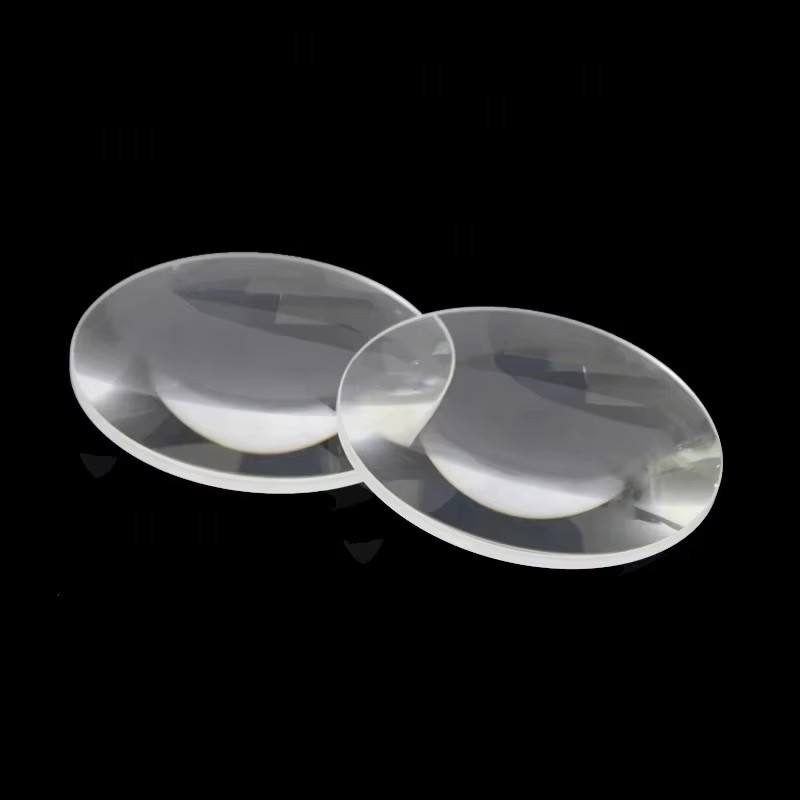

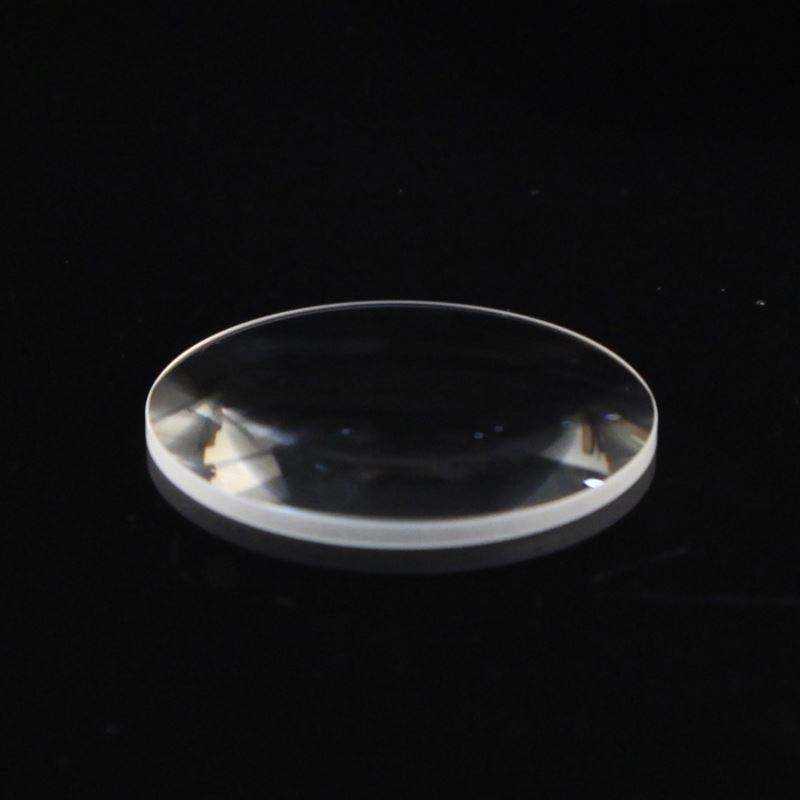

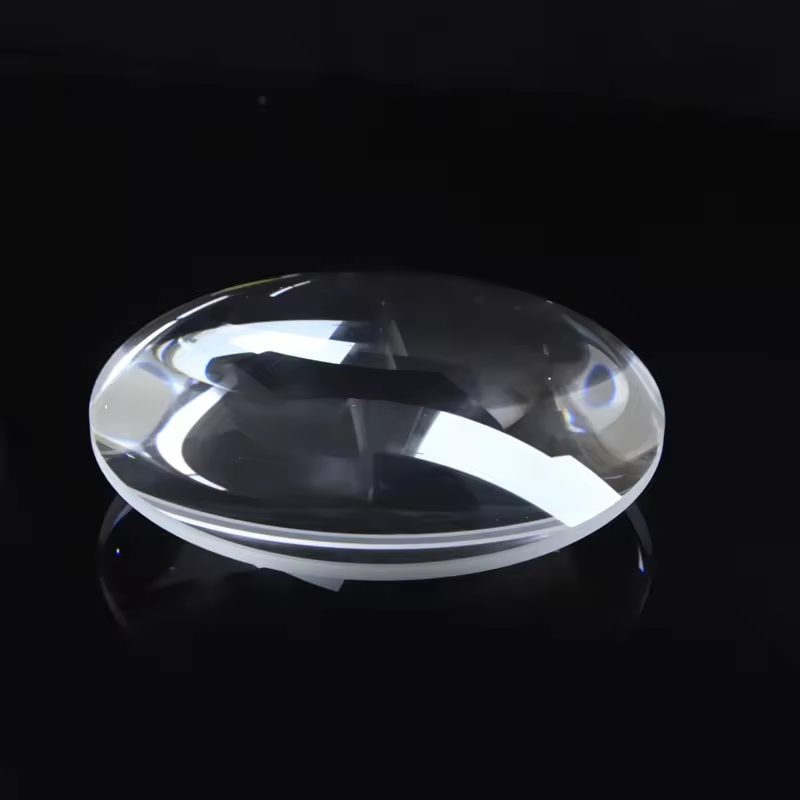

Custom Size Fused Silica Biconcave Lens, AR Coated

Product description

This biconcave lens is designed for beam expansion and image reduction applications, optimizing the performance of optical systems. With a wide operational wavelength range of 0.4 to 1.7 μm, it is suitable for diverse applications in IR imaging, LIDAR, and machine vision. Made from durable fused silica, it ensures high precision and reliability in performance, making it a valuable component for R&D and procurement engineers.

Key Features

Wide wavelength range of 0.4-1.7 μm for versatile application fit.
Customizable sizes available to meet specific project requirements.
High transmittance with a clear aperture of 85% to 95% for optimal light transmission.
Flatness specification of 1/4 lambda ensures high-quality optical performance.
Durable fused silica material for long-lasting reliability.

Specification Summary

Item	Value
Material	Fused Silica
Shape	Biconcave
Thickness	0.1 mm
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	biconcave lens; Concave lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.1
Color	Transparent
Clear Aperture	85% ~95%
Flatness	1/4lambda

FAQ

Is custom sizing available?

Yes, customization is available according to specific drawings and requests.

What is the MOQ for these lenses?

Minimum order quantity details are not specified; please inquire for specifics.
