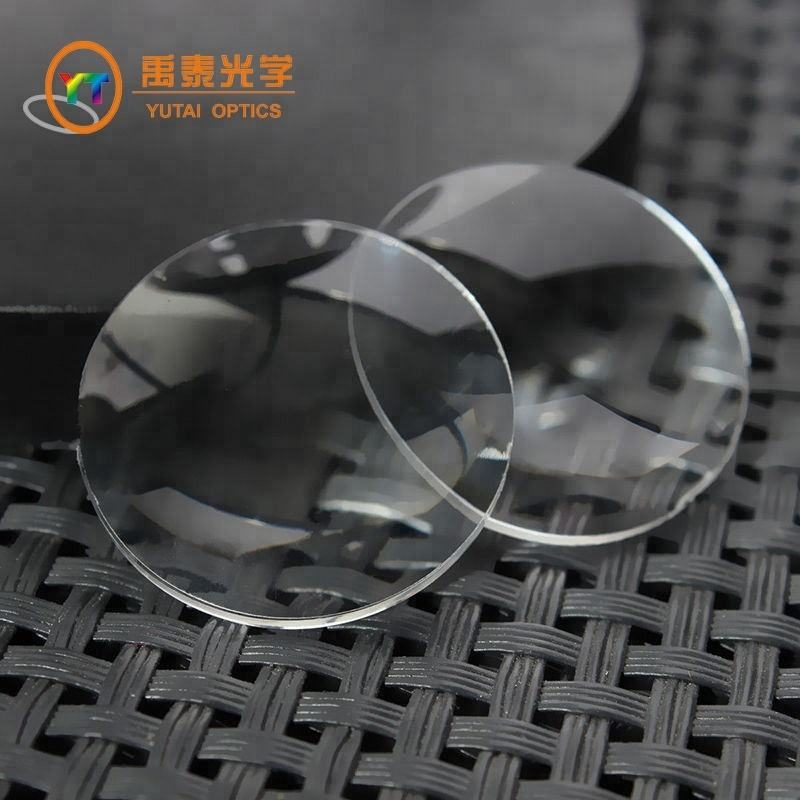

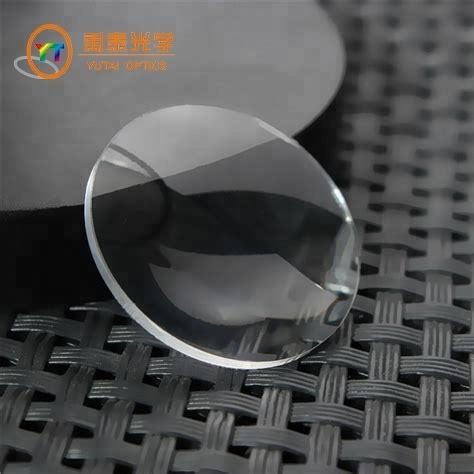

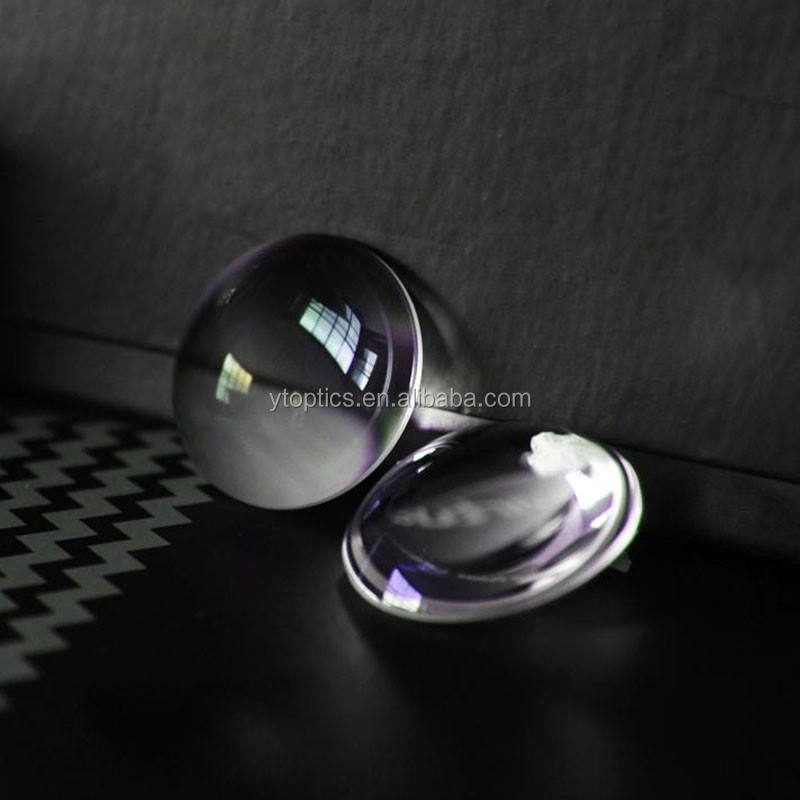

0.5x150 mm Fused Silica Biconvex Lens, AR Coated
Explore our biconvex lens for medical and microscopy applications, customizable with high precision and a wide diameter range.
Core attributes
- Material
- Fused Silica
- Shape
- Biconvex
- Diameter
- 0.5 mm
- Focal Length
- 150 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Biconvex
- Diameter
- 0.5 mm
- Focal Length
- 150 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This biconvex lens is designed for applications in medical and microscopy fields, effectively converging light across multiple wavelength bands including 0.7-1.7 μm and 400-700 nm. With a diameter range of 0.45 mm to 400 mm and a focal length of 150 mm, it provides versatility for various optical setups. The lens features a surface quality of 40/20 and a centration of less than 3 arc minutes, ensuring high precision in imaging tasks. Custom sizes are available, making it suitable for specific project requirements.
Key Features
- Diameter range: 0.45 mm to 400 mm for versatile applications.
- Focal length of 150 mm for effective light convergence.
- Surface quality of 40/20 ensures high imaging clarity.
- Centration tolerance of <3 arc minutes for precise alignment.
- Customizable sizes available to meet specific project needs.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 200.2 x 150 |
Applications
Medical, Microscopy
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Biconvex |
| Diameter | 0.5 mm |
| Focal Length | 150 mm |
| Surface Quality | 40/20 |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Biconvex Lens |
| Customized Support | OEM |
| Warranty | 3 Years |
| Weight | 0.2Kg |
| Bevel | 0.25 mm*45° |
| Flatness | L/4 |
| Clear Aperture | > 90% |
| Centration | <3 arc minutes |
| Diameter Tolerance | ±0.1mm |
FAQ
Is custom sizing available?
Yes, custom sizes can be provided, including variant sizes like 200.2 mm.
What is the diameter tolerance?
The diameter tolerance is ±0.1 mm, ensuring consistent performance.
