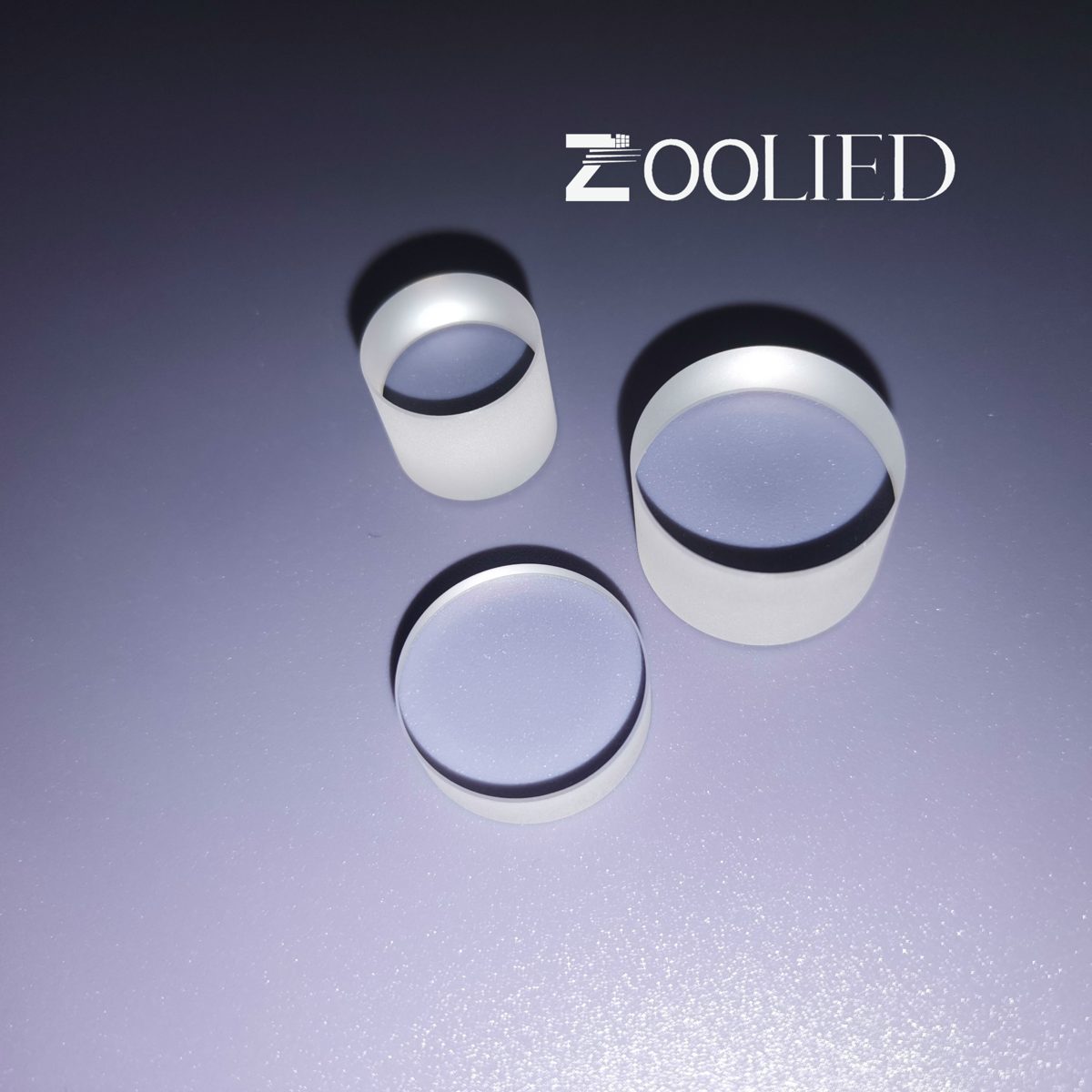

0.5 mm Fused Silica Biconvex Lens, AR Coated
Explore our biconvex fused silica lens for medical, projection, and collimation applications, with customizable options available.
Core attributes
- Material
- Fused Silica
- Shape
- Biconvex
- Diameter
- 0.5 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), uncoated, high-reflective (HR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Biconvex
- Diameter
- 0.5 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), uncoated, high-reflective (HR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This biconvex lens made from fused silica is designed for applications in medical imaging, projection, and collimation across multiple wavelength bands, including 0.4-3 μm. With a diameter range from 0.5 mm to 300 mm, it provides versatility for various setups. The lens features coatings such as anti-reflective (AR) and high-reflective (HR), ensuring optimal performance in diverse environments. Its surface quality of 60/40 guarantees reliable optical performance, making it suitable for demanding applications.
Key Features
- Diameter range: 0.5 to 300 mm for versatile application fit.
- Surface quality of 60/40 ensures reliable optical performance.
- Coating options include AR and HR for enhanced transmittance.
- Clear aperture ≥90% maximizes light throughput.
- Customizable with OEM support for tailored solutions.
Applications
Medical, Projection, Collimation
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Biconvex |
| Diameter | 0.5 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), uncoated, high-reflective (HR) |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | /; Spherical Singlet Lenses |
| Customized Support | OEM |
| Warranty | 1 month |
| Weight | 10-500g |
| Substrate | BK7, Fused Silica, Sapphire, etc |
| Surface Flatness | /2 |
| Bevel | Protective bevel as needed |
| Clear Aperture | ≥90% |
FAQ
What are the available coatings for this lens?
The lens is available with uncoated, AR, and HR coatings.
What is the minimum order quantity (MOQ) for this lens?
The minimum order quantity is not specified.
