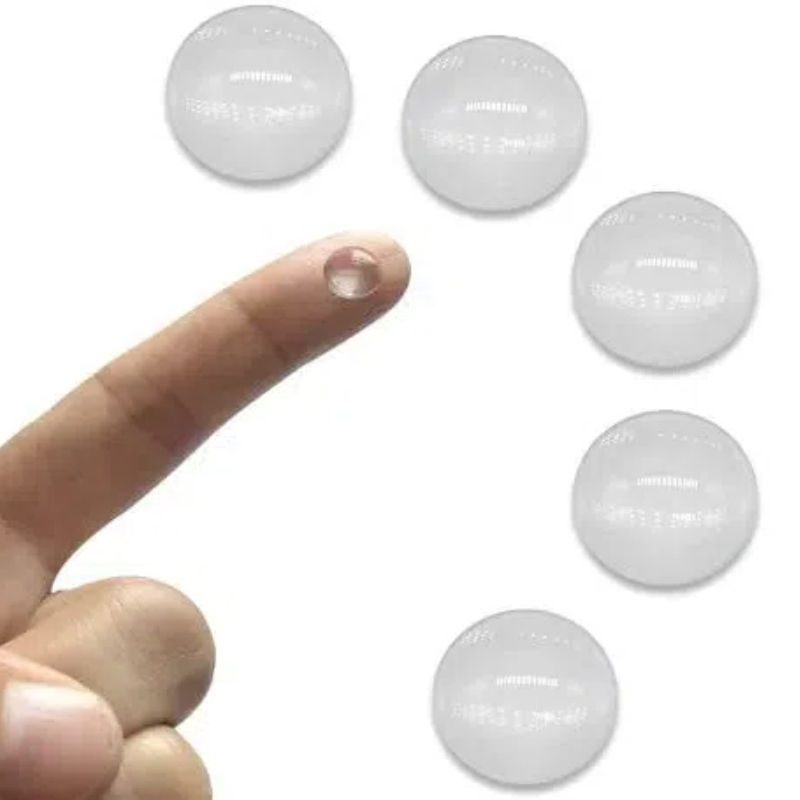

100 mm Fused Silica Biconvex Lens, AR Coated
Explore our biconvex fused silica lens for 200-2500 nm applications. Custom sizes and OEM support available.
Core attributes
- Material
- Fused Silica
- Shape
- Biconvex
- Diameter
- 100 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Biconvex
- Diameter
- 100 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This biconvex lens made from fused silica is designed for a wide range of applications including IR imaging, LIDAR, and laser systems. With a wavelength range of 200-2500 nm, it provides excellent transmittance across multiple bands, making it suitable for diverse optical tasks. The lens features a surface quality of 60/40 and is customizable to fit specific requirements, ensuring optimal performance in your applications.
Key Features
- Wavelength range: 200-2500 nm for versatile application fit.
- Diameter of 100 mm with a tolerance of 0.2 mm for precise integration.
- Surface quality of 60/40 ensures reliable optical performance.
- Customizable options available for OEM, ODM, and OBM projects.
- Lightweight at 0.5 kg, facilitating easier handling and installation.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Biconvex |
| Diameter | 100 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens, Achromatic Lens, Aspherical Lens, Concave Lens, Plano Convex Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.5 |
| Wavelength | 200-2500nm |
| Diameter Tolerance | 0.2mm |
| Center Thickness Tolerance | ±0.1mm |
| Package | safe |
FAQ
Can I get custom sizes?
Yes, custom sizes can be accommodated according to your specifications.
What are the tolerances for diameter and thickness?
Diameter tolerance is ±0.2 mm, and center thickness tolerance is ±0.1 mm.
