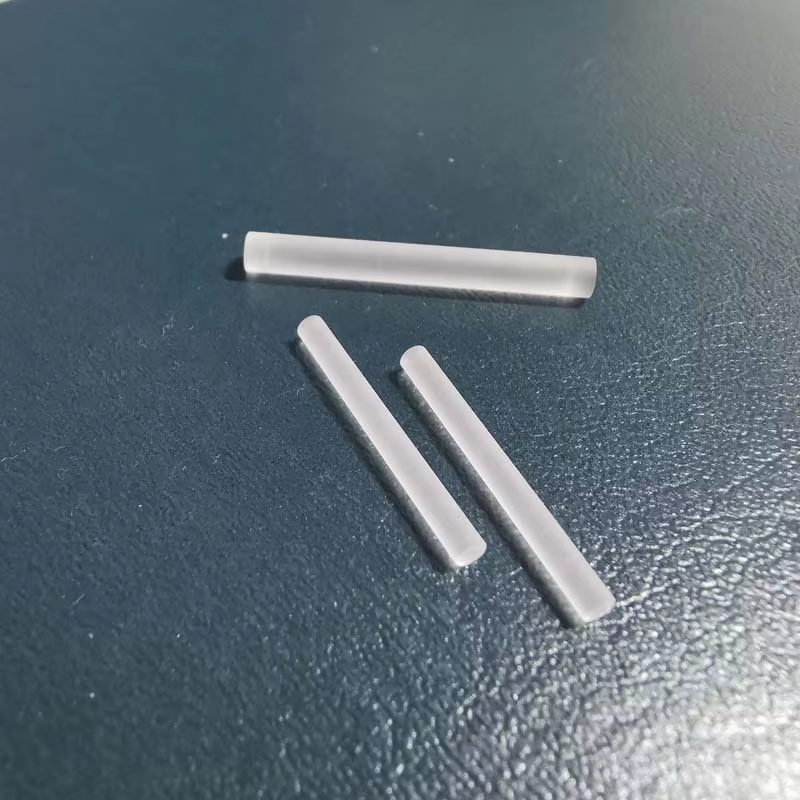

1 mm Fused Silica Biconvex Lens, AR Coated
Explore our Optical Rod Lens for medical, projection, and collimation applications with high surface quality and customizable sizes.
Core attributes
- Material
- Fused Silica
- Shape
- Biconvex
- Diameter
- 1 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Biconvex
- Diameter
- 1 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
Product description

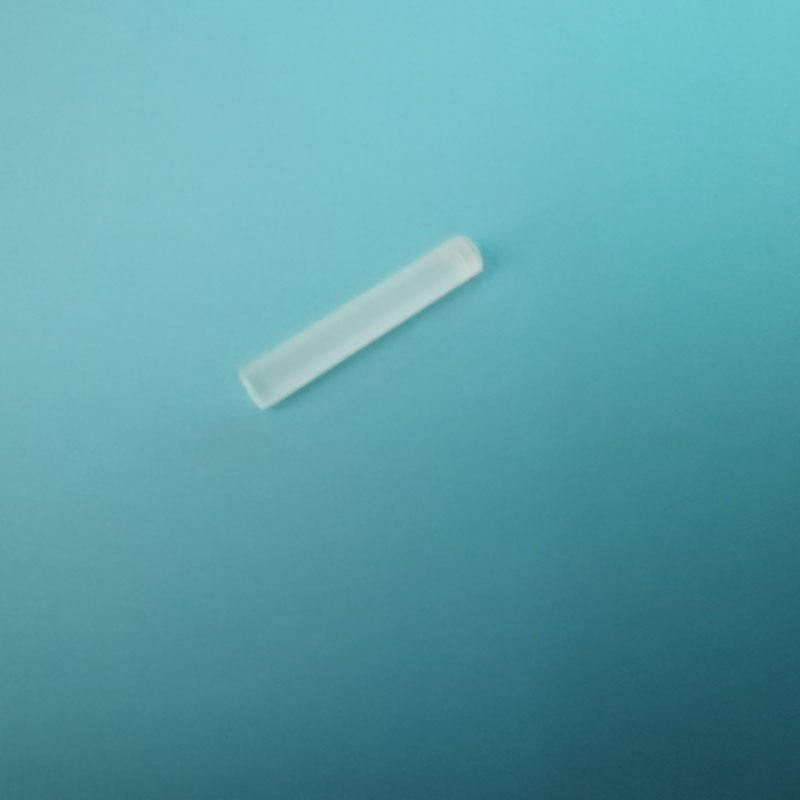

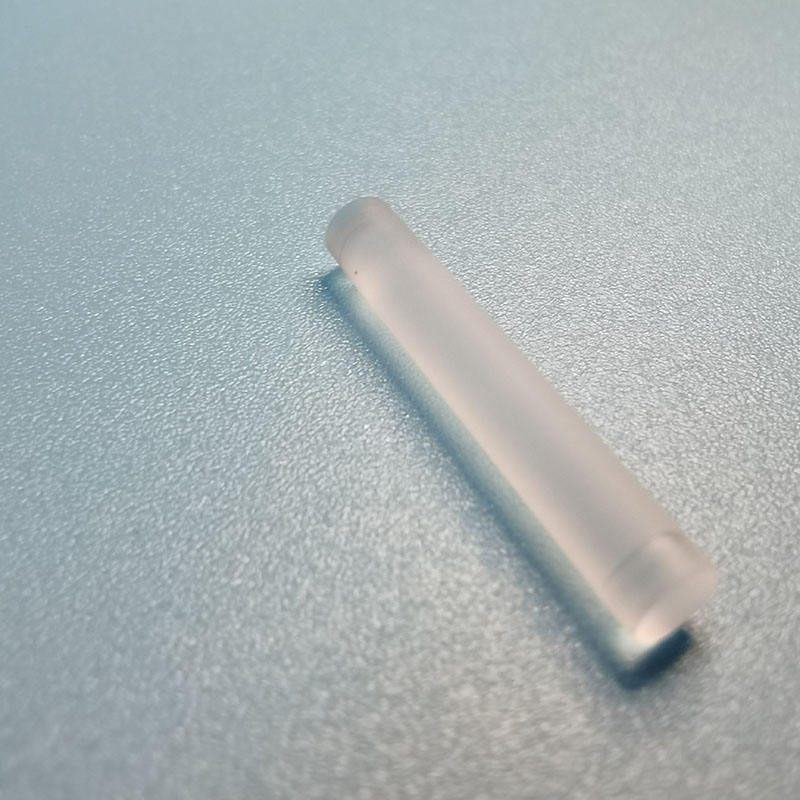

The Optical Rod Lens is designed for applications in medical, projection, and collimation fields, providing high-quality optical performance with precise diameter control. Made from fused silica, this biconvex lens features exceptional surface quality (20/10) and a clear aperture greater than 90%. It is ideal for focusing collimated light into a line, enhancing brightness, contrast, and color reproduction for various imaging and laser applications.
Key Features
- High surface quality (20/10) ensures superior optical performance.
- Clear aperture >90% maximizes light transmission for enhanced imaging.

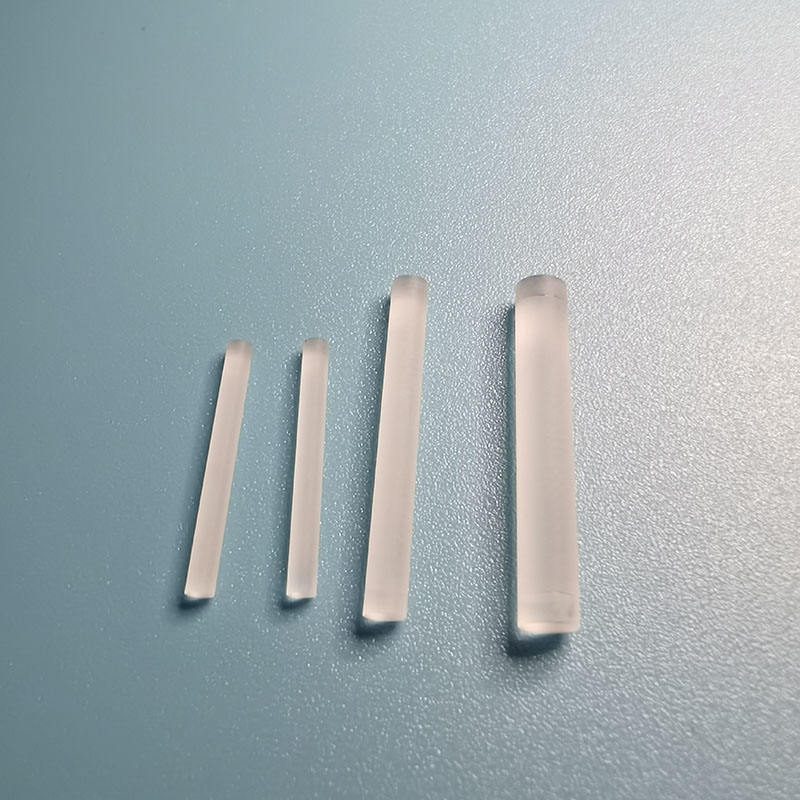

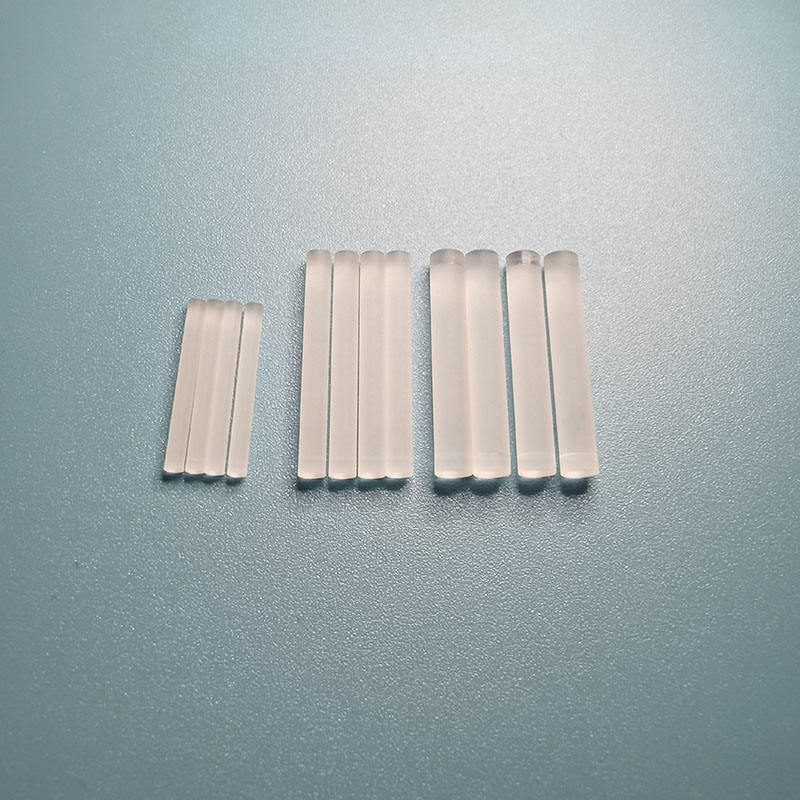

- Custom lengths available from 0.5mm to 300mm to fit specific applications.
- Compatible with OEM, ODM, and OBM for tailored solutions.
- Lightweight design (1g) facilitates easy integration into devices.
Applications
Medical, Projection, Collimation
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Biconvex |
| Diameter | 1 mm |
| Surface Quality | 20/10 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens, Aspherical Lens, Concave Lens, Achromatic Lens, Plano Convex Lens… |
| Customized Support | OEM, ODM, OBM |
| Warranty | 2 Years |
| Weight | 1 |
| Name | Optical Rod Lens |

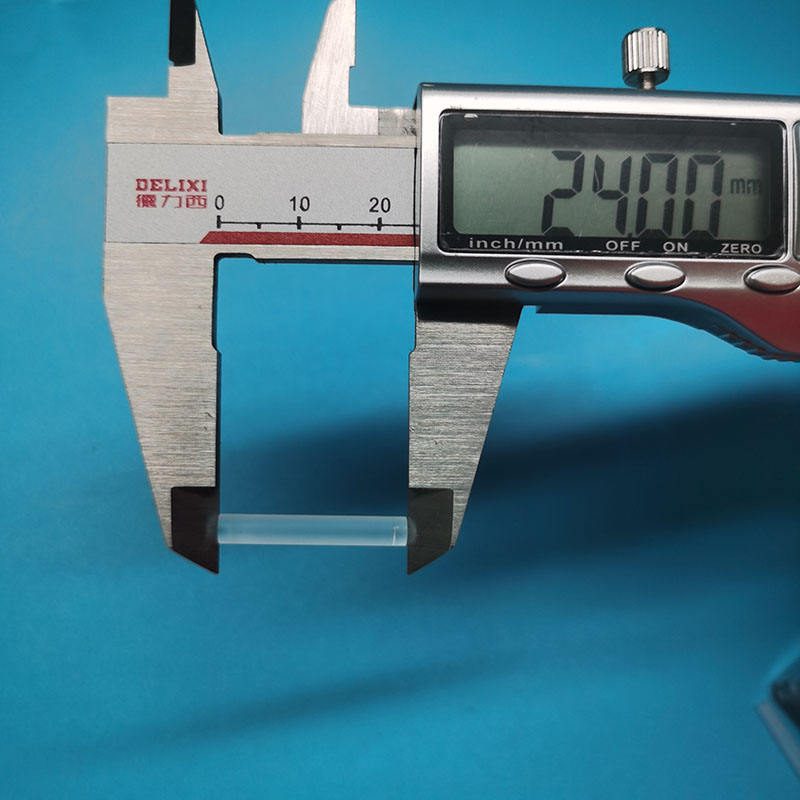

| Length | 0.5-300mm |
| Clear Aperture | >90% |
| Bevel | 0.1-0.5mm |
| Flatness | 1/4lambda |
FAQ
What custom sizes are available?
Custom lengths from 0.5mm to 300mm can be provided upon request.
What are the tolerances for diameter and length?
Diameter tolerance is 0.02-0.1mm, and length tolerance is ±0.02mm.
