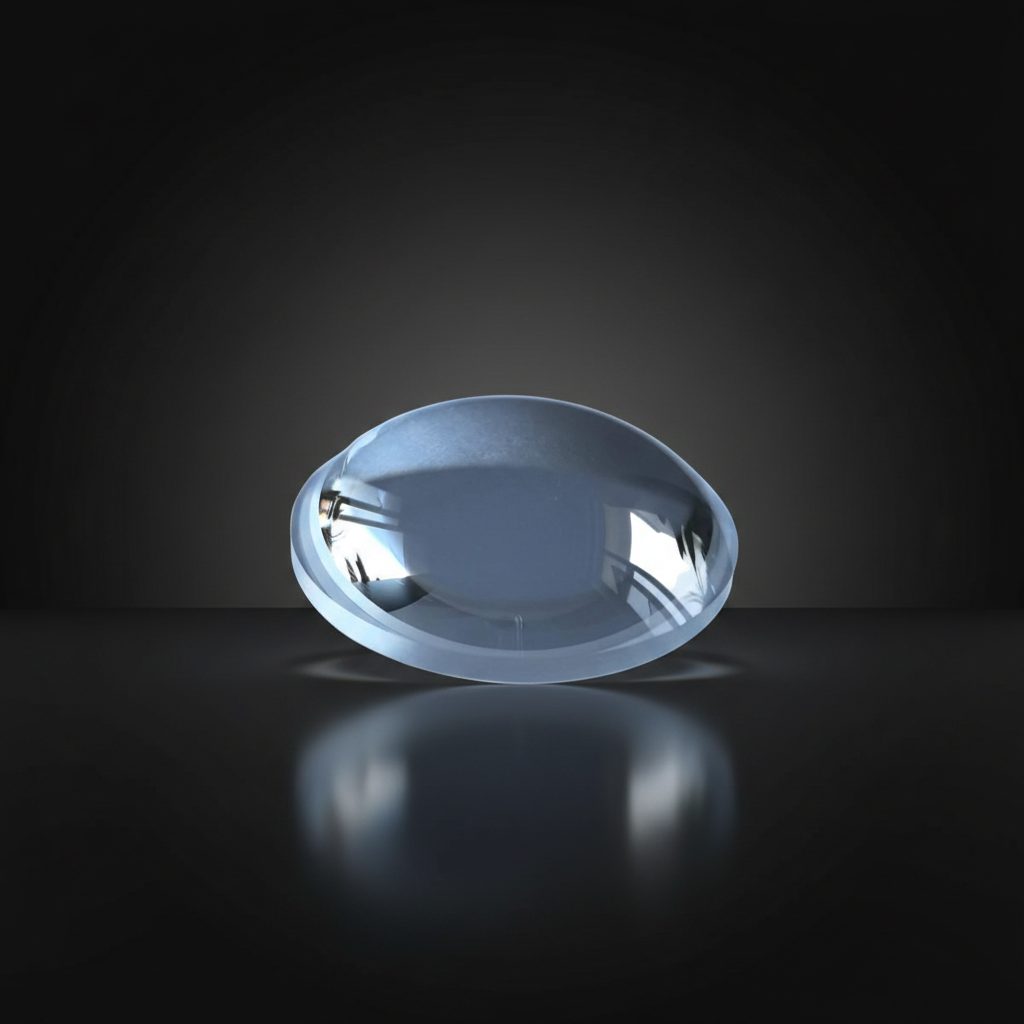

25.4 mm Fused Silica Biconvex Lens
Biconvex Fused Silica lens for collimation and imaging, customizable sizes, and high surface quality.
Core attributes
- Material
- Fused Silica
- Shape
- Biconvex
- Diameter
- 25.4 mm
- Surface Quality
- 60/40
- Coating
- uncoated, anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Biconvex
- Diameter
- 25.4 mm
- Surface Quality
- 60/40
- Coating
- uncoated, anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This biconvex lens made from Fused Silica is ideal for applications in collimation and imaging across a wavelength range of 0.4 to 1.7 μm. With options for anti-reflective coatings, it enhances clarity and reduces glare, making it suitable for high-performance optical systems. The lens features a surface quality of 60/40, ensuring reliable performance in demanding environments. Its customizable sizes from 0.5 to 300 mm in diameter cater to specific project needs, while the robust design promises durability and precision.
Key Features
- Wavelength compatibility from 400-700 nm and 0.7-1.7 μm for versatile applications.
- Surface quality of 60/40 ensures reliable optical performance.
- Custom sizes available from 0.5 to 300 mm diameter to fit specific requirements.
- OEM, ODM, and OBM support for tailored solutions.
- Weight of 0.5 kg for easy integration into various systems.
Applications
Collimation, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Biconvex |
| Diameter | 25.4 mm |
| Surface Quality | 60/40 |
| Coating | uncoated, anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.5 |
| Wavelength | 1064nm 755nm 532nm |
| Tolerance | 0.2mm |
| Center Thickness Tolerance | ±0.1mm |
| Package | safe |
FAQ
What is the minimum order quantity (MOQ) for this lens?
The MOQ is not specified, allowing for flexible ordering.
Can I get this lens in custom sizes?
Yes, custom sizes are available ranging from 0.5 to 300 mm in diameter.
