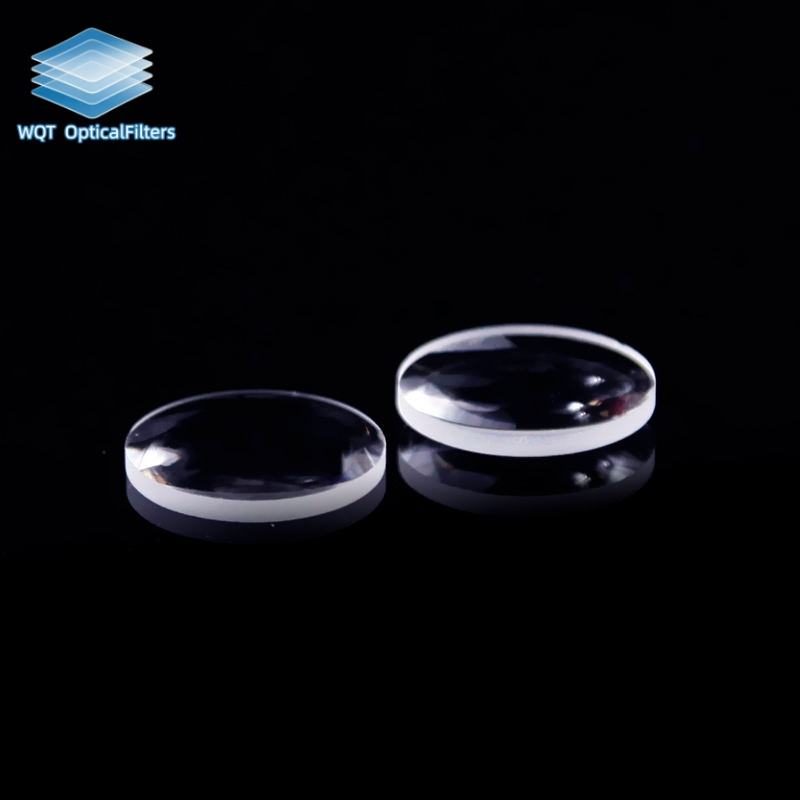

40x5 mm Fused Silica Biconvex Lens, AR Coated
Explore our Fused Silica biconvex lens for machine vision and medical applications, featuring a broad spectral range and high optical quality.
Core attributes
- Material
- Fused Silica
- Shape
- Biconvex
- Diameter
- 40 mm
- Focal Length
- 5 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), ir-cut
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Biconvex
- Diameter
- 40 mm
- Focal Length
- 5 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), ir-cut
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This biconvex lens made from Fused Silica is ideal for applications in machine vision, security, medical imaging, and projection. It supports a wide spectral range from 0.4 to 3 μm, ensuring compatibility with various optical systems. The lens features high surface quality (60/40) and a clear aperture of 95%, providing excellent light transmission and clarity. With a focal length of 5.0 mm and a diameter of 40.0 mm, it is suitable for precision imaging tasks. Custom sizes and configurations may be available to meet specific project requirements.
Key Features
- Broad spectral range (0.4-3 μm) for diverse applications.
- High surface quality (60/40) ensures superior optical performance.
- Clear aperture of 95% maximizes light transmission.
- Custom diameter support (40.0 mm) for tailored solutions.
- Lightweight design (10g) facilitates easy integration.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 40 x 5 |
Applications
Machine Vision, Security, Medical, Projection, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Biconvex |
| Diameter | 40 mm |
| Focal Length | 5 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), ir-cut |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens, Aspherical Lens, Biconvex Lens, Concave Lens, Convex Lens, Plan… |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 10g(0.35oz) |
| Key Word | Convex Lens |
| Service | OEM ODM Private Label Service |
| Main Material | K9 |
| Clear Aperture | 95% |
| Diameter Tolerance | 0.00/-0.05mm |
FAQ
Can I get custom sizes for this lens?
Yes, custom diameter and thickness options may be available to meet specific requirements.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified; please inquire for details.
