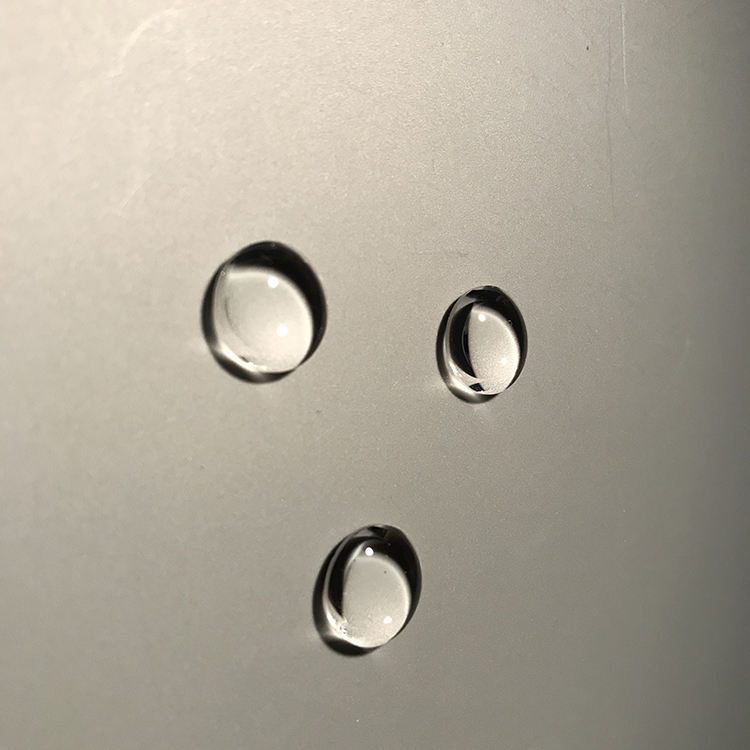

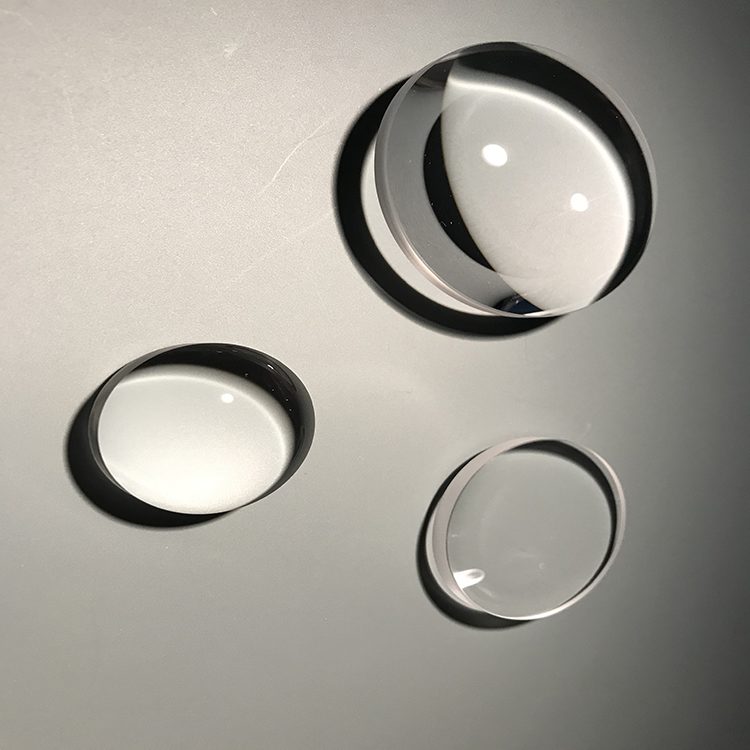

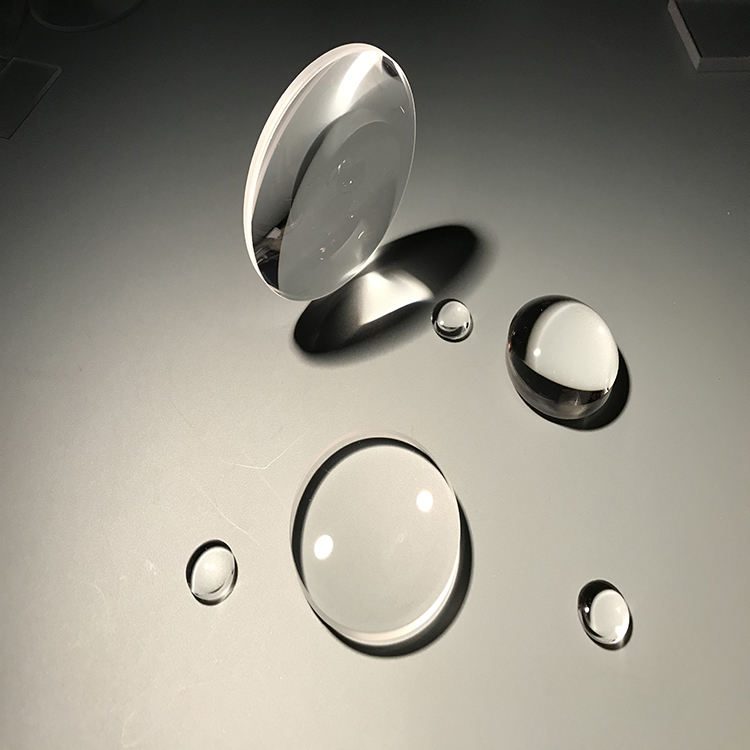

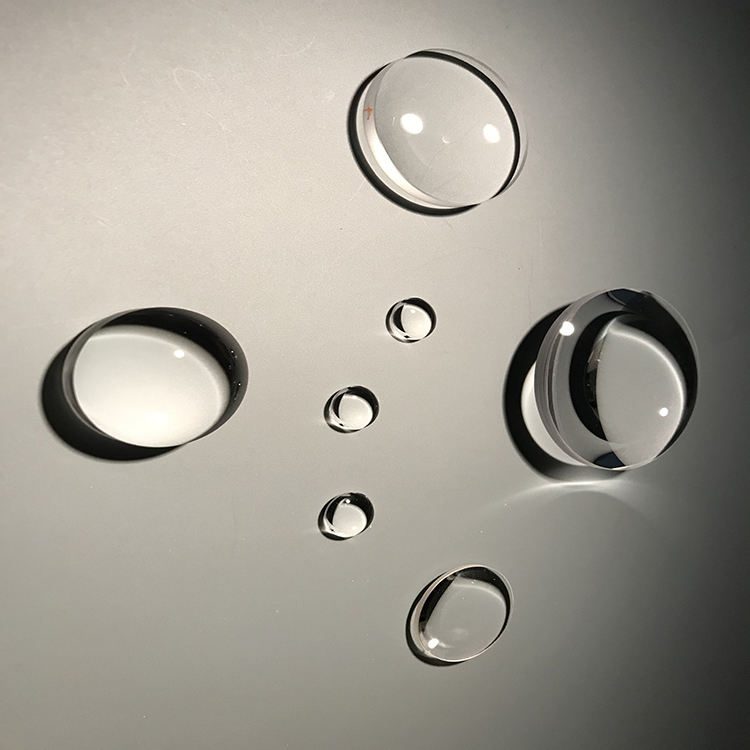

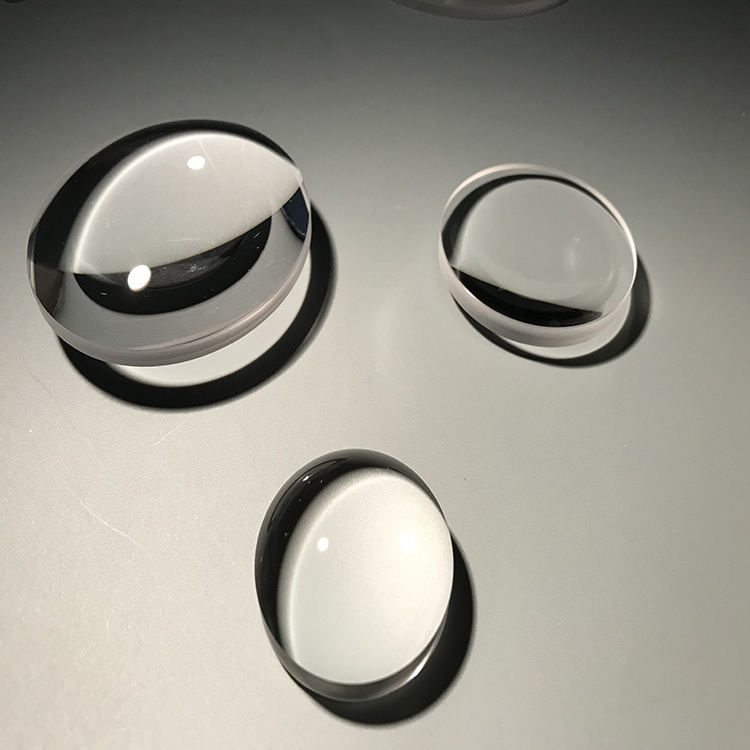

5x50 mm Fused Silica Biconvex Lens, AR Coated

Product description

This biconvex lens made from fused silica is designed for applications requiring high transmittance in the ultraviolet range (<400 nm). With a diameter range from 5.0 mm to 300.0 mm and a thickness of 5.0 mm to 50.0 mm, it provides flexibility for various optical setups. The lens features anti-reflective coatings to enhance performance, making it suitable for high-precision optical systems in fields such as IR imaging and medical devices.

Key Features

Diameter options from 5.0 mm to 300.0 mm for versatile applications.
Thickness range of 5.0 mm to 50.0 mm allows for tailored optical performance.
Surface flatness of 1/4 @ 633 nm ensures minimal wavefront distortion.
Custom OEM and ODM support available for unique project requirements.
Diameter tolerance of 0/-0.1 mm for precise fitting in optical assemblies.

Available Sizes

Diameter x Focal Length (mm)
152.5 x 50

Specification Summary

Item	Value
Material	Fused Silica
Shape	Biconvex
Diameter	5 mm
Focal Length	50 mm
Thickness	5 mm
Coating	anti-reflective (AR)
Transmission bands	UV (<400 nm)

Full Specifications

Parameter	Value
Type	biconvex lens
Customized Support	OEM, ODM
Warranty	3 months
Weight	0.5kg(1.10lb)
Surface Flatness	1/4@633nm
Parallel	30 Arc Sec
Diameter Tolerance	0/-0.1mm

FAQ

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified.

Can I get custom sizes?

Yes, custom sizes are available, including a variant size of 152.5 mm diameter and 50.0 mm thickness.
