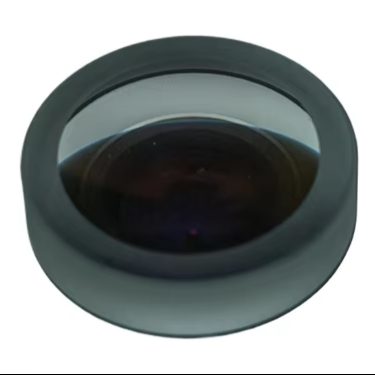

5 mm Fused Silica Biconvex Lens, AR Coated
High-precision biconvex lens in fused silica for 635 nm applications, customizable sizes, and excellent optical performance.
Core attributes
- Material
- Fused Silica
- Shape
- Biconvex
- Diameter
- 5 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Biconvex
- Diameter
- 5 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- VIS (400-700 nm)
Product description
This biconvex lens made from fused silica is engineered for high-precision optics, particularly in industrial laser systems and optical detection applications. With a diameter range from 5.0 mm to 300.0 mm, it is suitable for 635 nm wavelength applications, ensuring optimal performance in infrared laser focusing. The lens features anti-reflection coatings that enhance light transmission efficiency, making it ideal for demanding environments.
Key Features
- Diameter range: 5.0 mm to 300.0 mm for versatile applications.
- Surface quality of 60/40 ensures reliable optical performance.
- Flatness of 1 arc minute enhances imaging accuracy.
- Customizable options available through OEM and ODM support.
- Lightweight design, approximately 0.5 kg based on diameter.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Biconvex |
| Diameter | 5 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | VIS (400-700 nm) |

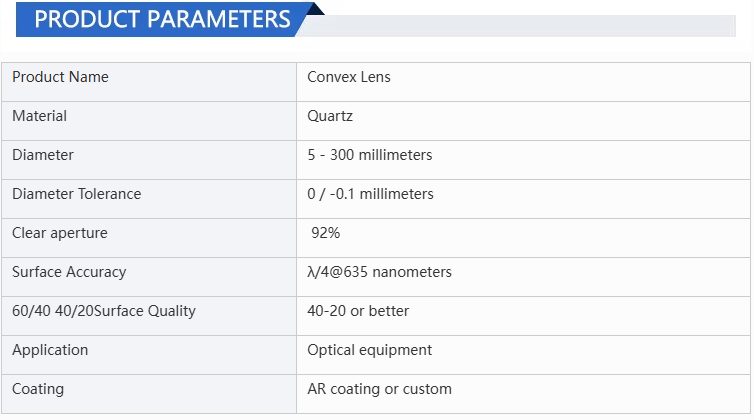

Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens |
| Customized Support | OEM, ODM |
| Warranty | 1 Year |
| Weight | according to the diameter and material; 0.5 kilograms |
| Flatness | 1 arc minute |
| Diameter Tolerance | 0 / -0.1 millimeters |
| Wavelength | 635 nanometers |
FAQ
What are the available custom sizes?
The lens is available in diameters ranging from 5.0 mm to 300.0 mm.
What is the diameter tolerance?
The diameter tolerance is 0 / -0.1 millimeters.
