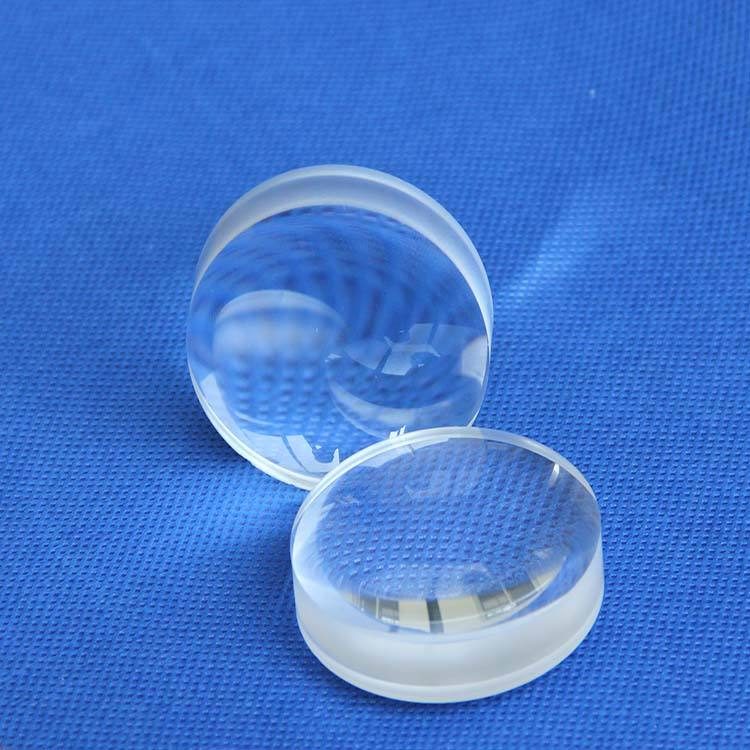

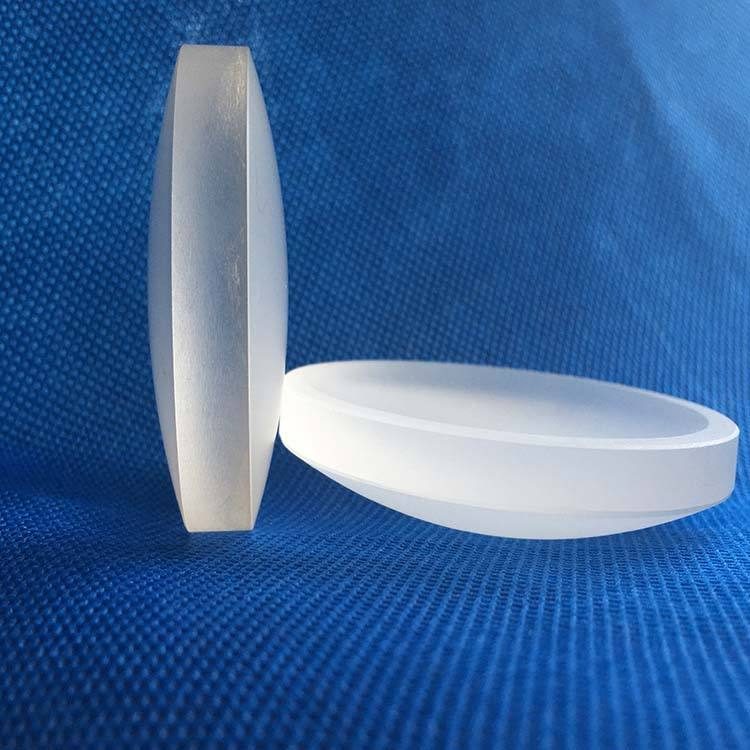

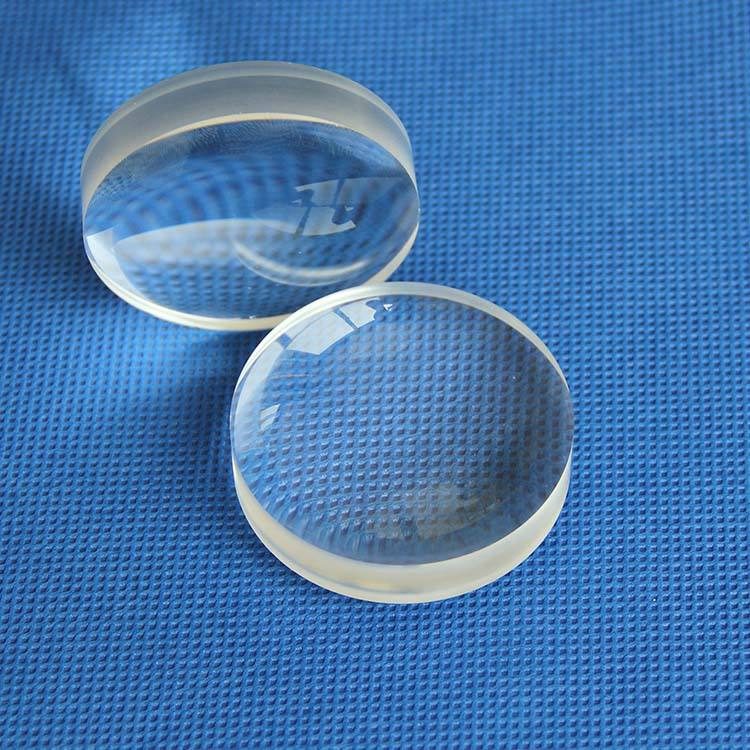

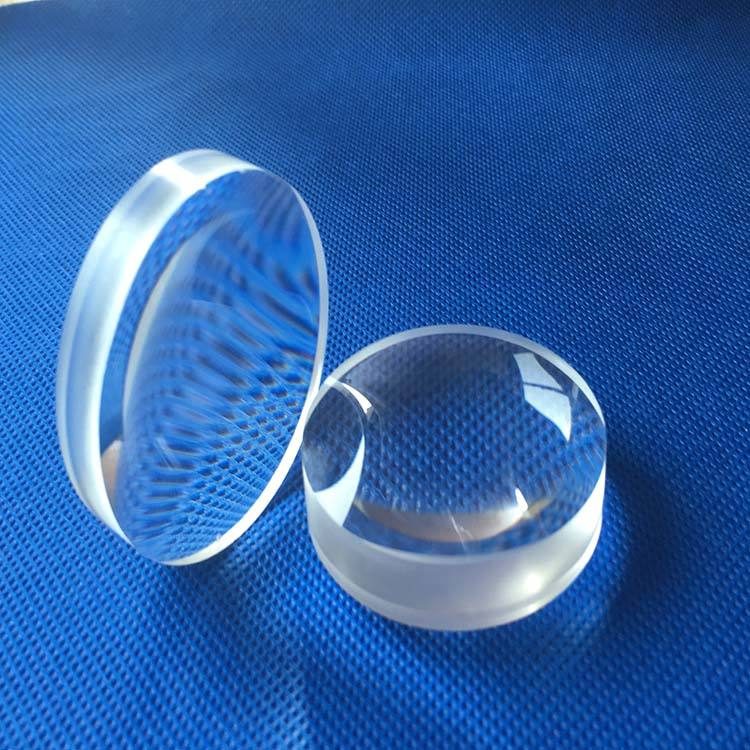

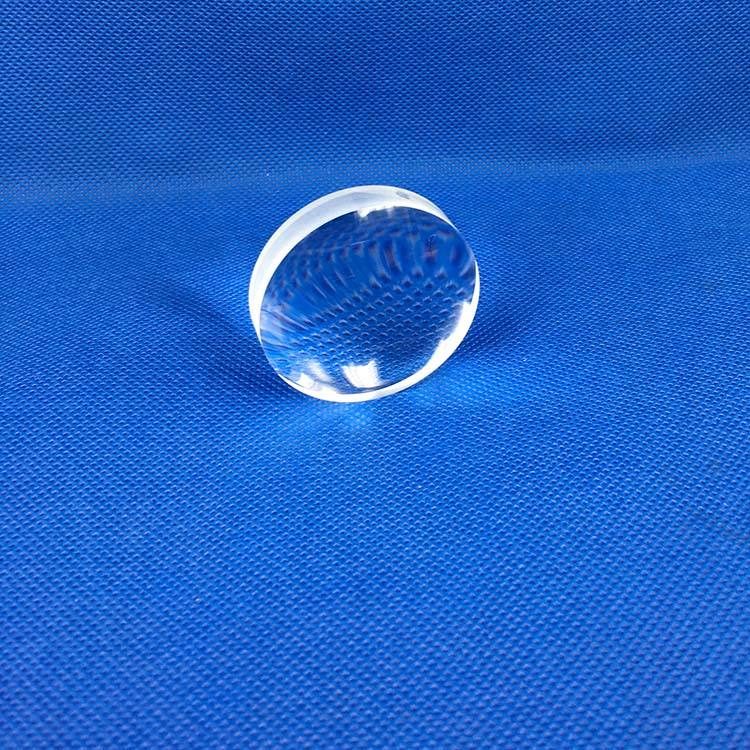

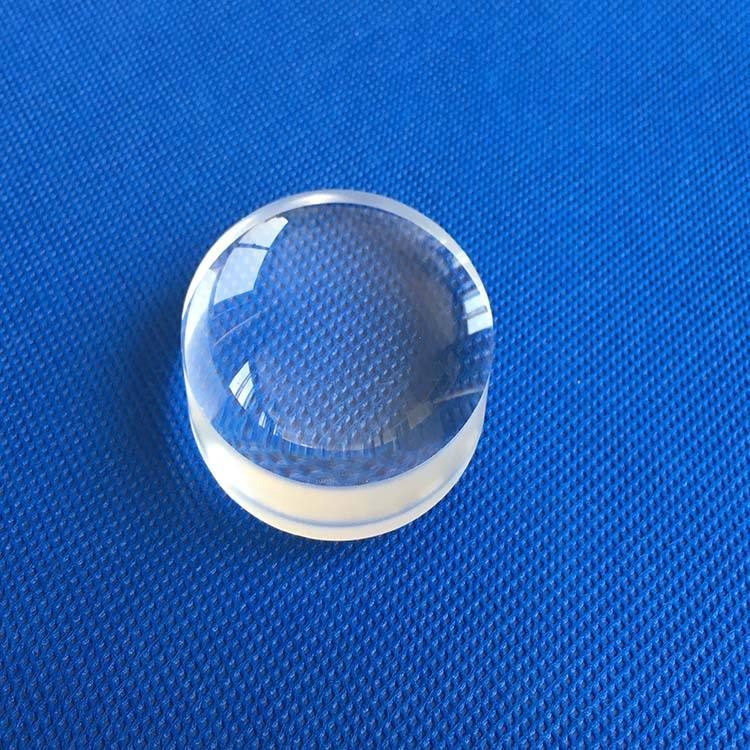

5 mm Fused Silica Biconvex Lens, AR Coated
Biconvex fused silica lens for 400-700 nm applications, customizable sizes, and high surface quality.
Core attributes
- Material
- Fused Silica
- Shape
- Biconvex
- Diameter
- 5 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Biconvex
- Diameter
- 5 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product description
This biconvex lens, crafted from high-quality fused silica, is ideal for applications requiring precise light transmission in the 400-700 nm wavelength range. With a diameter range of 5.0 mm to 300.0 mm and a surface quality of 60/40, it ensures optimal performance for various optical systems. The lens features anti-reflective coatings to enhance transmittance, making it suitable for IR imaging, LIDAR, and medical devices. Its customizable options support OEM and ODM projects, ensuring compatibility with specific design requirements.
Key Features
- Diameter range: 5.0 mm to 300.0 mm for versatile application fit.
- Surface quality of 60/40 ensures minimal light distortion.
- Clear aperture of 92% maximizes light transmission efficiency.
- Diameter tolerance of 0/-0.1 mm supports precise integration.
- Customizable support for OEM and ODM projects enhances design flexibility.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Biconvex |
| Diameter | 5 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | biconvex lens |
| Customized Support | OEM, ODM |
| Warranty | 3 months |
| Weight | 0.5kg |
| Diameter Tolerance | 0/-0.1mm |
| Clear Aperture | 92% |
| Parallel | 30 Arc Sec |
FAQ
What are the available custom sizes?
The lens is available in a diameter range of 5.0 mm to 300.0 mm.
What is the diameter tolerance?
The diameter tolerance is 0/-0.1 mm.
