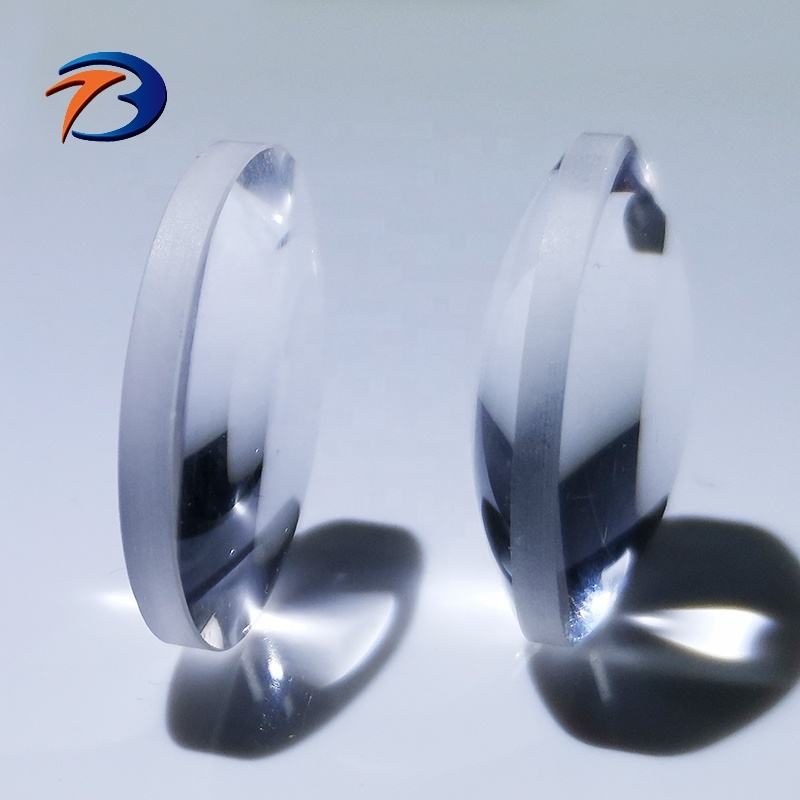

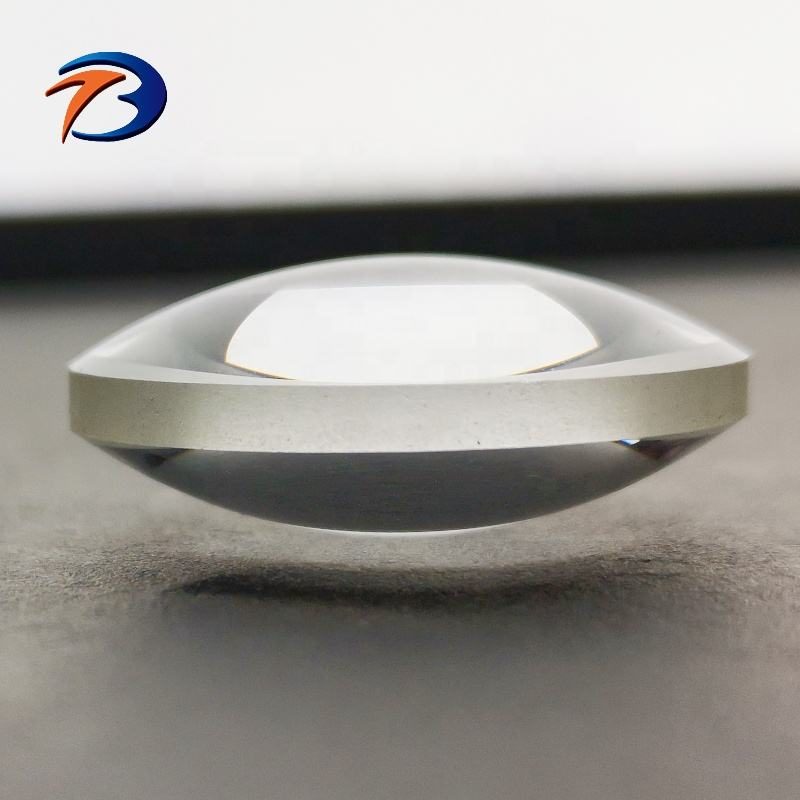

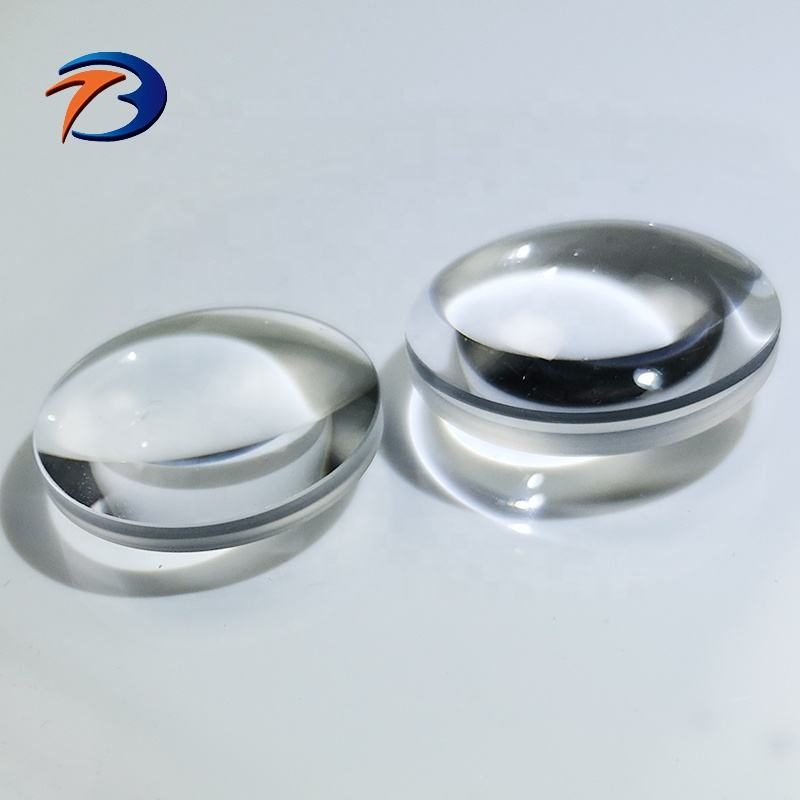

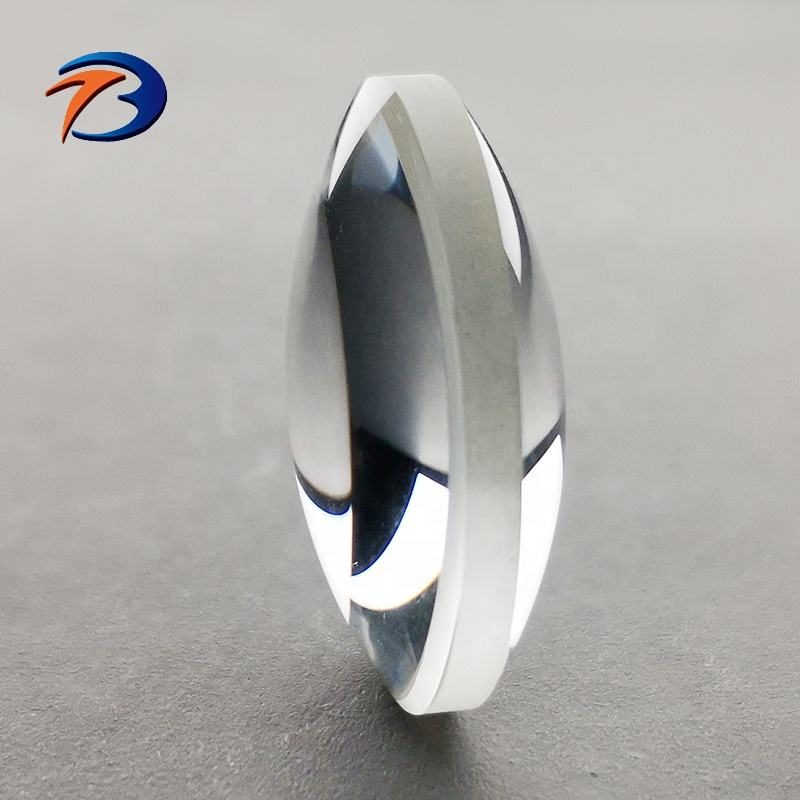

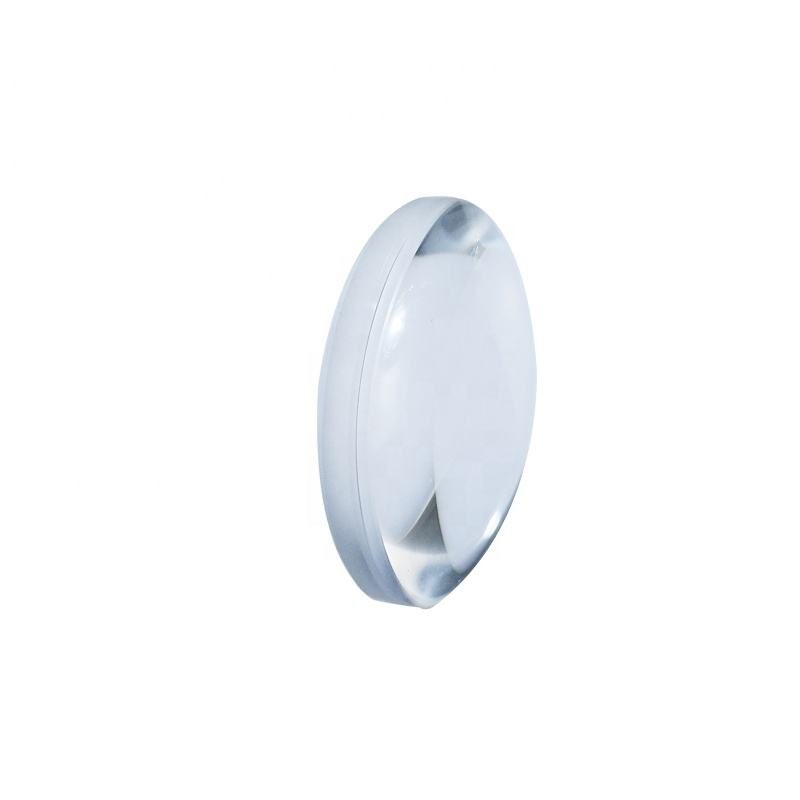

Custom Size Fused Silica Biconvex Lens, AR Coated
Biconvex fused silica lens for imaging applications with 40 mm focal length and >90% clear aperture.
Core attributes
- Material
- Fused Silica
- Shape
- Biconvex
- Focal Length
- 40 mm
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Biconvex
- Focal Length
- 40 mm
- Coating
- anti-reflective (AR)
Product description
This biconvex lens, made from fused silica, is designed for imaging applications, providing effective image relay and object imaging at close conjugates. With a focal length of 40 mm, it ensures high performance in various optical systems. The lens features a clear aperture greater than 90%, ensuring optimal light transmission. Its double convex structure minimizes aberrations, making it suitable for precision imaging tasks in research and industrial applications.
Key Features
- Focal length of 40 mm ensures precise imaging capabilities.
- Clear aperture >90% for enhanced light transmission.
- Dimension tolerance of +0.0/-0.1 mm for reliable fit in optical systems.
- Thickness tolerance of ±0.1 mm for consistent performance.
- Customized support available for OEM applications.
Applications
Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Biconvex |
| Focal Length | 40 mm |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM |
| Warranty | 3 Years |
| Use | Bi-convex lenses, Optical |
| Dimension Tolerance | +0.0/-0.1mm |
| Thickness Tolerance | ±0.1mm |
| Focal Length Tolerance | ±1% |
| Clear Aperture | >90% |
| Type | Optical Lenses |
| Certification | iso9001 |

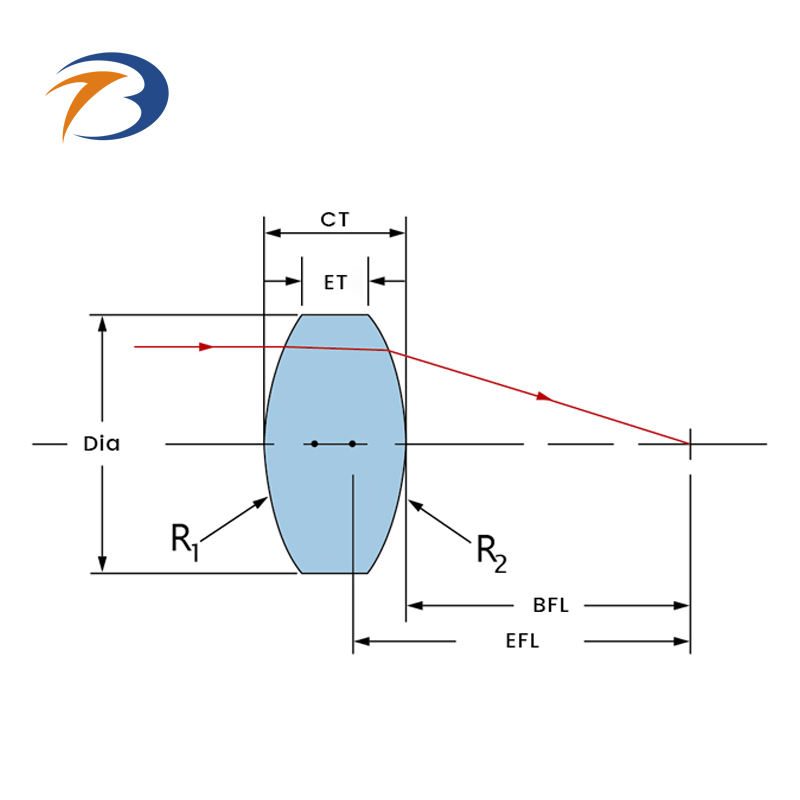

| Structure | Double Convex |
FAQ
Can I get custom sizes?
Customization options are available for various sizes and specifications.
What are the tolerances for this lens?
Dimension tolerance is +0.0/-0.1 mm, with thickness tolerance at ±0.1 mm.
