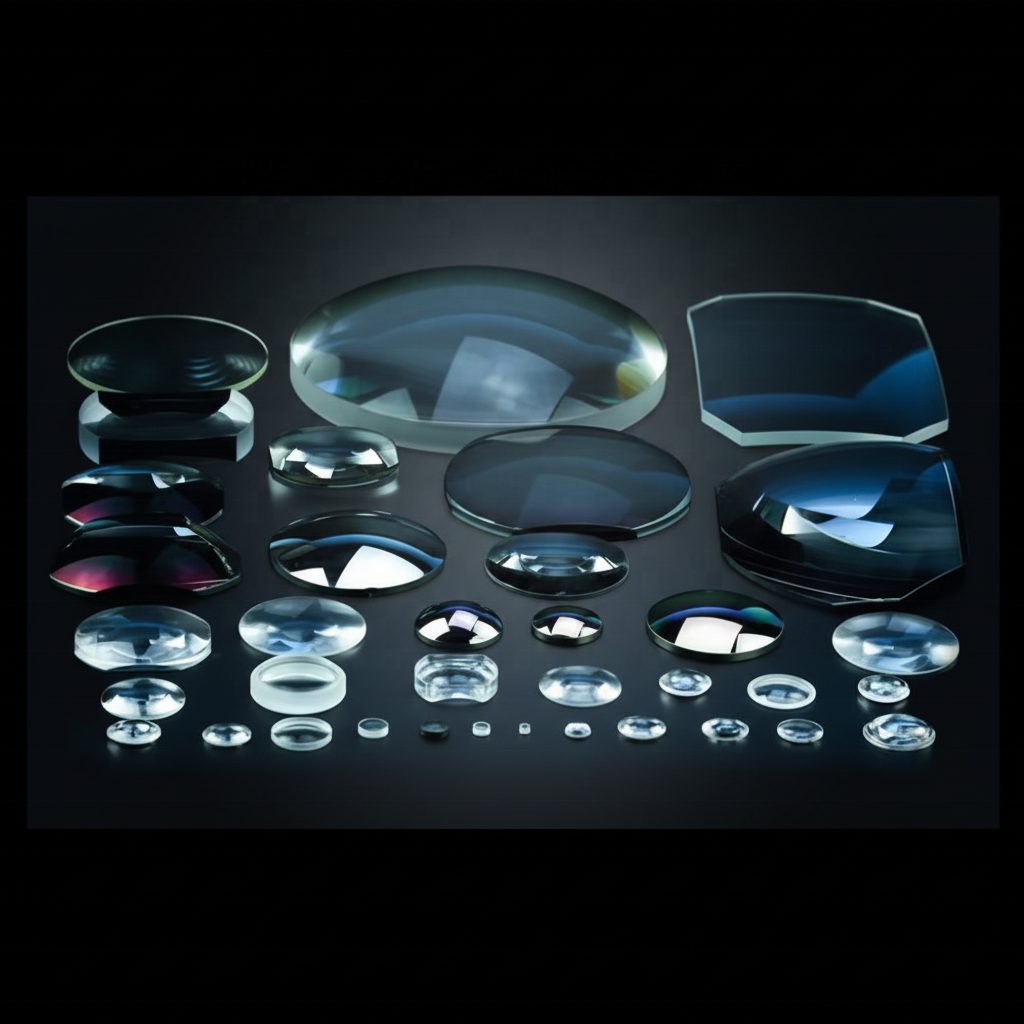

1x1 mm Fused Silica Concave Lens, AR Coated
Concave fused silica lens with broad-spectrum transparency for IR imaging, LIDAR, and laser applications.
Core attributes
- Material
- Fused Silica
- Shape
- Concave
- Diameter
- 1 mm
- Focal Length
- 1 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Concave
- Diameter
- 1 mm
- Focal Length
- 1 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This concave lens made from fused silica is designed for applications requiring broad-spectrum transparency, covering wavelengths from <400 nm to 1.7 μm. Ideal for IR imaging, LIDAR, and laser applications, it offers excellent light transmission and durability. With a diameter range of 1.0 to 200.0 mm and customizable focal lengths from 1.0 to 1000.0 mm, this lens meets diverse optical needs while ensuring high performance and reliability.
Key Features
- Broad-spectrum transparency from <400 nm to 1.7 μm for versatile applications.
- Diameter options from 1.0 mm to 200.0 mm, accommodating various device requirements.
- Focal length range of 1.0 mm to 1000.0 mm for tailored optical solutions.
- Surface quality of 60/40 ensures reliable performance in demanding environments.
- Customizable support available for OEM, ODM, and OBM projects.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 100.5 x 500.5 |
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Concave |
| Diameter | 1 mm |
| Focal Length | 1 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.03 |
| Diameter Tolerance | +/-0.1 |
| Surface Flatness | 1/4@633nm |
| Clear Aperture | >=central 80% of diameter |
FAQ
What is the diameter tolerance for this lens?
The diameter tolerance is +/-0.1 mm.
Can I get custom sizes for this lens?
Yes, variant sizes are available, including options from 100.5 mm to 500.5 mm.
