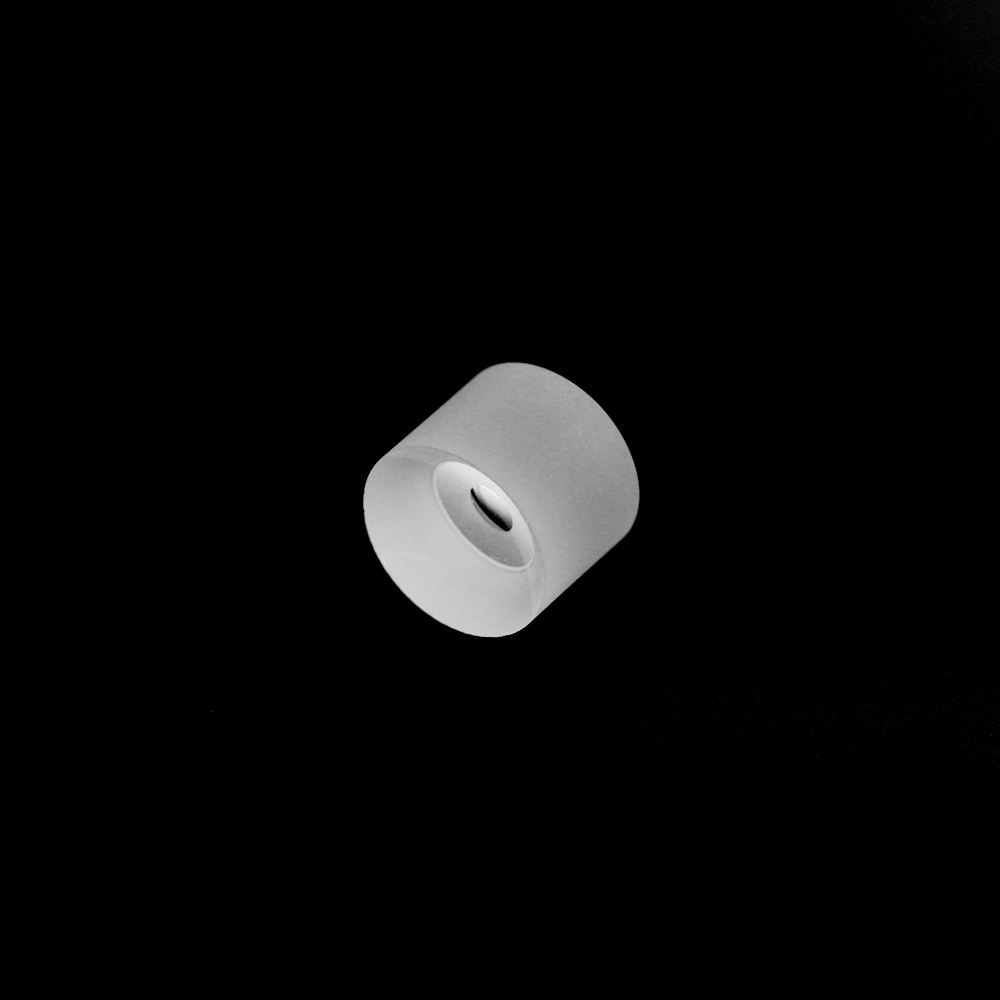

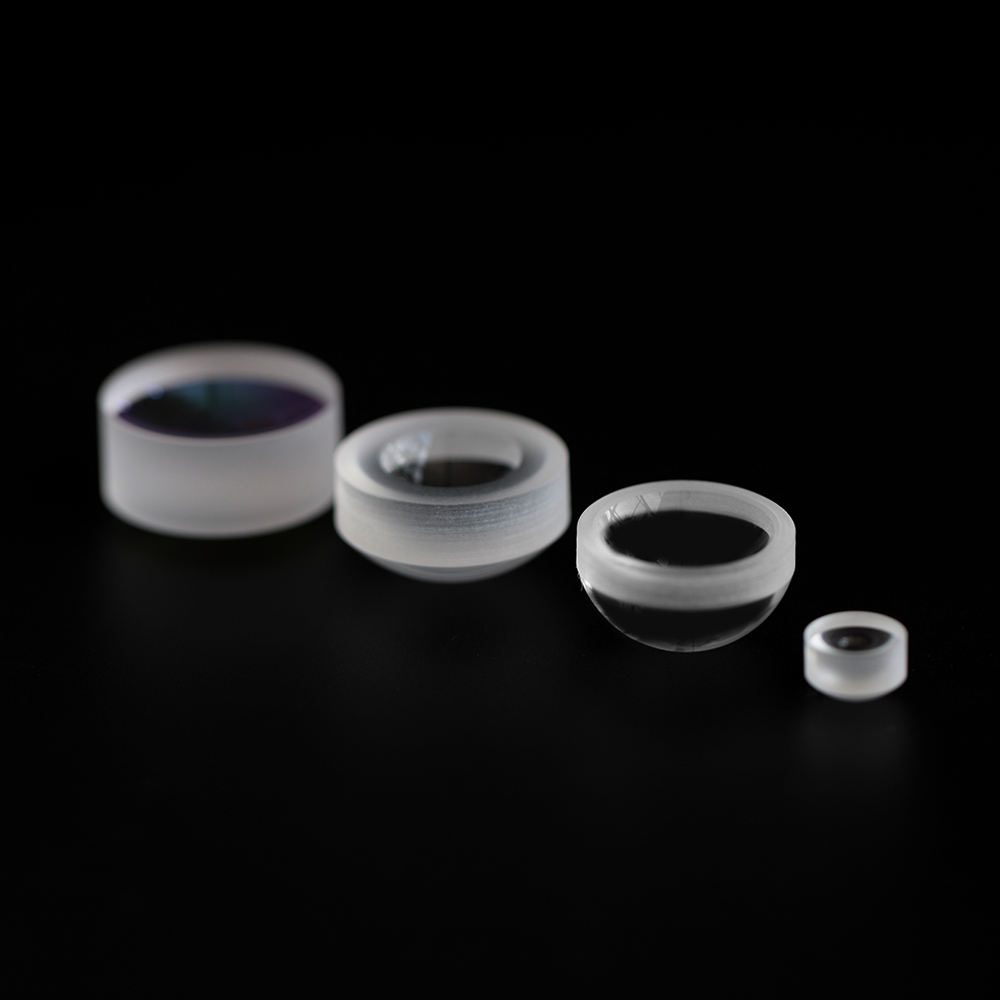

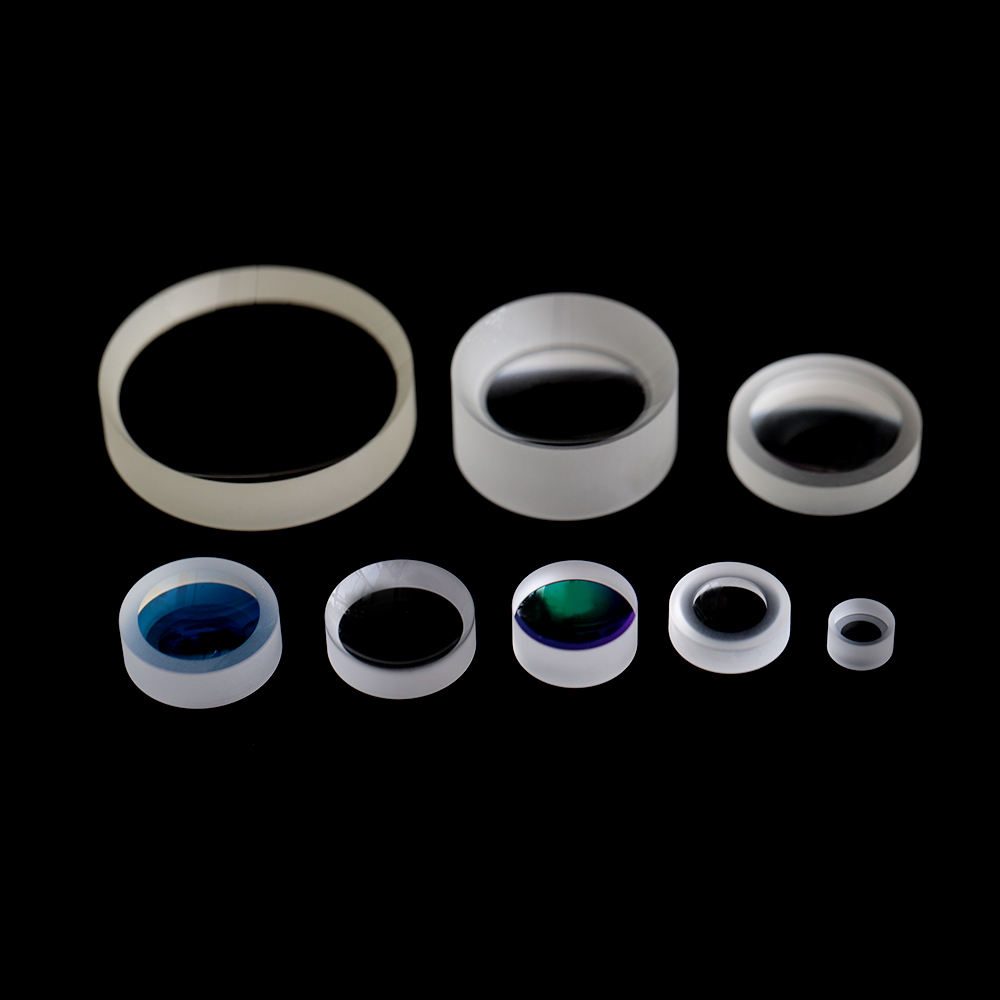

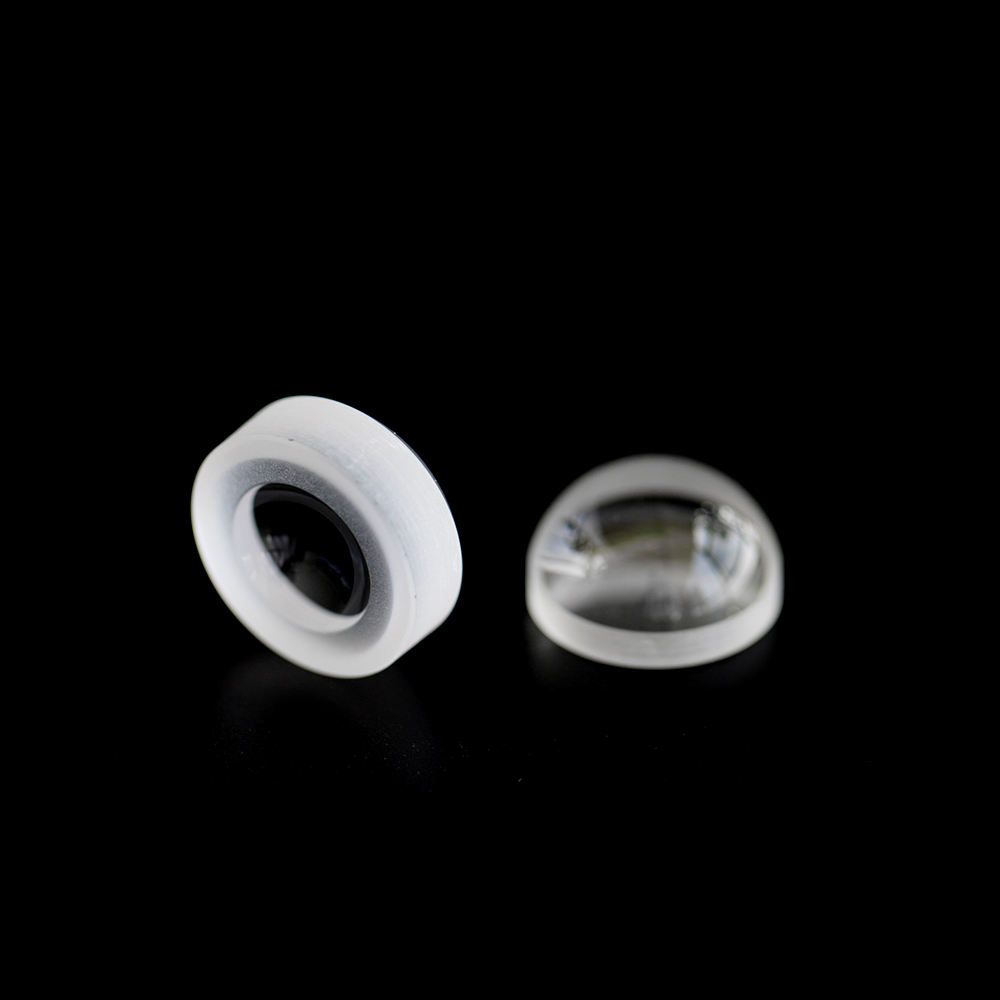

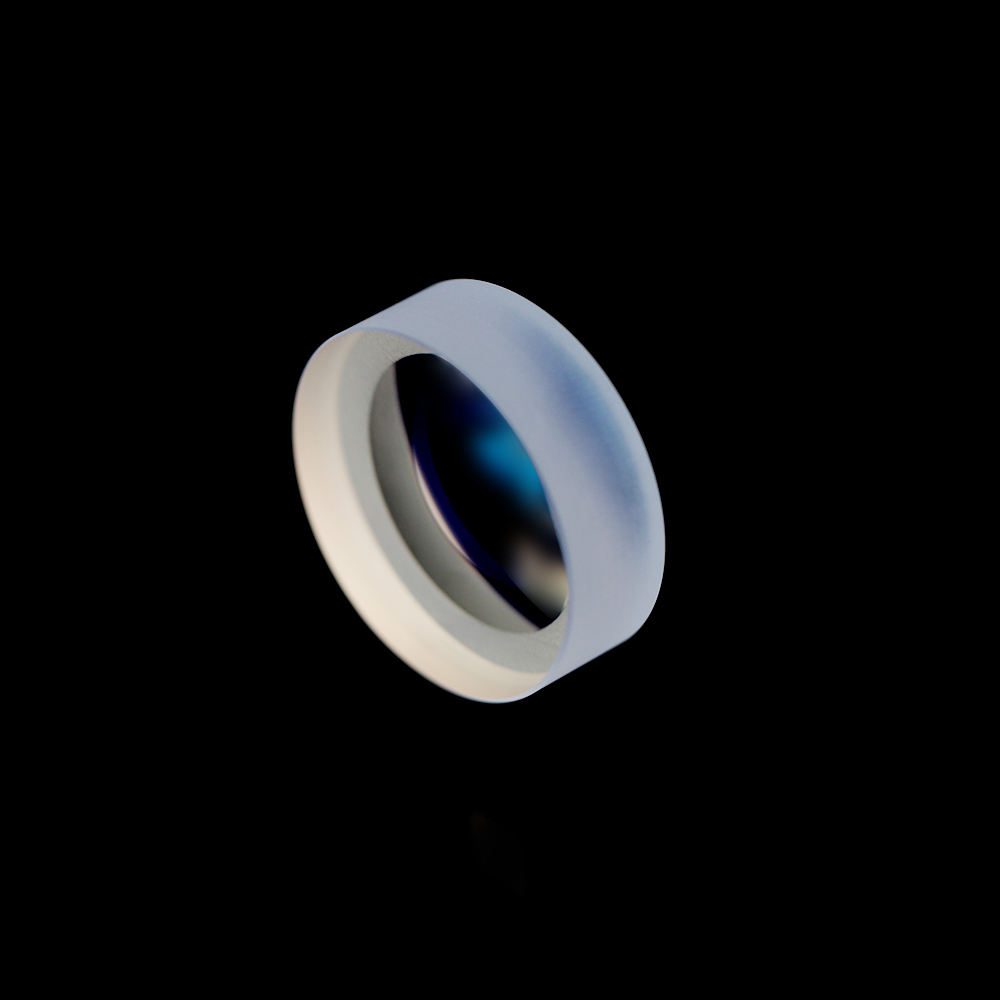

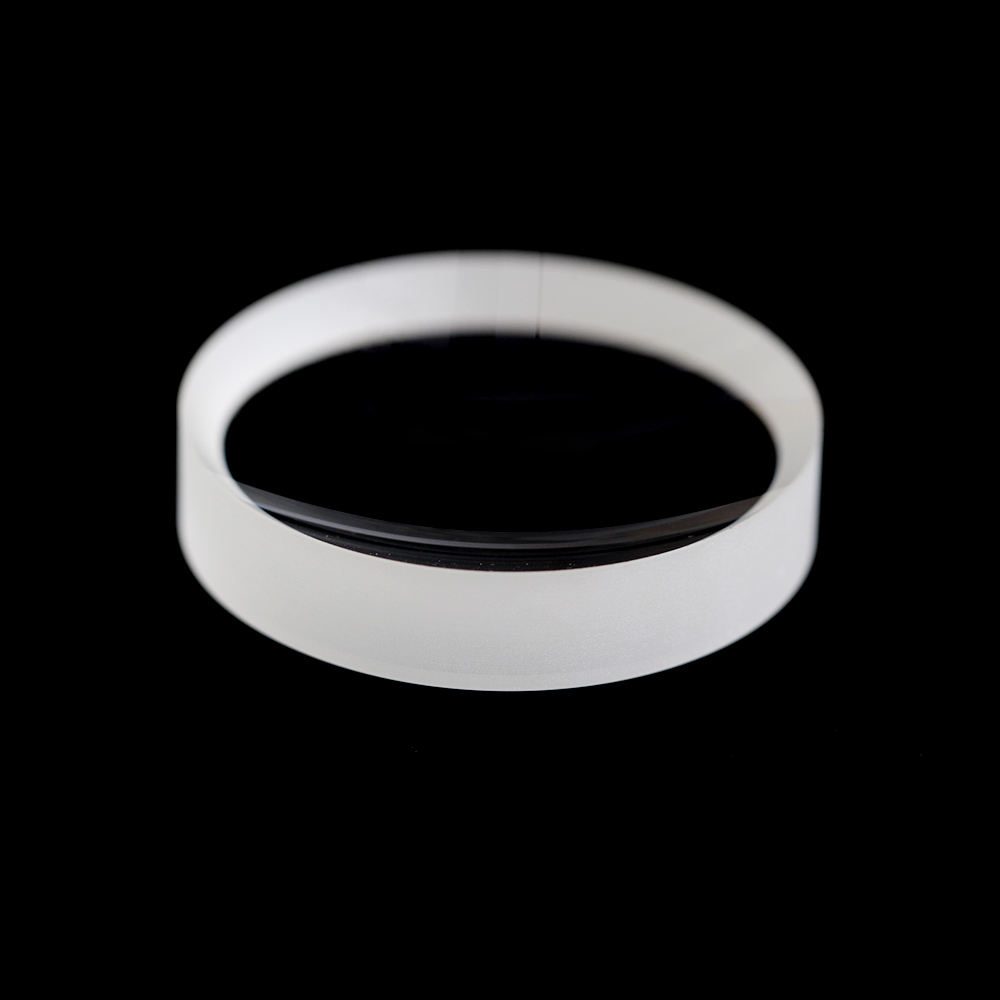

3x25 mm Fused Silica Concave Lens, AR Coated
Concave fused silica lenses for 0.7-1.7 μm and 400-700 nm applications, customizable sizes and focal lengths.
Core attributes
- Material
- Fused Silica
- Shape
- Concave
- Diameter
- 3 mm
- Focal Length
- 25 mm
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Concave
- Diameter
- 3 mm
- Focal Length
- 25 mm
- Coating
- anti-reflective (AR), uncoated
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
The concave lens made from fused silica is designed for applications in the 0.7-1.7 μm and 400-700 nm wavelength ranges. It provides effective light manipulation for various optical systems, including IR imaging and laser applications. With customizable diameters from 3.0 mm to 300.0 mm and focal lengths ranging from -25 mm to -500 mm, this lens meets diverse project requirements while ensuring high performance and reliability.
Key Features
- Custom diameters from 3.0 mm to 300.0 mm for versatile application fit.
- Focal lengths available from -25 mm to -500 mm, accommodating various optical designs.
- Material options include fused silica for excellent thermal stability and transmission.
- Available coatings include anti-reflective (AR) and uncoated for tailored performance.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 151.5 x 25 |
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Concave |
| Diameter | 3 mm |
| Focal Length | 25 mm |
| Coating | anti-reflective (AR), uncoated |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Concave Lens |
| Weight | 0.1 |
| Structure | Concave/double concave/custom |
FAQ
What custom sizes are available?
Custom diameters can be ordered from 3.0 mm to 300.0 mm.
What is the minimum order quantity?
The minimum order quantity is not specified.
