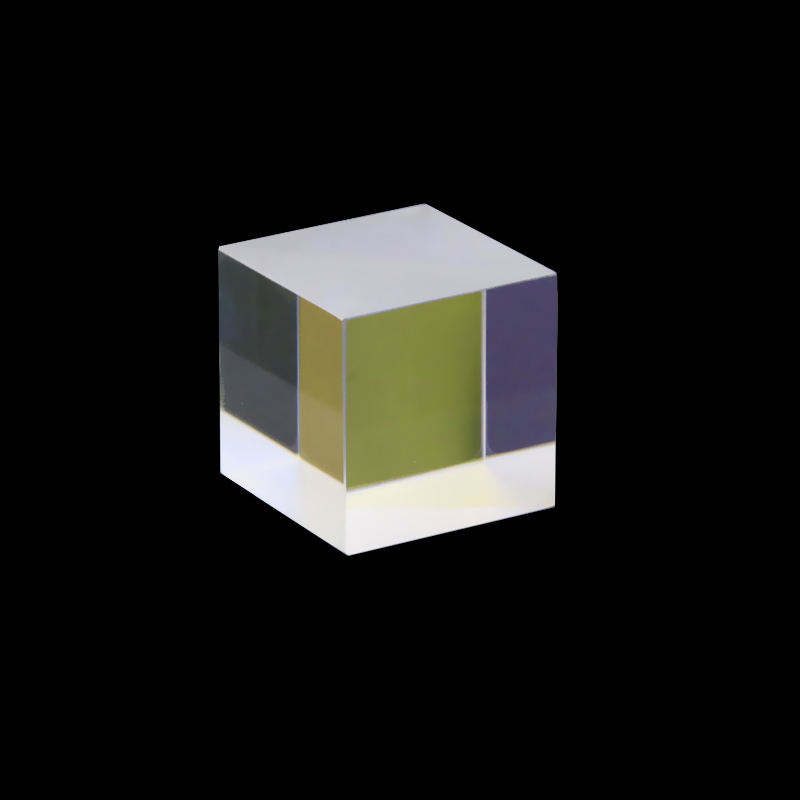

12.7 mm Fused Silica Cube Beamsplitter, AR Coated
High-performance polarizing beamsplitter for laser, medical, and research applications. Custom sizes available.
Core attributes
- Material
- Fused Silica
- Shape
- Cube
- Size
- 12.7 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Cube
- Size
- 12.7 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This polarizing beamsplitter is designed for applications in laser, medical, and research fields, effectively splitting light across a range of wavelengths from 0.7 to 1.7 μm and 400 to 700 nm. Its high transmission rate of over 95% and low reflection average of over 99% ensure optimal performance in demanding environments. The beamsplitter’s robust fused silica construction provides durability and precision, making it an essential component for advanced optical systems.
Key Features
- High transmission rate (TP > 95%) for superior light efficiency.
- Low reflection average (RS avg > 99%) minimizes light loss.
- Extinction ratio of 1000:1 for effective polarization.
- Customizable dimensions available (12.7mm, 20mm, 25.4mm, and more).
- Laser damage threshold exceeding 500mJ/cm2 for reliable performance.
Applications
Laser, Medical, Research
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Cube |
| Size | 12.7 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Polarizing |
| Customized Support | OEM, ODM, OBM |
| Wavelength Range | 420-680nm, 620-1000nm, 900-1300nm, 1200-1600nm others specified |
| Materail | N-SF1/Fused Silica/K9/ZF3 |
| Transmission | TP > 95% |
| Reflection | RS avg > 99% |
| Flatness | 1/4 @ 632.8nm per25mm |
| Laser Damage Threshold | >500mJ/cm2,20ns,20Hz,@1064nm |
| Extinction Ratio | 1000:1 |
| Dimension | 12.712.712.7mm,,202020mm, 25.425.425.4mm, others specified |
FAQ
Can I get custom sizes for this beamsplitter?
Yes, customizable dimensions are available, including 12.7mm, 20mm, and 25.4mm.
What is the minimum order quantity (MOQ) for this product?
The minimum order quantity (MOQ) is not specified.
