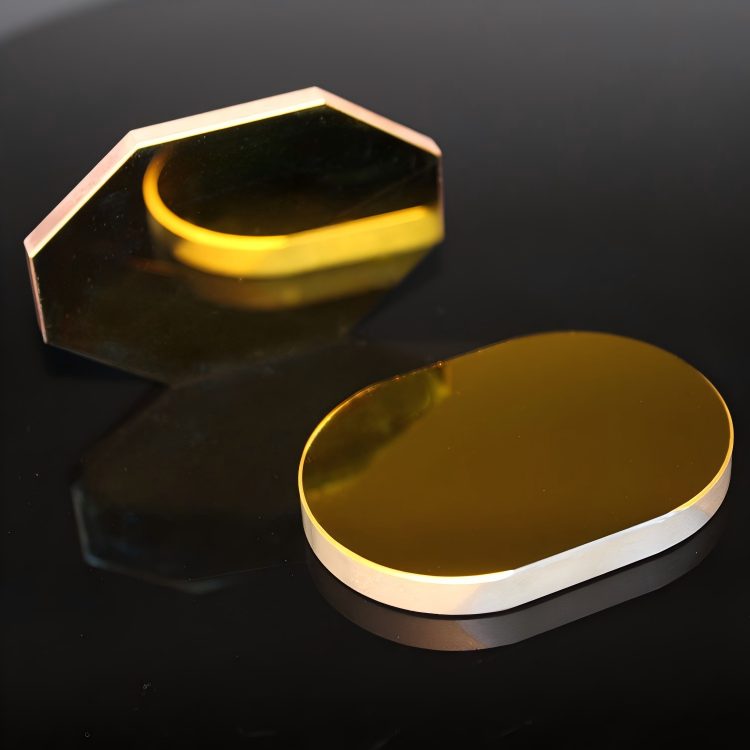

5 mm Fused Silica Custom Optical Mirror
Custom Fused Silica mirrors for laser applications with 98.5% reflectance and customizable sizes from 5.0 mm to 300.0 mm.
Core attributes
- Material
- Fused Silica
- Shape
- Custom
- Size
- 5 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Reflectance
- 98.5%
- Coating
- gold, silver, dielectric HR
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Custom
- Size
- 5 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Reflectance
- 98.5%
- Coating
- gold, silver, dielectric HR
Product description

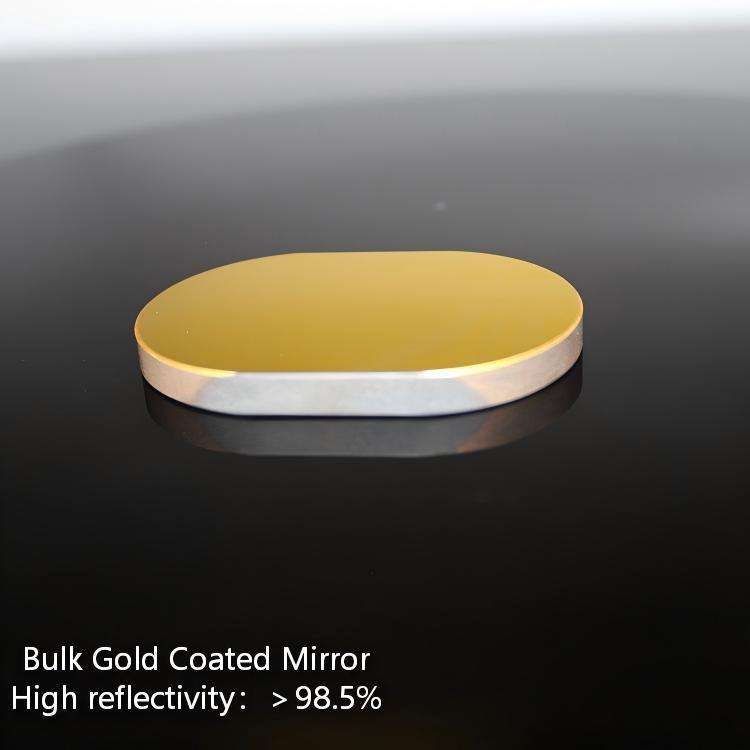

This custom Fused Silica mirror is designed for laser applications, offering exceptional reflectance of 98.5%. The mirror’s gold, silver, and dielectric HR coatings ensure optimal performance for various light sources. With a surface quality of 60/40 and a flatness of 1/10 lambda, it minimizes wavefront distortion, making it suitable for high-precision optical systems. Custom sizes ranging from 5.0 mm to 300.0 mm are available.
Key Features
- Reflectance of 98.5% enhances efficiency for laser applications.
- Surface quality of 60/40 ensures minimal distortion for high-precision optics.
- Custom sizes from 5.0 mm to 300.0 mm meet specific project requirements.
- Durable coatings (gold, silver, dielectric HR) provide versatility and longevity.
- Flatness of 1/10 lambda supports superior wavefront quality.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Custom |
| Size | 5 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Reflectance | 98.5% |
| Coating | gold, silver, dielectric HR |
Full Specifications
| Parameter | Value |
|---|---|
| Type | optical windows |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.5kg |
| Diameter Tolerance | +/-0.01mm |
| Flatness | 1/10lambda |
| Clear Aperture | 95% |
FAQ
What are the available custom sizes?
Custom sizes range from 5.0 mm to 300.0 mm.
What is the diameter tolerance for this mirror?
The diameter tolerance is +/-0.01 mm.
