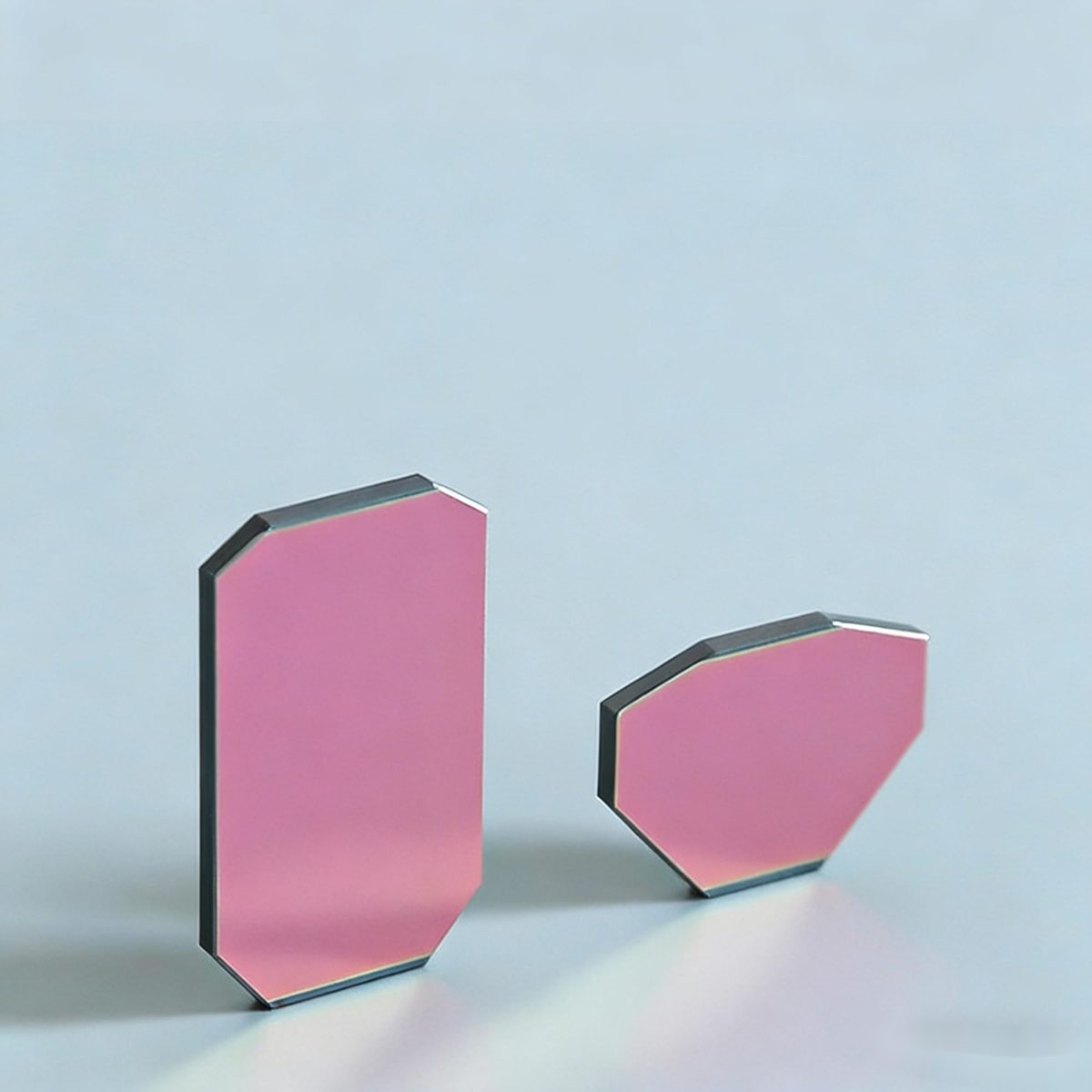

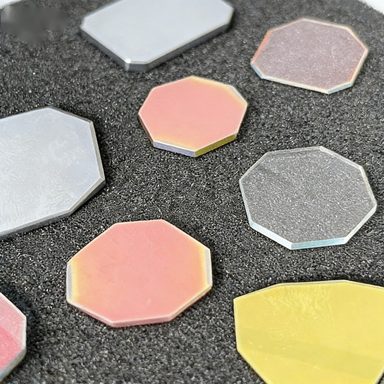

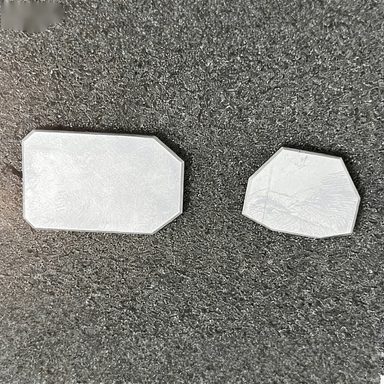

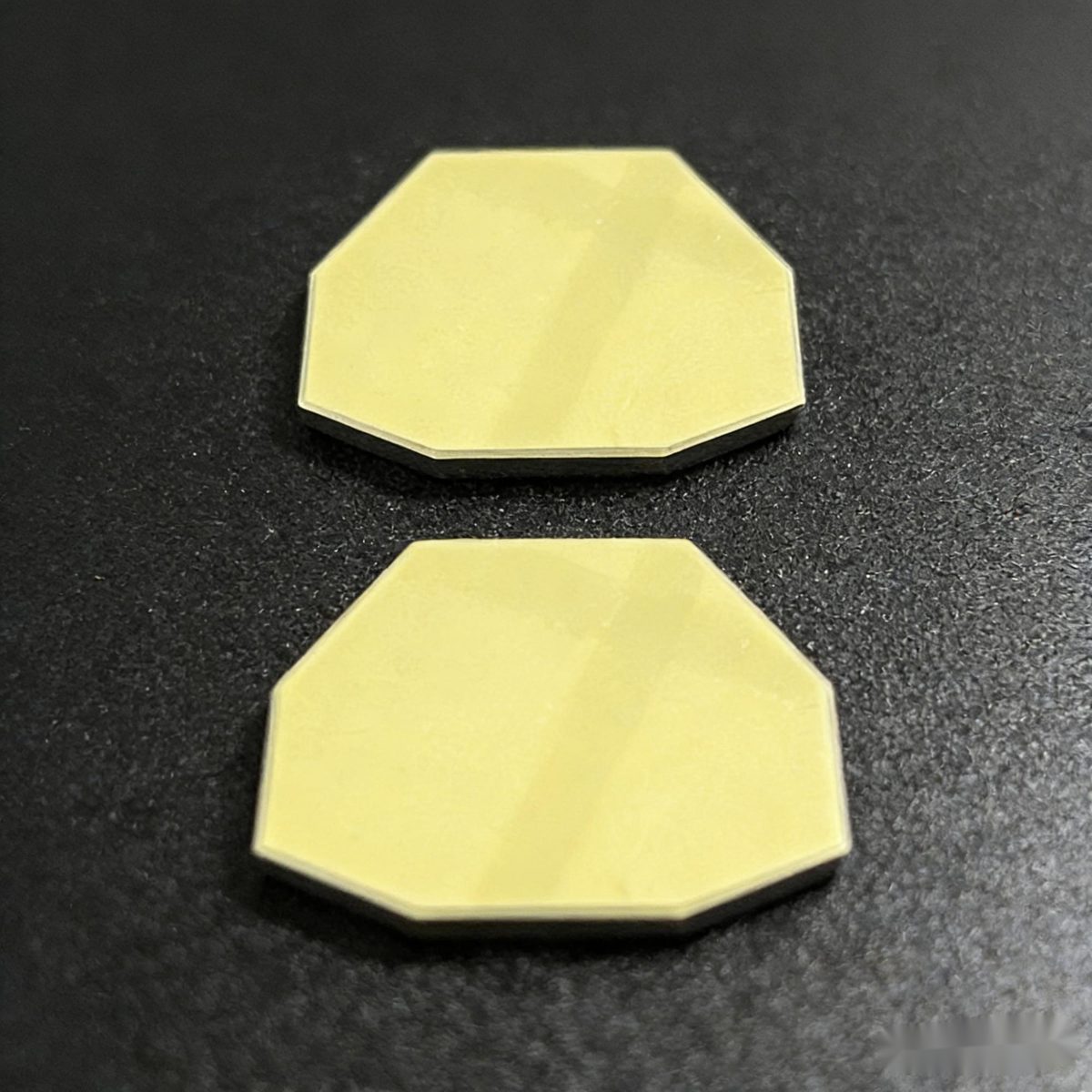

7 mm Fused Silica Custom Optical Mirror

Product description

This custom Fused Silica Laser Scanning Mirror is designed for high-speed dynamic laser applications, ensuring precise laser spot control across a wide range of wavelengths (0.7-1.7 μm and 400-700 nm). With a reflectance of 99% and a surface quality of 60/40, it meets the demands of fine processing and imaging scenarios. The dielectric HR coating minimizes laser energy loss, enhancing equipment efficiency and stability under high temperatures and pressures.

Key Features

Reflectance of 99% ensures minimal energy loss, maximizing laser efficiency.
Surface quality rated at 60/40 supports high precision in imaging applications.

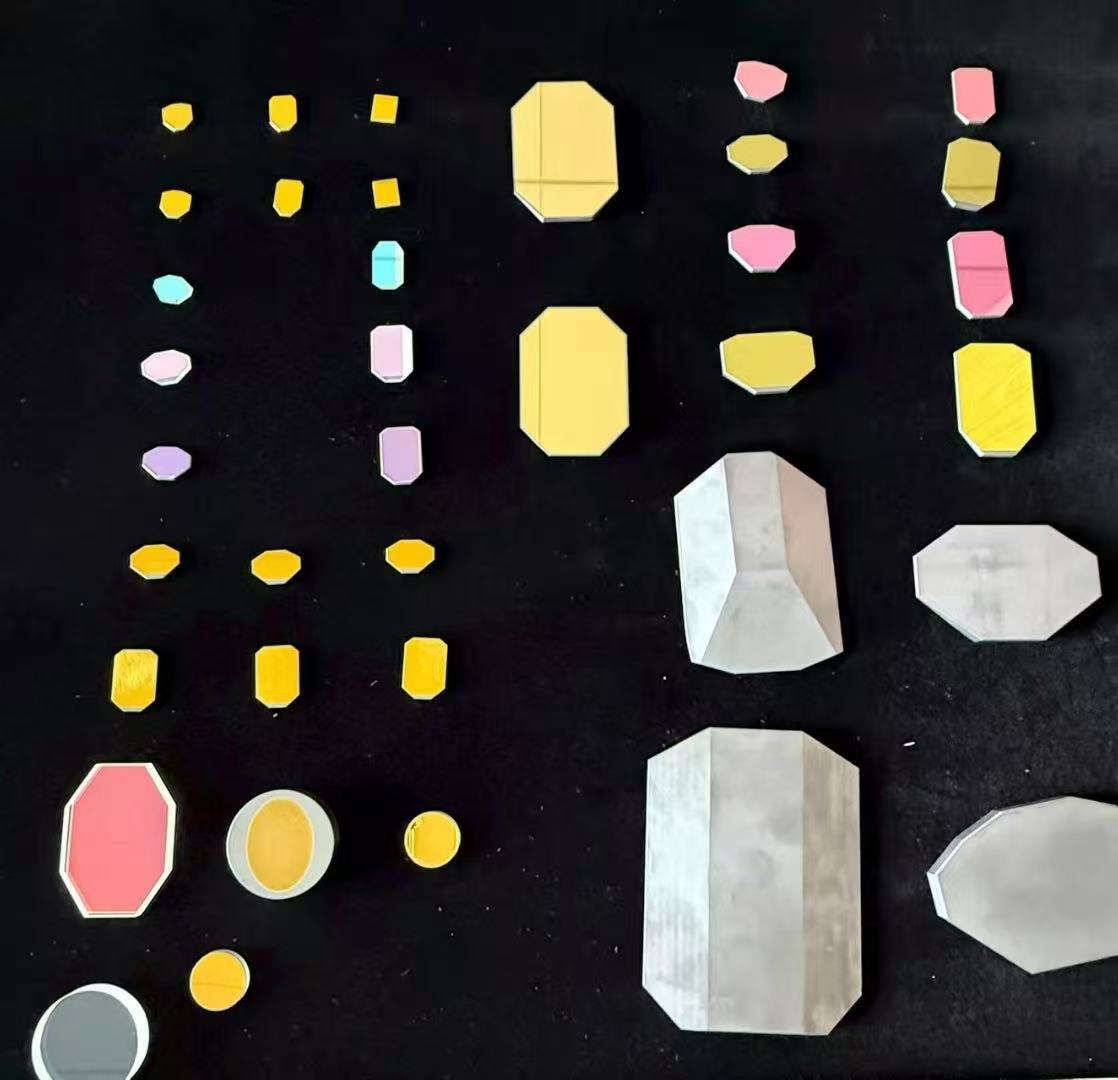

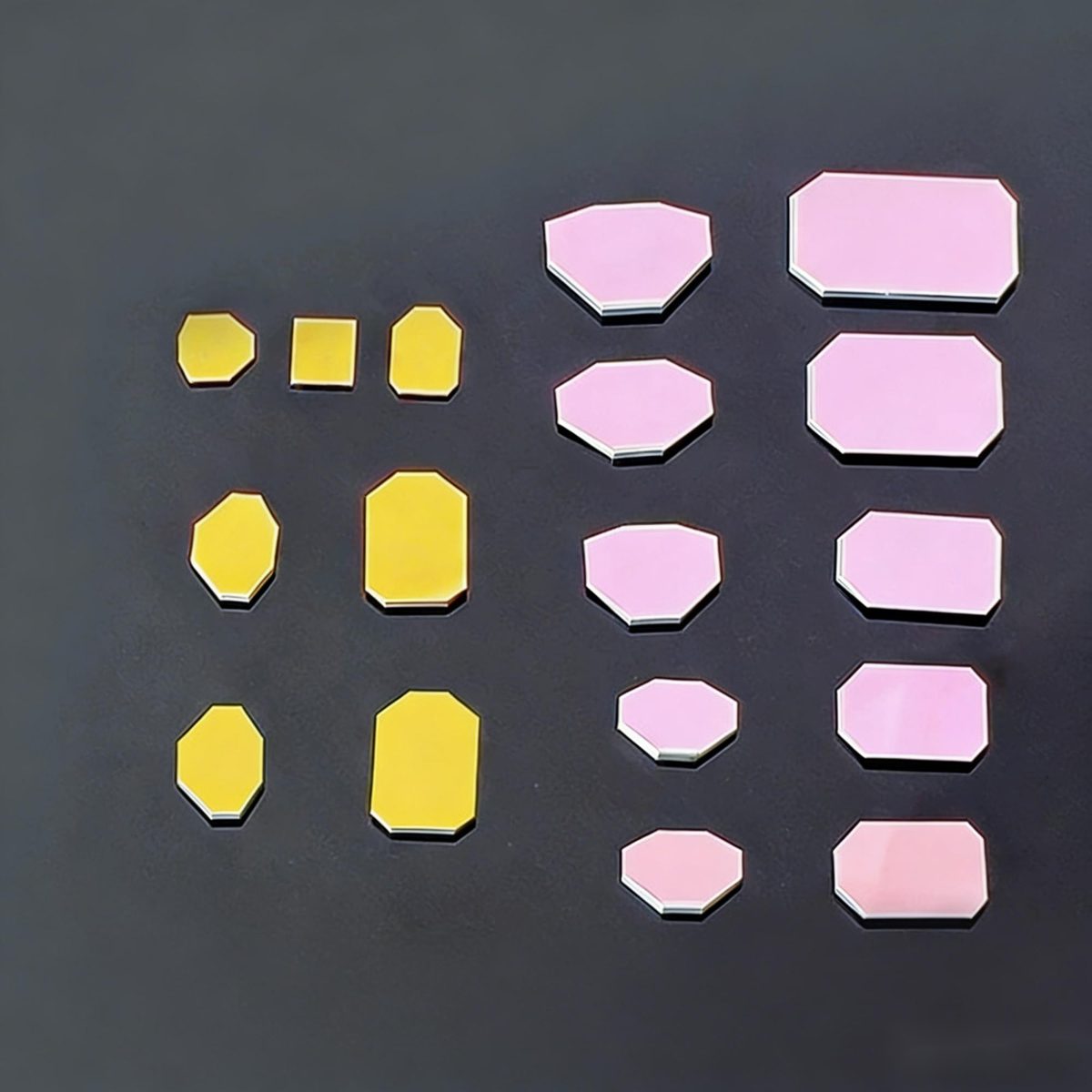

Custom sizes from 7 to 50 mm available to fit specific project requirements.
Dielectric HR coating provides durability and resistance to oxidation.
Flatness of 1/4 Lambda @632.8nm guarantees superior wavefront quality.

Applications

Laser

Specification Summary

Item	Value
Material	Fused Silica
Shape	Custom
Size	7 mm
Thickness	Custom
Surface Quality	60/40
Reflectance	99%
Coating	dielectric HR
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Laser Scanning Mirror; Reflective Mirror
Customized Support	OEM
Warranty	3 Years
Weight	0.2g(0.01oz)
Flatness	1/4 Lambda @632.8nm
Dimension Tolerance	0/-0.05 MM

FAQ

What custom sizes are available?

Custom sizes range from 7 mm to 50 mm, accommodating various laser scanning needs.

What is the dimension tolerance?

The dimension tolerance is specified as 0/-0.05 mm, ensuring precise fitting.
