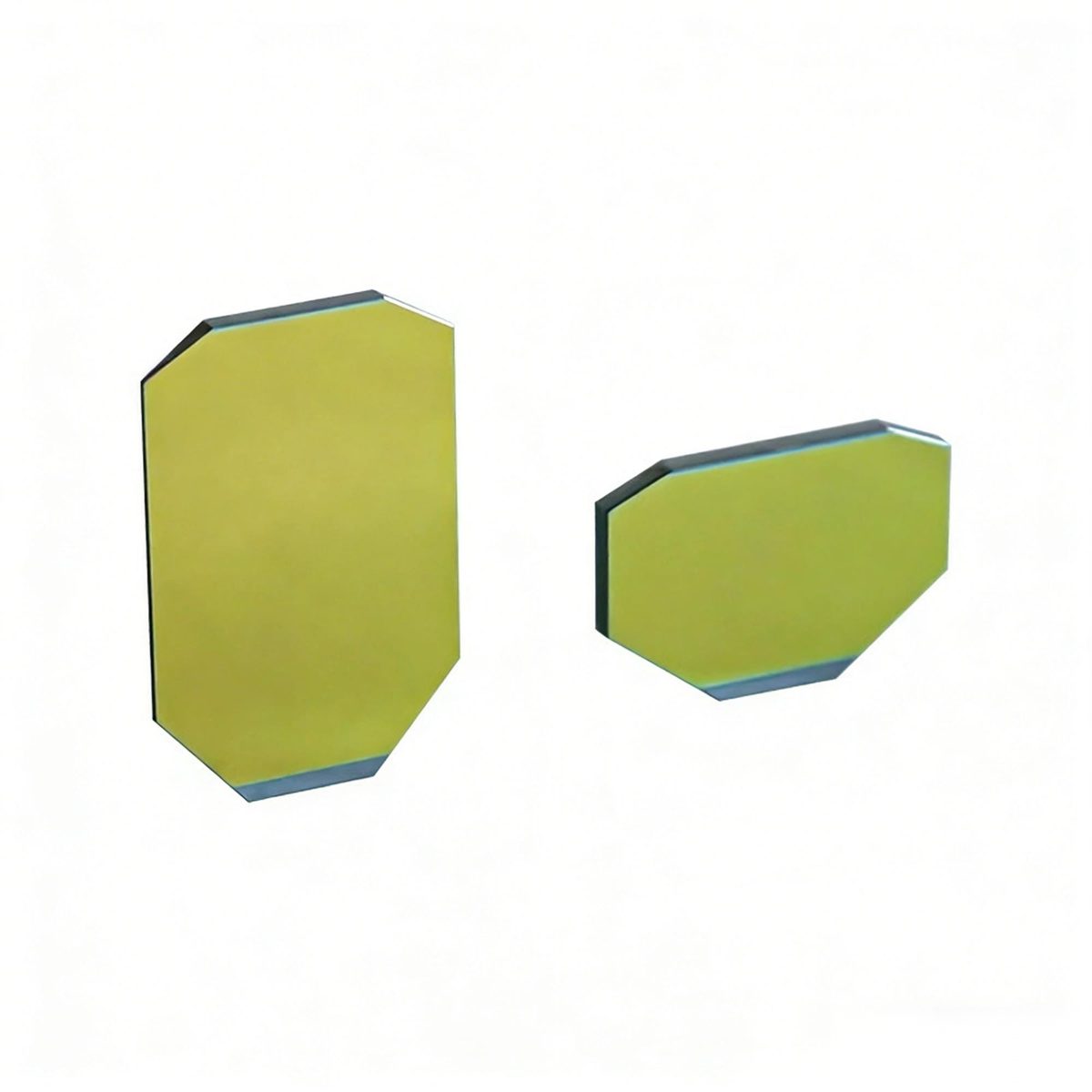

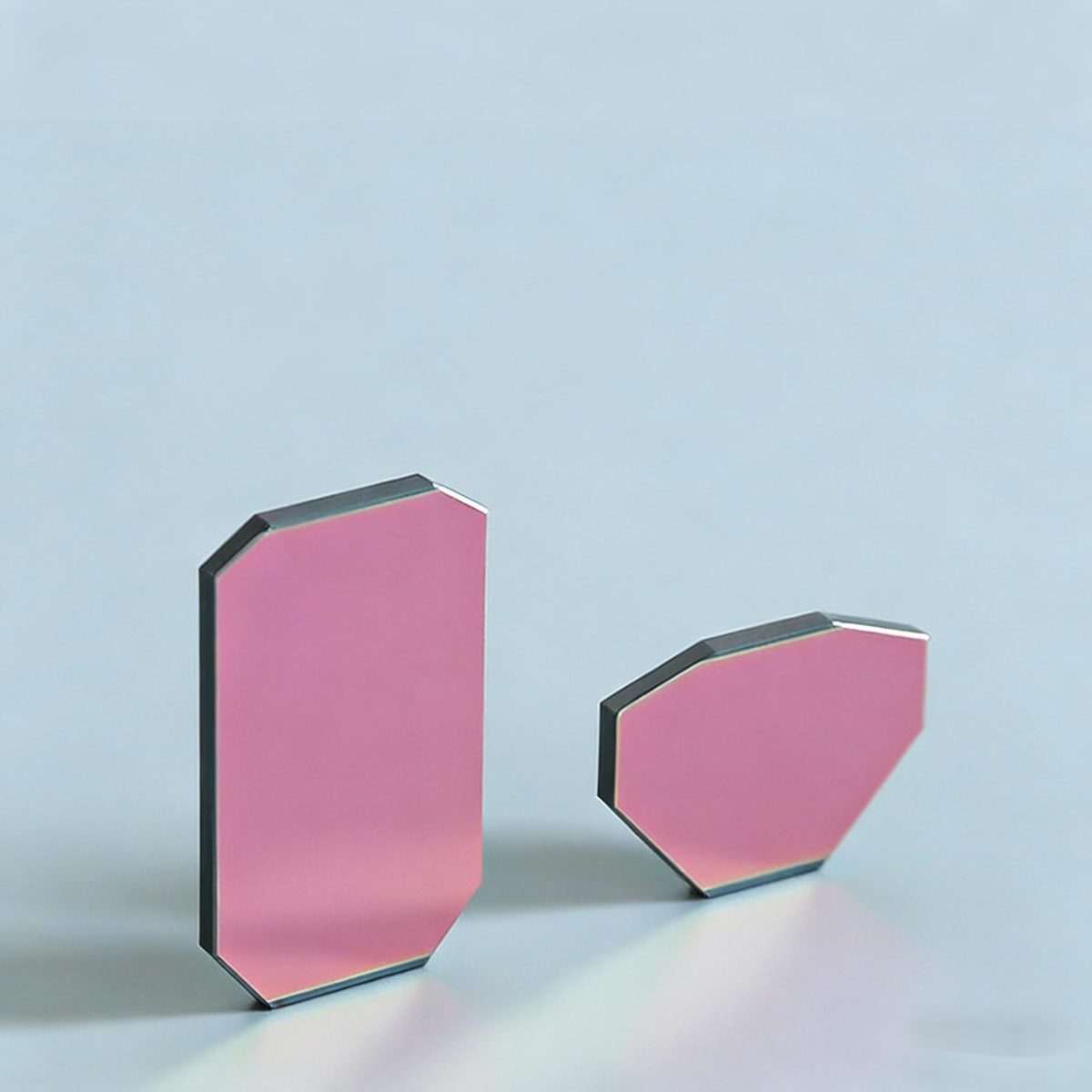

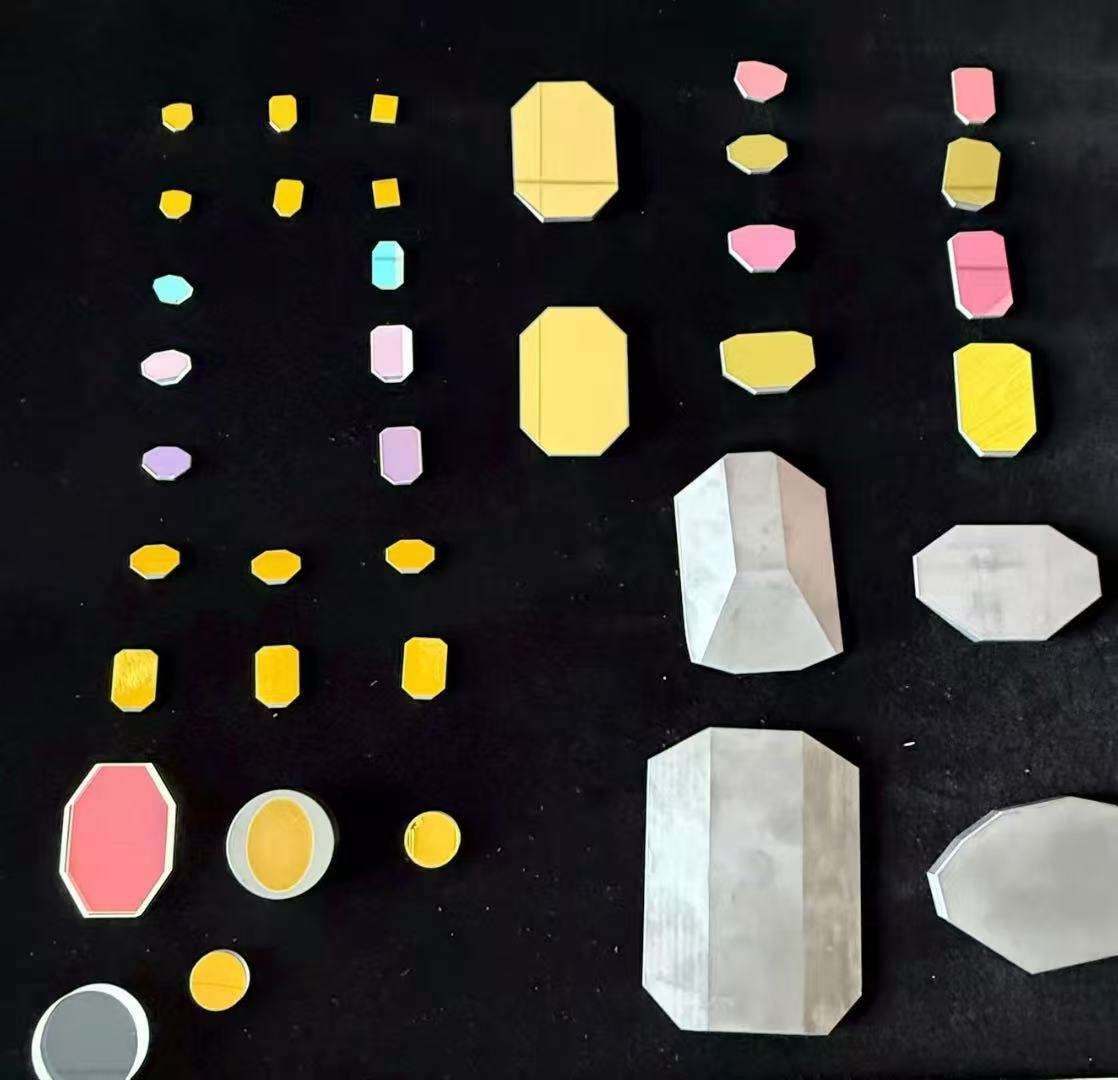

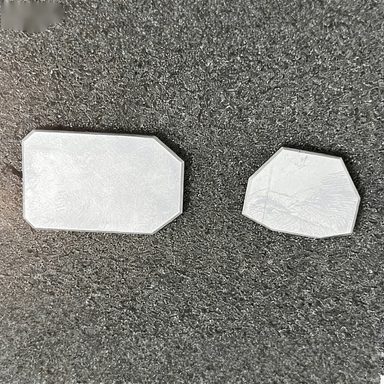

7 mm Fused Silica Custom Optical Mirror
Custom Fused Silica Laser Scanning Mirror for precise laser applications, with customizable sizes and high surface quality.
Core attributes
- Material
- Fused Silica
- Shape
- Custom
- Size
- 7 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Custom
- Size
- 7 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This custom Fused Silica Laser Scanning Mirror is designed for high-speed laser applications, ensuring precise laser spot control and minimal energy loss. With a surface quality of 60/40 and a flatness of 1/4 Lambda @632.8nm, it meets the demands of laser marking, cutting, and 3D printing. The mirror supports a wavelength range of 0.7-1.7 μm and 400-700 nm, making it suitable for various laser types, including CO2 and fiber lasers. Custom sizing and shapes are available to fit unique equipment requirements.
Key Features
- Surface quality of 60/40 enhances imaging precision.
- Flatness of 1/4 Lambda @632.8nm ensures wavefront quality.
- Supports laser wavelengths from 0.7-1.7 μm and 400-700 nm.
- Custom sizes and shapes available for non-standard applications.
- Compatible with CO2 and fiber lasers for versatile industrial use.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Custom |
| Size | 7 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Laser Scanning Mirror; Reflective Mirror |
| Customized Support | OEM |
| Warranty | 3 Years |
| Weight | 0.2g |
| Flatness | 1/4 Lambda @632.8nm |
| Dimension Tolerance | 0/-0.05 MM |
FAQ
Can I get custom sizes for this mirror?

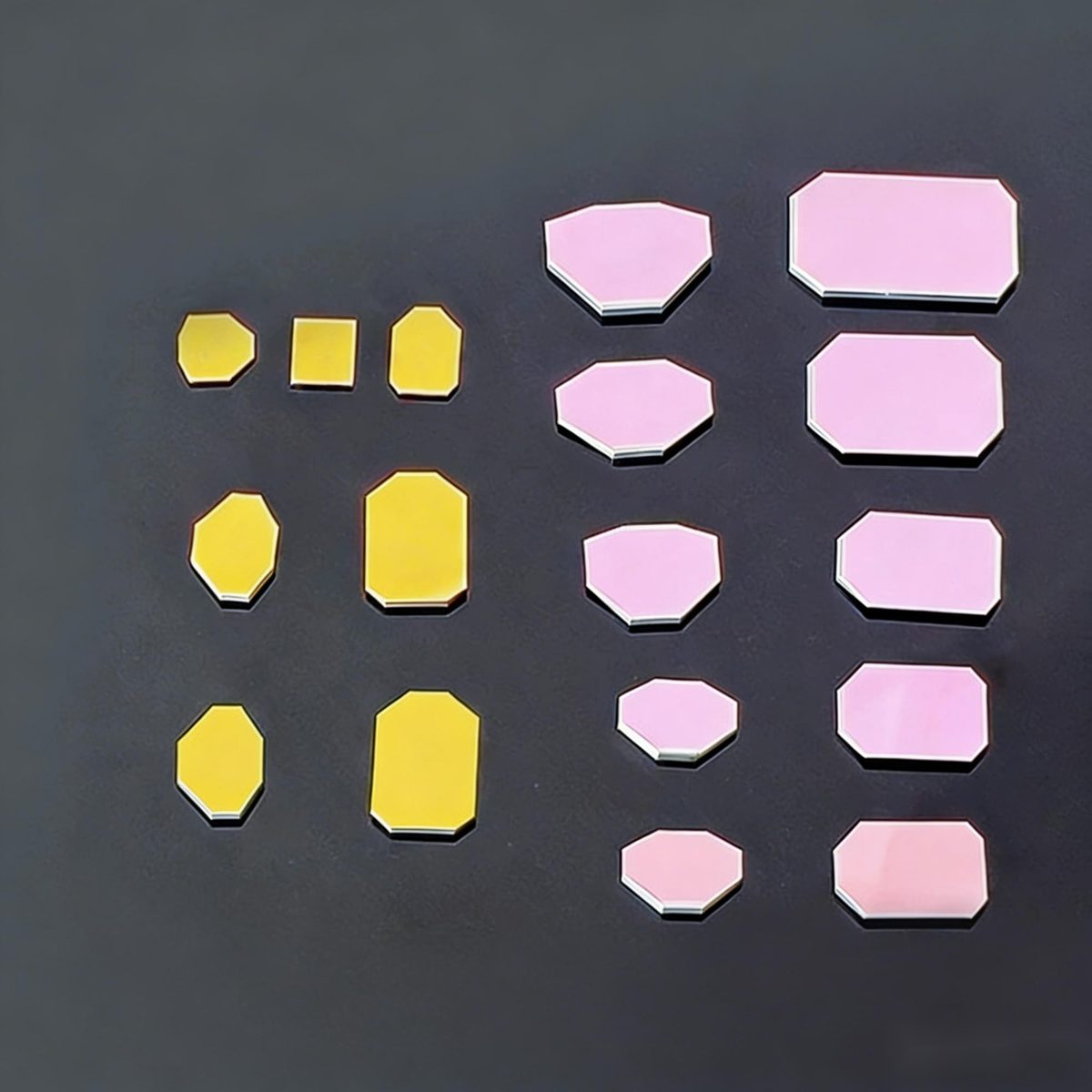

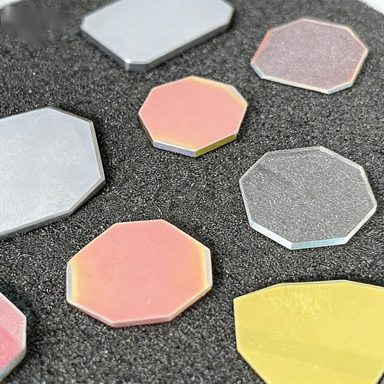

Yes, custom sizes and shapes (including special-shaped octagons) are available.
What is the dimension tolerance for this mirror?
The dimension tolerance is 0/-0.05 mm.
