Custom Size Fused Silica Custom Optical Mirror

Product description

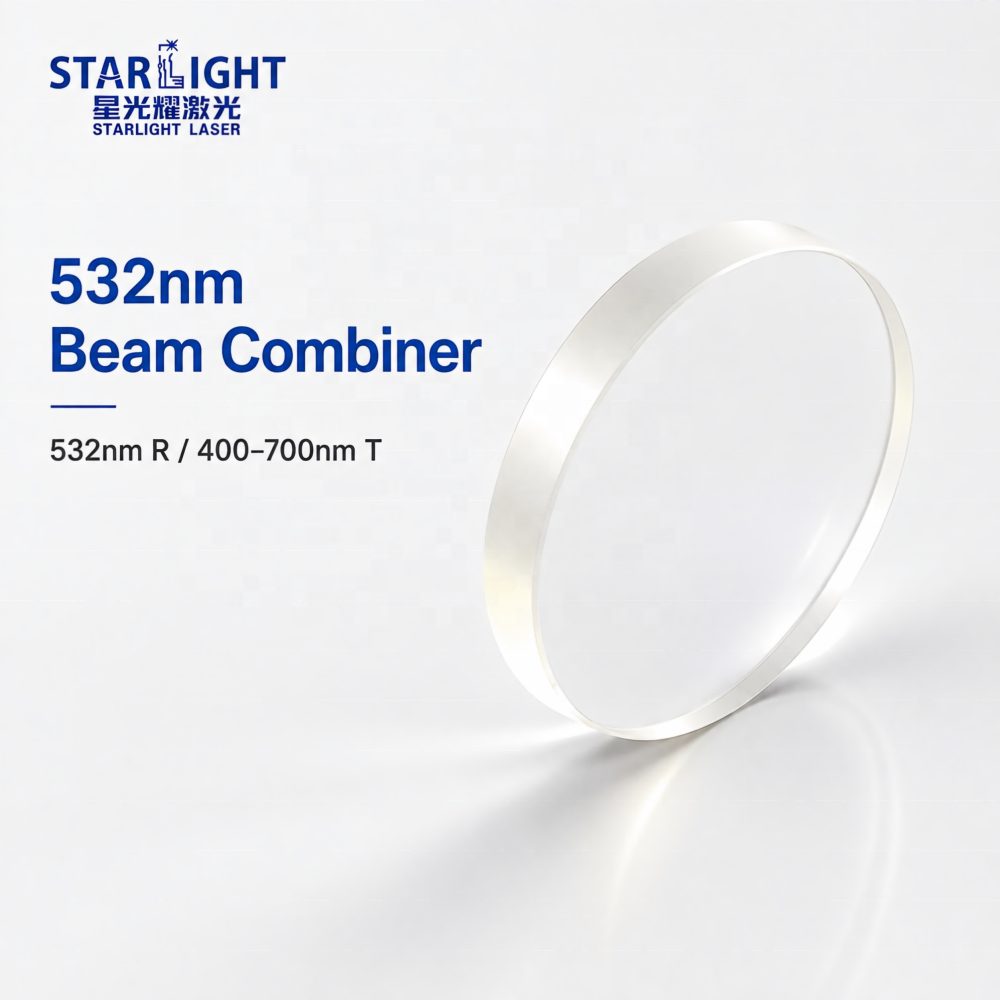

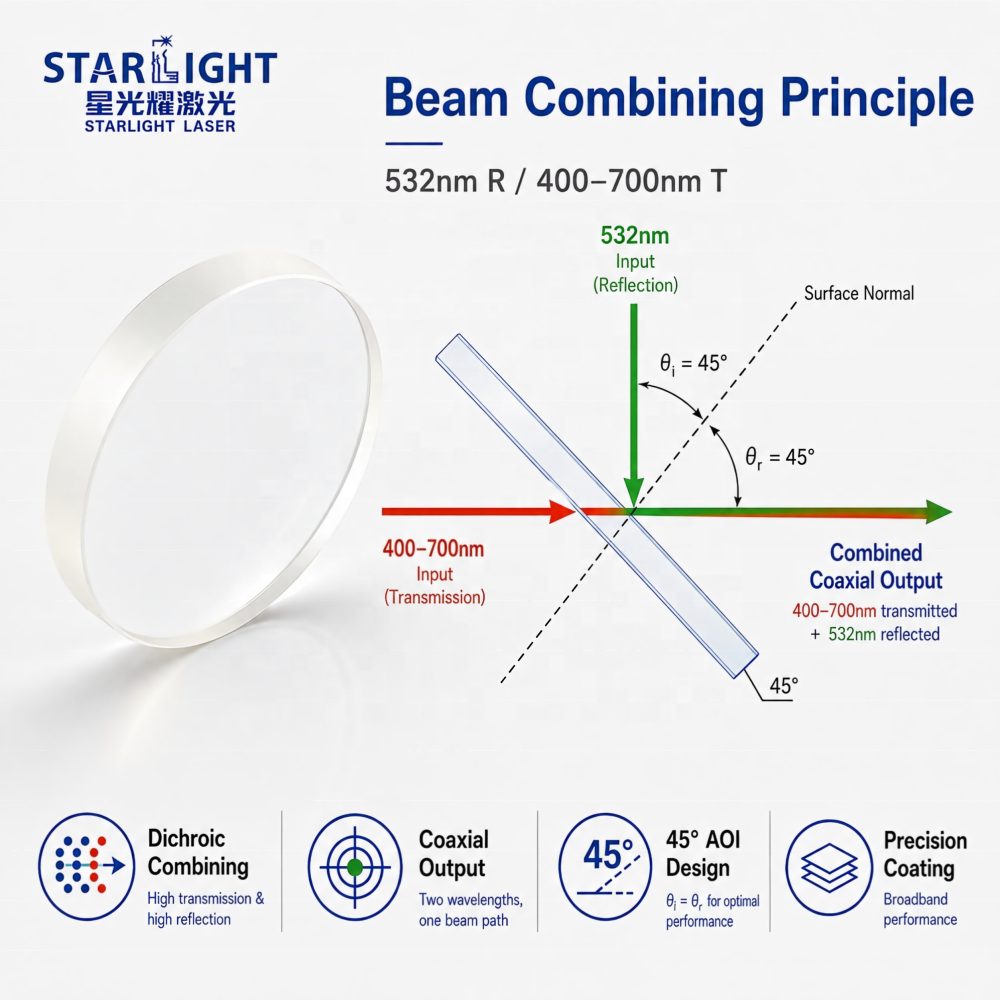

The Laser Beam Combiner Mirror is engineered to reflect 532nm green laser light while transmitting 400-700nm visible wavelengths, making it ideal for laser beam combining and optical path integration. Constructed from fused silica, it ensures stable optical performance and durability in demanding laser applications. Designed for a 45-degree angle of incidence, this mirror supports effective optical alignment and compact system integration, addressing the needs of R&D and procurement engineers in laser technology.

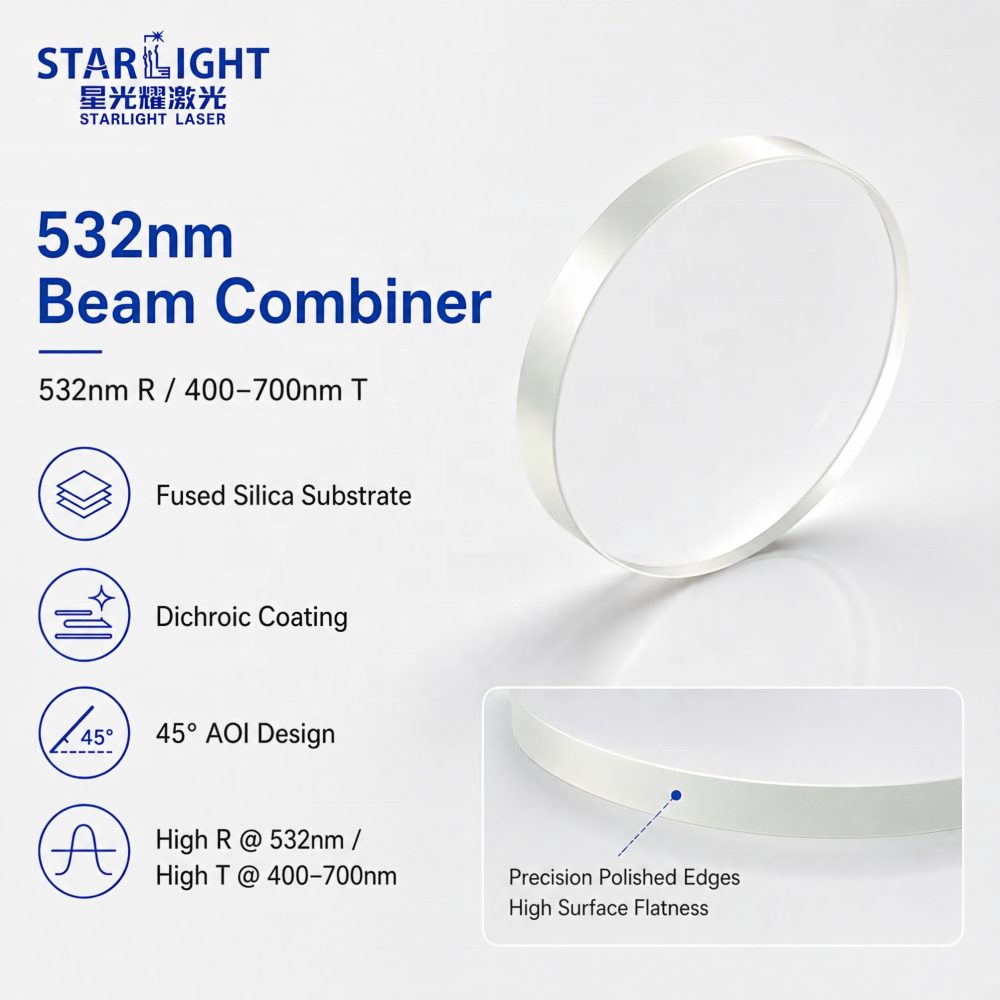

Key Features

Reflects 532nm green laser light for efficient beam combining.
Transmits 400-700nm visible wavelengths for versatile optical applications.
Constructed from fused silica for enhanced durability and optical stability.
Designed for a 45-degree angle of incidence for optimal performance.
Customizable in diameter, thickness, and shape to meet specific requirements.

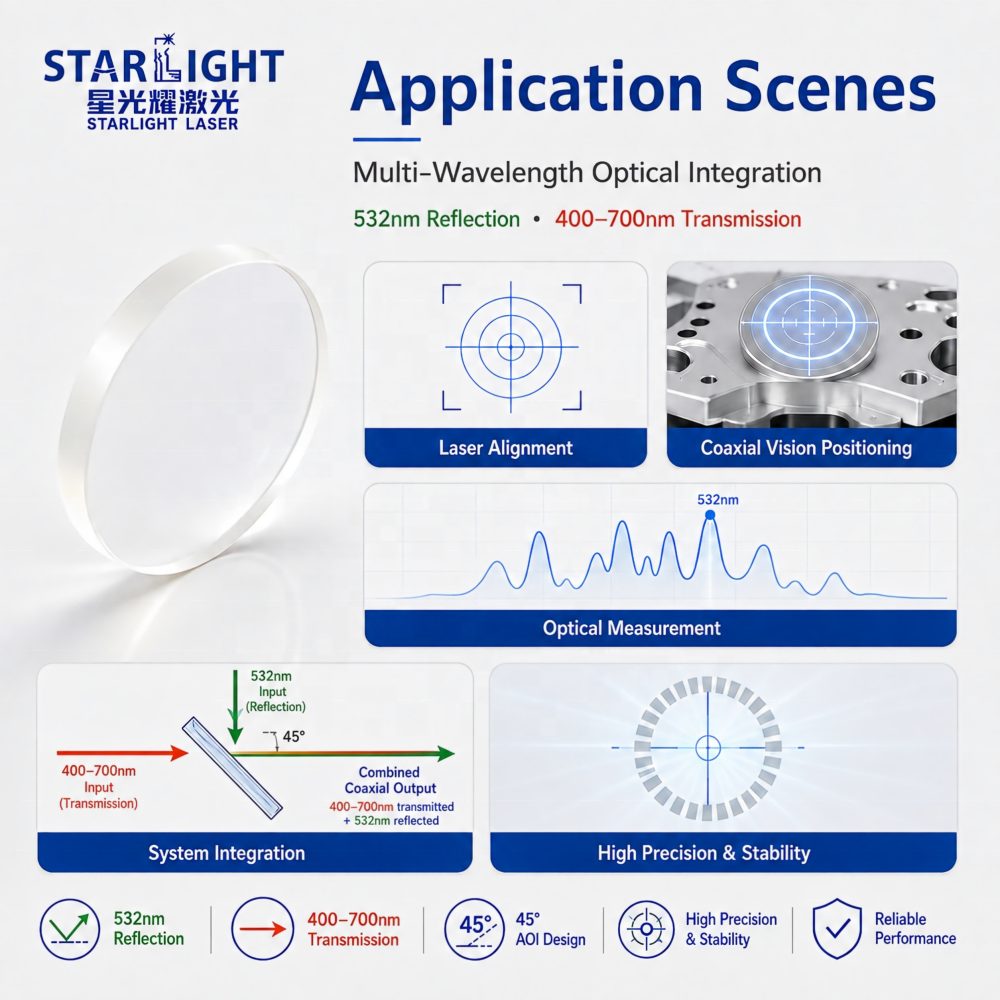

Applications

Laser

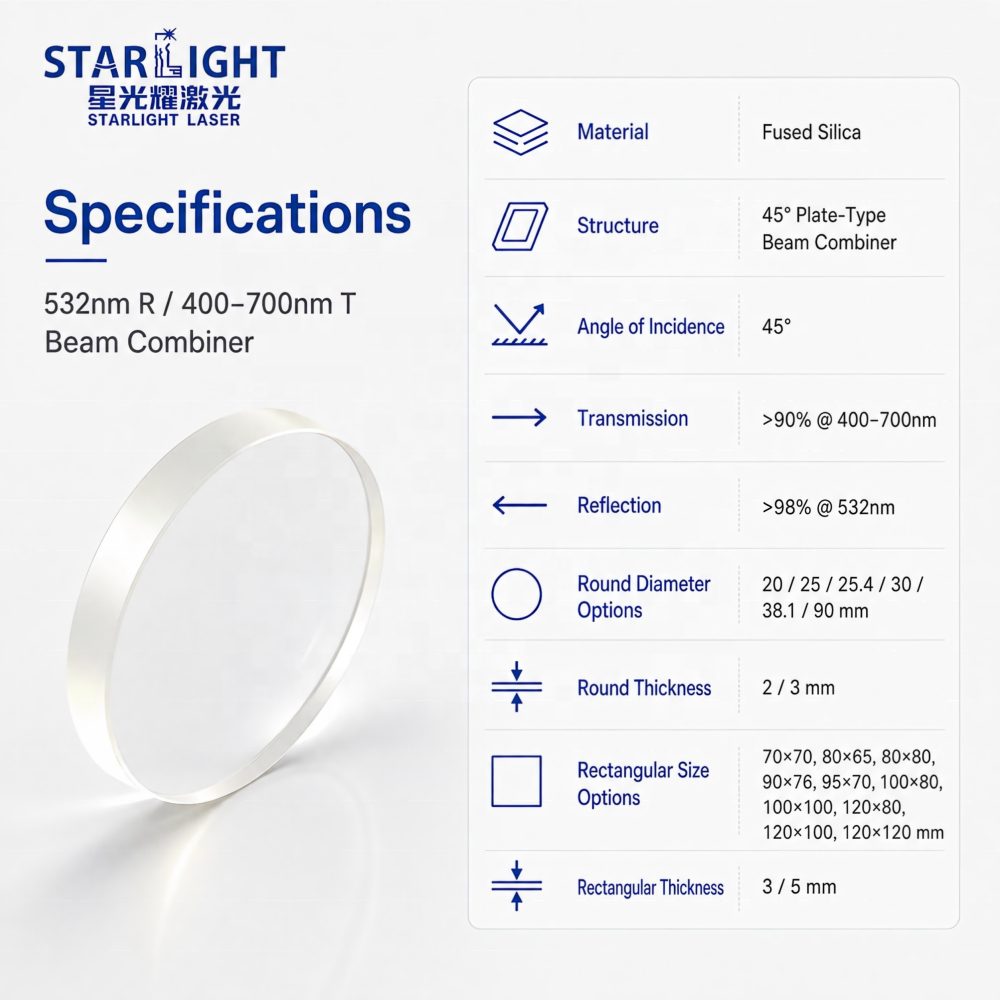

Specification Summary

Item	Value
Material	Fused Silica
Shape	Custom
Size	Custom
Thickness	Custom
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Wavelength	532nm
Warranty	Unavailable
Product Type	Laser Beam Combiner Mirror
Angle Of Incidence	45 Degree

FAQ

Can I get custom sizes?

Yes, the diameter, thickness, and shape can be customized according to different laser equipment requirements.

What is the angle of incidence for this mirror?

The mirror is designed for a 45-degree angle of incidence, suitable for various laser applications.
