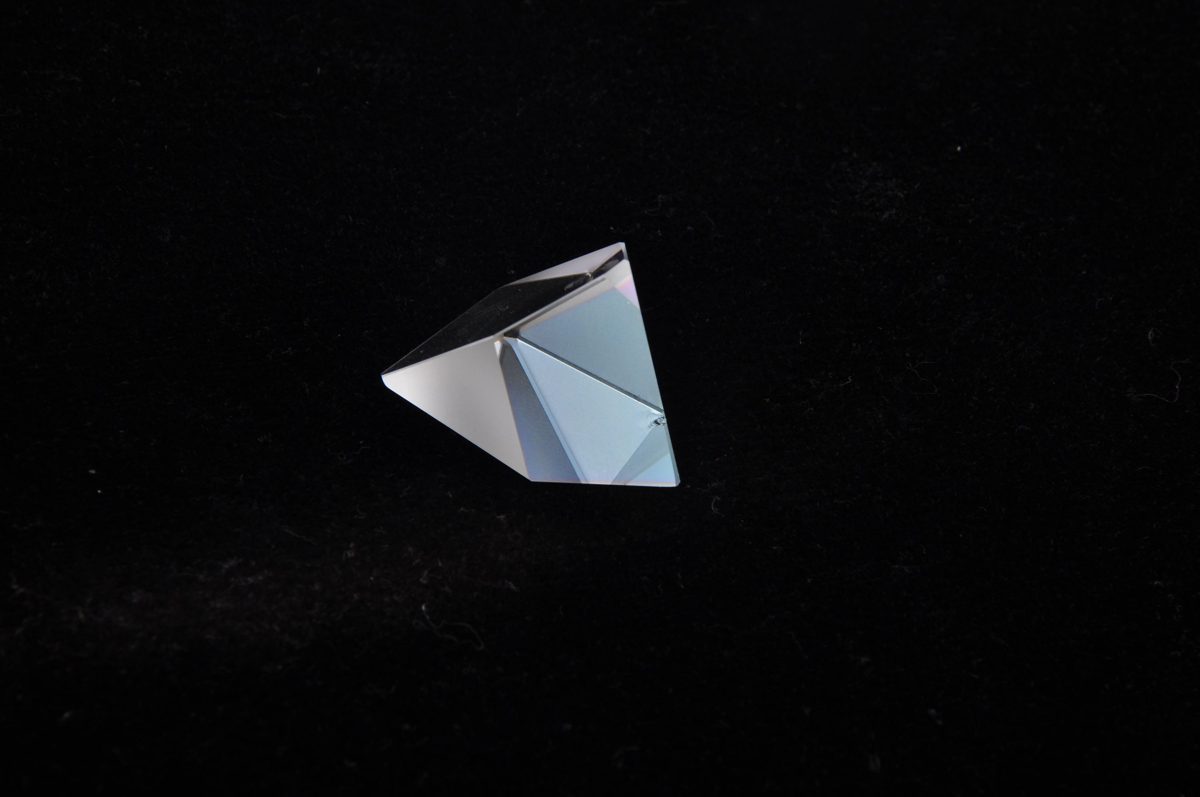

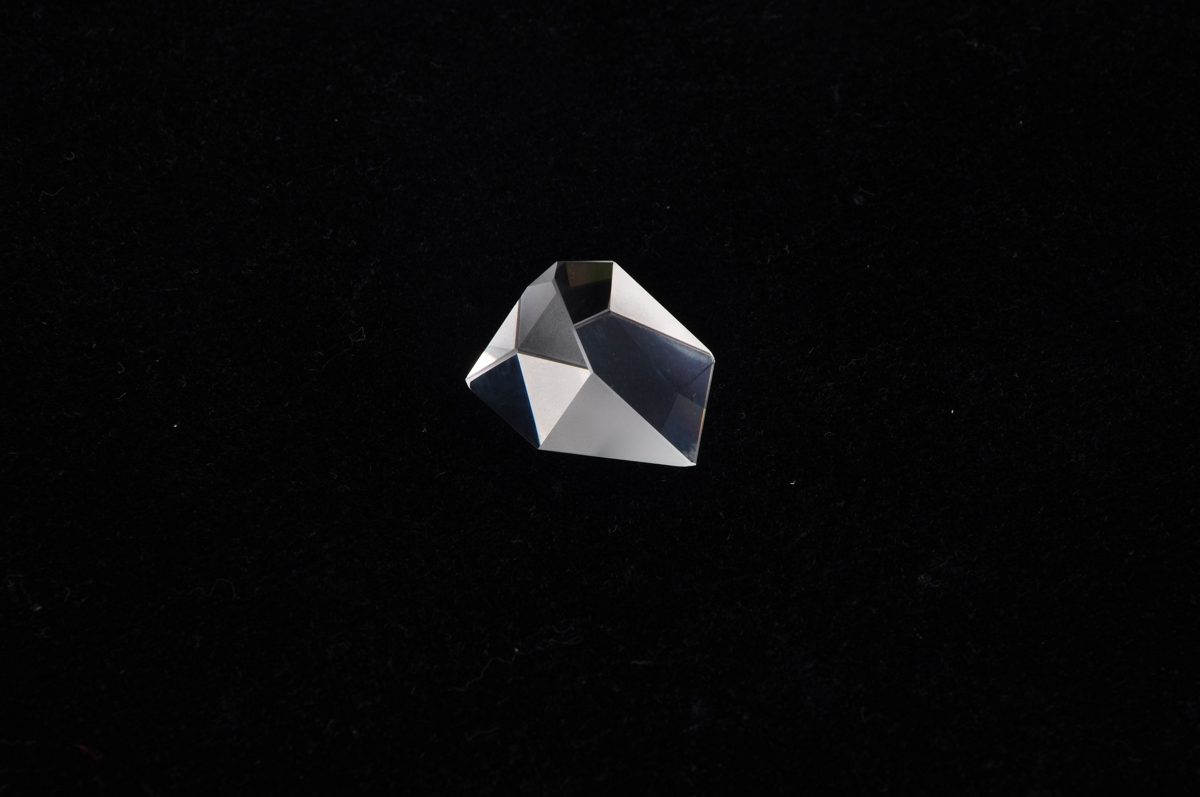

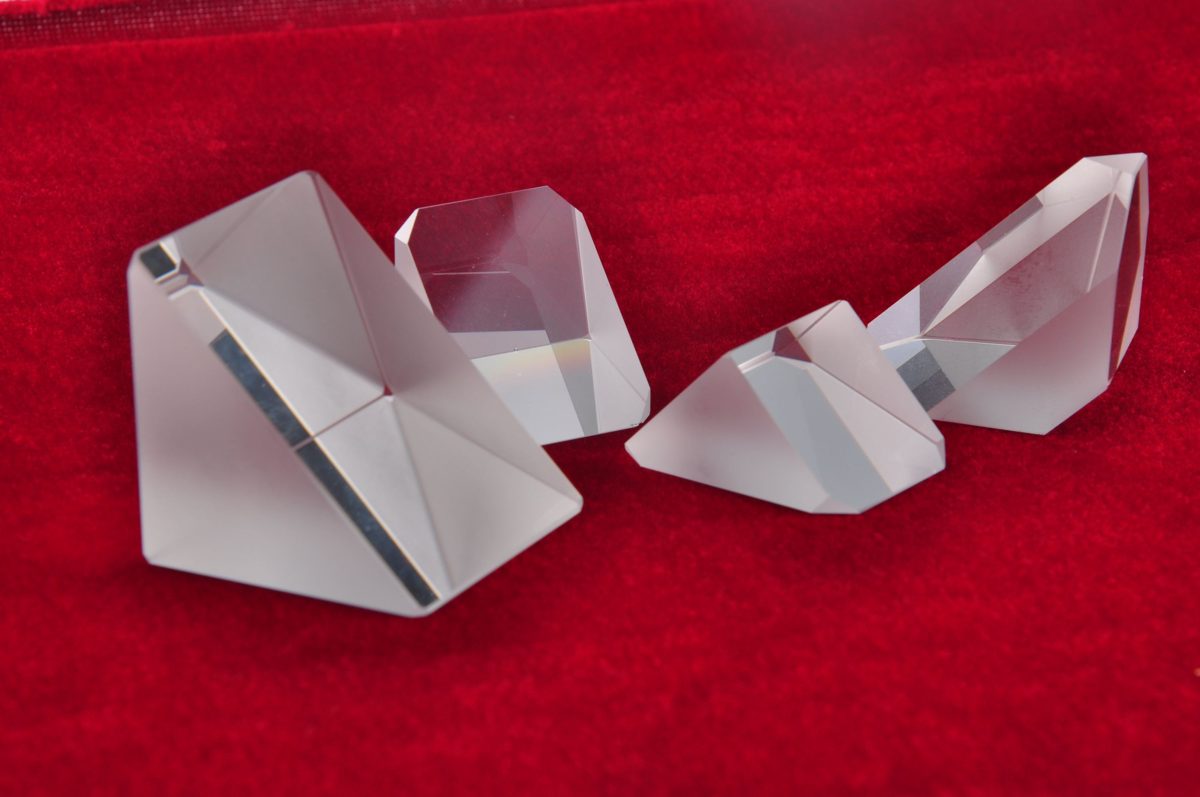

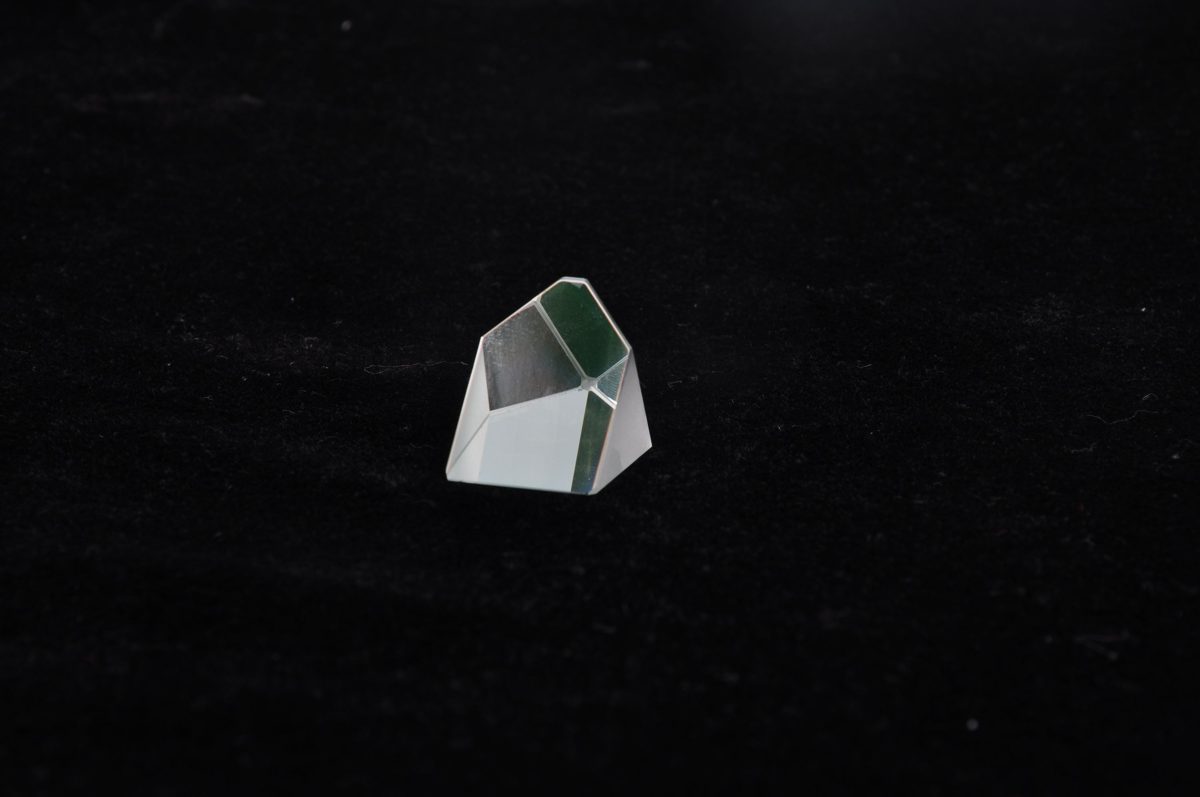

1 / 6Optical Prisms

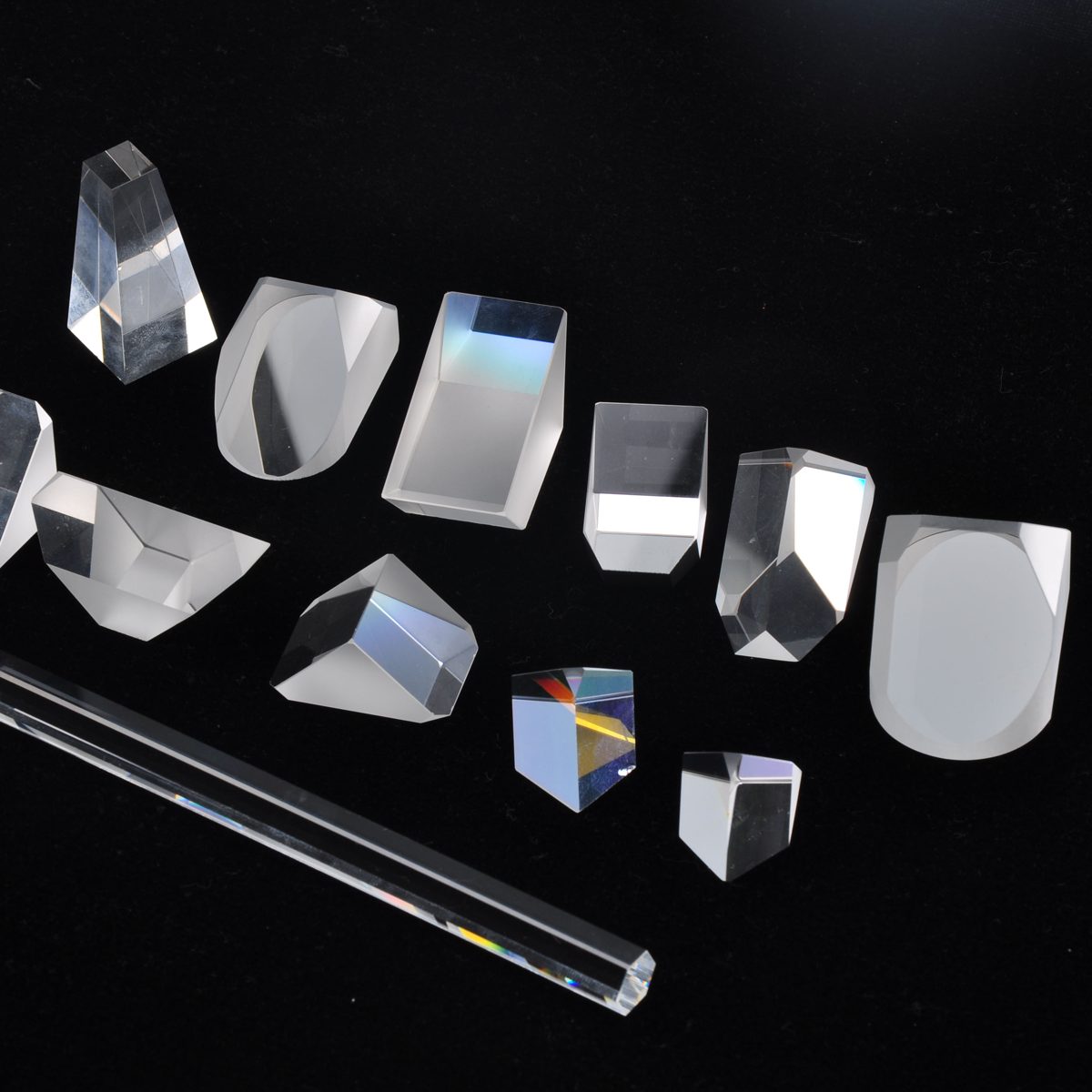

Custom Size Fused Silica Custom Optical Prism, AR Coated
Explore our custom fused silica prisms for surveying with high precision and AR coatings.
Core attributes
- Material
- Fused Silica
- Shape
- Custom
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Custom
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
Product description
Fused silica prisms are essential for precise optical applications, particularly in surveying instruments. Designed to meet stringent angle tolerances of +/-3’’ to 5’’, these prisms ensure accurate beam deviation while providing exceptional surface quality of 20/10. Custom shapes are available, making them suitable for various optical paths and configurations.
Key Features
- Surface quality of 20/10 ensures minimal wavefront distortion.
- Angle tolerance of +/-3’’ to 5’’ guarantees precise beam alignment.
- Custom shapes available for tailored optical paths.
- Diameter tolerance of ±0.005mm supports high-precision applications.
- AR coatings enhance transmittance for improved optical performance.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Custom |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 20/10 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Surveyor’S Prisms |
| Customized Support | OEM, ODM, OBM |
| Diameter Tolerance | ±0.005mm |
| Key Words | BK7 glass light guide triple theodolite prism |
| Angle Tolerance | +/-3’’~5'' |
FAQ
Can I get custom sizes?
Yes, custom shapes and sizes are available to fit specific optical paths.
What are the tolerances for diameter and angle?
Diameter tolerance is ±0.005mm, and angle tolerance is +/-3’’ to 5’'.
