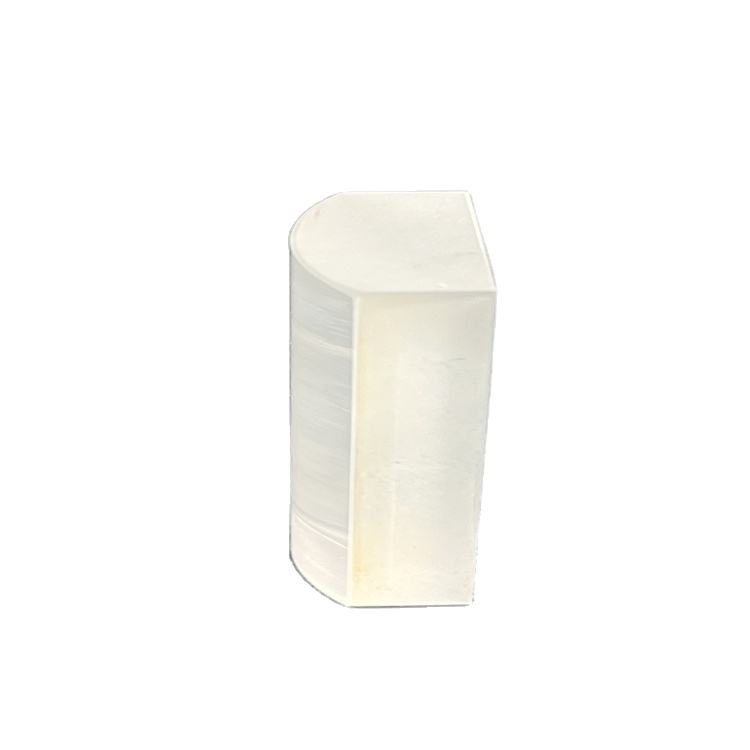

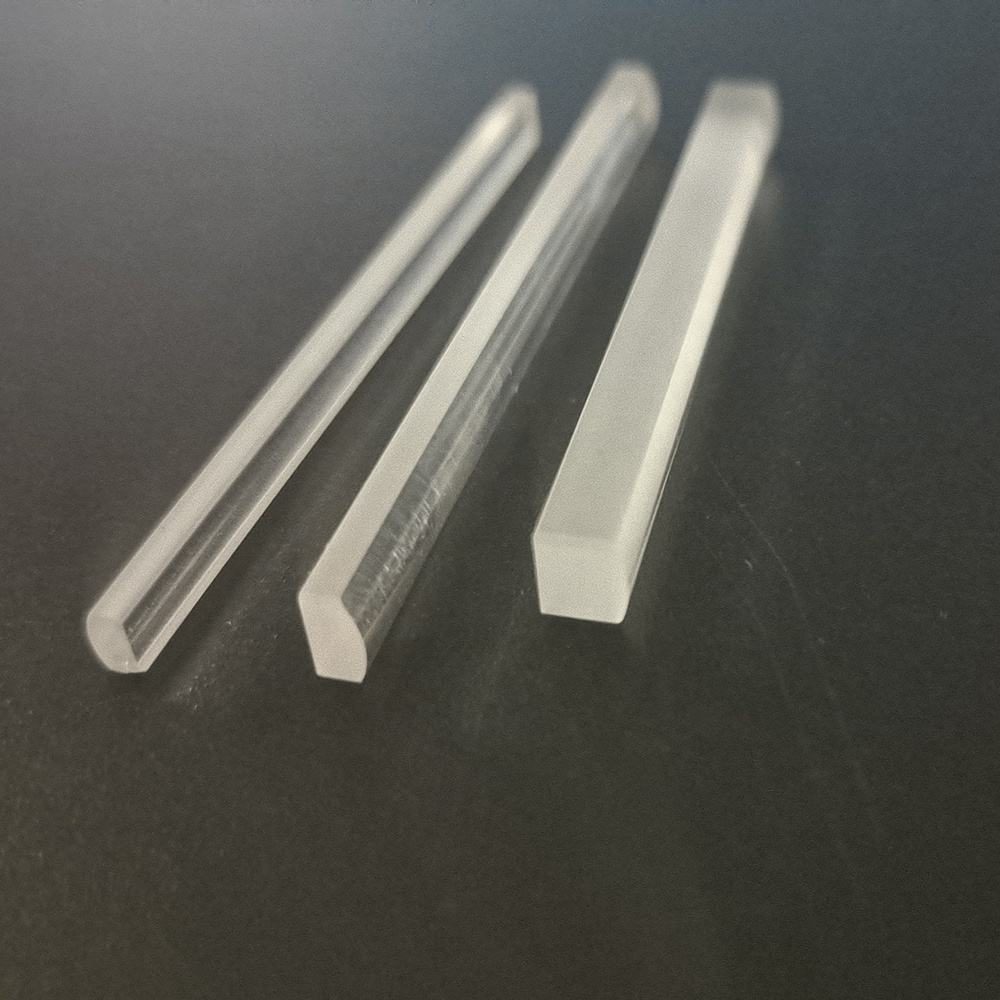

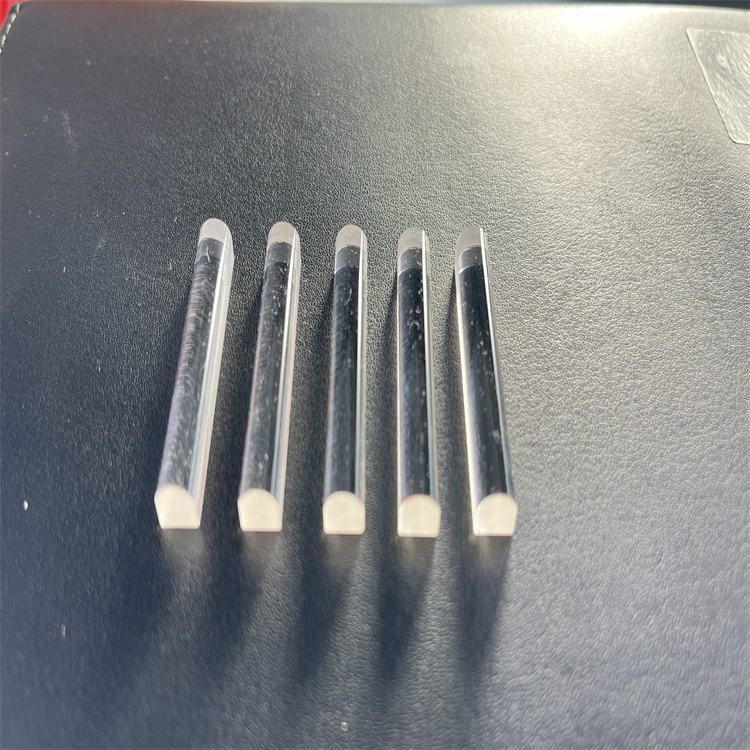

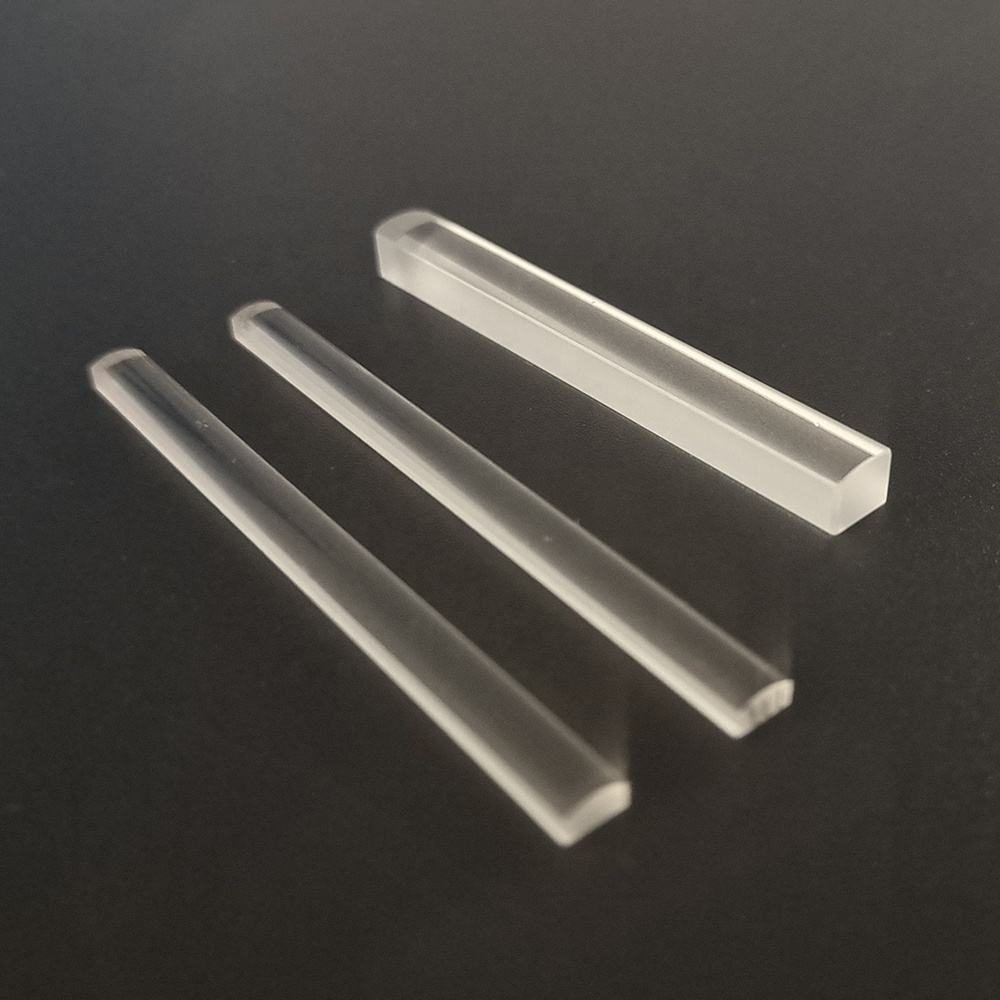

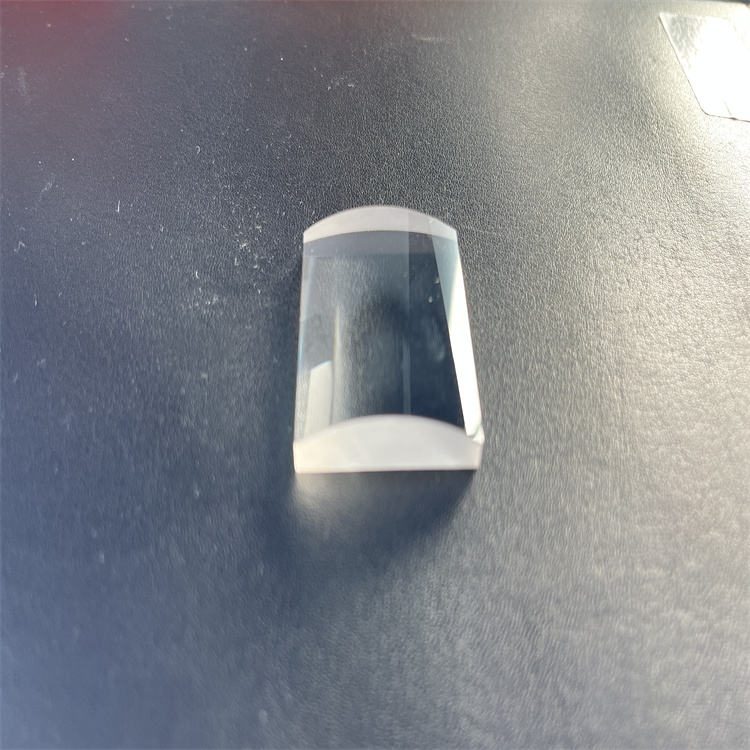

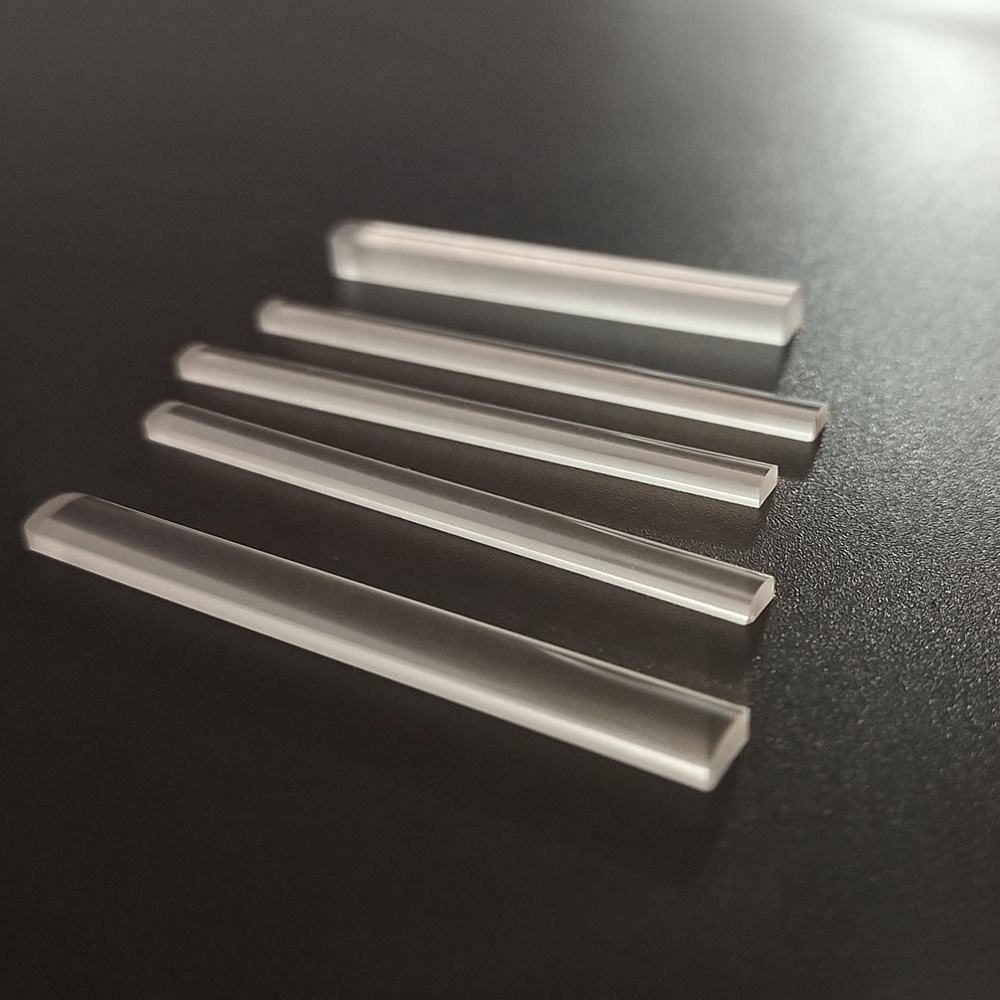

0.5x150 mm Fused Silica Cylindrical Lens, AR Coated
Explore high-quality cylindrical lenses made from fused silica for imaging applications with customizable sizes and precise specifications.
Core attributes
- Material
- Fused Silica
- Shape
- Cylindrical
- Diameter
- 0.5 mm
- Focal Length
- 150 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR), uncoated
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Cylindrical
- Diameter
- 0.5 mm
- Focal Length
- 150 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR), uncoated
Product description
Cylindrical lenses made from fused silica are ideal for imaging applications, offering precise focal lengths of 150.0 mm and a diameter range from 0.45 mm to 400.0 mm. With a surface quality of 40/20 and a centration of less than 3 arc minutes, these lenses ensure high performance and reliability. Available in various sizes, including custom options, they meet diverse optical requirements while maintaining excellent clarity and minimal distortion.
Key Features
- Focal length of 150.0 mm ensures optimal imaging performance.
- Diameter range from 0.45 mm to 400.0 mm for versatile applications.
- Surface quality of 40/20 guarantees minimal surface defects.
- Centration tolerance of <3 arc minutes for precise alignment.
- Custom sizes available to meet specific project needs.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 200.2 x 150 |
Applications
Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Cylindrical |
| Diameter | 0.5 mm |
| Focal Length | 150 mm |
| Surface Quality | 40/20 |
| Coating | anti-reflective (AR), uncoated |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Cylindrical Lenses |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.02 |
| Design Wavelength | 546.1nm or as request |
| Diameter Tolerance | ±0.1mm |
| Centration | <3 arc minutes |
| Clear Aperture | > 90% |
| Flatness | L/4 |
FAQ
What custom sizes are available?
Custom sizes can be provided, including variant sizes like 200.2 mm diameter.
What is the diameter tolerance?
The diameter tolerance for these lenses is ±0.1 mm.
