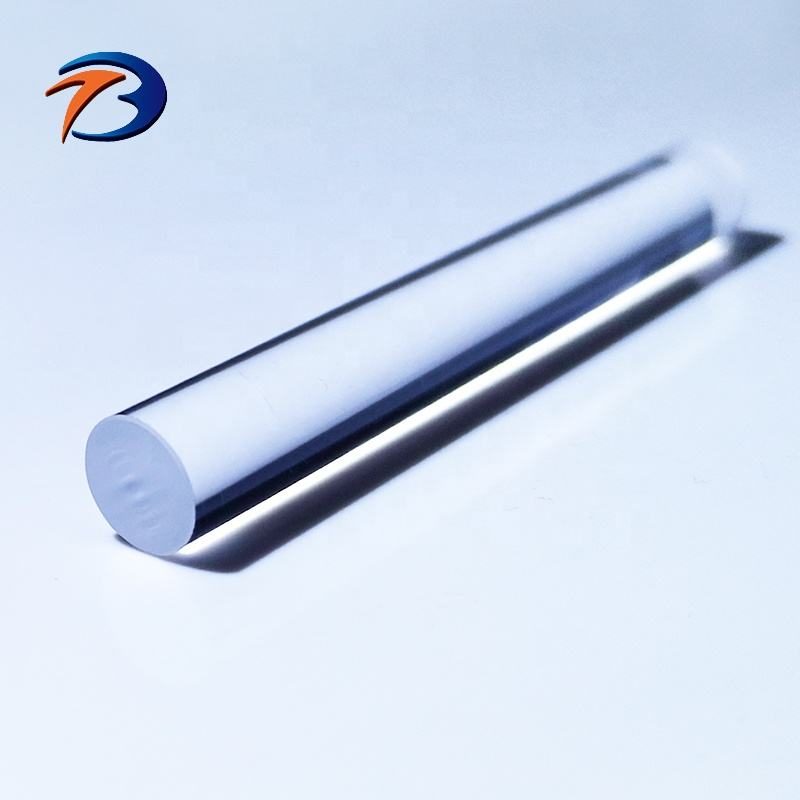

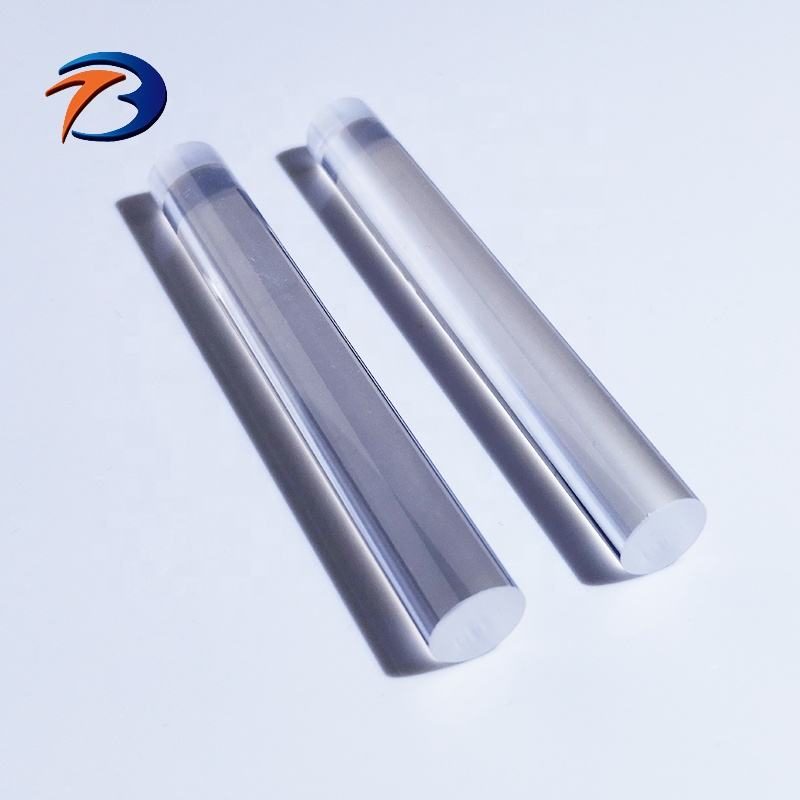

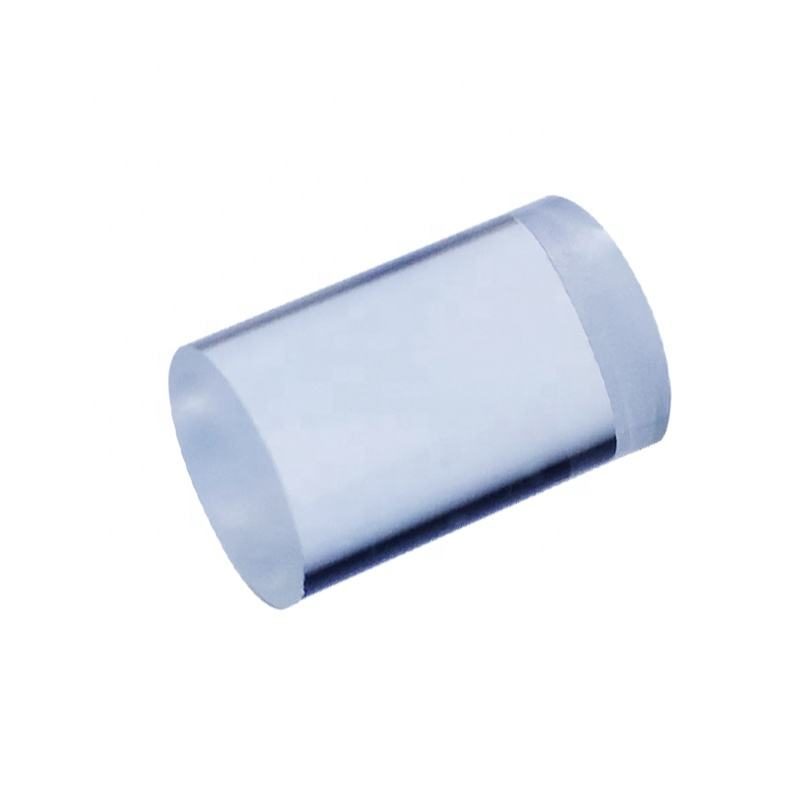

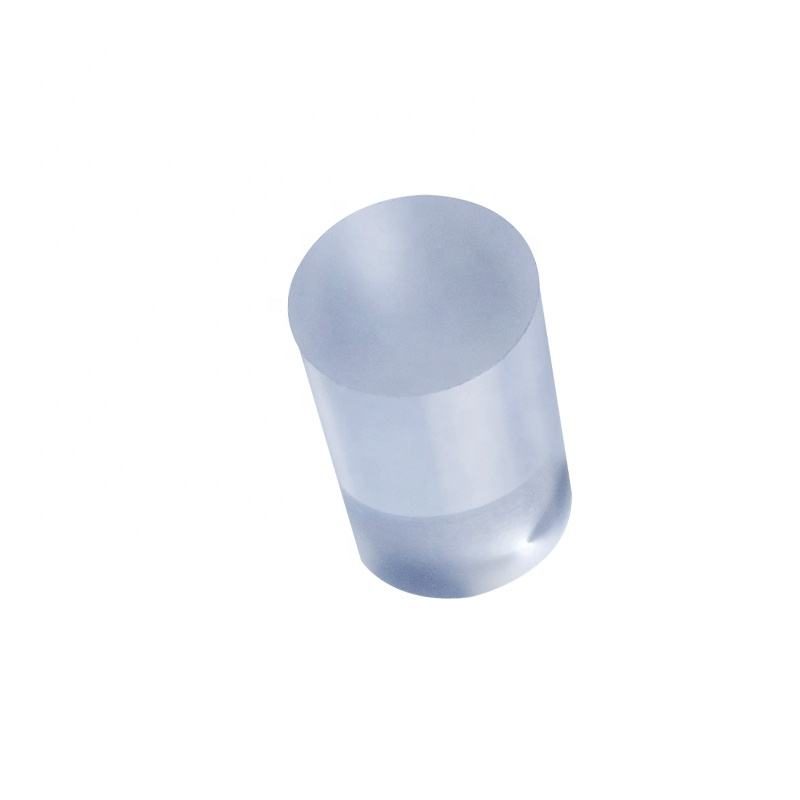

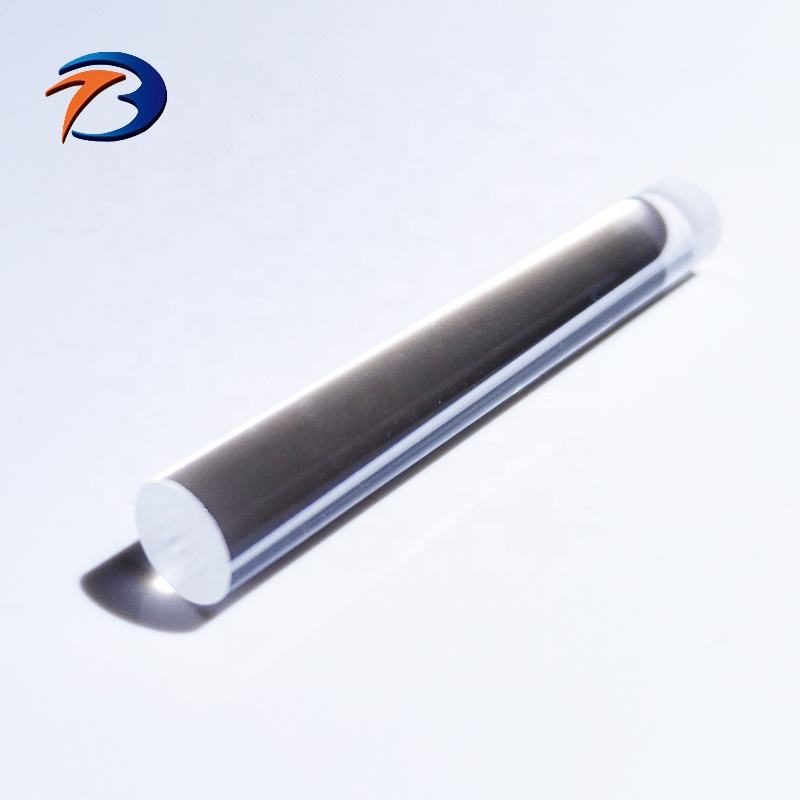

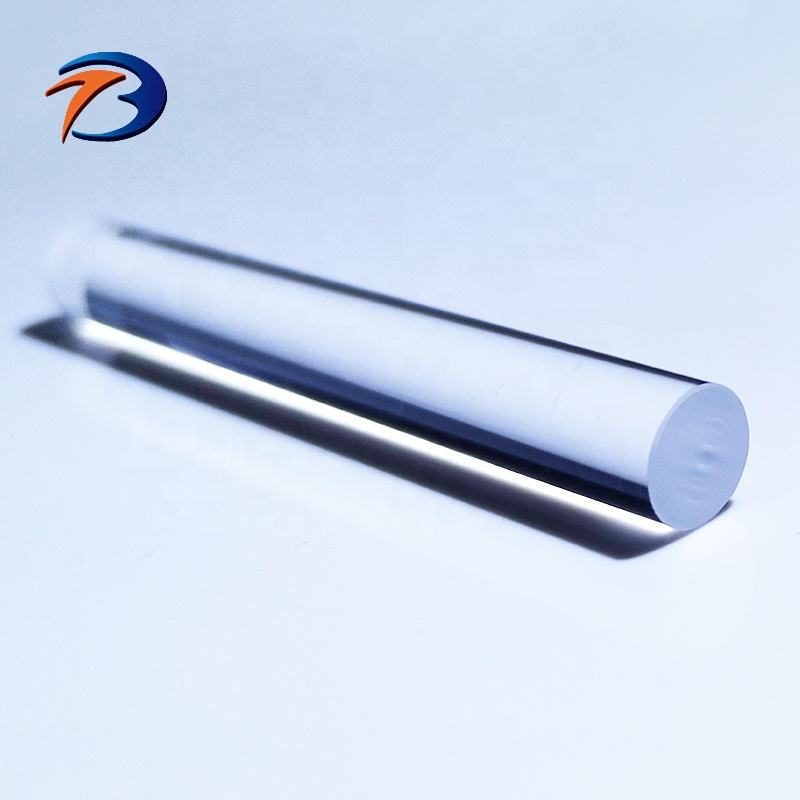

10 mm Fused Silica Cylindrical Lens, AR Coated
Fused silica cylindrical rod lenses for collimation and imaging in 0.7-1.7 μm and 400-700 nm bands. Customizable options available.
Core attributes
- Material
- Fused Silica
- Shape
- Cylindrical
- Diameter
- 10 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Cylindrical
- Diameter
- 10 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
Fused silica cylindrical rod lenses are ideal for applications in collimation and imaging across the 0.7-1.7 μm and 400-700 nm bands. These lenses effectively shape and focus collimated light into a line, making them essential in laser and imaging optical assemblies. With high clarity and customizable options, they cater to various optical needs in diverse environments.
Key Features
- Diameter of 10 mm ensures compatibility with standard optical systems.
- Clear aperture greater than 90% maximizes light transmission for enhanced imaging quality.
- Dimension tolerance of 2.0-350±0.05 mm allows for precise fitting in custom applications.
- Focal length tolerance of ±1% ensures consistent performance across batches.
- OEM and ODM support available for tailored solutions to meet specific project requirements.
Applications
Collimation, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Cylindrical |
| Diameter | 10 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM |
| Warranty | 1year |
| Dimension Tolerance | 2.0-350±0.05mm |
| Thickness Tolerance | 1-70±0.05mm |
| Focal Length Tolerance | ±1 % |
| Clear Aperture | >90% |
| Type | Optical lens |
FAQ
Can I get custom sizes for these lenses?
Yes, OEM and ODM support is available for customized solutions.
What is the minimum order quantity (MOQ)?
The MOQ is not specified, allowing flexibility in order sizes.
