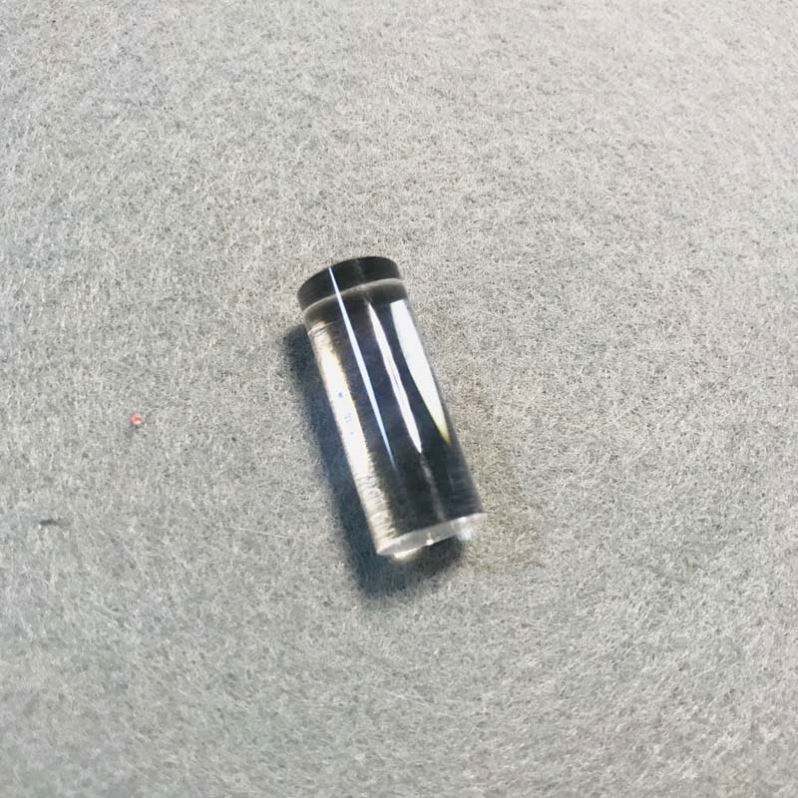

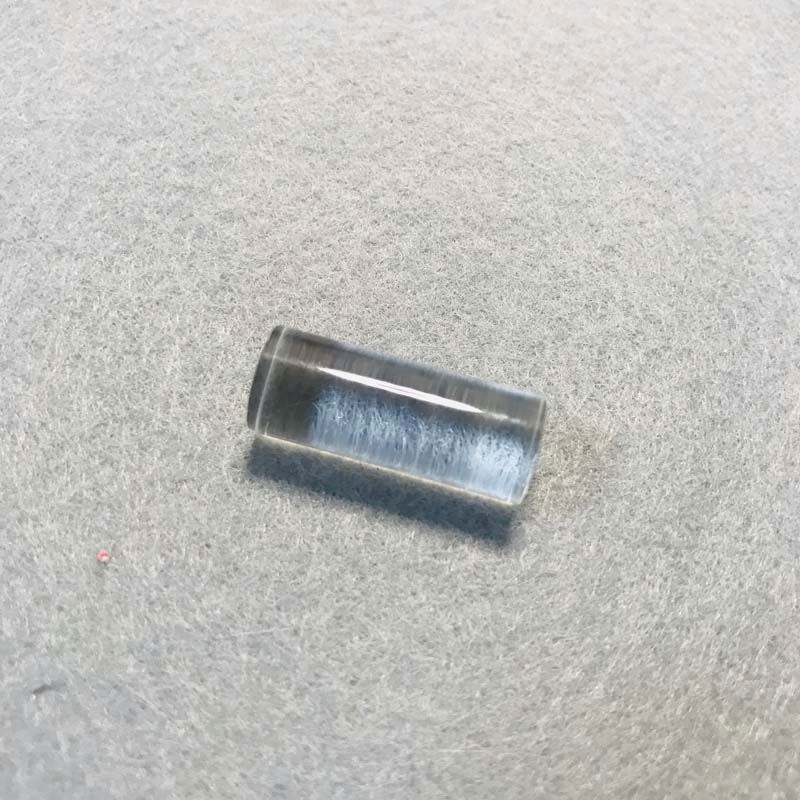

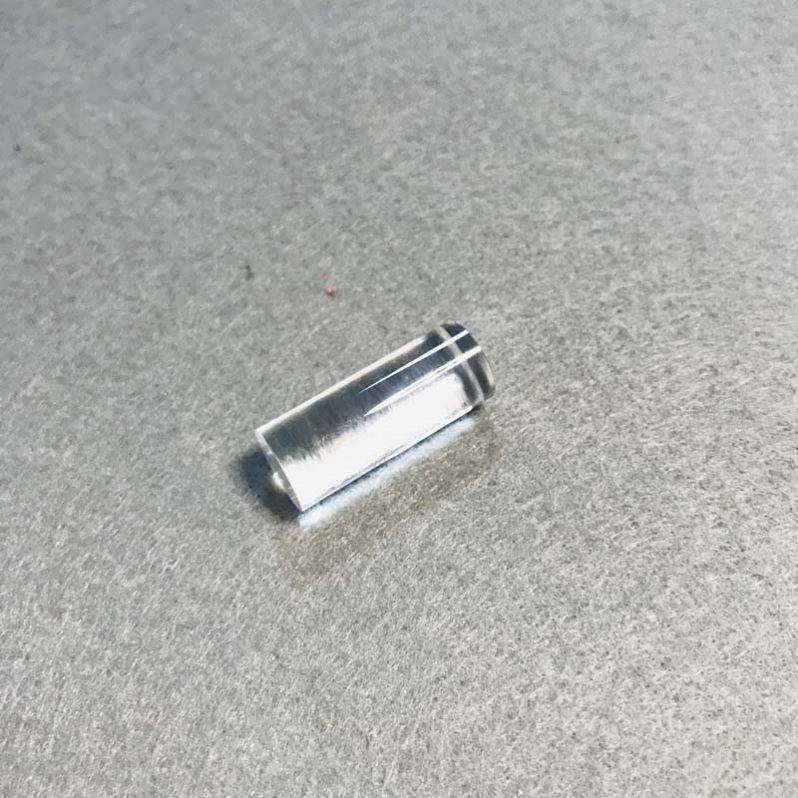

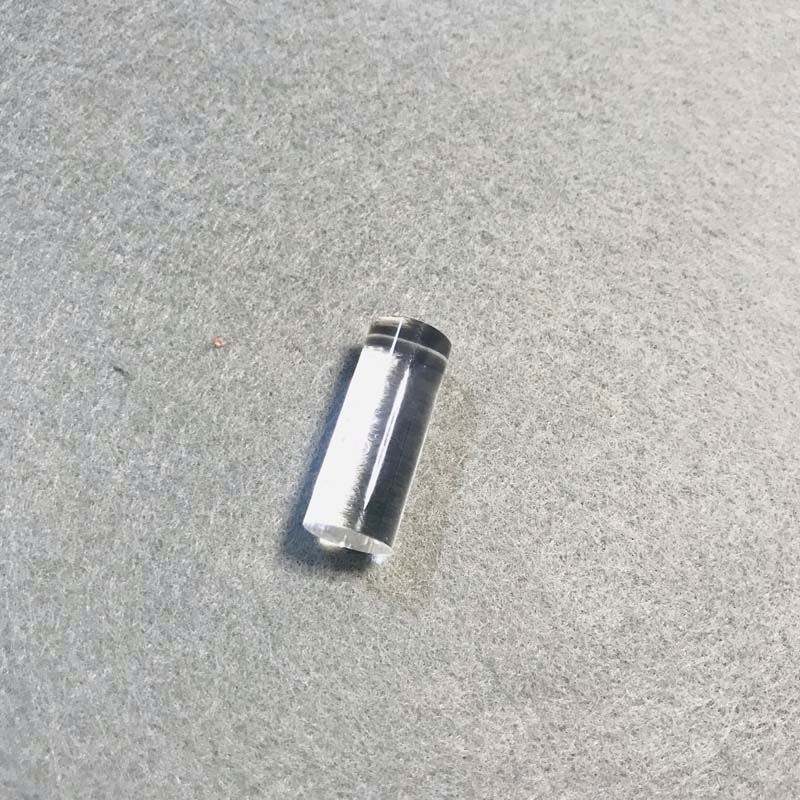

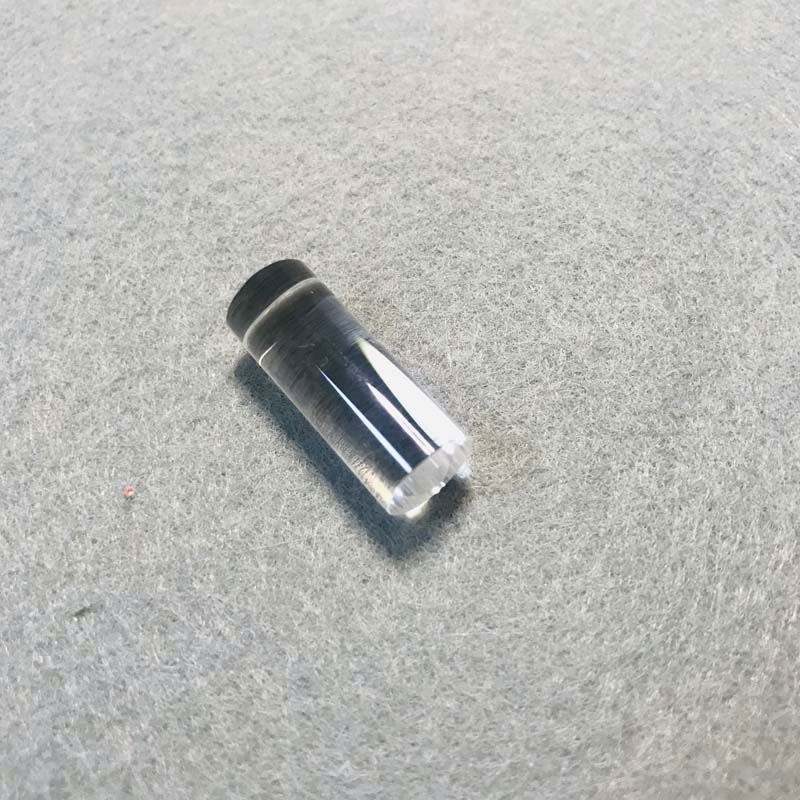

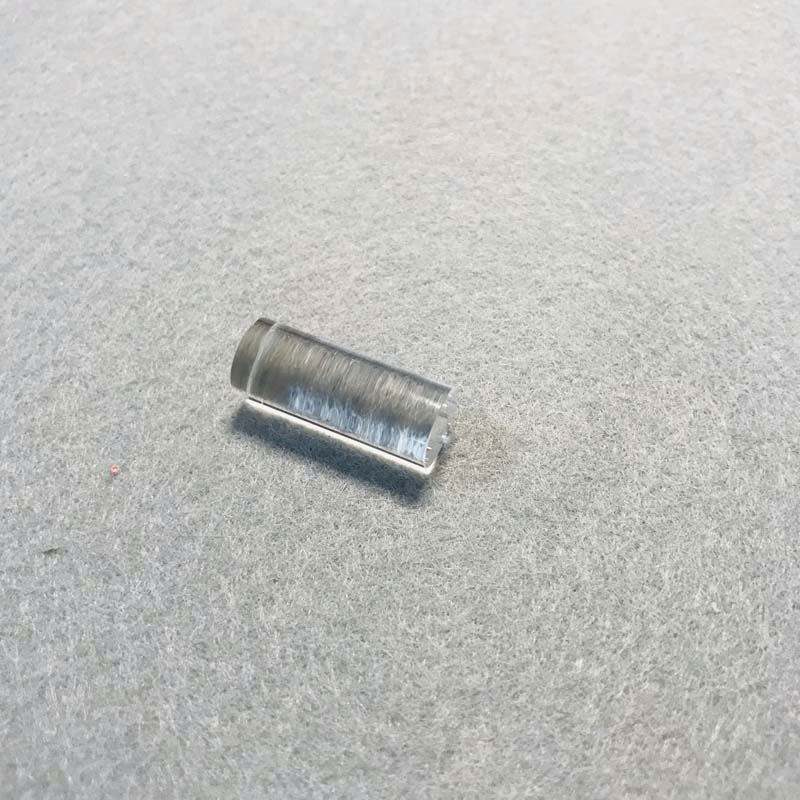

1 mm Fused Silica Cylindrical Lens
Explore our fused silica cylindrical rod lens for laser cutting and thermal imaging applications, customizable for your needs.
Core attributes
- Material
- Fused Silica
- Shape
- Cylindrical
- Diameter
- 1 mm
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Cylindrical
- Diameter
- 1 mm
- Transmission bands
- VIS (400-700 nm)
Product description
The cylindrical rod lens made from fused silica is ideal for applications in laser cutting, thermal imaging, and medical devices, particularly within the 400-700 nm wavelength range. Its design allows for effective collimation and imaging, focusing collimated light into a line. This versatility makes it suitable for various R&D projects requiring precise optical performance. Custom sizes and tolerances can be accommodated to fit specific application needs.
Key Features
- Diameter: 1.0 mm, ensuring compatibility with compact systems.
- Dimension tolerance of +0/-0.05 mm for precise integration.
- Surface figure of Lambda/4 or better @632.8 nm for high optical quality.
- Clear aperture of 90% of diameter for effective light transmission.
- Customized support available for OEM, ODM, and OBM projects.
Applications
Laser Cutting, Thermal Imaging, Medical, Collimation, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Cylindrical |
| Diameter | 1 mm |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens, Fresnel Lens, Aspherical Lens, Concave Lens, Achromatic Lens, Plano… |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.01 |
| Design Wavelength | Custmer Design |
| Dimension Tolerance | +0/-0.05mm |
| Thickness Tolerance | +/-0.1mm |
| Surface Figure | Lambda/4 or Better @632.8nm |
| Clear Aperture | 90% of Diameter |
| Bevel | Customer Design |
FAQ
What are the available custom sizes?
Custom sizes can be provided, accommodating various applications.
What is the minimum order quantity (MOQ)?
Specific MOQ details are not provided but can be discussed upon inquiry.
