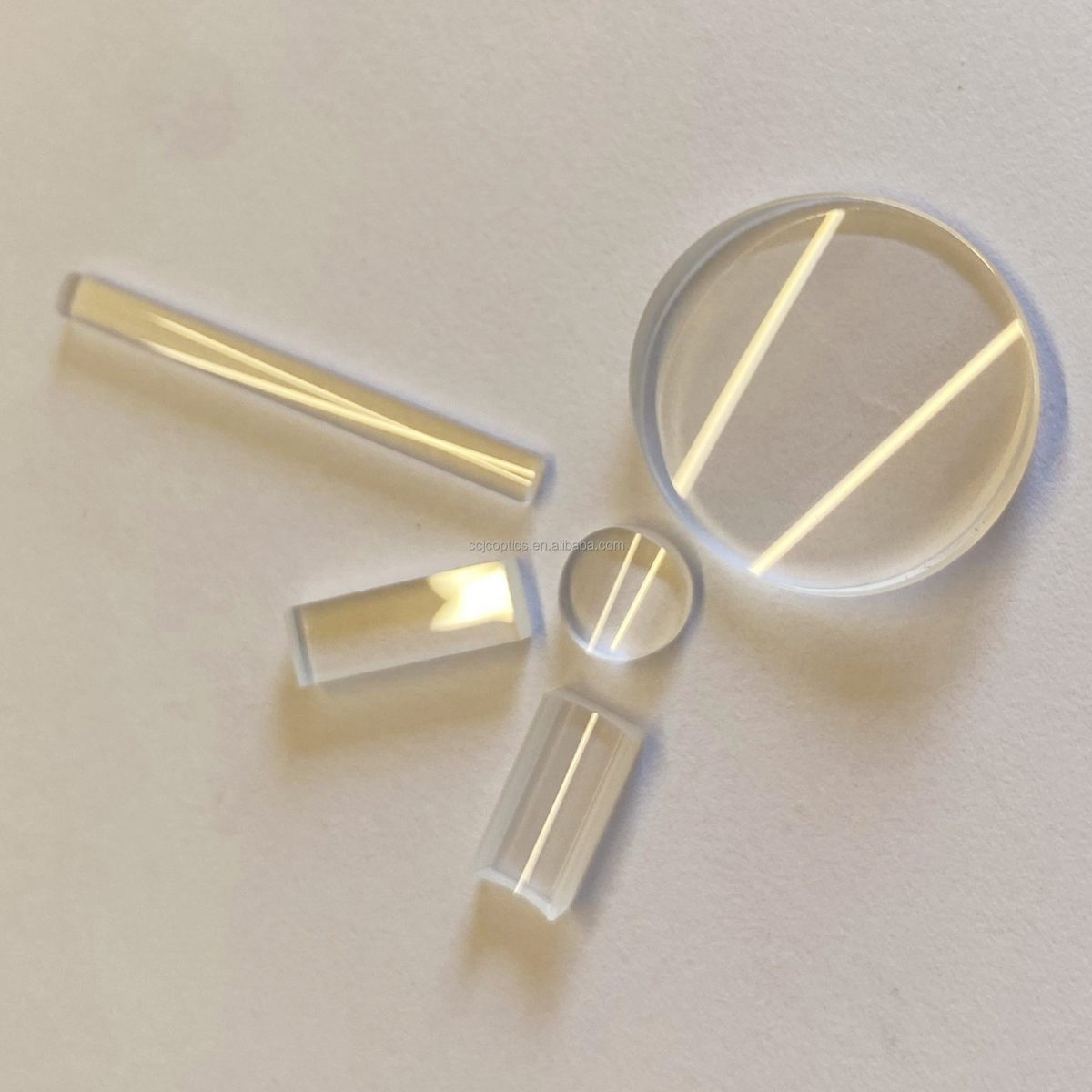

2 mm Fused Silica Cylindrical Lens, AR Coated
Acylinder lenses for precise light focusing in monochromatic applications, with customizable sizes and high optical quality.
Core attributes
- Material
- Fused Silica
- Shape
- Cylindrical
- Diameter
- 2 mm
- Surface Quality
- 1/4
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- Fused Silica
- Shape
- Cylindrical
- Diameter
- 2 mm
- Surface Quality
- 1/4
- Coating
- anti-reflective (AR)
Product description
Acylinder lenses are designed for applications requiring precise light focusing in a single dimension. Ideal for monochromatic light sources, these lenses minimize spherical aberration, resulting in sharper, thinner line profiles. With a diameter range from 2.0 mm to 300.0 mm, they cater to various optical setups, ensuring optimal performance in IR imaging, LIDAR, and other precision applications.
Key Features
- Diameter range: 2.0 mm to 300.0 mm for versatile integration.
- Surface quality of 1/4 ensures high optical clarity and performance.
- Dimension tolerance of +0.0/-0.1 mm for precise fitting in applications.
- Centration accuracy of <3’ for enhanced alignment in optical systems.
- Clear aperture greater than 90% for maximum light transmission.
Specification Summary
| Item | Value |
|---|---|
| Material | Fused Silica |
| Shape | Cylindrical |
| Diameter | 2 mm |
| Surface Quality | 1/4 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens, Aspherical Lens, Concave Lens, Achromatic Lens, Plano Convex Lens… |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.04 |
| Dimension | 1.0mm-200.0 mm |
| Focus Length | 1mm-100000mm |
| Dimension Tolerance | +0.0/-0.1mm |
| Thickness Tolerance | ±0.1mm |
| Centration | <3' |
| Clear Aperture | >90% |
| Bevelling | <0.2x45° |
FAQ
What are the available custom sizes?
Lenses can be customized within a diameter range of 1.0 mm to 200.0 mm.
What is the tolerance for dimensions?
The dimension tolerance is +0.0/-0.1 mm, ensuring precise fitting.
